16 DI / 16 DO Transistor
Combines 16 digital inputs and 16 transistor digital outputs in a single S7-1200 signal module.
SIEMENS
SIEMENS 6ES7223-1BL32-0XB0 PLC Module 24VDC 16 DI 16 DO
$90.71
Available
PRODUCT GALLERY
01 / 5

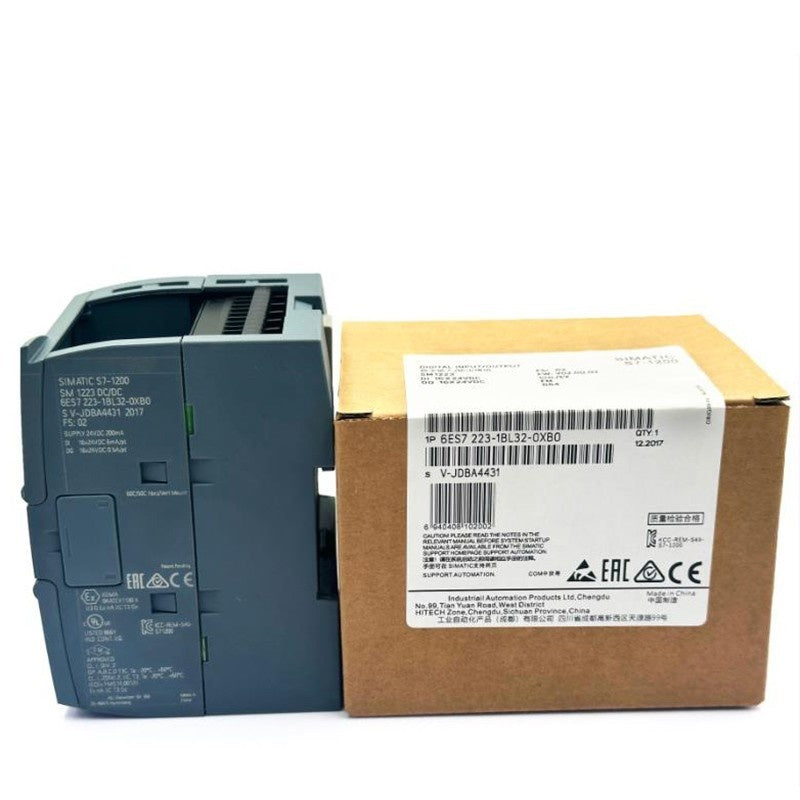

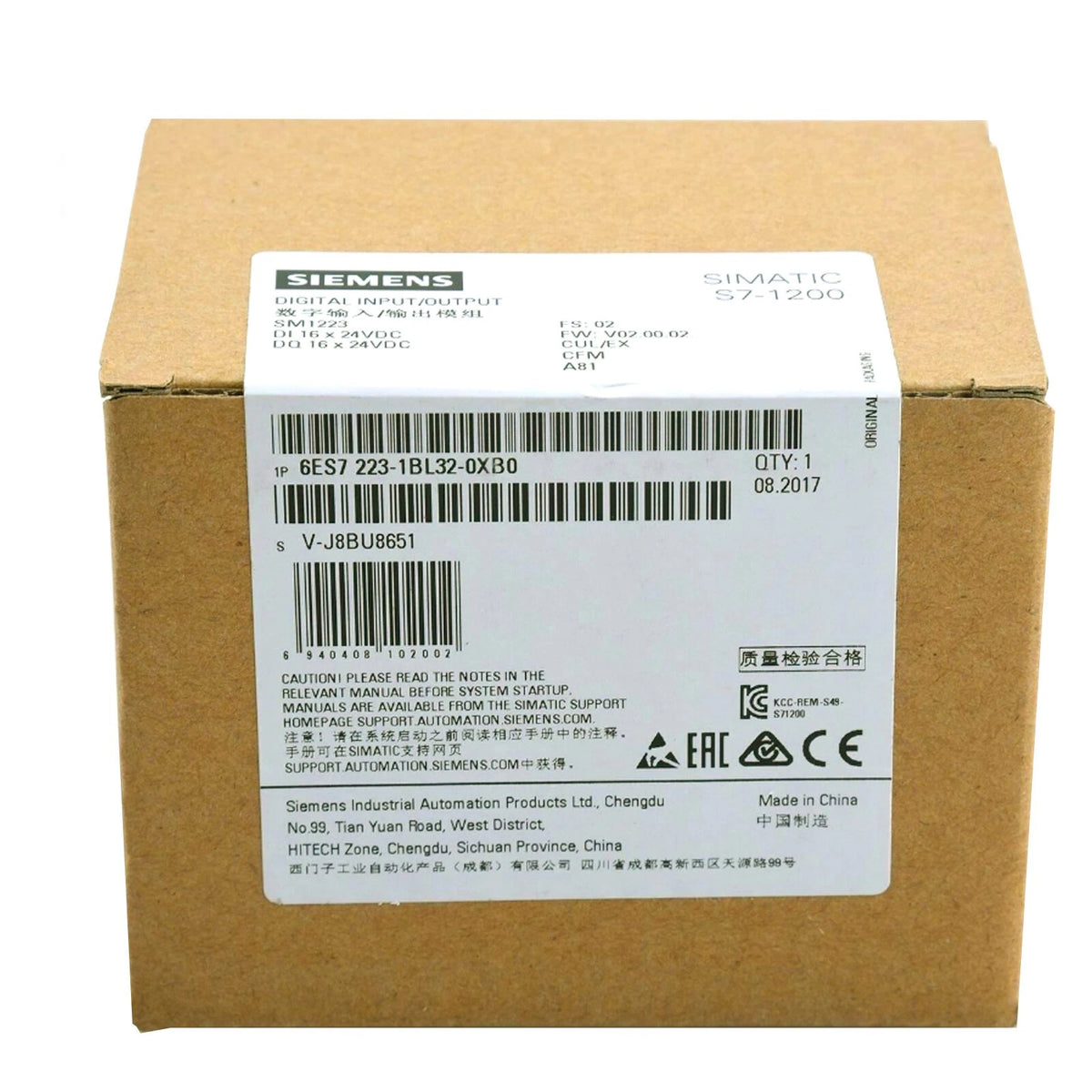

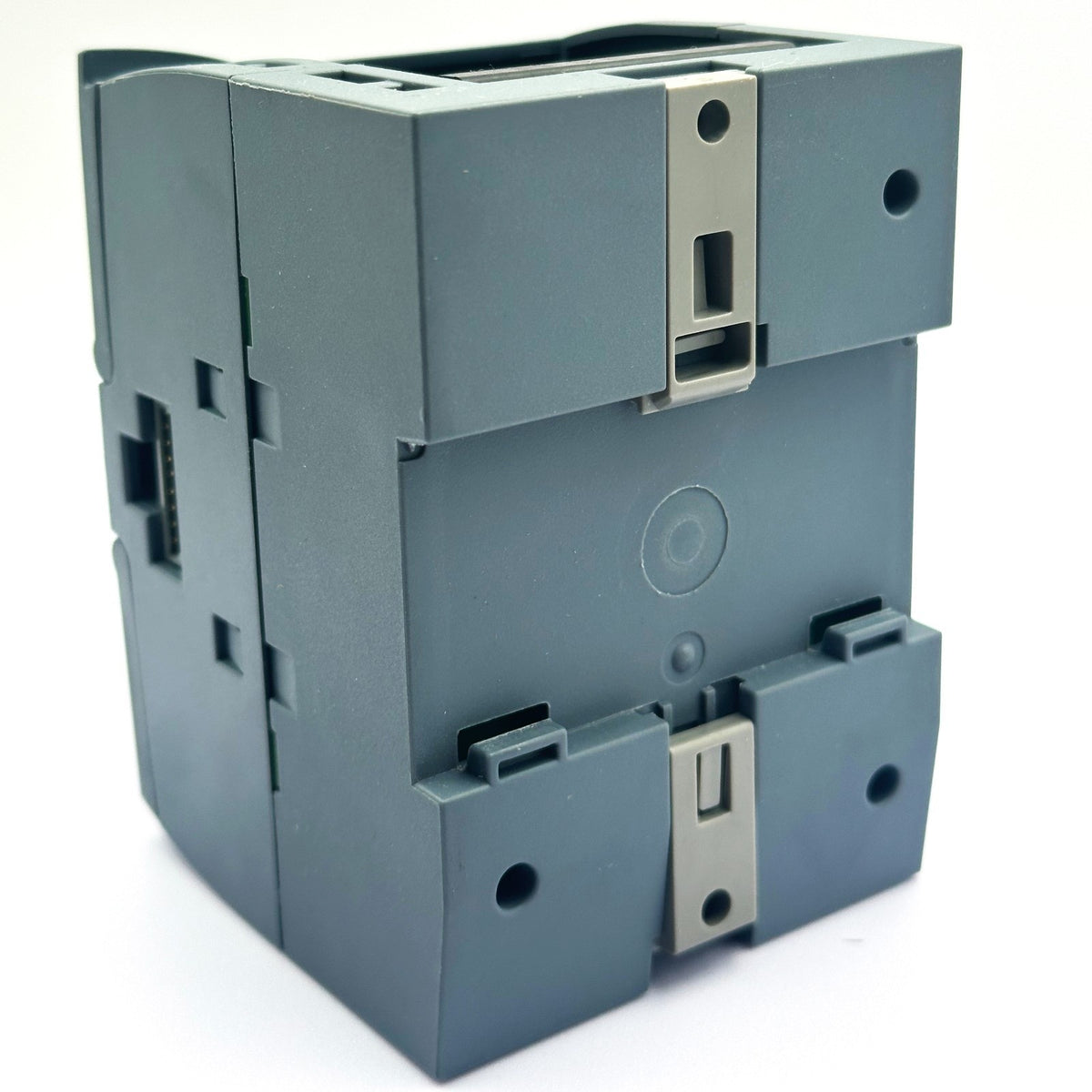

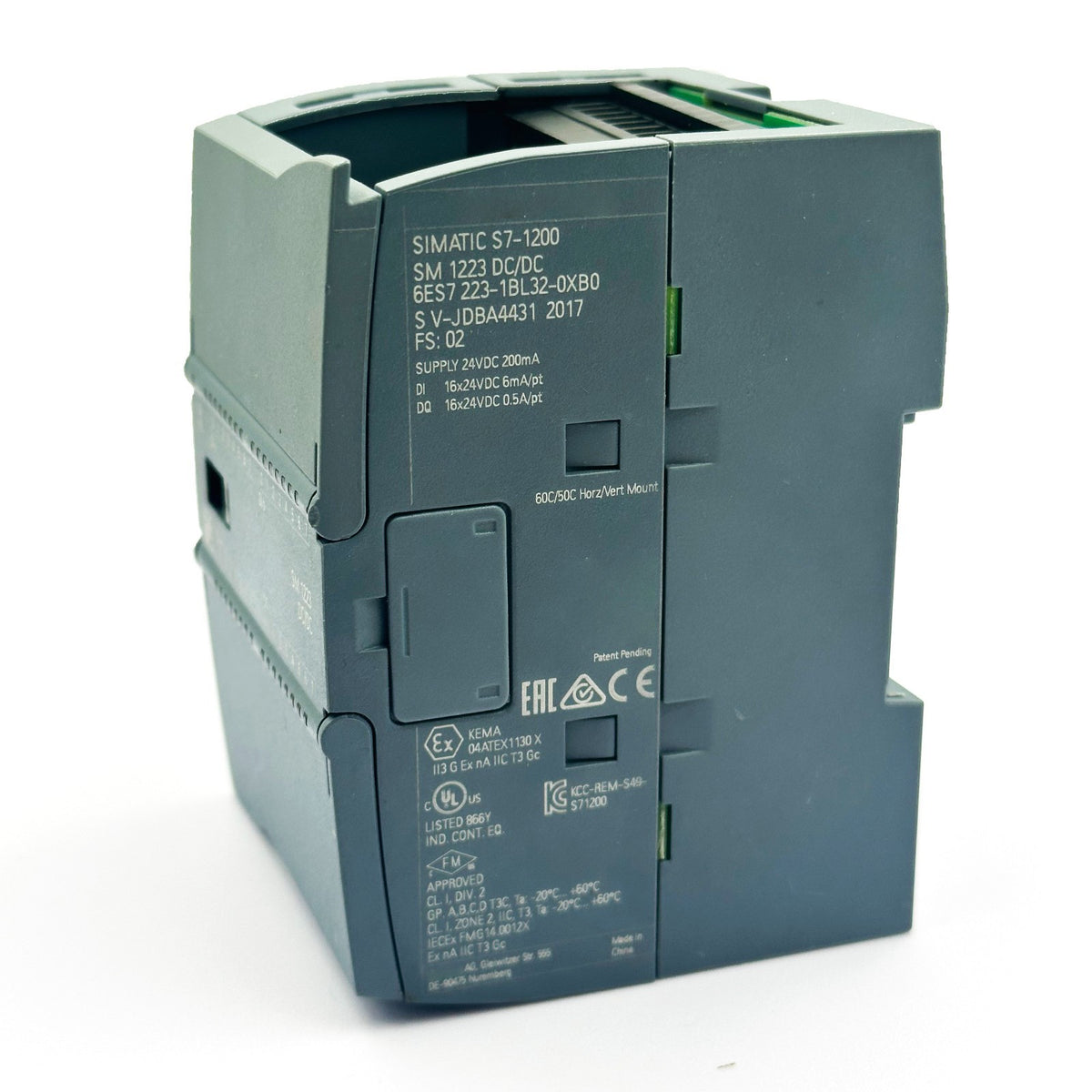

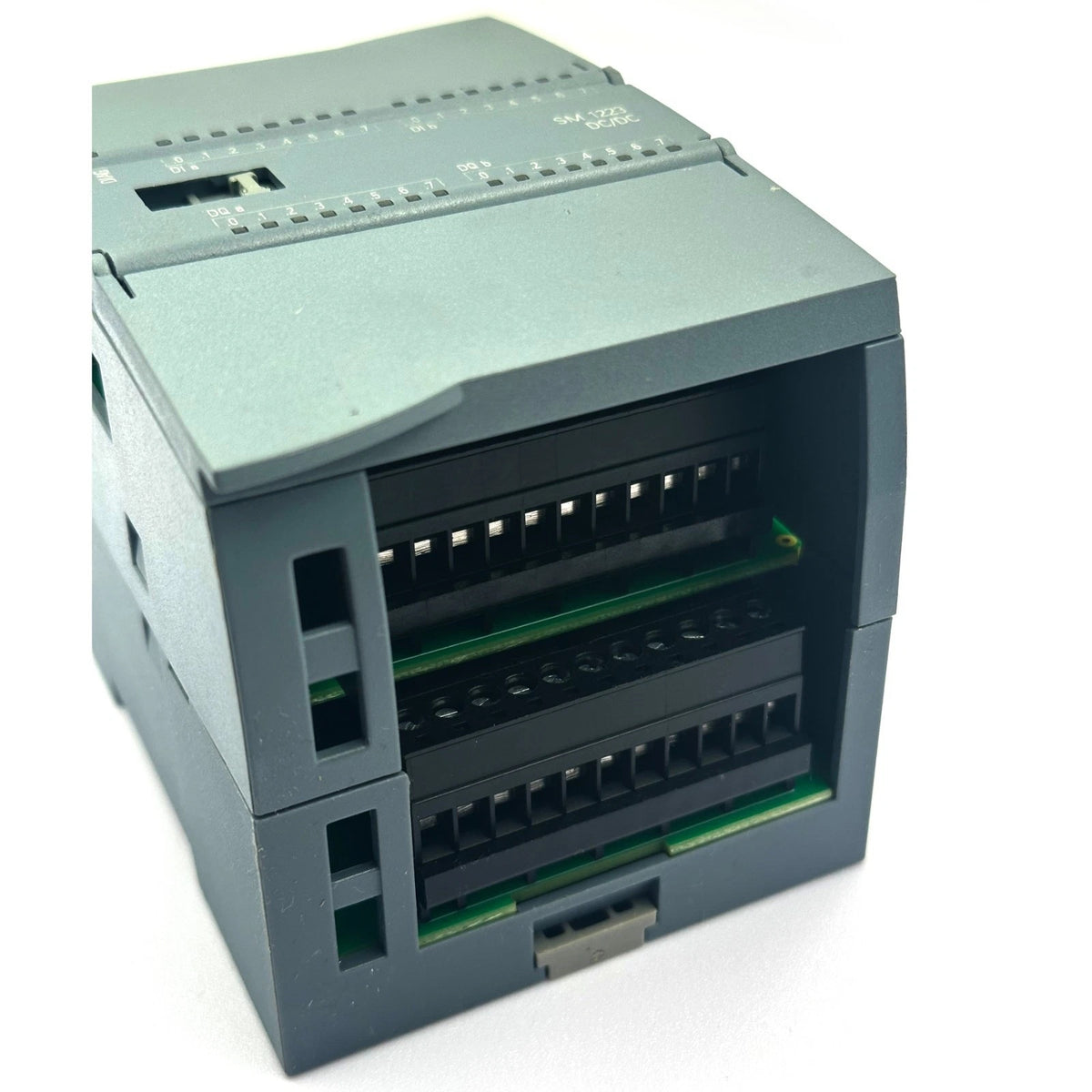

Product images for part identification
SIEMENS
SIEMENS 6ES7223-1BL32-0XB0 PLC Module 24VDC 16 DI 16 DO
PRODUCT PRICE
USD
$90.71
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7223-1BL32-0XB0 |
| Product Category | PLC Module |
| Product Family | SIMATIC S7-1200 |
| Module Type | SM 1223 Digital I/O Module |
| Digital Inputs | 16 DI, 24 V DC, Sink/Source |
| Digital Outputs | 16 DO, Transistor 0.5 A |
| Supply Voltage | 24 V DC |
| Output Current per Point | 0.5 A |
| Operating Temperature | -20°C to +60°C |
| Backplane Bus Current | 185 mA |
Key Features
0.5 A Transistor Outputs
Transistor outputs rated at 0.5 A per point for fast, wear-free switching of DC loads.
Sink/Source Inputs
Digital inputs support sink/source wiring for compatibility with various sensor output types.
S7-1200 Integration
Designed as a signal module for the SIMATIC S7-1200 controller family.
Compact Design
Space-efficient module format for control cabinet installation.
Applications
- High-speed DC load switching with transistor outputs
- Input and output expansion for S7-1200 PLCs
- Sensor signal acquisition in automation systems
- Control of solenoids, relays, and small DC actuators
- Machine control panels
- Industrial process automation
- Packaging and material handling systems
- Discrete manufacturing control
Purchase Information
We support online purchase of the SIEMENS 6ES7223-1BL32-0XB0 PLC Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7223-1BL32-0XB0? It is a SIMATIC S7-1200 SM 1223 digital I/O module with 16 digital inputs and 16 transistor outputs.
How many digital inputs does it have? The module provides 16 digital inputs rated for 24 V DC with sink/source capability.
What type of outputs does it use? It has 16 transistor outputs rated at 0.5 A per point.
What is the supply voltage? The module operates with a 24 V DC supply.
What is the operating temperature range? The operating temperature range is -20°C to +60°C.
What is the backplane bus current consumption? The module draws 185 mA from the backplane bus.
Are the outputs relay or transistor type? The outputs are transistor type, suitable for DC load switching.
What should be checked before ordering? Confirm the required input/output count, output type and current rating, and compatibility with the S7-1200 system.
