16 Relay Outputs
Provides sixteen relay digital outputs for switching a wide range of AC and DC loads in S7-1200 systems.
SIEMENS
SIEMENS 6ES7222-1HH32-0XB0 Output Module 16 Relay Outputs
$92.48
Available
PRODUCT GALLERY
01 / 1

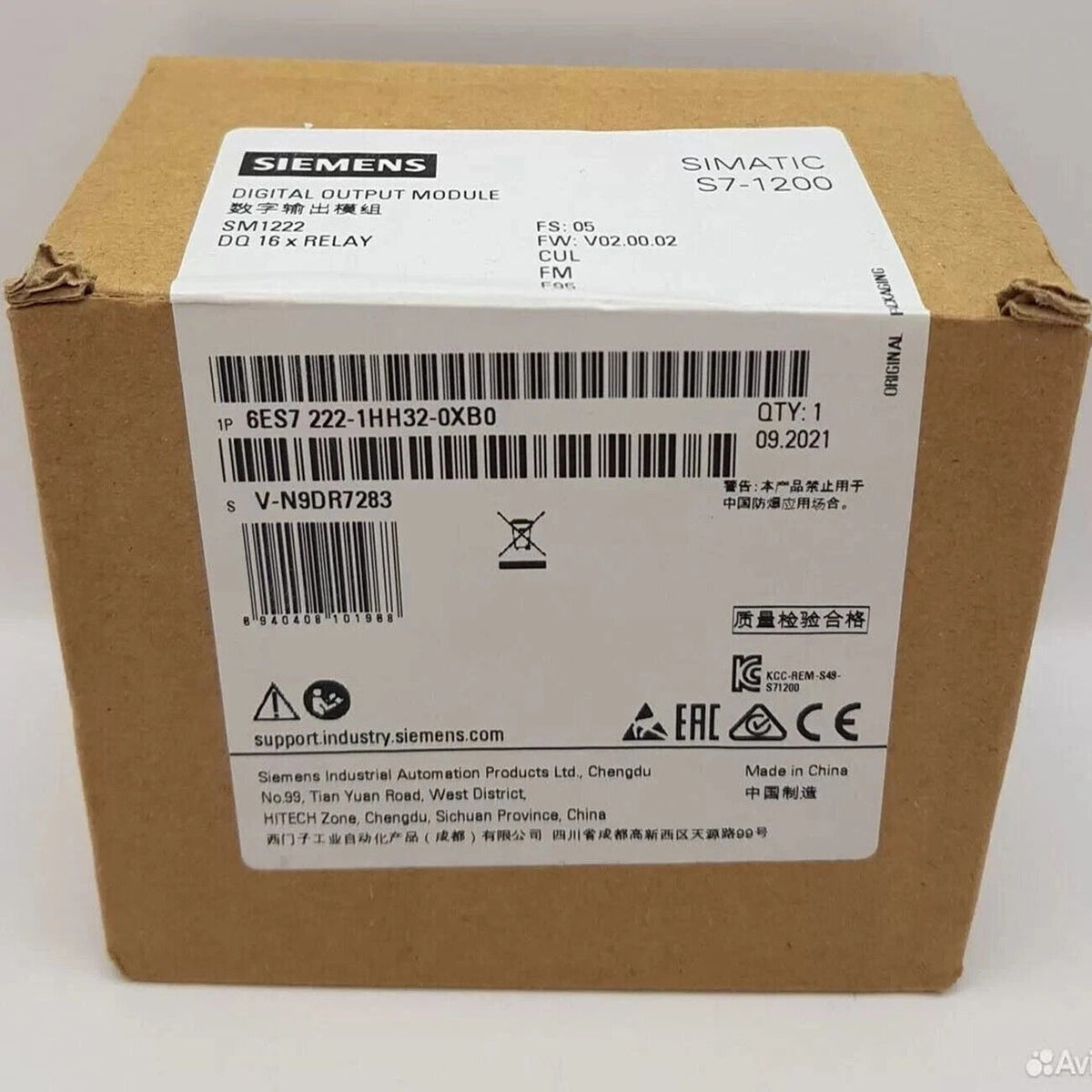

Product images for part identification
SIEMENS
SIEMENS 6ES7222-1HH32-0XB0 Output Module 16 Relay Outputs
PRODUCT PRICE
USD
$92.48
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7222-1HH32-0XB0 |
| Product Category | Output Module |
| Product Family | SIMATIC S7-1200 |
| Module Type | SM 1222 Digital Output Module |
| Number of Outputs | 16 Relay Outputs |
| Supply Voltage | 24 V DC (20.4 V to 28.8 V) |
| Output Current per Point | 2 A |
| Output Voltage Range | 5 V DC to 30 V DC / 5 V AC to 250 V AC |
| Lamp Load | 30 W at DC, 200 W at AC |
| Power Loss | 8.5 W typical |
| Dimensions | 45 mm W x 100 mm H x 75 mm D |
| Net Weight | 0.237 kg |
Key Features
2 A Switching Capacity
Each output supports a maximum switching capacity of 2 A for resistive loads.
Wide Voltage Range
Relay outputs can switch loads from 5 V DC to 30 V DC and from 5 V AC to 250 V AC.
Compact Form Factor
Compact dimensions of 45 mm width, 100 mm height, and 75 mm depth for space-saving installation.
S7-1200 Integration
Designed as a signal module for the SIMATIC S7-1200 controller family.
Applications
- Relay-based switching of industrial actuators
- Control of solenoids, contactors, and small motors
- Signal output expansion for S7-1200 PLC systems
- AC and DC load switching in machine control
- Lamp and indicator control
- Industrial automation panels
- Process control output interfacing
- Loads requiring dry-contact switching
Purchase Information
We support online purchase of the SIEMENS 6ES7222-1HH32-0XB0 Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7222-1HH32-0XB0? It is a SIMATIC S7-1200 SM 1222 digital output module with 16 relay outputs.
How many outputs does the module have? It provides 16 relay outputs.
What is the maximum output current per point? Each output supports up to 2 A for resistive loads.
What voltage range can the relay outputs switch? The outputs can switch 5 V DC to 30 V DC and 5 V AC to 250 V AC.
What is the supply voltage requirement? The module operates with a 24 V DC supply in the range of 20.4 V to 28.8 V.
What is the typical power loss? The typical power loss is 8.5 W.
What are the module dimensions? The module measures 45 mm in width, 100 mm in height, and 75 mm in depth.
Is short-circuit protection integrated? No, external short-circuit protection is required.
What is the lamp load capacity? The lamp load capacity is 30 W at DC and 200 W at AC.
What should be checked before ordering? Verify the required output count, load voltage and current ratings, and compatibility with the S7-1200 system.
