CPU 226 with 24 DI / 16 DO
Compact S7-200 CPU with 24 digital inputs and 16 relay digital outputs for larger I/O requirements.
SIEMENS
SIEMENS 6ES7216-2BD23-0XB0 CPU Module 24VDC 24 DI 16 DO
$108.23
Available
PRODUCT GALLERY
01 / 3

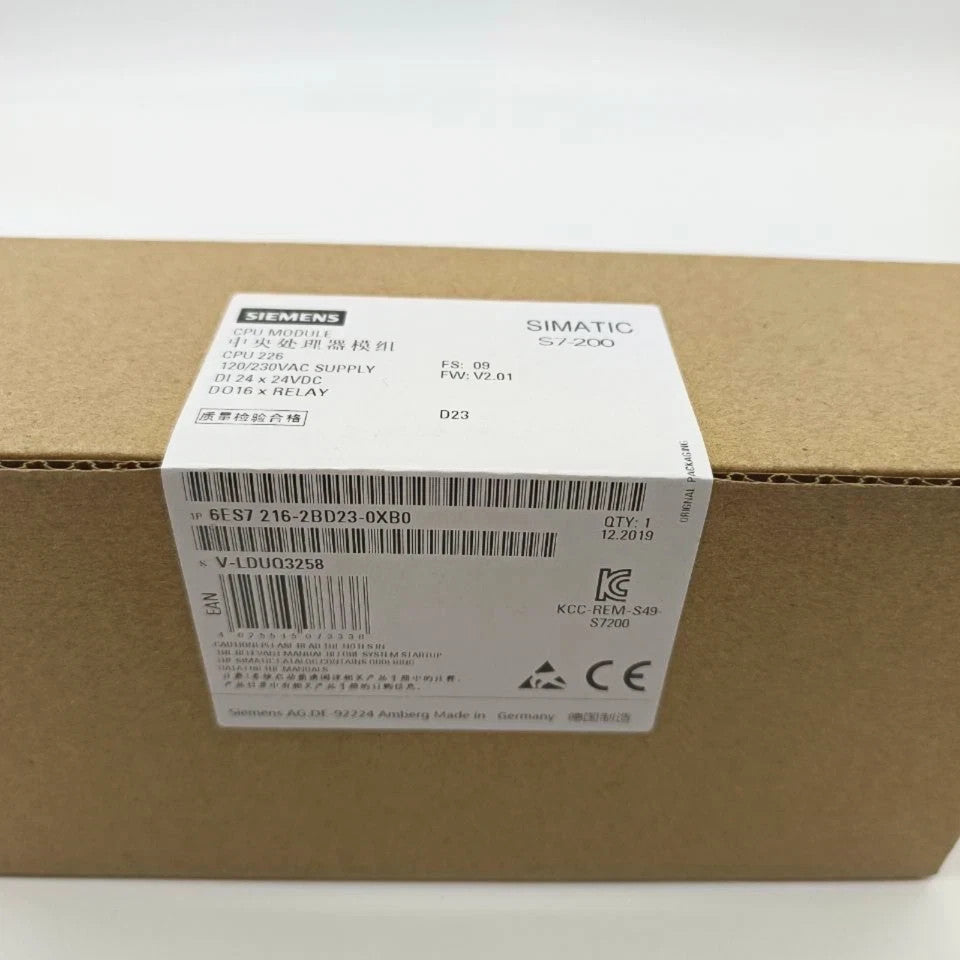

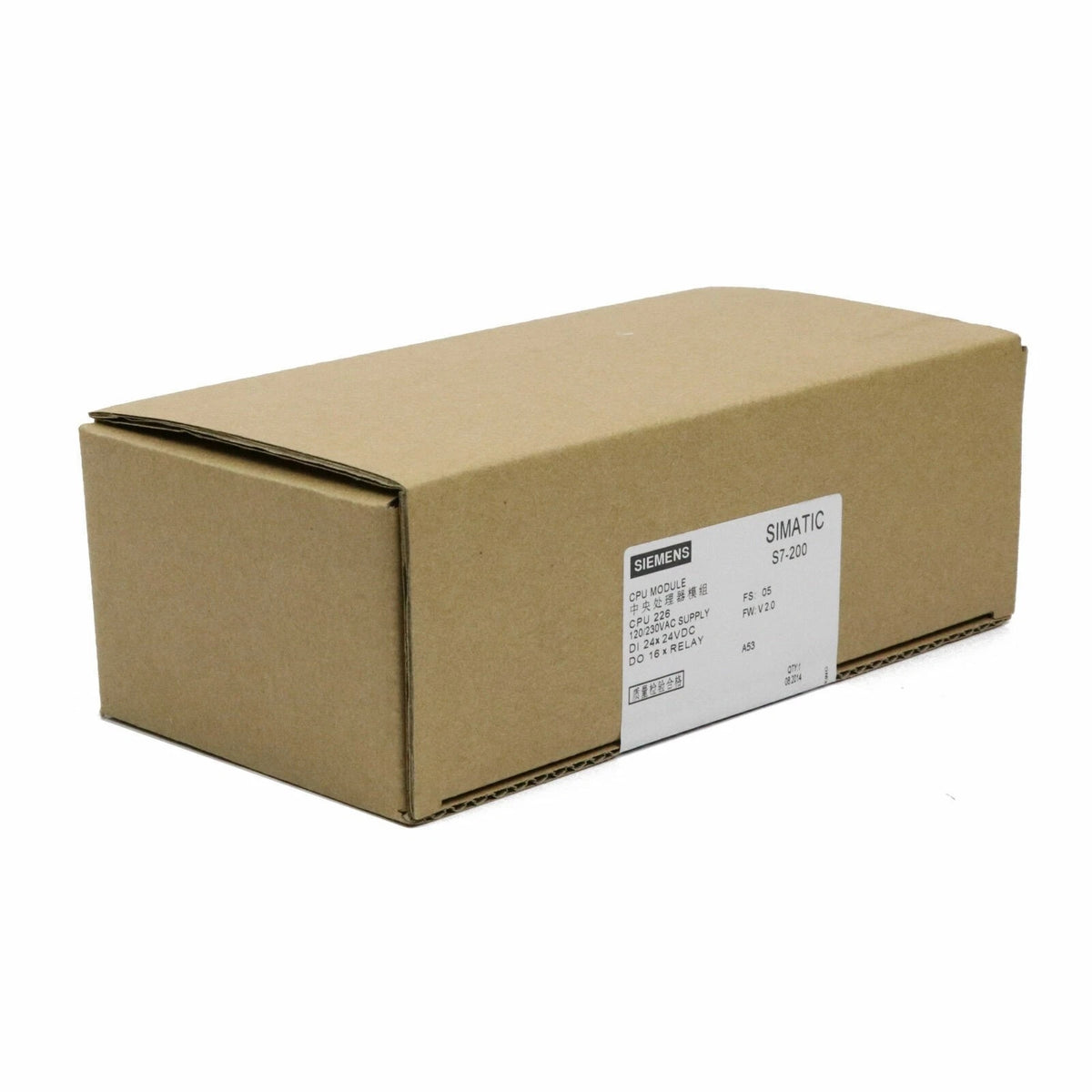

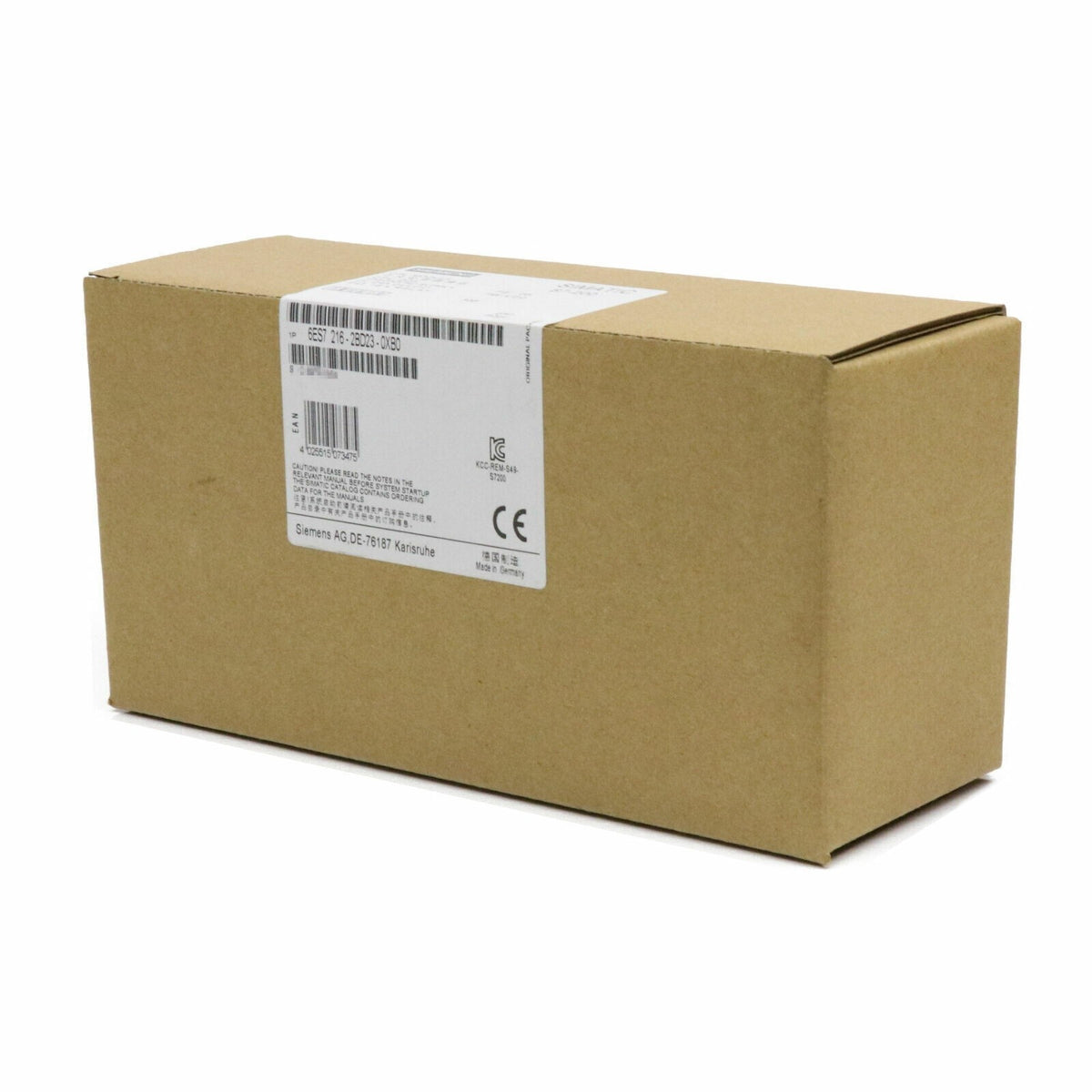

Product images for part identification
SIEMENS
SIEMENS 6ES7216-2BD23-0XB0 CPU Module 24VDC 24 DI 16 DO
PRODUCT PRICE
USD
$108.23
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7216-2BD23-0XB0 |
| Product Category | CPU Module |
| Product Family | SIMATIC S7-200 |
| Module Type | CPU 226 Compact Unit |
| Supply Voltage | AC 120/230 V |
| Digital Inputs | 24 DI, 24 V DC |
| Digital Outputs | 16 DO, Relay |
| Program Memory | 16/24 KB |
| Data Memory | 10 KB |
| Communication Interface | 2 x PPI / Freeport (RS-485) |
| Max PPI Transmission Rate | 187.5 kbit/s |
Key Features
Dual PPI Communication Ports
Two PPI/freeport RS-485 interfaces support networking and programming flexibility.
Expanded Program Memory
Features 16/24 KB program memory and 10 KB data memory for more complex control programs.
Relay Outputs
Sixteen relay outputs support AC and DC load switching for diverse industrial devices.
AC Power Supply
Operates directly from AC 120/230 V supply for simplified panel wiring.
Applications
- Medium-sized machine control systems
- Industrial automation with expanded I/O counts
- Relay-based switching of motors and actuators
- Distributed control architectures with PPI networking
- Process control and monitoring
- Expansion of S7-200 installations
- Panel building and system integration
- Manufacturing and assembly line control
Purchase Information
We support online purchase of the SIEMENS 6ES7216-2BD23-0XB0 CPU Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7216-2BD23-0XB0? It is a SIMATIC S7-200 CPU 226 compact unit with AC power supply, 24 digital inputs, and 16 relay digital outputs.
What supply voltage does this CPU require? It operates on AC 120/230 V supply voltage.
How many digital inputs and outputs does it have? It provides 24 digital inputs and 16 relay digital outputs.
What is the program memory size? The program memory is 16/24 KB, and the data memory is 10 KB.
What communication interfaces are available? It has 2 PPI/freeport interfaces (RS-485).
What is the maximum PPI transmission rate? The maximum PPI transmission rate is 187.5 kbit/s.
What type of digital outputs does it use? The digital outputs are relay type.
Can it be networked with other S7-200 devices? Yes, the PPI interfaces support networking with compatible S7-200 devices.
What should be checked before ordering? Verify the required I/O count, supply voltage, memory requirements, and communication needs for your application.
Need help confirming a model?
Send us your part number and technical requirements.
