4 Digital Outputs
Provides four digital outputs for the ET 200S system, with a source output (PNP, P-switching) configuration and 24 VDC rated load voltage.
SIEMENS
SIEMENS 6ES7132-4BD02-0AA0 Output Module 4 Digital Outputs 24VDC
$36.98
Available
PRODUCT GALLERY
01 / 2

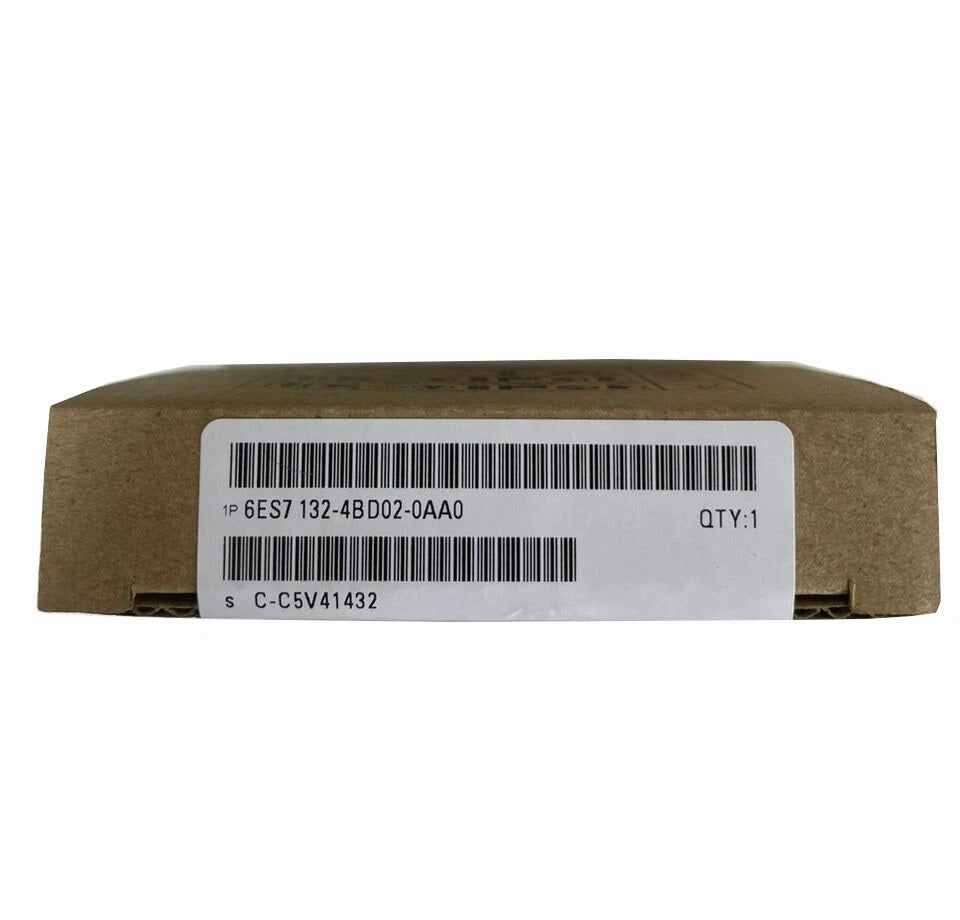

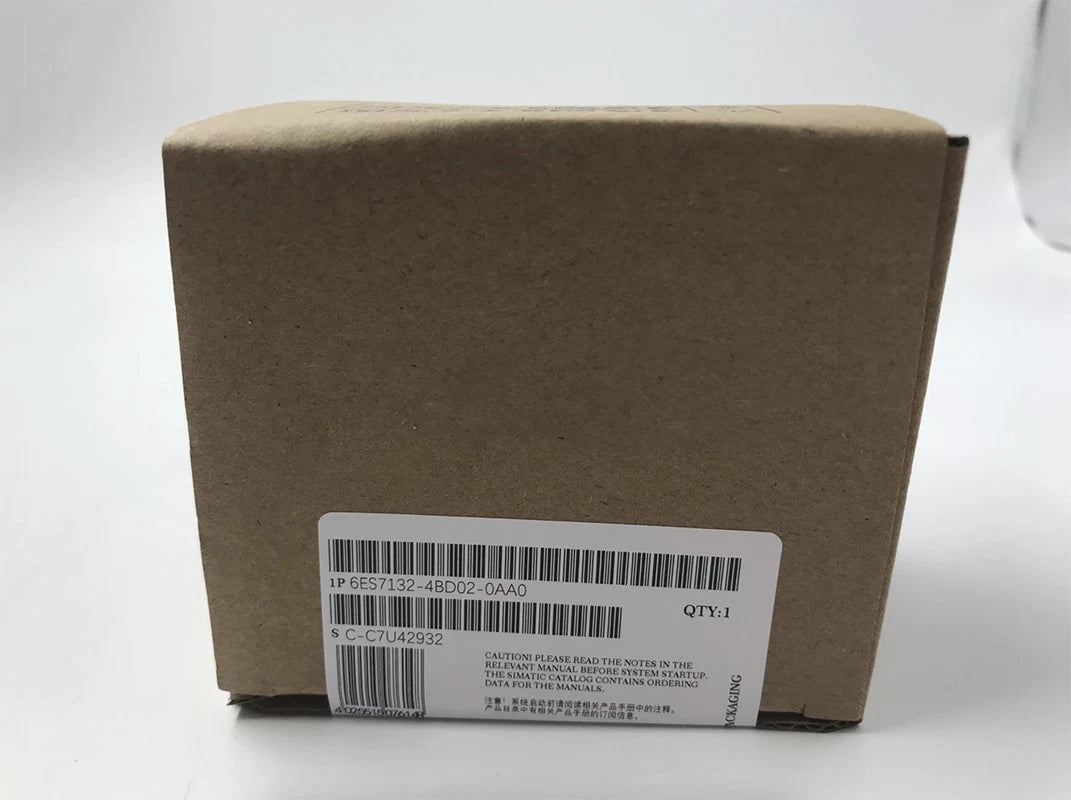

Product images for part identification
SIEMENS
SIEMENS 6ES7132-4BD02-0AA0 Output Module 4 Digital Outputs 24VDC
PRODUCT PRICE
USD
$36.98
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7132-4BD02-0AA0 |
| Product Category | Output Module 4 Digital Outputs 24VDC |
| Product Family | SIMATIC DP, ET 200S |
| Module Type | Digital Output Module, 4 DO Standard DC 24V/0.5A, 15 mm width |
| Number of Digital Outputs | 4 |
| Output Type | Source Output (PNP, P-switching) |
| Rated Load Voltage (DC) | 24 V (from power module) |
| Output Current per Channel (Rated) | 0.5 A |
| Output Current per Channel (Max.) | 600 mA |
| Short-Circuit Protection | Yes, response threshold 1 to 1.5 A (typ.) |
| Lamp Load (max.) | 5 W |
| Load Resistance Range | 48 Ohm to 3400 Ohm |
| Power Loss (typ.) | 0.8 W |
| Address Space per Module (max.) | 1 byte |
| Dimensions (W x H x D) | 15 mm x 81 mm x 52 mm |
| Maximum Operating Temperature | +55°C |
Key Features
0.5 A Output per Channel
Each channel is rated for 0.5 A, with a maximum permissible output current of 600 mA and short-circuit protection.
Compact 15 mm Module
The 15 mm width supports dense I/O arrangements in ET 200S stations, with a typical power loss of 0.8 W.
Lamp Load Capability
Supports lamp loads up to 5 W and a load resistance range of 48 Ohm to 3400 Ohm.
Reverse Polarity Protection
Includes reverse polarity protection, with the note that reverse polarity can cause the digital outputs to switch through.
Applications
- Digital output control in SIMATIC ET 200S distributed I/O systems
- Switching of 24 VDC industrial loads up to 0.5 A per channel
- Machine actuator and solenoid control in automation panels
- ET 200S station expansion with compact digital output capability
- Industrial control systems requiring PNP (source) output wiring
- Maintenance and replacement of compatible ET 200S output modules
Purchase Information
We support online purchase of the SIEMENS 6ES7132-4BD02-0AA0 Output Module 4 Digital Outputs 24VDC. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7132-4BD02-0AA0? The 6ES7132-4BD02-0AA0 is a SIMATIC DP electronics module for the ET 200S system, providing four digital outputs rated 24 VDC/0.5 A.
How many digital outputs does it have? It has four digital outputs.
What is the output type? The outputs are source outputs (PNP, P-switching).
What is the rated output current per channel? The rated output current is 0.5 A per channel, with a maximum of 600 mA.
Does it have short-circuit protection? Yes, it has short-circuit protection with a typical response threshold of 1 to 1.5 A.
What is the maximum lamp load? The maximum lamp load is 5 W.
What is the load resistance range? The load resistance range is 48 Ohm to 3400 Ohm.
What is the typical power loss? The typical power loss is 0.8 W.
What is the maximum operating temperature? The maximum operating temperature is +55°C.
What should be checked before ordering? Verify the complete 6ES7132-4BD02-0AA0 catalog number, the ET 200S station configuration, the load current and voltage requirements, and the PNP output wiring compatibility.
