8 Digital Outputs
The module provides eight 24VDC digital outputs in the SIMATIC ET 200SP format for controlling industrial loads.
SIEMENS
SIEMENS 6ES7 132‑6BF01‑0BA0 Output Module 8 Digital Outputs 24VDC
$44.93
Available
PRODUCT GALLERY
01 / 3

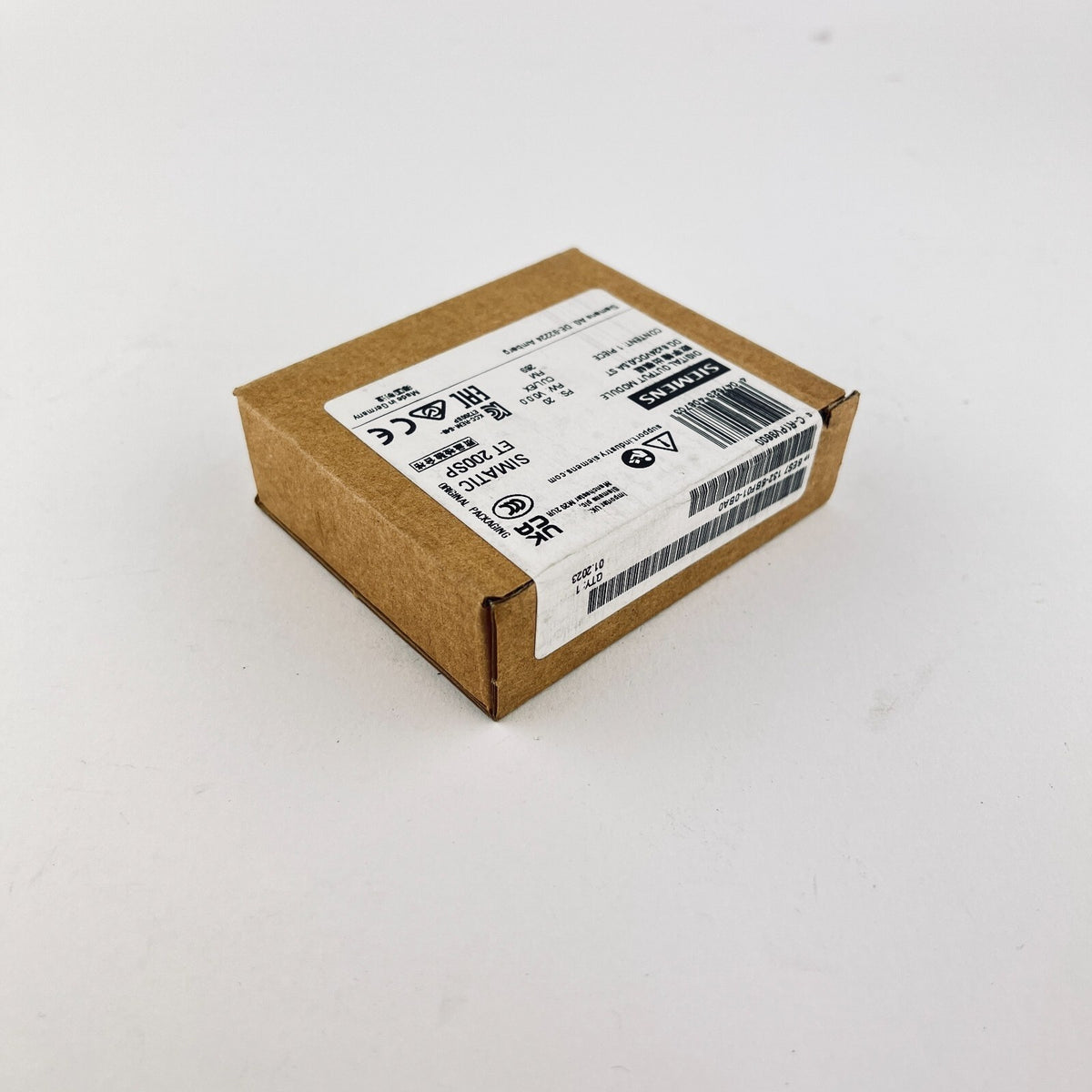

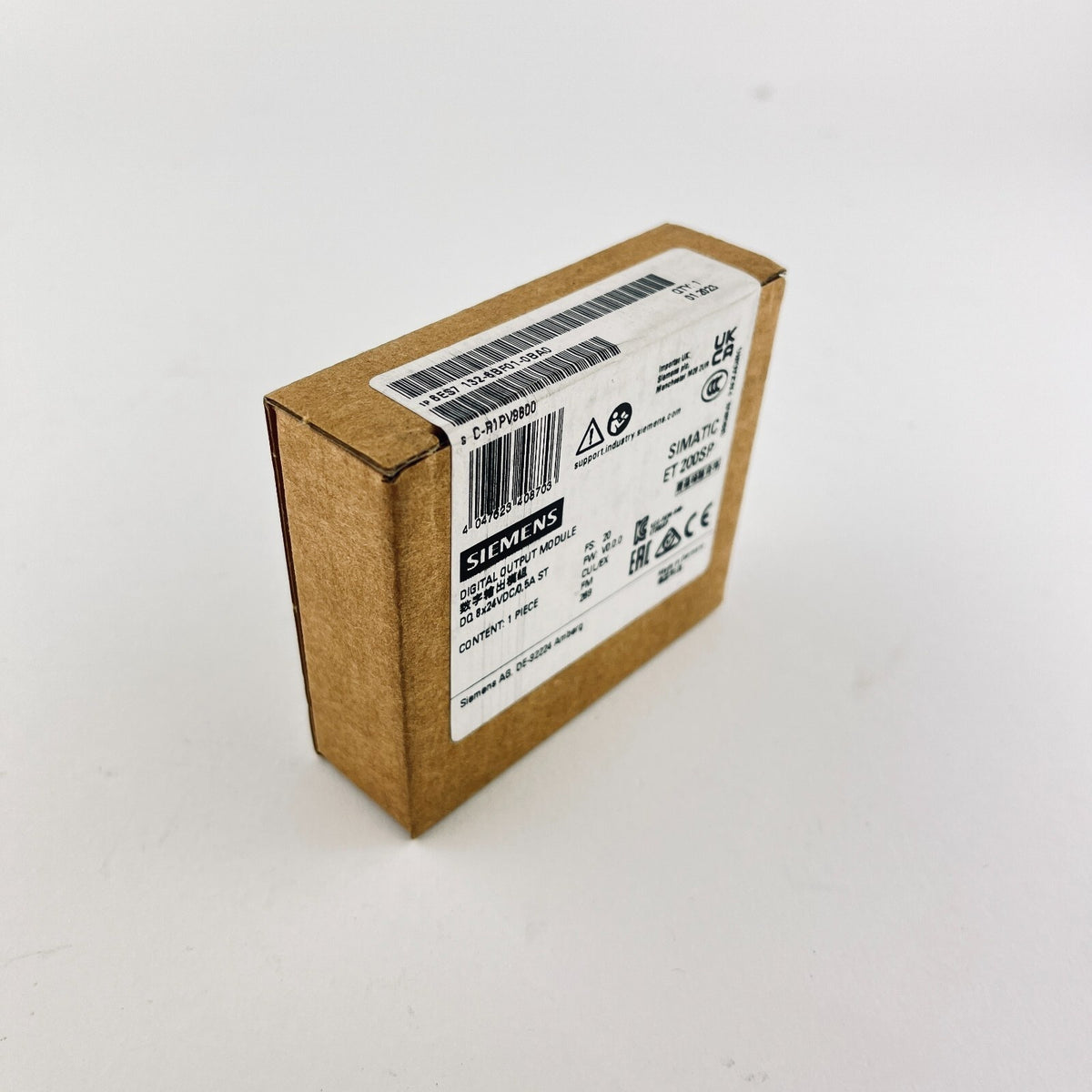

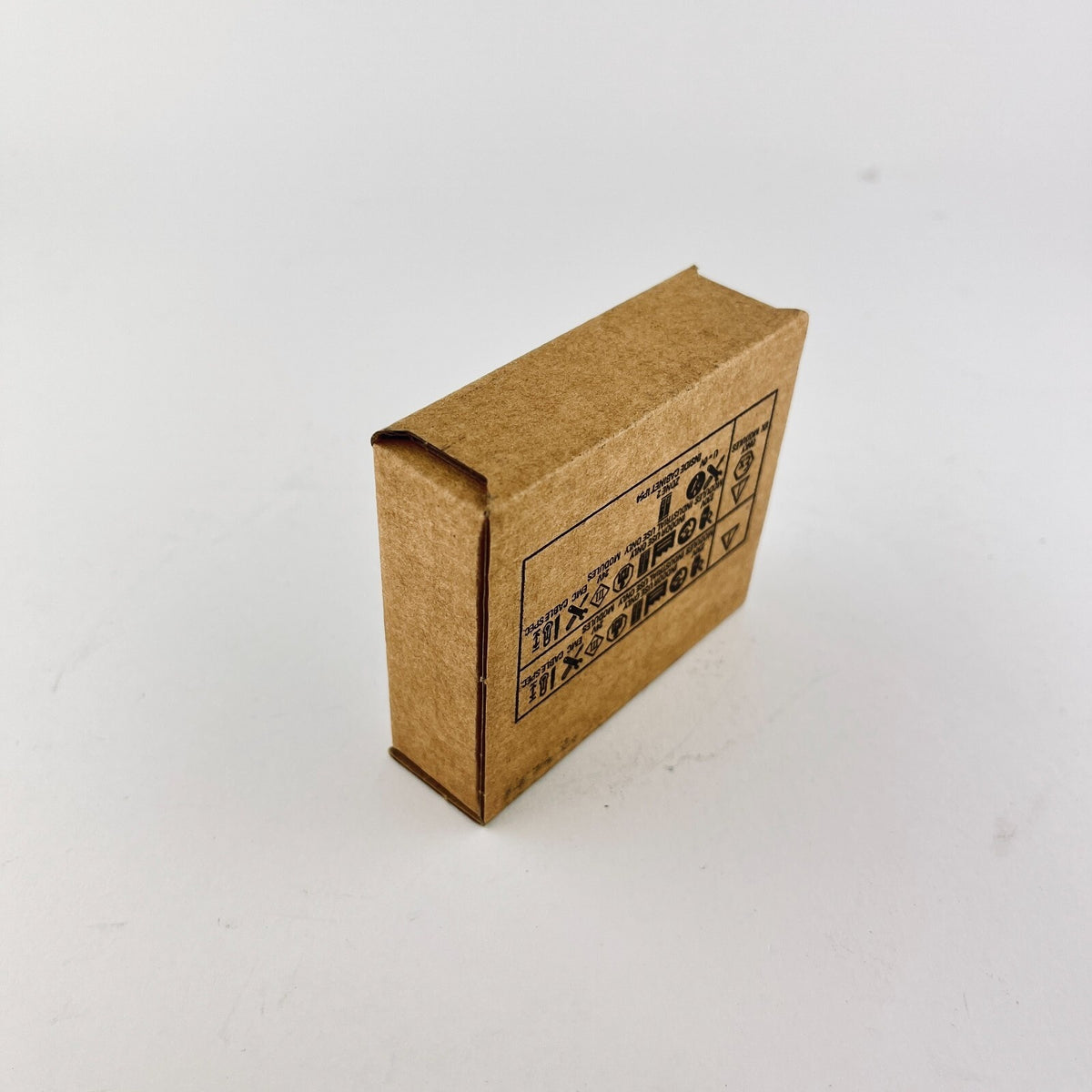

Product images for part identification
SIEMENS
SIEMENS 6ES7 132‑6BF01‑0BA0 Output Module 8 Digital Outputs 24VDC
PRODUCT PRICE
USD
$44.93
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7 132-6BF01-0BA0 |
| Product Category | Digital Output Module |
| Product Family | SIMATIC ET 200SP |
| Module Type | DQ 8x24VDC/0.5A Standard |
| Number of Outputs | 8 |
| Output Type | Source Output (PNP, P-switching) |
| Rated Supply Voltage | 24 VDC |
| Permissible Voltage Range | 19.2 VDC to 28.8 VDC |
| Output Current per Channel | 0.5 A |
| Total Current of Outputs | 4 A |
| Short-Circuit Protection | Yes, electronic |
| Power Loss | 1 W (typical) |
| Switching Frequency | 100 Hz |
| Cable Length | 1000 m |
| Diagnostics | Short-circuit to L+ and ground, wire break, supply voltage |
| BaseUnit Type | BU type A0 |
Key Features
0.5 A Output Current
Each output channel is rated for 0.5 A, with a maximum total current of 4 A across all outputs.
PNP Source Output
The outputs use source (PNP, P-switching) configuration for compatibility with current-sourcing control circuits.
Integrated Diagnostics
Module diagnostics cover short-circuit to L+ and ground, wire break, and supply voltage monitoring.
Wide Voltage Tolerance
The permissible supply voltage range of 19.2 VDC to 28.8 VDC supports stable operation in industrial power environments.
Compact ET 200SP Design
The module fits BU type A0 base units and occupies a compact width for space-efficient control cabinet installation.
Applications
- Industrial automation digital output control
- SIMATIC ET 200SP I/O system expansion
- Actuation of relays, contactors, and solenoid valves
- Discrete control of pumps, fans, and conveyors
- Machine and production line signal output
- Process control cabinet integration
- Manufacturing cell output interfacing
- Control panel output signal distribution
Purchase Information
We support online purchase of the SIEMENS 6ES7 132-6BF01-0BA0 Digital Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7 132-6BF01-0BA0? The 6ES7 132-6BF01-0BA0 is a SIMATIC ET 200SP digital output module with eight 24VDC outputs rated at 0.5 A per channel.
How many outputs does this module provide? It provides eight digital outputs in a source output (PNP) configuration.
What is the output current rating? Each output is rated at 0.5 A, and the maximum total current across all outputs is 4 A.
What supply voltage does the module require? The rated supply voltage is 24 VDC, with a permissible range of 19.2 VDC to 28.8 VDC.
Does the module provide short-circuit protection? Yes, the outputs include electronic short-circuit protection.
What diagnostic functions are available? The module supports diagnostics for short-circuit to L+ and ground, wire break, and supply voltage.
What BaseUnit type is compatible with this module? The module is designed for BU type A0 base units.
What is the typical power loss? The typical power loss is 1 W.
What is the maximum cable length? The maximum cable length is 1000 m.
What switching frequency does the module support? The module supports a switching frequency of 100 Hz.
