Motor Protection Circuit Breaker
Designed for motor protection with a current setting range of 45 to 63 A.
SIEMENS
SIEMENS 3RV10414JA10 Motor Protection Circuit Breaker 40A 3-Pole
$186.96
Available
PRODUCT GALLERY
01 / 4

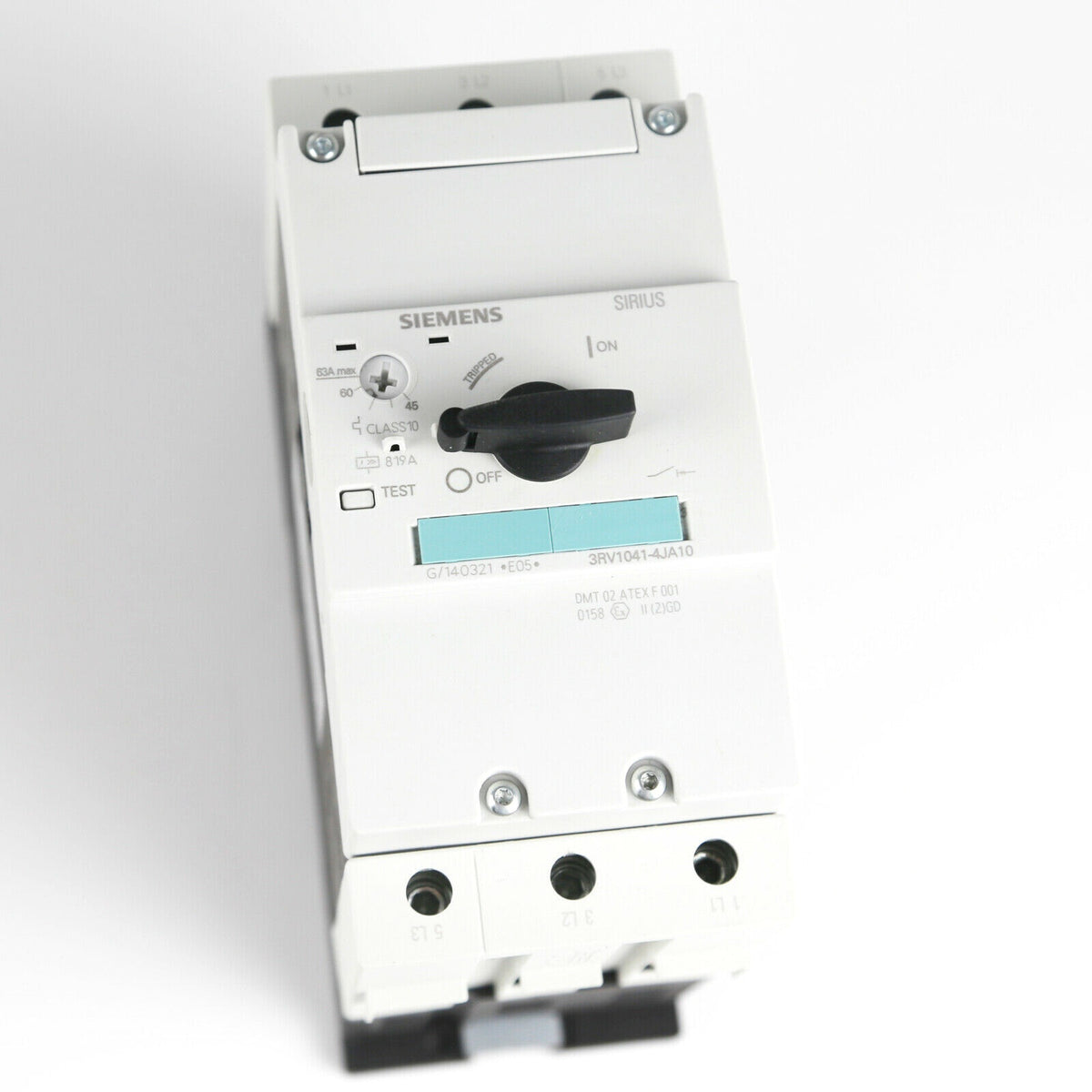

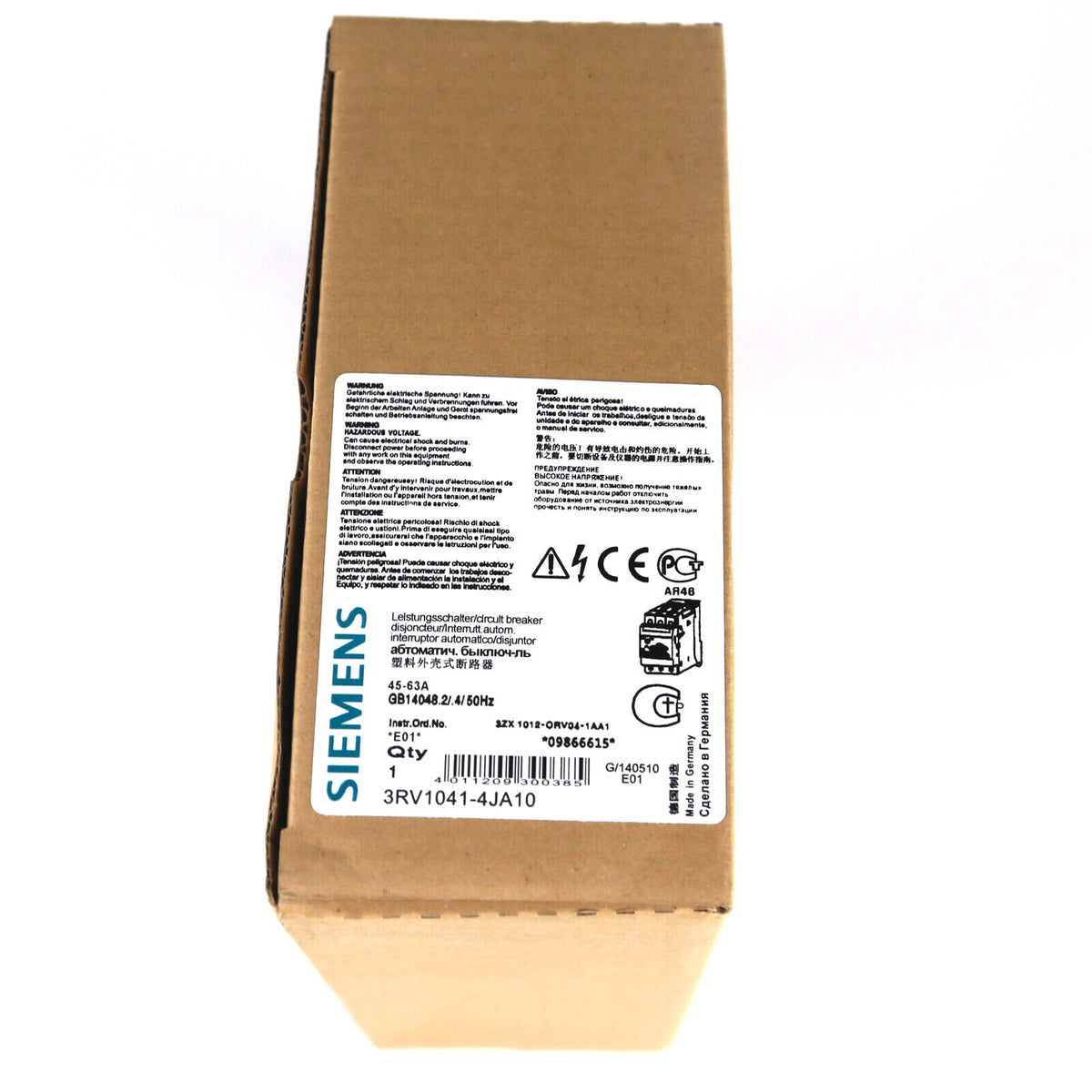

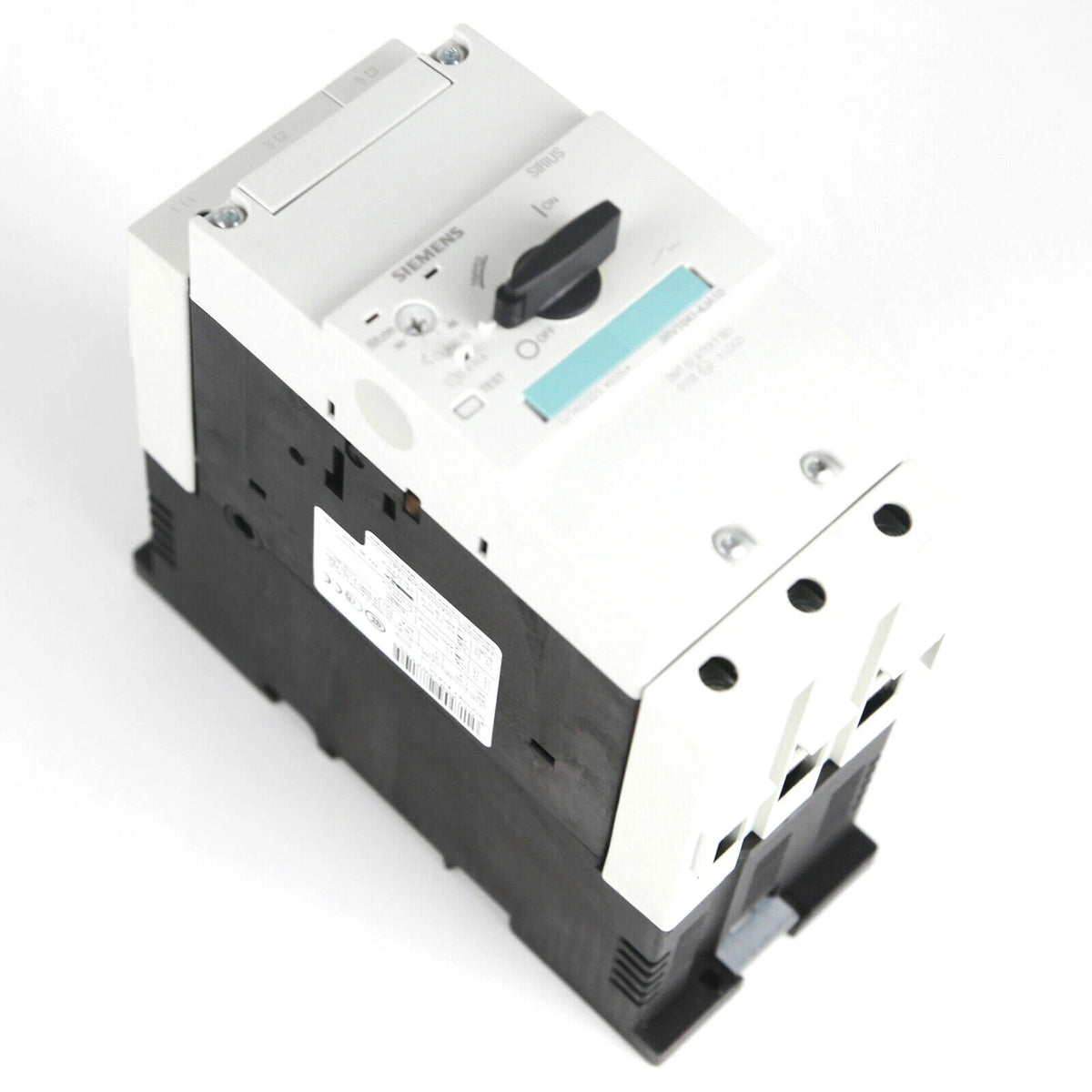

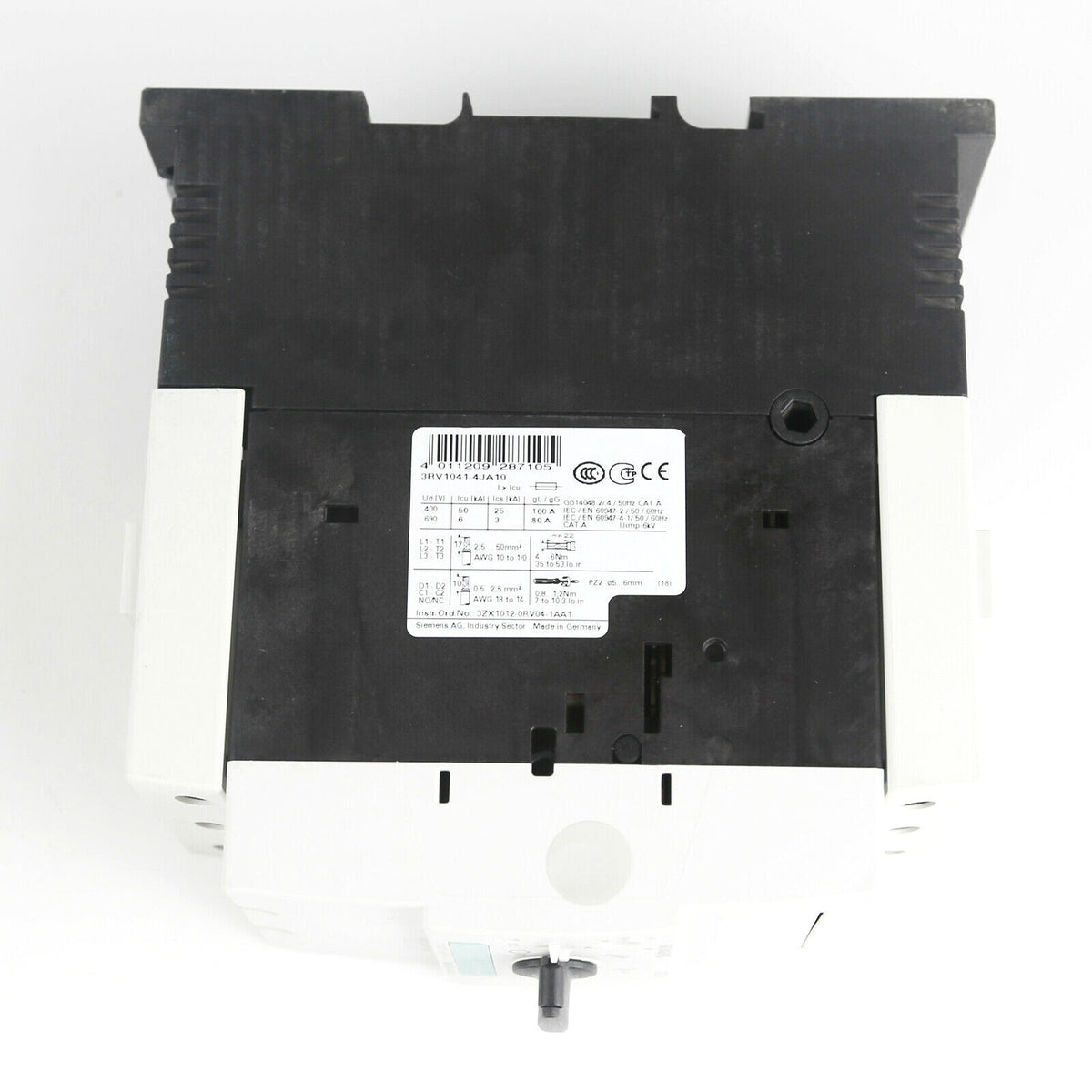

Product images for part identification
SIEMENS
SIEMENS 3RV10414JA10 Motor Protection Circuit Breaker 40A 3-Pole
PRODUCT PRICE
USD
$186.96
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3RV10414JA10 |
| Product Category | Motor Protection Circuit Breaker |
| Product Family | SIRIUS 3RV1 |
| Size | S3 |
| Number of Poles | 3 |
| Current Setting Range | 45 to 63 A |
| Rated Operational Voltage | 690 V AC |
| Short-Circuit Release (N-Release) | 819 A |
| Breaking Capacity (Icu) | 50 kA at 400 V |
| Trip Class | CLASS 10 |
| Terminal Type | Screw terminals |
| Dimensions (W x H x D) | 70 mm x 165 mm x 174 mm |
Key Features
CLASS 10 Trip Characteristic
Provides CLASS 10 overload trip characteristics with short-circuit trip at 12 times the maximum FLA setting.
High Breaking Capacity
Offers a breaking capacity of 50 kA at 400 V for reliable short-circuit protection.
Size S3 Design
Size S3 form factor with screw terminals for secure electrical connections.
Adjustable FLA Dial
Features an adjustment dial for setting the full load ampere (FLA) to match the motor rating.
Applications
- Three-phase motor protection
- Industrial motor control panels
- Pump and fan motor circuits
- Conveyor system motor protection
- Machine tool motor protection
- Process automation motor starters
Purchase Information
We support online purchase of the SIEMENS 3RV10414JA10 Motor Protection Circuit Breaker. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 3RV10414JA10? The 3RV10414JA10 (also written as 3RV1041-4JA10) is a SIRIUS 3RV1 motor protection circuit breaker in size S3.
What is the current setting range? The current setting range is 45 to 63 A.
How many poles does it have? The circuit breaker has 3 poles.
What is the trip class? The trip class is CLASS 10.
What is the breaking capacity? The breaking capacity is 50 kA at 400 V.
What is the short-circuit release current? The N-release short-circuit current is 819 A.
What is the rated operational voltage? The rated operational voltage is 690 V AC.
What terminal type does it use? It uses screw terminals.
