120VAC Control Coil
Schneider specifies a 120 VAC control circuit voltage for the RXM4AB2F7 relay.

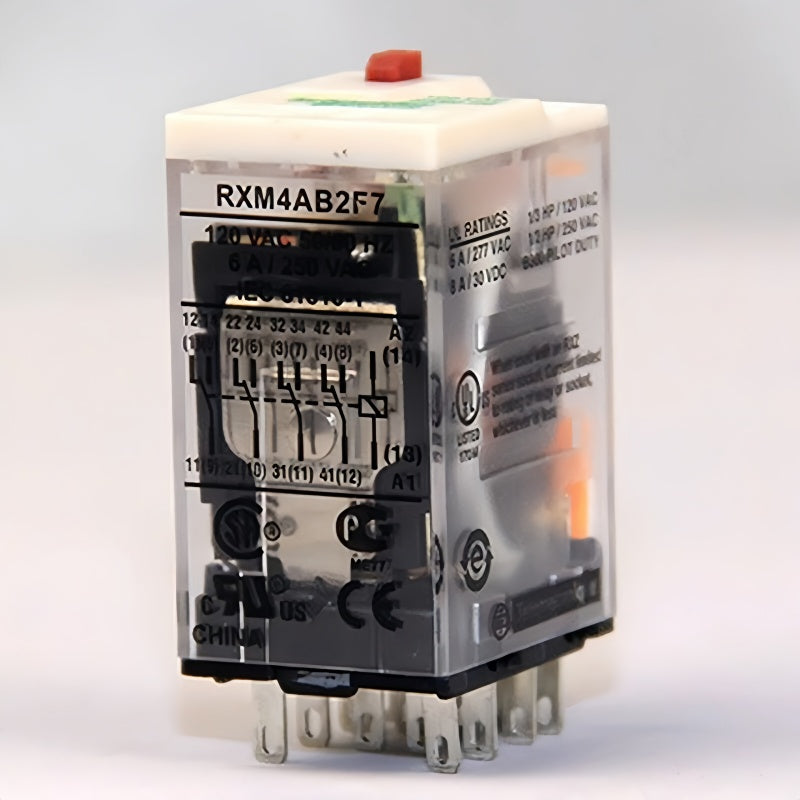

Schneider RXM4AB2F7 Miniature Plug-in Relay 120VAC 6A 4CO
Available in stock (200)
Regular price
$13.15
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | RXM4AB2F7 |
| Product Category | Miniature Plug-in Relay |
| Product Family | Harmony Electromechanical Relays |
| Series | RXM |
| Contacts Type and Composition | 4 C/O |
| Control Circuit Voltage | 120 VAC |
| Current Rating | 6 A |
| Status LED | With |
| Control Type | Lockable Test Button |
| Pin Type | Flat, Faston Type |
Key Features
4 C/O Contacts
The documented configuration provides four changeover contacts for multi-contact switching applications.
6A Current Rating
Schneider identifies the RXM4AB2F7 as a 6 A miniature plug-in relay.
Status LED
The relay includes an LED for visual indication of operating status.
Lockable Test Button
The documented configuration includes a lockable test button for manual relay checking.
Flat Faston-Type Pins
Schneider specifies a flat Faston-type pin configuration for the RXM4AB2F7.
Applications
- Industrial control panel switching
- Machine control circuits
- PLC interface circuits
- Automation relay control
- Electrical cabinet control circuits
- Signal switching applications
- Multi-contact control circuits
- Industrial equipment maintenance projects
Purchase Information
We support online purchase of the Schneider RXM4AB2F7 Miniature Plug-in Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider RXM4AB2F7?
Schneider RXM4AB2F7 is a Harmony RXM miniature plug-in relay with four changeover contacts, a 120 VAC control circuit, status LED and lockable test button.
What control voltage does RXM4AB2F7 use?
The documented control circuit voltage is 120 VAC.
How many contacts does RXM4AB2F7 provide?
RXM4AB2F7 provides four changeover contacts, specified as 4 C/O.
What current rating is specified for RXM4AB2F7?
Schneider identifies this model as a 6 A miniature plug-in relay.
Does RXM4AB2F7 include a status LED?
Yes. The documented configuration includes a status LED.
Does RXM4AB2F7 include a test button?
Yes. Schneider specifies a lockable test button for this relay configuration.
What relay family does RXM4AB2F7 belong to?
RXM4AB2F7 belongs to Schneider Harmony Electromechanical Relays and the RXM range.
What type of pins does RXM4AB2F7 use?
Schneider specifies flat Faston-type pins for this relay configuration.
What applications can RXM4AB2F7 be considered for?
It can be considered for industrial control panels, machine control circuits, automation switching and other relay control applications after the electrical requirements have been checked.
Can RXM4AB2F7 be considered for an existing control system?
It can be considered after the complete model number, 120 VAC control voltage, 4 C/O contact arrangement, current requirement, socket arrangement and circuit requirements have been checked against the existing system.
What should be checked before ordering RXM4AB2F7?
Check the complete RXM4AB2F7 model number, 120 VAC control voltage, 4 C/O contact configuration, 6 A current requirement, relay socket arrangement and electrical circuit requirements before purchasing.
