3 Pole Construction
Three-pole design built for three-phase motor circuit protection applications.

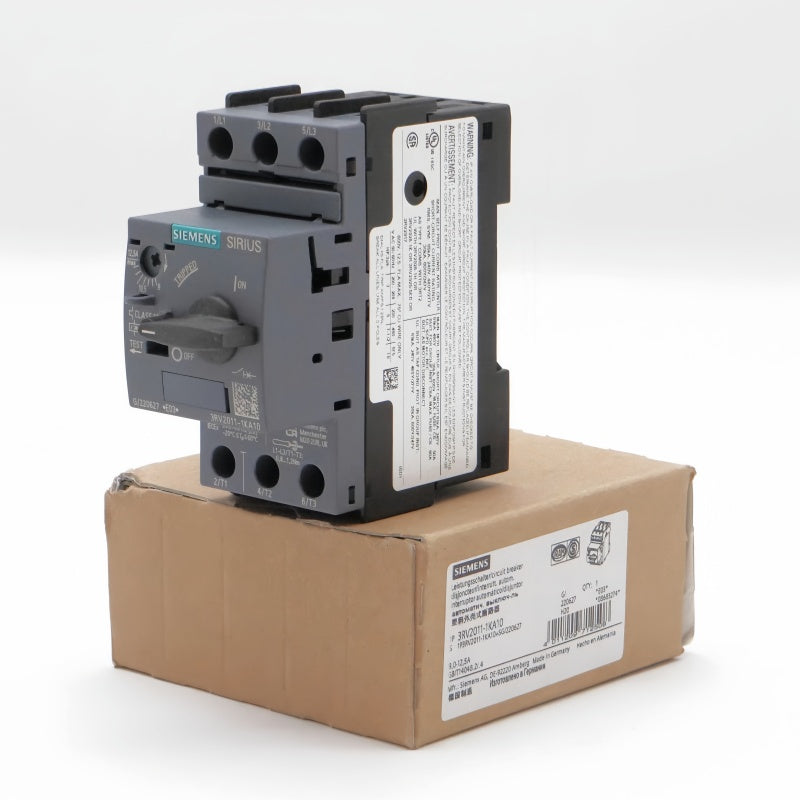

SIEMENS 3RV2011-1KA10 Circuit Breaker 3 Pole 9-12.5A 690V
Available in stock (200)
Regular price
$68.21
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3RV2011-1KA10 |
| Product Category | Circuit Breaker |
| Product Family | SIRIUS 3RV2 |
| Product Type | Motor Protection Circuit Breaker |
| Number of Poles | 3 Pole |
| Adjustable Current Range | 9 - 12.5 A |
| Max Switching Voltage | 690 V AC |
| Mounting Type | DIN Rail Mount |
| Terminal Connection | Screw Terminal |
| IP Rating | IP20 |
| Size Frame | S00 |
| Trip Class | Class 10 |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (W x H x D) | 45 mm x 97 mm x 97 mm |
Key Features
9-12.5A Adjustable Current
Adjustable thermal trip range covers 9 A to 12.5 A for matched motor load ratings.
690V Max AC Voltage
Rated for maximum 690 V AC switching voltage for industrial three-phase power circuits.
DIN Rail Mountable
Standard DIN rail mounting form factor for cabinet electrical assembly.
S00 Frame Size
Compact S00 frame dimension with 45 mm width to save cabinet installation space.
IP20 Protection Rating
IP20 enclosure rating for indoor electrical cabinet installation environments.
Applications
- Three-phase motor overload protection
- Industrial machinery motor circuit protection
- Automation cabinet power distribution
- Pump and fan motor control circuits
- Conveyor equipment motor protection
- Machine tool electrical protection systems
- Compact control panel motor starters
- Industrial equipment short-circuit protection
Purchase Information
We support online purchase of the SIEMENS 3RV2011-1KA10 Circuit Breaker. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 3RV2011-1KA10?
SIEMENS 3RV2011-1KA10 is a 3 pole SIRIUS 3RV2 series motor protection circuit breaker with 9-12.5 A adjustable current range.
What product family does 3RV2011-1KA10 belong to?
This circuit breaker is part of the SIEMENS SIRIUS 3RV2 product family.
How many poles does the 3RV2011-1KA10 have?
The unit features a 3 pole structure designed for three-phase power circuits.
What is the adjustable current range of 3RV2011-1KA10?
The thermal trip adjustment range is 9 A to 12.5 A.
What maximum AC voltage can 3RV2011-1KA10 handle?
The maximum rated switching voltage is 690 V AC.
What mounting method does 3RV2011-1KA10 use?
This circuit breaker is designed for standard DIN rail mounting inside electrical cabinets.
What IP rating is assigned to 3RV2011-1KA10?
The unit carries an IP20 enclosure protection rating.
What frame size is 3RV2011-1KA10?
It uses the compact S00 frame size with 45 mm width.
What operating temperature range does 3RV2011-1KA10 support?
The specified operating temperature range is -20°C to +60°C.
What applications can the 3RV2011-1KA10 be used for?
It can be applied for three-phase motor overload and short-circuit protection across industrial machinery, pumps, fans and machine tools after system electrical requirements verification.
What should be checked before ordering 3RV2011-1KA10?
Verify full model number, motor rated current, three-phase circuit voltage, DIN rail cabinet layout and terminal connection requirements before purchasing.
Can 3RV2011-1KA10 be considered for existing cabinet replacement?
It can be considered after frame size, pole count, current adjustment range and system voltage specifications are fully matched to the existing installation.
