4.5–6.3A Adjustable Thermal Trip
Adjustable thermal overload release covering 4.5 to 6.3 amps for matching motor full load current ratings.

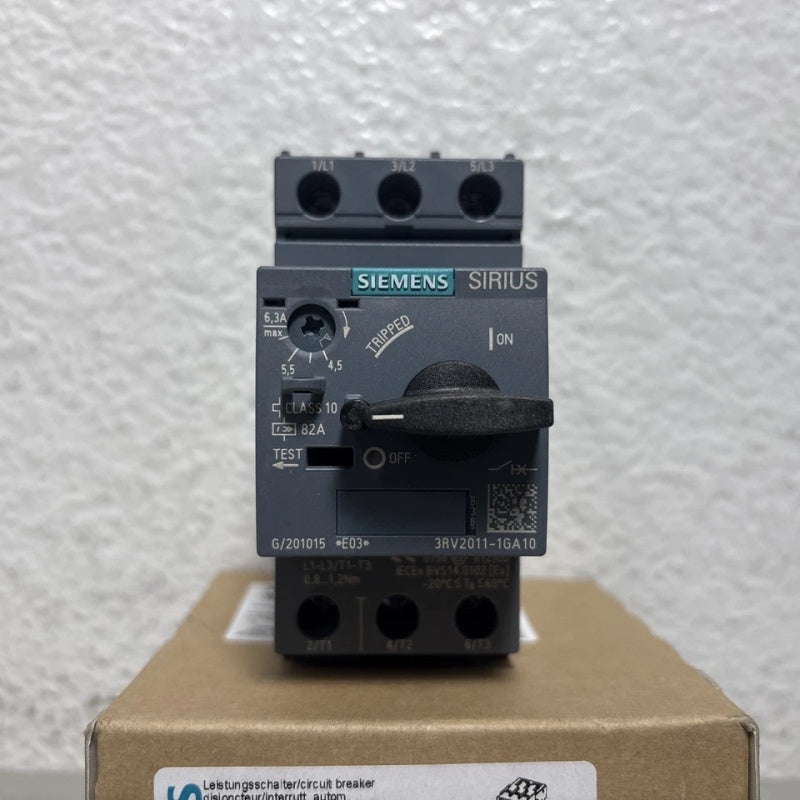

SIEMENS 3RV2011-1GA10 Circuit Breaker 4.5-6.3A 3P 690V AC
Available in stock (200)
Regular price
$57.42
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3RV2011-1GA10 |
| Product Category | Circuit Breaker |
| Product Family | SIRIUS 3RV2 |
| Product Type | Motor Protection Circuit Breaker |
| Frame Size | S00 |
| Pole Count | 3 Poles |
| Thermal Overload Range | 4.5–6.3 A Adjustable |
| Instantaneous Short-Circuit Release | 82 A Fixed |
| Trip Class | Class 10 |
| Rated Operating Voltage | 690 V AC |
| Rated Continuous Current | 6.3 A (AC-3 @ 400V) |
| Operating Frequency | 50–60 Hz |
| Main Circuit Terminal Type | Screw Terminal |
| Mounting Standard | DIN 35mm Rail Mount |
| IP Rating | IP20 |
| Width Dimension | 45 mm |
| Height Dimension | 97 mm |
Key Features
82A Fixed Magnetic Short-Circuit Trip
Built-in instantaneous magnetic release to provide short-circuit fault protection for motor feeders.
3-Pole S00 Compact Frame
S00 size 3-pole compact body with 45mm width for space-saving cabinet installation.
Class 10 Trip Characteristic
Standard Class 10 trip class designed for three-phase motor starting inrush current scenarios.
Screw Terminal Wiring
Screw-type main circuit terminals to deliver stable, vibration-resistant wiring connections.
DIN Rail Mountable
Designed for snap-on mounting onto standard 35mm DIN mounting rails inside control cabinets.
Applications
- Three-phase motor feeder protection
- HVAC fan motor control circuits
- Industrial conveyor drive systems
- Wastewater pump motor protection
- Packaging machinery spindle drives
- OEM machine control panel assemblies
- Food processing equipment motor circuits
- Small machinery electrical cabinet protection
Purchase Information
We support online purchase of the SIEMENS 3RV2011-1GA10 Circuit Breaker. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 3RV2011-1GA10?
SIEMENS 3RV2011-1GA10 is an S00 frame 3-pole motor protection circuit breaker from the SIRIUS 3RV2 product family.
What current adjustment range does 3RV2011-1GA10 support?
The thermal overload release is adjustable from 4.5 A to 6.3 A for matching motor rated currents.
What is the short-circuit trip current rating?
This unit features a fixed instantaneous magnetic release rated at 82 A for short-circuit fault protection.
How many poles does the 3RV2011-1GA10 circuit breaker have?
It is a 3-pole motor protection circuit breaker designed for three-phase AC motor loads.
What trip class does this model use?
The breaker adopts Class 10 trip characteristic for standard industrial motor startup protection.
What maximum operating voltage is rated for 3RV2011-1GA10?
The rated maximum operating voltage is 690 V AC for industrial three-phase power systems.
What mounting method is compatible with this breaker?
It supports snap-on installation onto standard 35mm DIN mounting rails inside electrical control cabinets.
What terminal type is used on the main circuit?
Main circuit connections use screw terminals for secure industrial wiring setups.
What applications is 3RV2011-1GA10 suitable for?
It can be deployed for three-phase motor protection in conveyors, pumps, fans, packaging machinery and OEM industrial equipment after electrical specifications verification.
What should be checked before ordering 3RV2011-1GA10?
Confirm full catalog number, motor full load current within 4.5–6.3A range, cabinet DIN rail compatibility, three-phase pole requirement and operating voltage before purchase.
Can this breaker be used for existing system expansion projects?
It can be considered after verifying frame size S00, current adjustment range, pole count, voltage rating and cabinet mounting requirements against the existing installation.
