750 W Rated Output
The R88M-G75030H-S2-Z is specified with a rated output of 750 W for servo motion applications.

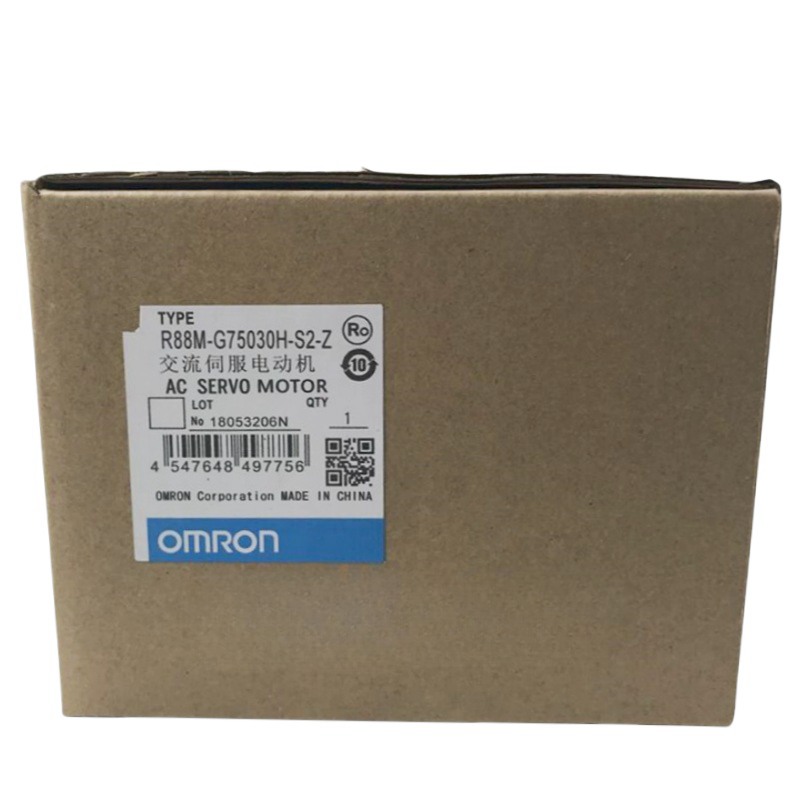

Omron R88M-G75030H-S2-Z AC Servo Motor 750 W 3000 r/min 2.4 N·m
Available in stock (200)
Regular price
$257.00
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | R88M-G75030H-S2-Z |
| Product Category | AC Servo Motor |
| Product Series | OMNUC G-Series |
| Motor Type | Cylindrical Servo Motor |
| Applied Voltage | 230 V |
| Rated Output | 750 W |
| Rated Speed | 3,000 r/min |
| Rated Torque | 2.4 N·m |
| Instantaneous Peak Torque | 7.05 N·m |
| Rated Current | 7.2 A RMS |
| Encoder Type | Incremental Encoder |
| Encoder Resolution | 10,000 Pulses |
| Shaft End | Straight Shaft, Key, Tapped |
| Brake | Without Brake |
| Rating | Continuous |
| Enclosure | IP65, Excluding Shaft Opening and Lead Wire Ends |
| Mounting | Flange-Mounted |
Key Features
3,000 r/min Rated Speed
The documented rated rotational speed is 3,000 r/min.
2.4 N·m Rated Torque
The motor provides a documented rated torque of 2.4 N·m and an instantaneous peak torque of 7.05 N·m.
Incremental Encoder
The H designation identifies the 230 V configuration with an incremental encoder, documented at 10,000 pulses.
S2 Shaft Configuration
The S2 shaft specification identifies a straight shaft equipped with a key and tapped end.
IP65 Enclosure
The documented motor enclosure is totally enclosed and self-cooling with IP65 protection, excluding the shaft opening and lead wire ends.
Applications
- Industrial servo motion control
- Automated positioning systems
- Machine axis control
- Packaging machinery motion
- Material handling equipment
- Automated assembly systems
- Production machinery positioning
- Industrial motion system maintenance
Purchase Information
We support online purchase of the Omron R88M-G75030H-S2-Z AC Servo Motor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron R88M-G75030H-S2-Z?
Omron R88M-G75030H-S2-Z is a cylindrical OMNUC G-Series AC servo motor rated at 750 W and 3,000 r/min.
What is the rated output of R88M-G75030H-S2-Z?
The documented rated output is 750 W.
What is the rated speed?
The documented rated rotational speed is 3,000 r/min.
What is the rated torque of R88M-G75030H-S2-Z?
The documented rated torque is 2.4 N·m.
What instantaneous peak torque is specified?
The documented instantaneous peak torque is 7.05 N·m.
What voltage specification is documented?
The G-Series documentation identifies this H configuration as a 230 V servo motor with incremental encoder.
What encoder does R88M-G75030H-S2-Z use?
The H configuration uses an incremental encoder, with the documented encoder resolution specified as 10,000 pulses.
What does the S2 shaft specification mean?
S2 identifies a straight shaft with a key and tapped shaft end.
Does R88M-G75030H-S2-Z include a brake?
The documented model configuration without a B brake designation is the version without a holding brake.
What is the enclosure rating?
The G-Series cylindrical motor is documented as totally enclosed and self-cooling with IP65 protection, excluding the shaft opening and lead wire ends.
What applications can R88M-G75030H-S2-Z be considered for?
It can be considered for positioning, machine-axis control and other servo motion applications after the required torque, speed, encoder and drive-system requirements have been checked.
What should be checked before ordering R88M-G75030H-S2-Z?
Check the complete model number, 750 W output requirement, 3,000 r/min speed, 230 V motor configuration, incremental encoder requirement, S2 shaft specification and the applicable servo drive and cable requirements against the existing motion system before purchasing.
