Littelfuse

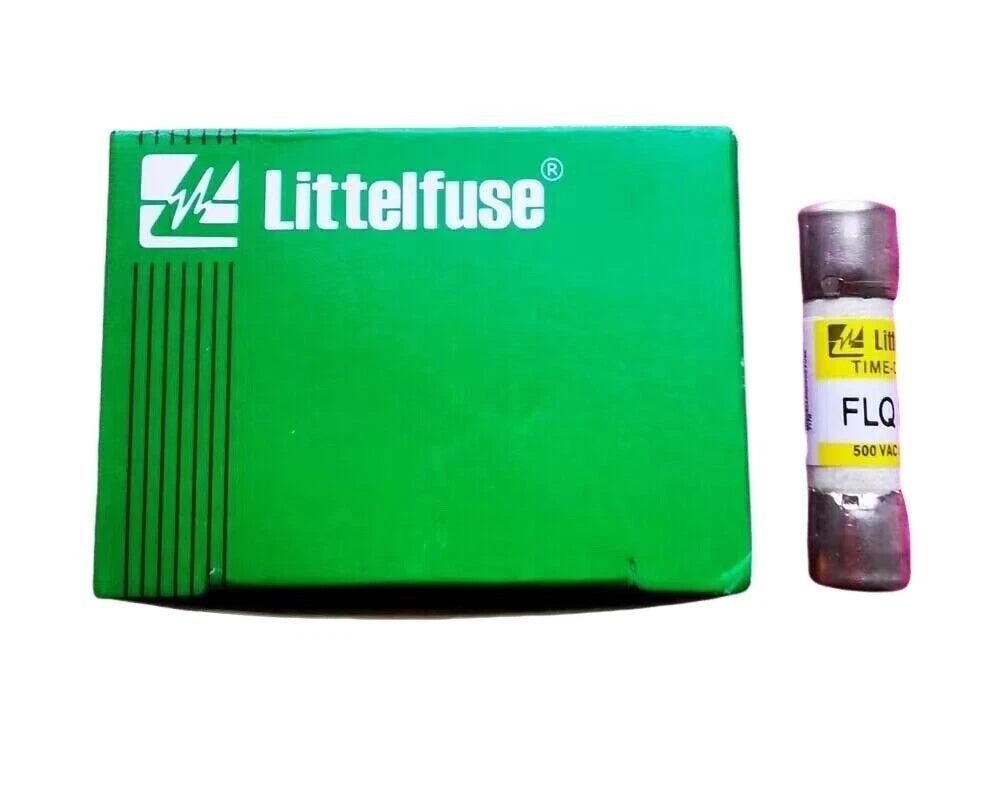

Littelfuse FLQ-2 Time-Delay Midget Fuse 2A 500VAC

SKU: LL1-LI-FLQ2*1

$6.98

Available

PRODUCT GALLERY 01 / 2

✓ Product images for part identification

Littelfuse

Littelfuse FLQ-2 Time-Delay Midget Fuse 2A 500VAC

SKU: LL1-LI-FLQ2*1

PRODUCT PRICE USD

$6.98

Available to order

Select Option Choose your purchase option

Quantity

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Littelfuse
Model Number	FLQ-2
Product Category	Time-Delay Midget Fuse
Fuse Series	FLQ
Current Rating	2 A
AC Voltage Rating	500 VAC
DC Voltage Rating	300 VDC
Operating Characteristic	Time-Delay
Fuse Format	Midget Cylindrical Fuse
Dimensions	10 x 38 mm
Termination Style	Ferrule End Caps
Indication	Non-Indicating
AC Interrupting Rating	10 kA RMS Symmetrical
Protection Type	Supplemental Overcurrent Protection

Key Features

2 A Current Rating

Provides supplemental overcurrent protection for electrical circuits requiring a 2 A fuse rating.

500 VAC Voltage Rating

Designed for appropriately specified AC circuits operating within the published 500 VAC rating.

Time-Delay Characteristics

Allows certain temporary inrush currents according to the published fuse time-current characteristics.

10 x 38 mm Fuse Format

Uses a cylindrical midget fuse design for installation in compatible fuse holders.

Ferrule End Connections

Features ferrule-style terminals for installation in properly rated fuse holders.

Industrial Control Circuit Protection

The FLQ series is intended for supplemental protection of control power transformers, solenoids and circuits with temporary inrush currents.

Applications

Control power transformer protection
Industrial solenoid circuits
Circuits with temporary inrush currents
Industrial electrical control panels
Small motor supplemental protection
Factory automation control circuits
Electrical equipment maintenance
Compatible 10 x 38 mm fuse-holder installations

Purchase Information

We support online purchase of the Littelfuse FLQ-2 Time-Delay Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Littelfuse FLQ-2?
It is a 2 A time-delay midget fuse from the Littelfuse FLQ series for supplemental overcurrent protection.

What is the current rating?
The rated current is 2 amperes.

What is the AC voltage rating?
The specified AC voltage rating is 500 VAC.

What is the DC voltage rating?
The FLQ series has a published DC voltage rating of 300 VDC. Confirm the applicable DC interrupting requirements before installation.

Is FLQ-2 a fast-acting fuse?
No. It belongs to the Littelfuse FLQ time-delay fuse series.

What does time-delay operation mean?
It allows certain short-duration current surges without immediately opening the circuit, subject to the published time-current characteristics.

What are the fuse dimensions?
The fuse uses the 10 x 38 mm cylindrical midget fuse format.

What type of terminals does this fuse use?
It uses ferrule end caps for installation in compatible fuse holders.

Is this an indicating fuse?
No. The FLQ series is non-indicating.

What is the AC interrupting rating?
The published FLQ series AC interrupting rating is 10 kA RMS symmetrical.

Can FLQ-2 be used for branch-circuit protection?
The FLQ series is intended for supplemental overcurrent protection. Applications requiring branch-circuit protection need a fuse with the appropriate protection classification.

What should be checked before ordering?
Verify the complete catalog number, 2 A current rating, circuit voltage, available fault current, time-current requirements and fuse-holder compatibility.

Need help confirming a model?

Send us your part number and technical requirements.

Contact Our Team
