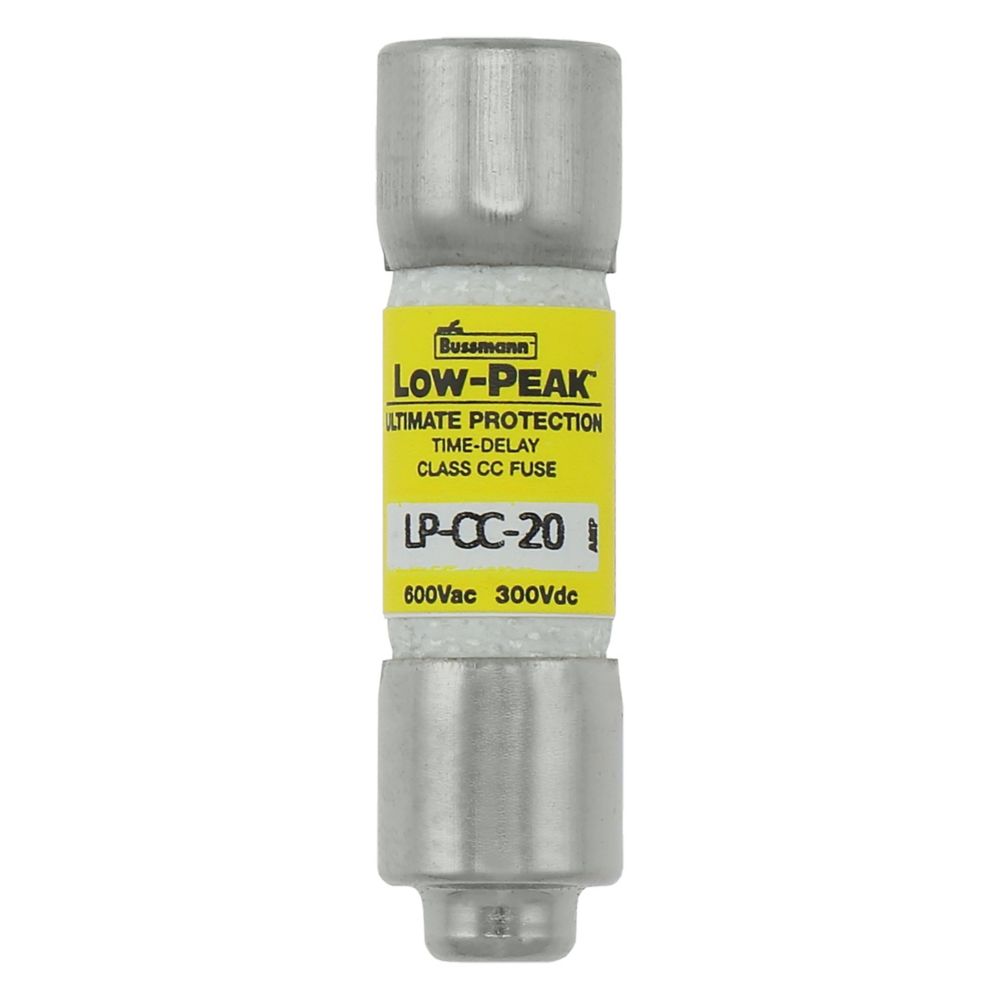

Eaton Bussmann LP-CC-20 Class CC 20A 600V time-delay fuse

Eaton Bussmann LP-CC-20 Class CC Fuse 20A 600VAC 300VDC

Eaton Bussmann LP-CC-20 Class CC Fuse 20A 600VAC 300VDC

Fast Quote
Global Shipping
Bulk Order Support

Available in stock (1000)

$3.90

~~$0.00~~

Shipping calculated at checkout.

Quantity: 1PC

1PC 10PCS

Request a Quote

In Stock
Free Returns And Exchanges Within 30 days
Bulk purchases are eligible for price discounts.

Brand	Eaton Bussmann
Model Number	LP-CC-20
Product Category	Class CC Fuse
Product Series	Low-Peak LP-CC
Fuse Type	Current-Limiting Time-Delay Fuse
Fuse Class	Class CC
Amperage Rating	20 A
AC Voltage Rating	600 VAC
DC Voltage Rating	300 VDC
AC Interrupt Rating	200 kA RMS Sym.
DC Interrupt Rating	20 kA
Time Delay	12 Seconds Minimum at 200% Rated Current
Special Feature	Rejection Type
Dimensions	38 x 10 mm

Key Features

20A Current Rating

The LP-CC-20 is a Class CC fuse with a documented current rating of 20 A.

600VAC / 300VDC Rating

The documented voltage ratings for the 20 A LP-CC configuration are 600 VAC and 300 VDC.

200kA AC Interrupt Rating

The LP-CC series specifies an AC breaking capacity of 200 kA RMS symmetrical.

20kA DC Interrupt Rating

The documented DC breaking capacity for the applicable LP-CC configuration is 20 kA.

Time-Delay Operation

The LP-CC series uses time-delay operation specified at a minimum of 12 seconds at 200% of rated current.

Class CC Rejection Design

The LP-CC-20 uses the documented Class CC rejection-type configuration for applicable Class CC fuse holders.

Applications

Branch circuit protection
Industrial control panels
Industrial machinery circuits
Motor control circuits
Relay control circuits
Specialized electrical circuits
Industrial control equipment
Class CC fuse applications

Purchase Information

We support online purchase of the Eaton Bussmann LP-CC-20 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Eaton Bussmann LP-CC-20?
Eaton Bussmann LP-CC-20 is a 20 A Class CC current-limiting time-delay fuse with AC and DC ratings.

What is the amperage rating of LP-CC-20?
The documented amperage rating is 20 A.

What AC voltage rating does LP-CC-20 have?
The documented AC voltage rating is 600 VAC.

What DC voltage rating does LP-CC-20 have?
The 20 A LP-CC configuration is documented for 300 VDC.

What is the AC interrupt rating of LP-CC-20?
The documented AC breaking capacity is 200 kA RMS symmetrical.

What is the DC interrupt rating of LP-CC-20?
The documented DC breaking capacity is 20 kA.

Is LP-CC-20 a time-delay fuse?
Yes. The LP-CC series is specified as a current-limiting time-delay fuse family.

What time-delay characteristic is documented?
The documented characteristic is a minimum of 12 seconds at 200% of rated current.

What fuse class is LP-CC-20?
The LP-CC-20 is a Class CC fuse.

What are the dimensions of LP-CC-20?
The documented LP-CC fuse dimensions are approximately 38 mm long and 10 mm in diameter.

What applications can LP-CC-20 be considered for?
It can be considered for branch circuits, industrial controls, panels and specialized electrical circuits after the current rating, voltage, interrupt rating and protection requirements have been checked.

What should be checked before ordering LP-CC-20?
Check the complete model number, 20 A current rating, 600 VAC or 300 VDC circuit requirement, Class CC holder configuration, interrupt rating and required time-delay characteristics before ordering.
