30 A Class CC Rating
The CCMR-30 is the 30 A configuration in the Littelfuse CCMR Class CC fuse series.

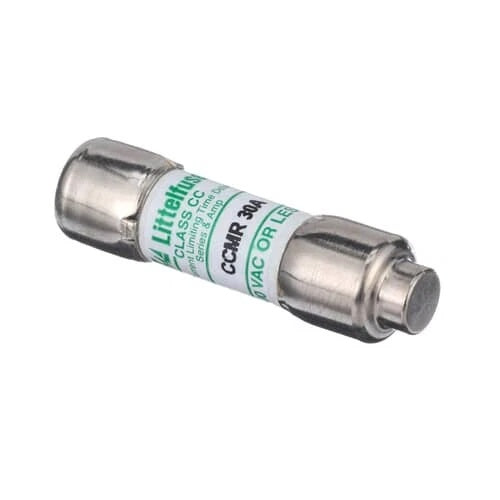

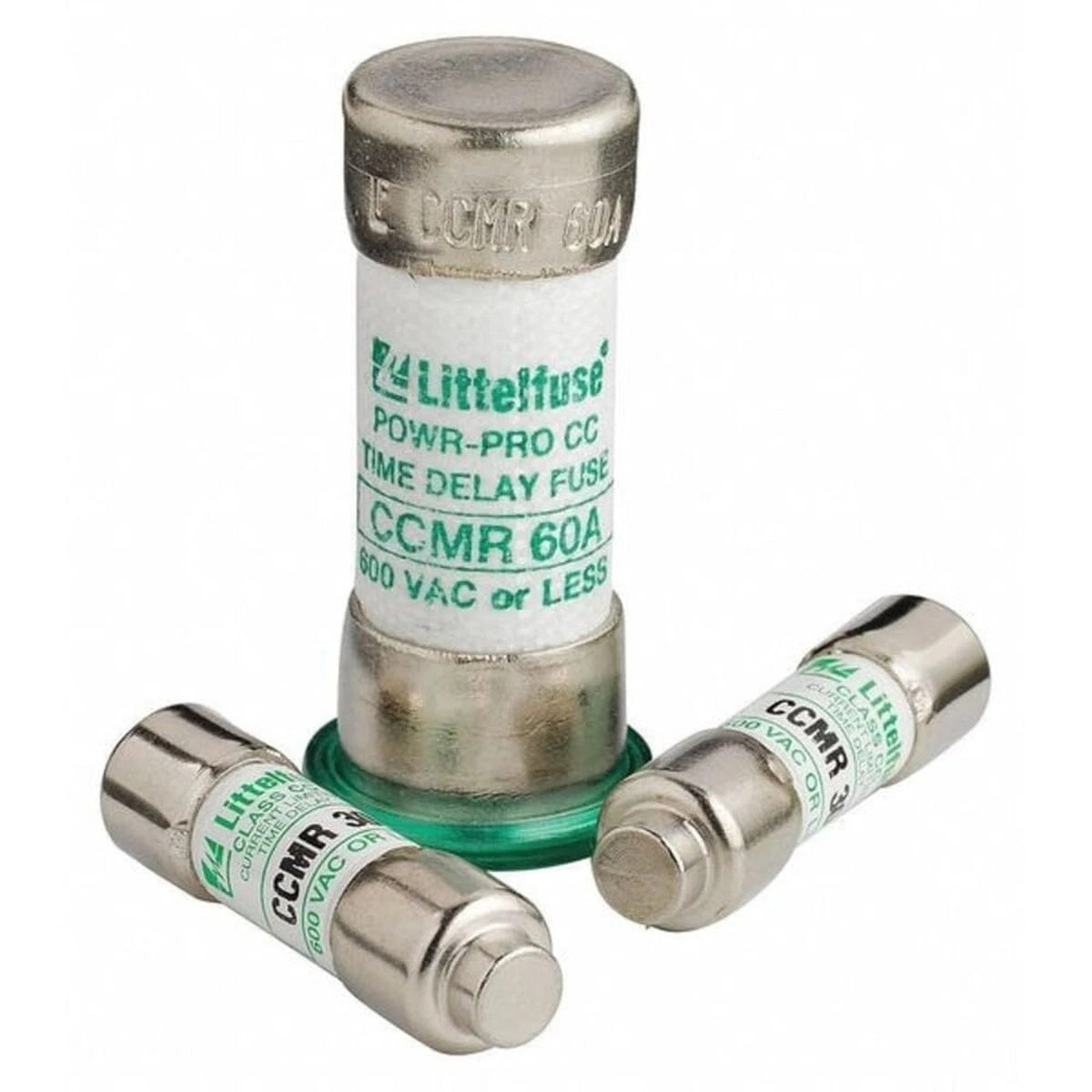

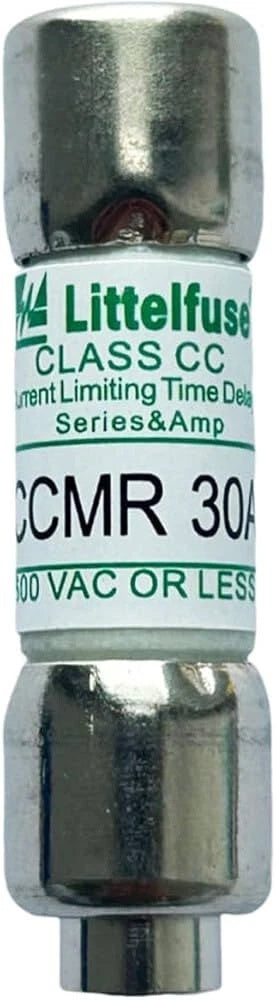

Littelfuse CCMR-30 Class CC Fuse 30A 600VAC 500VDC Time-Delay
Available in stock (1000)
Regular price
$6.19
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Littelfuse |
| Model Number | CCMR-30 |
| Product Category | Class CC Fuse |
| Series | CCMR |
| Fuse Type | Dual-Element Time-Delay Fuse |
| Current Rating | 30 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 500 VDC |
| AC Interrupting Rating | 200 kA RMS Symmetrical |
| DC Interrupting Rating | 20 kA |
| Fuse Class | Class CC |
| Dimensions | 10.3 × 38.1 mm |
| Watts Loss at 100% Rated Current | 2.75 W |
| Watts Loss at 80% Rated Current | 1.62 W |
| Total Clearing I²t at 200 kA | 1790 A²s |
| Catalog Number | CCMR030 |
| Product Marking | CCMR 30A |
| Applicable Standard | UL 248-4 Class CC |
| Certifications | UL Listed E81895; CSA Certified LR29862 |
| Environmental Compliance | RoHS Compliant |
Key Features
600 VAC and 500 VDC
The CCMR-30 has documented voltage ratings of 600 VAC and 500 VDC.
Dual-Element Time-Delay
The CCMR series uses dual-element time-delay construction for circuits that can experience temporary inrush currents.
High Interrupting Ratings
The documented interrupting ratings are 200 kA RMS symmetrical for AC and 20 kA for DC.
Compact Class CC Format
The 30 A configuration uses a compact 10.3 × 38.1 mm Class CC fuse format.
UL 248-4 Class CC
The CCMR-30 is listed under UL 248-4 Class CC and is also CSA certified.
Applications
- Motor branch circuit protection
- Feeder circuit protection
- Contactor protection
- Industrial heating circuits
- Industrial control panels
- General industrial circuit protection
Purchase Information
We support online purchase of the Littelfuse CCMR-30 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Littelfuse CCMR-30?
Littelfuse CCMR-30 is a 30 A dual-element time-delay Class CC fuse from the CCMR series.
What is the current rating of CCMR-30?
The documented current rating is 30 A.
What is the AC voltage rating?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating?
The documented DC voltage rating for the 30 A CCMR configuration is 500 VDC.
What is the AC interrupting rating?
The documented AC interrupting rating is 200 kA RMS symmetrical.
What is the DC interrupting rating?
The documented DC interrupting rating is 20 kA.
Is CCMR-30 a time-delay fuse?
Yes. The CCMR series is specified as dual-element time-delay.
What fuse class is CCMR-30?
The 30 A CCMR configuration is a UL Class CC fuse under UL 248-4.
What are the dimensions of CCMR-30?
The documented dimensions for the 0-30 A CCMR range are approximately 10.3 mm in diameter and 38.1 mm in length.
What is the Littelfuse catalog number?
The catalog number for the 30 A configuration is CCMR030, with product marking CCMR 30A.
What applications are associated with CCMR fuses?
Documented applications include feeder and branch circuit protection, motor and motor branch circuit protection, contactor protection, heating circuits and general industrial protection.
What should be checked before ordering CCMR-30?
Check the CCMR-30 model requirement, 30 A current rating, 600 VAC or 500 VDC voltage requirement, Class CC format, 10.3 × 38.1 mm dimensions and required interrupting rating before purchasing.
