Eaton Bussmann

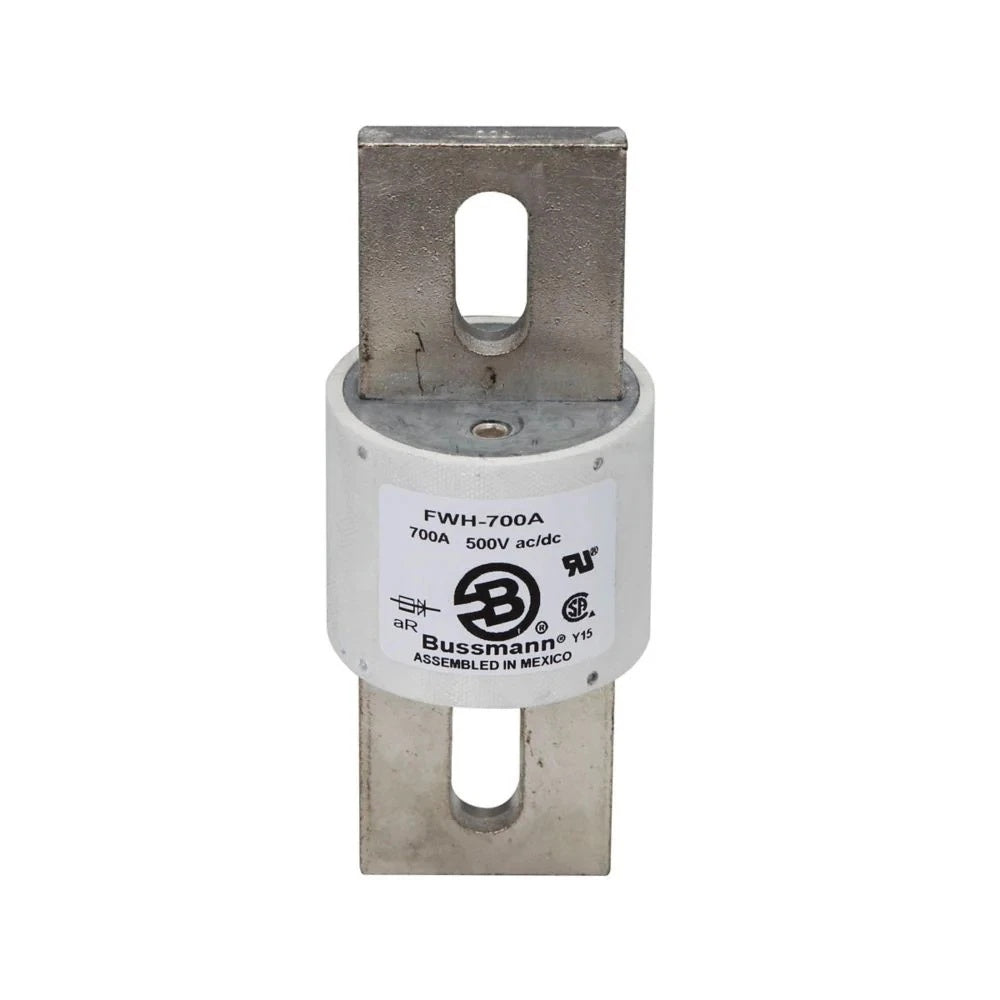

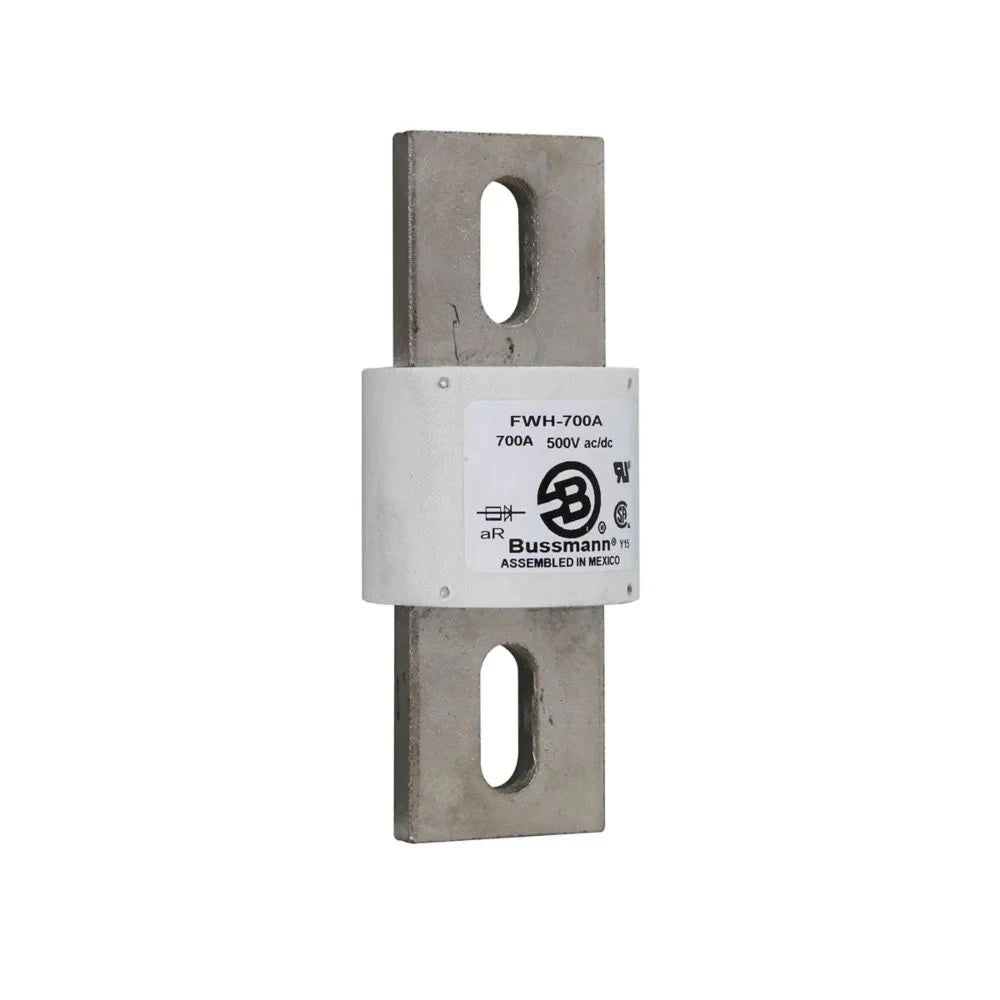

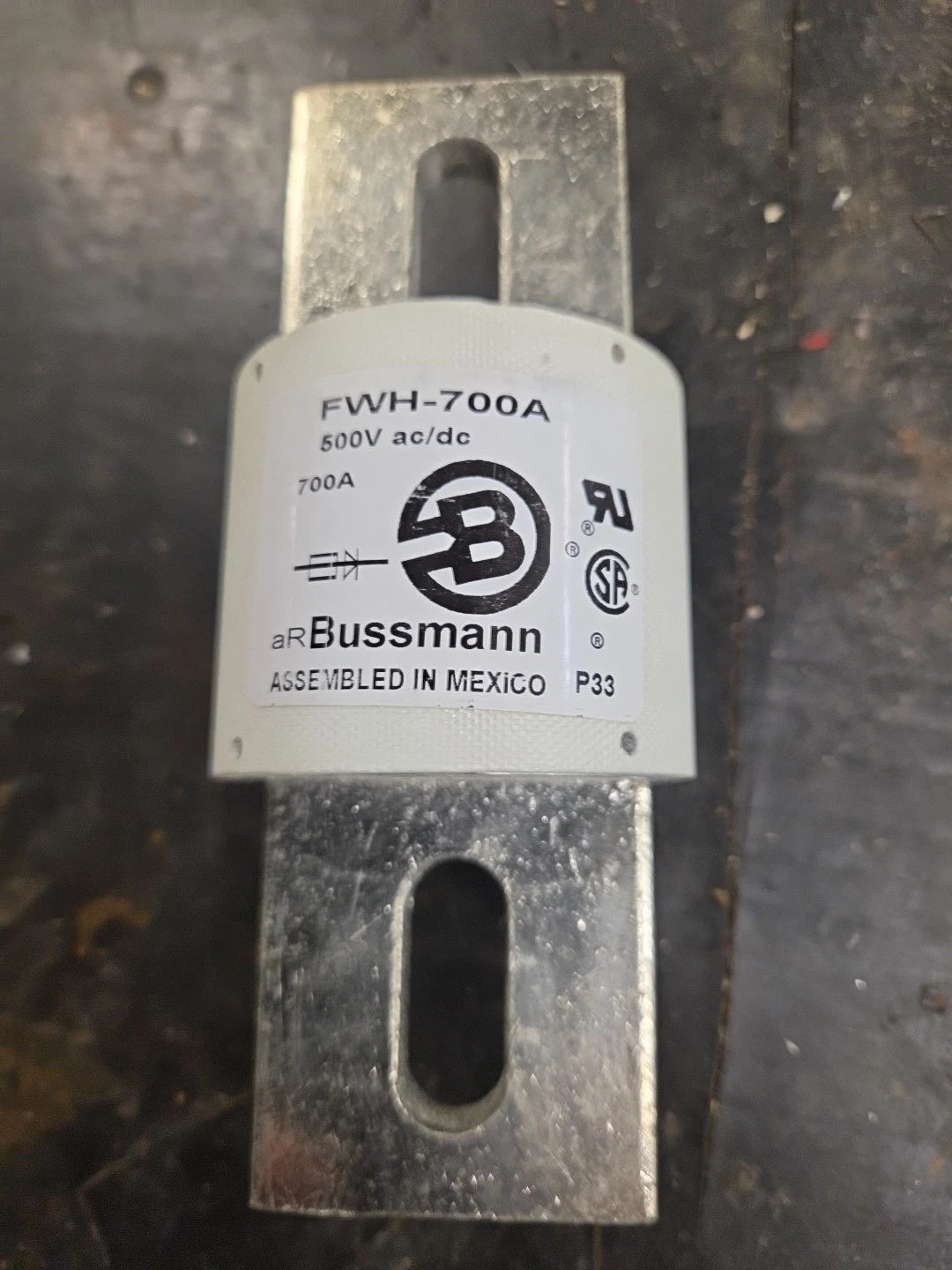

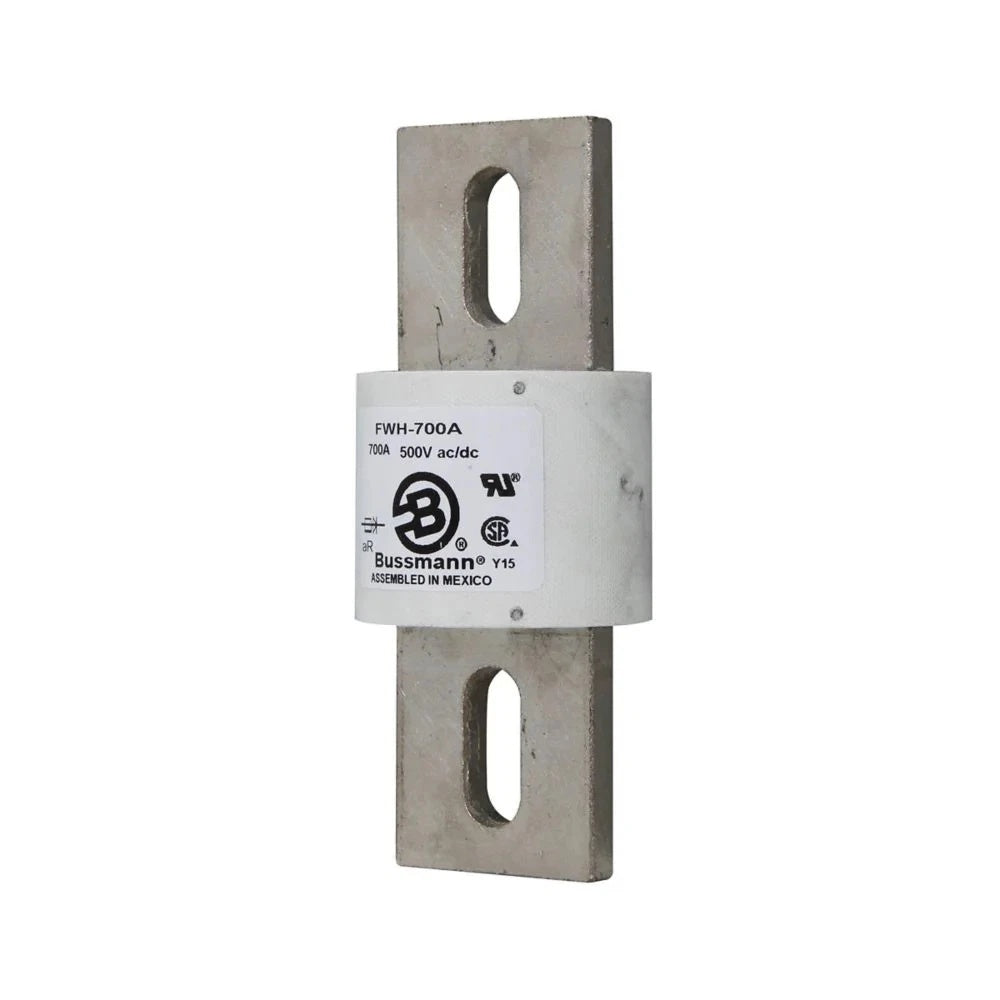

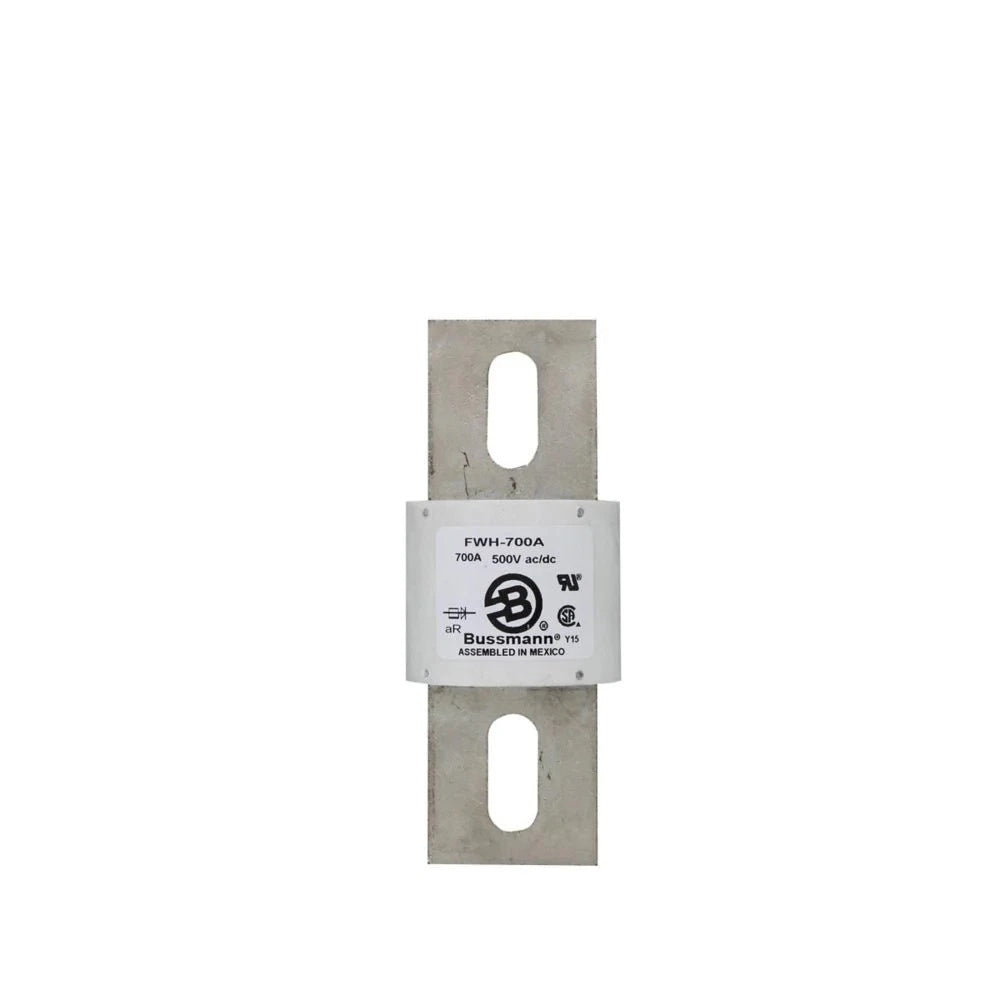

Bussmann FWH-700A High Speed Fuse 700A 120W

PRODUCT PRICE USD

$59.71

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	FWH-700A
Product Category	High Speed Fuse
Product Series	FWH
Amperage Rating	700 A RMS
AC Interrupt Rating	200 kAIC
DC Interrupt Rating	50 kAIC at 500 VDC
Watt Losses	120 W
Fuse Indicator	Non-Indicating
Connection	Blade End x Blade End
Mounting Method	Stud
Product Length/Depth	6.5 in
Product Height	2.5 in
Product Width	2.5 in
Certifications	CSA Certified, UL Recognized
Compliances	CE Marked, RoHS Compliant

Key Features

700A RMS Rating

The FWH-700A has a documented amperage rating of 700 A RMS.

High Speed Fuse

The FWH-700A is specified as a high speed fuse for applicable power-electronic circuit protection.

200kA AC Interrupt Rating

The documented AC interrupt rating is 200 kAIC.

50kA DC Interrupt Rating

The documented DC interrupt rating is 50 kAIC at 500 VDC.

Blade Connections

The fuse uses a blade end x blade end connection configuration with stud mounting.

120W Watt Losses

Eaton specifies watt losses of 120 W for the FWH-700A.

Applications

DC common bus protection
Power converter protection
Rectifier circuit protection
Power electronic equipment
Semiconductor circuit protection
Industrial drive systems
Reduced-voltage starter circuits
Industrial electrical maintenance

Purchase Information

We support online purchase of the Bussmann FWH-700A High Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Bussmann FWH-700A?
Bussmann FWH-700A is a high speed fuse with a documented amperage rating of 700 A RMS.

What is the current rating of FWH-700A?
The documented amperage rating is 700 A RMS.

What is the AC interrupt rating of FWH-700A?
The documented AC interrupt rating is 200 kAIC.

What is the DC interrupt rating of FWH-700A?
The documented DC interrupt rating is 50 kAIC at 500 VDC.

What type of fuse is FWH-700A?
The FWH-700A is specified as a high speed fuse.

What are the watt losses of FWH-700A?
The documented watt losses are 120 W.

What connection does FWH-700A use?
The documented connection is blade end x blade end.

How is FWH-700A mounted?
The documented mounting method is stud mounting.

Does FWH-700A have a fuse indicator?
No. The FWH-700A is specified as non-indicating.

What applications can FWH-700A be considered for?
It can be considered for applicable DC common bus, power converter, rectifier and other power-electronic protection applications after circuit requirements have been checked.

Can FWH-700A be used in an existing system?
It can be considered after the 700 A RMS current rating, interrupt ratings, physical dimensions, connection configuration, mounting method and circuit protection requirements have been checked.

What should be checked before ordering FWH-700A?
Check the complete FWH-700A catalog number, required current rating, system voltage, interrupting requirements, physical dimensions, blade connection, stud mounting and circuit protection requirements before ordering.
