600 VAC Rating
Rated for 600 VAC operation for industrial control circuit protection applications.

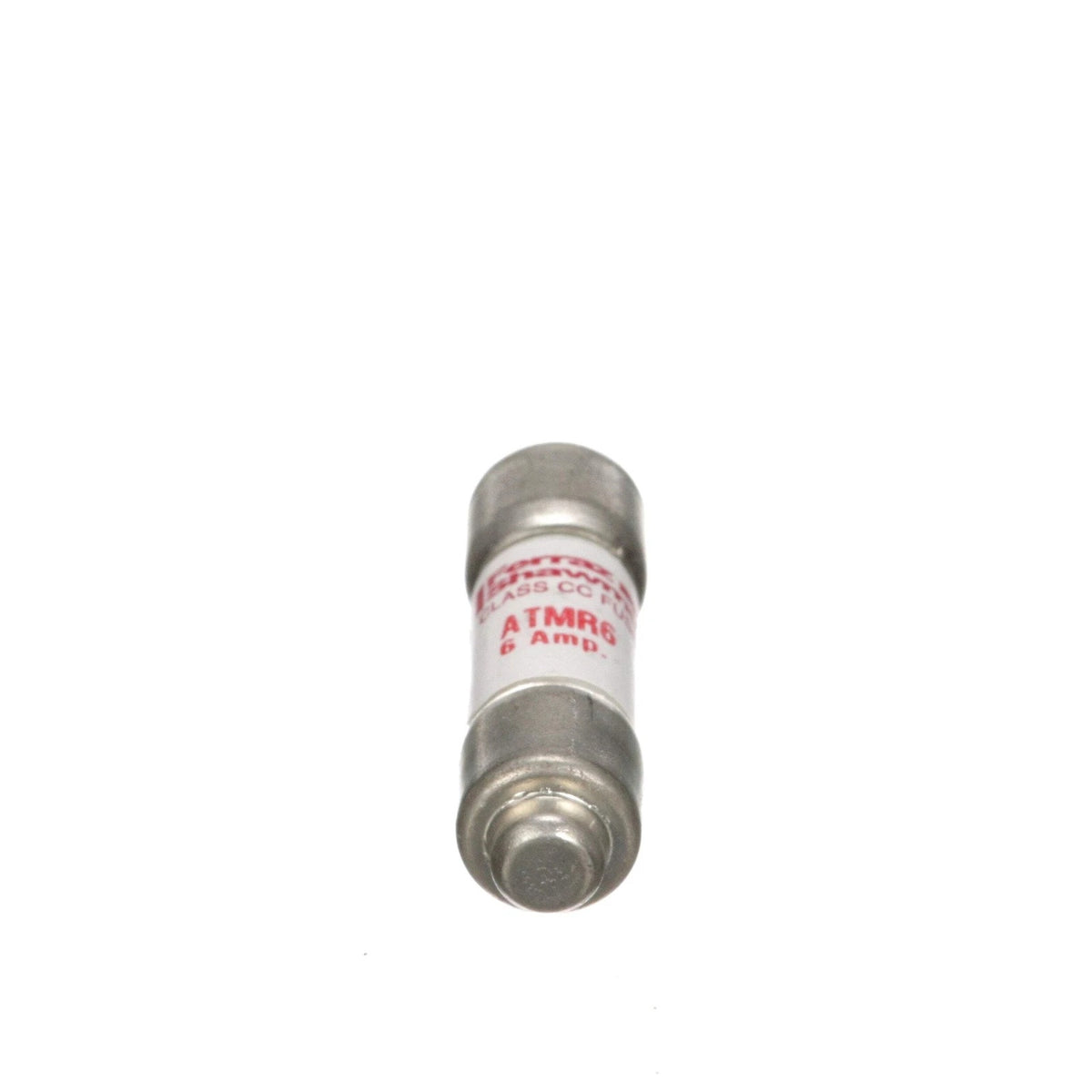

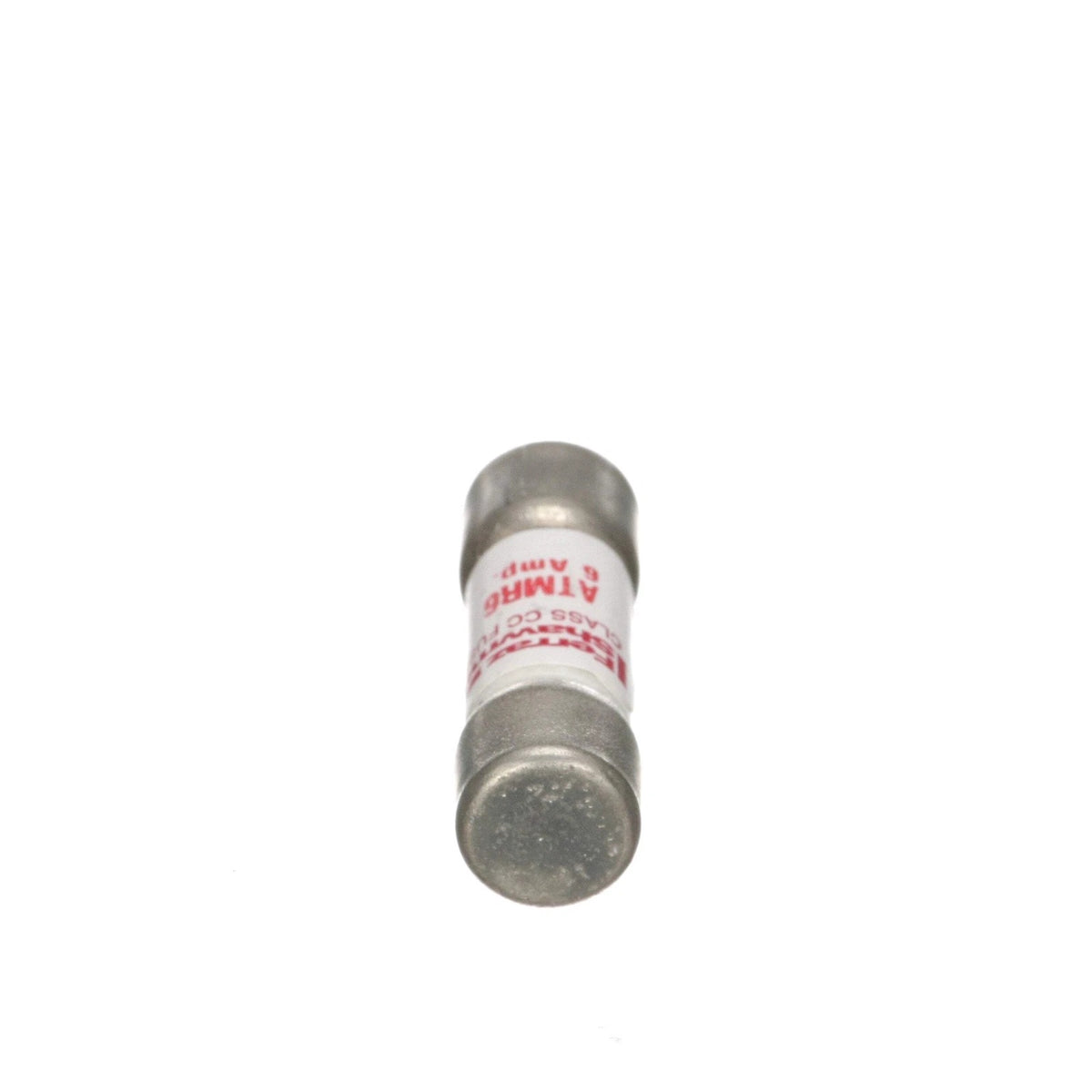

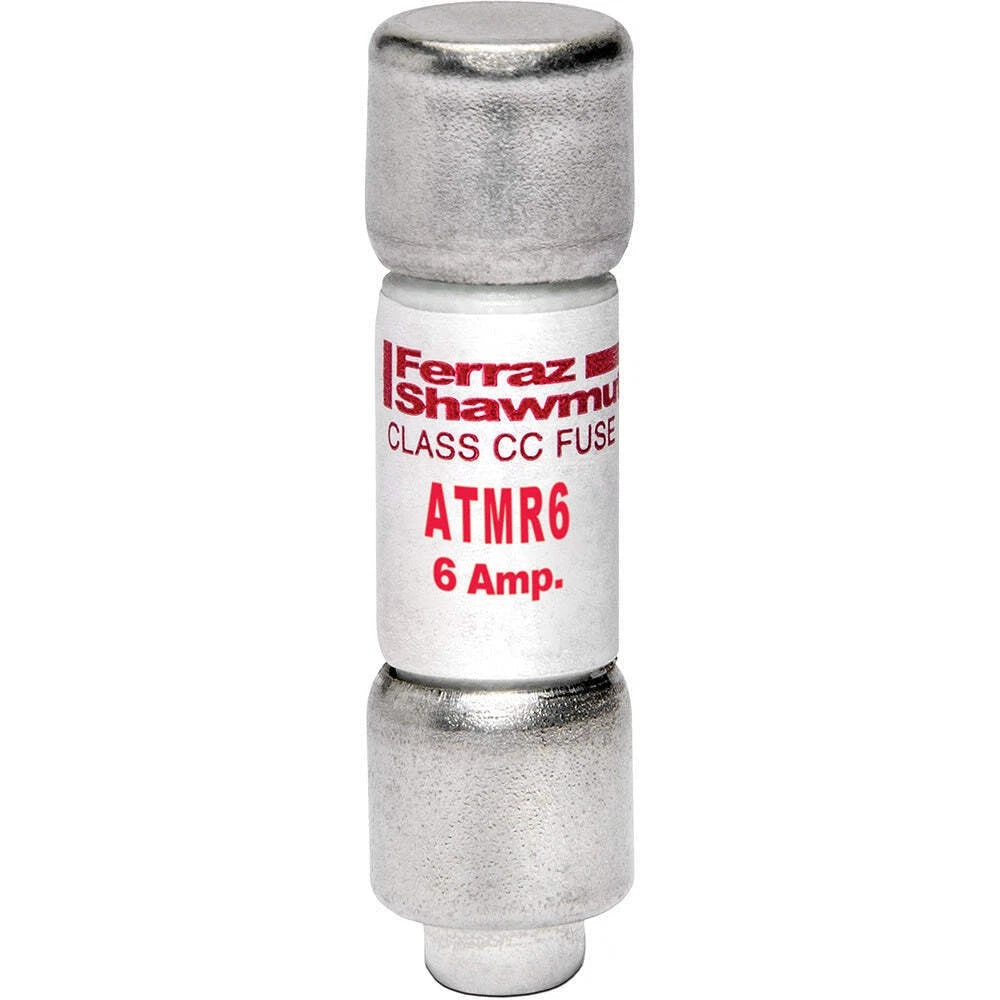

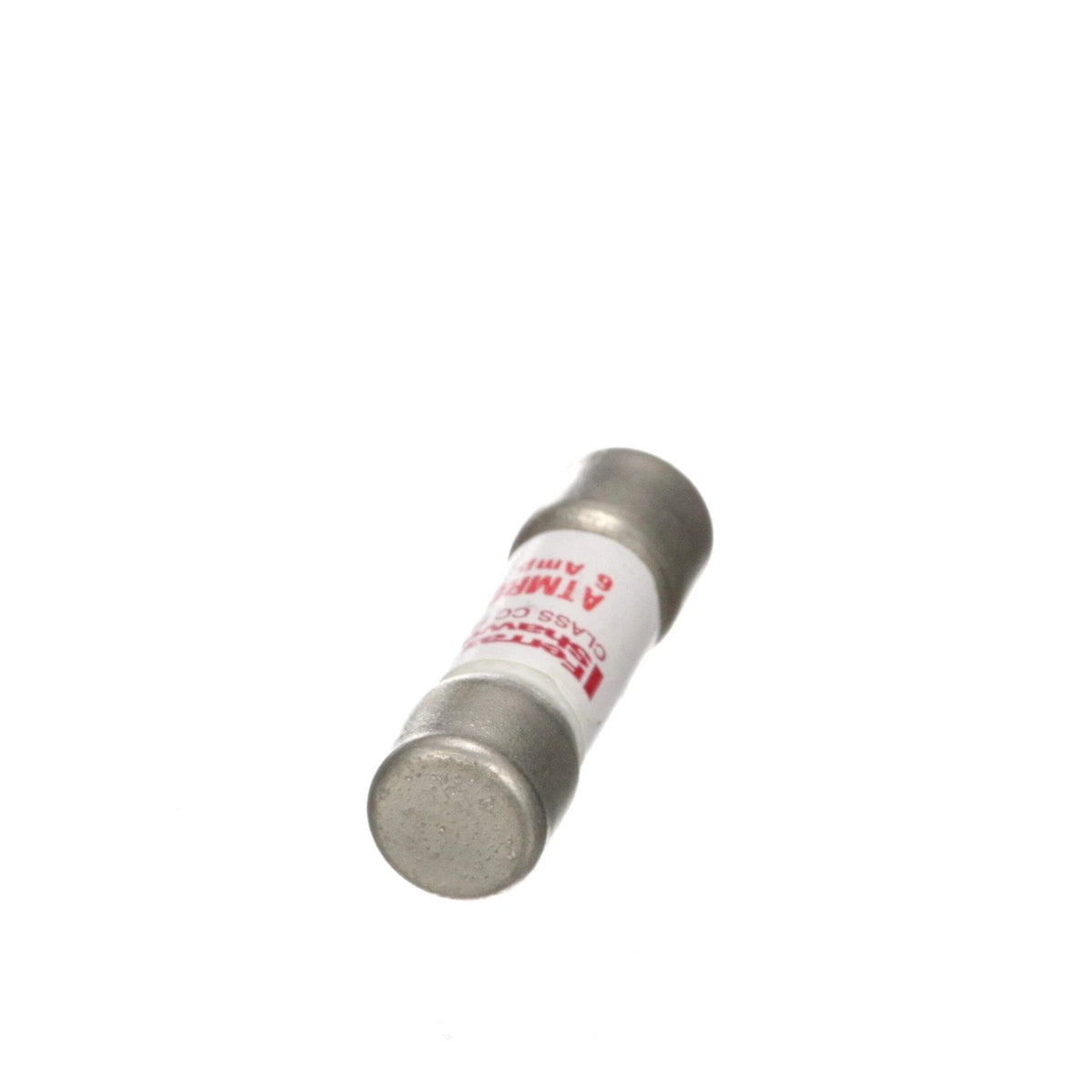

Ferraz ATMR6 Class CC Time-Delay Fuse 600VAC 6A
Available in stock (2000)
Regular price
$12.94
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATMR6 |
| Product Category | Class CC Time-Delay Fuse |
| Rated Voltage | 600 VAC |
| Ampere Rating | 6 A |
| Interrupting Rating | 200 kA |
| Fuse Class | Class CC |
| Time-Delay Characteristic | Time-Delay |
| Rejection Feature | Rejection Style |
Key Features
6 Ampere Current Rating
Provides 6 A current protection for branch circuits and control power transformers.
Time-Delay Characteristic
Time-delay feature allows temporary inrush current draw without nuisance opening.
High Interrupting Rating
200 kA interrupting rating provides protection for circuits with high available fault current.
Class CC Rejection Style
Rejection-style design prevents substitution with fuses of lower interrupting capacity.
Branch Circuit Protection
Listed for branch circuit protection applications as required by industrial standards.
Applications
- Control circuit protection
- Control power transformer (CPT) primary protection
- Industrial control panel protection
- Motor control center (MCC) control circuits
- Machine tool control circuits
- HVAC control circuit protection
- Industrial automation equipment protection
- Branch circuit protection applications
Purchase Information
We support online purchase of the Ferraz ATMR6 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATMR6?
Ferraz ATMR6 is a Class CC time-delay fuse rated for 600 VAC and 6 A with a 200 kA interrupting rating.
What voltage is Ferraz ATMR6 rated for?
Ferraz ATMR6 is rated for 600 VAC operation.
What is the ampere rating of ATMR6?
The ampere rating of Ferraz ATMR6 is 6 A.
Does ATMR6 have a time-delay characteristic?
Yes. Ferraz ATMR6 is a time-delay fuse suitable for applications with temporary inrush currents.
What is the interrupting rating of Ferraz ATMR6?
Ferraz ATMR6 has a 200 kA interrupting rating at 600 VAC.
What fuse class is ATMR6?
Ferraz ATMR6 is a Class CC fuse.
Does ATMR6 have a rejection feature?
Yes. Ferraz ATMR6 is manufactured with a rejection-style design to prevent use of fuses with lower interrupting ratings.
What applications can Ferraz ATMR6 be considered for?
Ferraz ATMR6 can be considered for control circuit protection, control power transformer primary protection, and branch circuit protection applications.
What should be checked before ordering ATMR6?
Check the full Ferraz ATMR6 catalog number, voltage, current rating, and Class CC fuse holder compatibility against the existing installation requirements before ordering.
Can Ferraz ATMR6 be used in control power transformer primary circuits?
Ferraz ATMR6 can be considered for control power transformer primary protection after the transformer inrush characteristics, voltage, and ampere rating have been checked.
