600VAC Rating
Rated for 600VAC operation for compatible industrial control circuits and equipment.

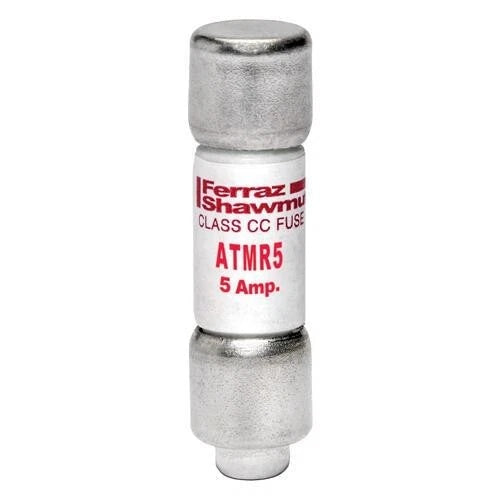

Ferraz ATMR5 Class CC Time-Delay Fuse 600VAC 5A
Available in stock (1200)
Regular price
$12.94
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATMR5 |
| Product Category | Class CC Time-Delay Fuse |
| Voltage Rating | 600VAC |
| Current Rating | 5A |
| Interrupting Rating | 300kA Sym. @ 600VAC |
| Class | Class CC |
| Time Delay | Time-Delay (10 Seconds at 500% Rated Current) |
Key Features
5A Current Rating
5 amp current rating for branch circuit protection in industrial applications.
Time-Delay
Time-delay characteristic with a 10 second hold at 500% rated current for motor and transformer starting loads.
High Interrupting Rating
Interrupting rating of 300kA symmetrical at 600VAC for robust fault current protection.
Class CC Design
Class CC fuses provide current-limiting protection with a rejection feature to prevent substitution.
Branch Circuit Protection
Suitable for branch circuit protection of control transformers, solenoids, and motor circuits.
Applications
- Control transformer primary protection
- Control circuit protection
- Branch circuit protection in industrial control panels
- Solenoid and relay coil protection
- Motor circuit protection
- Industrial automation equipment protection
- Power supply input protection
- General purpose industrial circuit protection
Purchase Information
We support online purchase of the Ferraz ATMR5 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATMR5?
Ferraz ATMR5 is a Class CC time-delay fuse rated for 600VAC and 5A, designed for branch circuit protection in industrial applications.
What is the voltage rating of ATMR5?
Ferraz ATMR5 is rated for 600VAC operation.
What is the current rating of ATMR5?
ATMR5 has a current rating of 5A.
Is ATMR5 a time-delay fuse?
Yes. ATMR5 is a time-delay fuse, featuring a 10 second time delay at 500% of rated current to accommodate temporary inrush currents.
What is the interrupting rating of ATMR5?
ATMR5 has an interrupting rating of 300kA symmetrical at 600VAC.
What fuse class is ATMR5?
ATMR5 is a Class CC fuse. Class CC fuses offer current-limiting characteristics and include a rejection feature to help prevent incorrect fuse substitutions.
What applications can ATMR5 be used for?
ATMR5 is suitable for branch circuit protection of control transformers, solenoids, motor circuits, control panels, and general industrial equipment.
Can ATMR5 be used for motor protection?
ATMR5 can be considered for motor branch circuit protection after the motor full-load current and applicable code requirements have been checked.
What should be verified before using ATMR5 in an existing system?
The existing system voltage, current requirements, fuse holder compatibility (Class CC rejection type), short-circuit current ratings, and applicable local electrical codes should be verified before installation.
What should be checked before ordering ATMR5?
Check the complete catalog number, voltage and current requirements, Class CC fuse holder compatibility, interrupting rating requirements, and applicable electrical code requirements before ordering.
