AC Axial Compact Fan
AC-powered axial fan with a 130 mm blade diameter and 172 mm round frame for cooling and ventilation tasks.
1 / 1
Ebmpapst

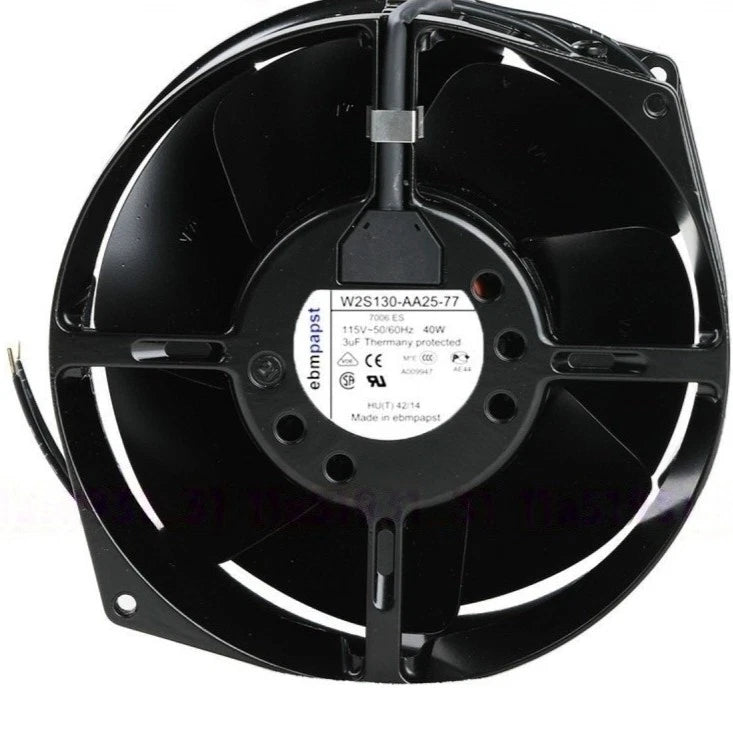

Ebmpapst W2S130-AA25-77 Axial Fan
PRODUCT PRICE
USD
$80.18
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2S130-AA25-77 |
| Product Category | Axial Fan |
| Product Family | W2S130 |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 45 W |
| Speed | 3250 RPM |
| Air Flow | 380 m³/h |
| Frame Dimensions | 172 x 55 mm |
| Blade Diameter | 130 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP20 |
Key Features
230 VAC Input
Operates directly on 230 VAC at 50 Hz, supporting standard industrial single-phase AC power availability.
45 W Motor
Published power consumption is 45 W with a rated speed of 3250 RPM for air delivery up to 380 m³/h.
Ball Bearing Construction
Equipped with ball bearings to support continuous rotational operation in fixed industrial installations.
IP20 Protection
Rated IP20 for protection against solid objects greater than 12.5 mm, suitable for protected enclosure environments.
Applications
- Electrical cabinet and enclosure cooling
- Industrial equipment ventilation
- Heat exchanger airflow support
- Power supply and drive thermal management
- General-purpose machinery cooling
- Control panel air circulation
Purchase Information
We support online purchase of the Ebmpapst W2S130-AA25-77 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2S130-AA25-77? It is an AC axial compact fan with a 130 mm blade diameter, used for cooling and ventilation in industrial equipment.
What voltage does the W2S130-AA25-77 require? The fan operates on 230 VAC at 50 Hz.
What is the power consumption? Published specifications list 45 W power consumption.
What is the speed and air flow? The fan runs at 3250 RPM and delivers approximately 380 m³/h air flow.
What are the dimensions? The frame measures 172 x 55 mm, and the blade diameter is 130 mm.
What is the protection rating? The W2S130-AA25-77 is rated IP20.
What bearing type is used? It uses ball bearings.
What should be checked before ordering? Verify the 230 VAC 50 Hz supply, mounting space for the 172 mm frame, airflow requirement, and IP20 suitability for the intended enclosure.
