280 x 280 x 80 mm Frame
Square compact axial fan format with a 280mm frame width and 80mm depth for equipment integration.
1 / 4
Ebmpapst

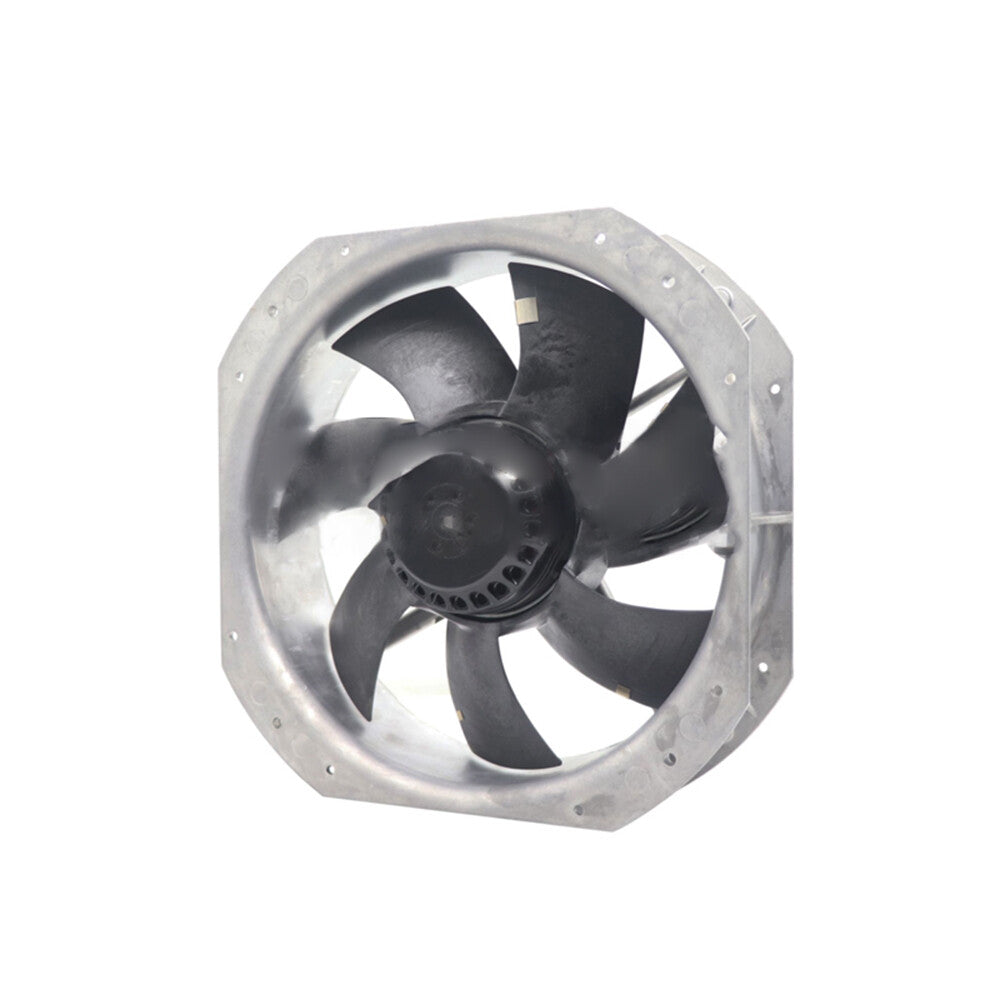

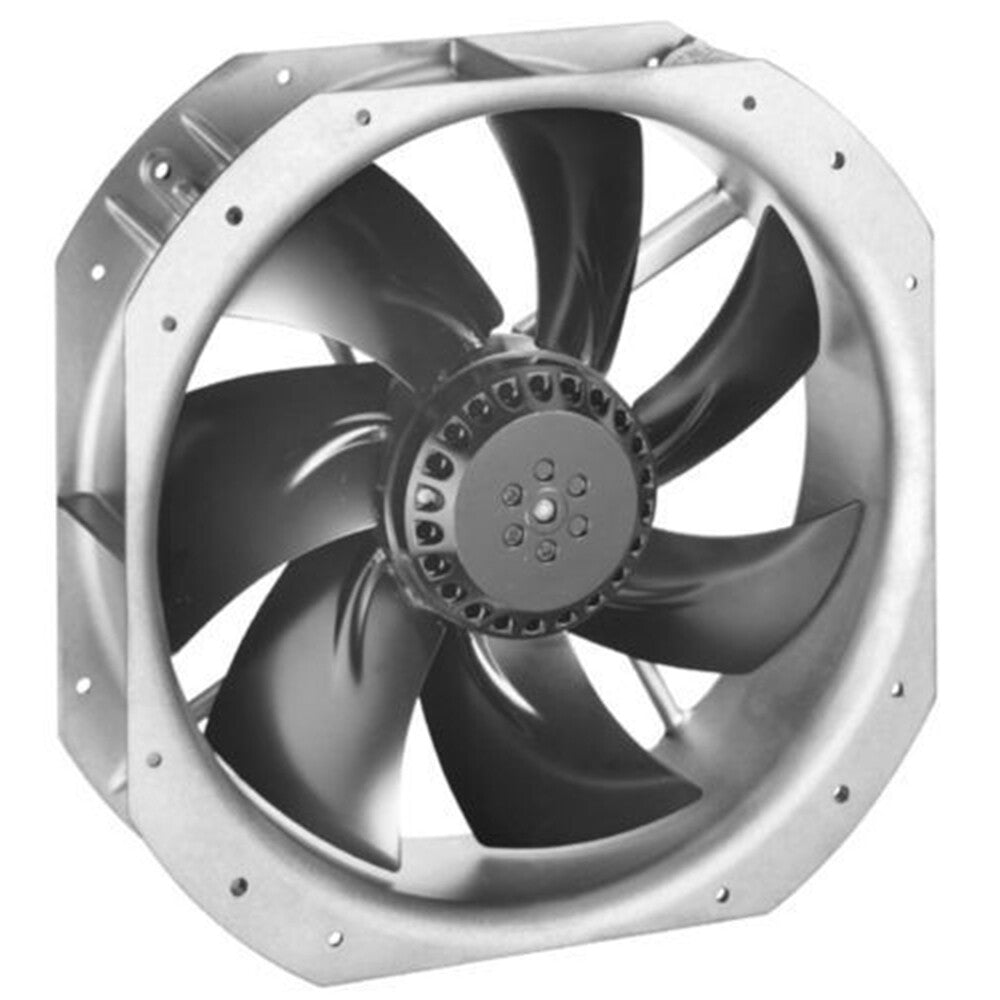

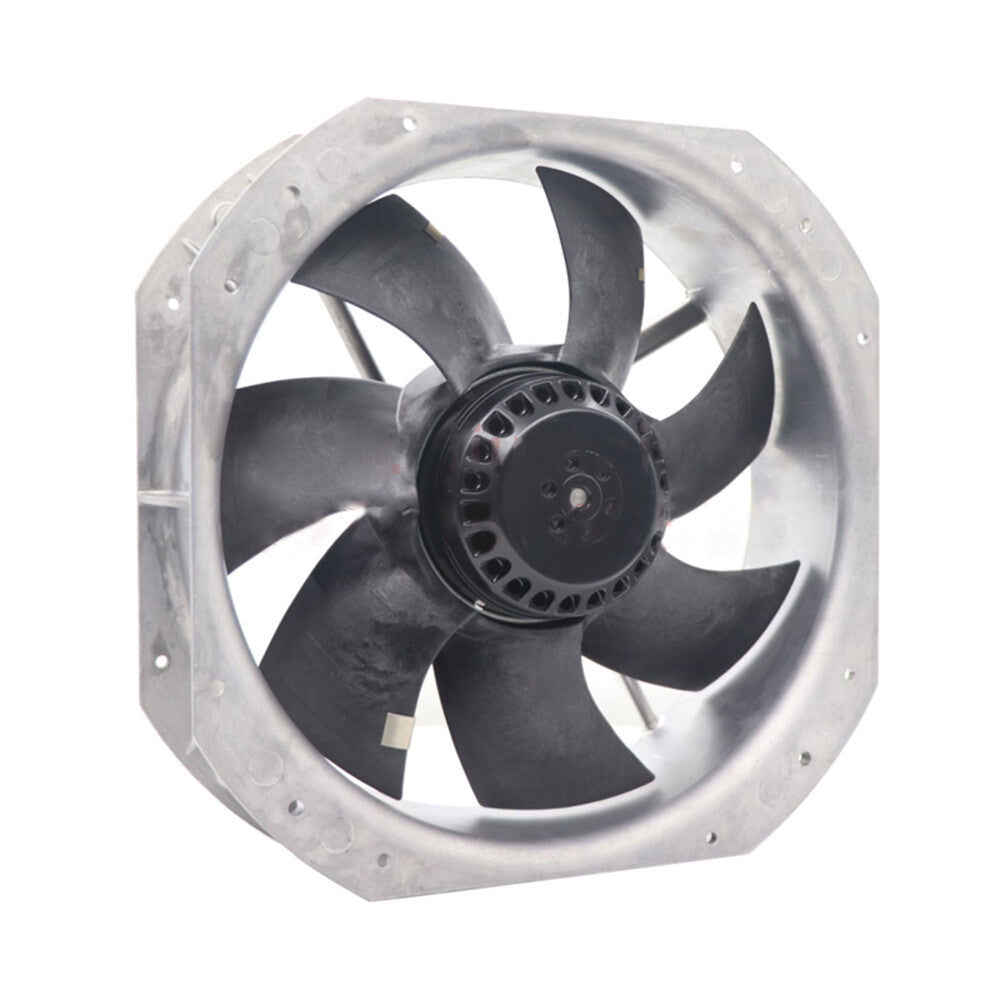

Ebmpapst W2E250-HQ52-12 Axial Fan 230VAC 250mm 90W
PRODUCT PRICE
USD
$427.13
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E250-HQ52-12 |
| Product Category | Axial Fan |
| Fan Type | AC Axial Compact Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz (60 Hz available) |
| Power Input | 136 W |
| Rated Current | 0.61 A |
| Speed | 2530 rpm |
| Air Flow | 1790 m³/h |
| Dimensions | 280 x 280 x 80 mm |
| Operating Temperature Range | -25°C to +70°C |
| Sound Pressure Level | 69 dB(A) |
| Bearing Type | Ball Bearing |
| Housing Material | Die-cast Aluminium |
| Weight | 3.1 kg |

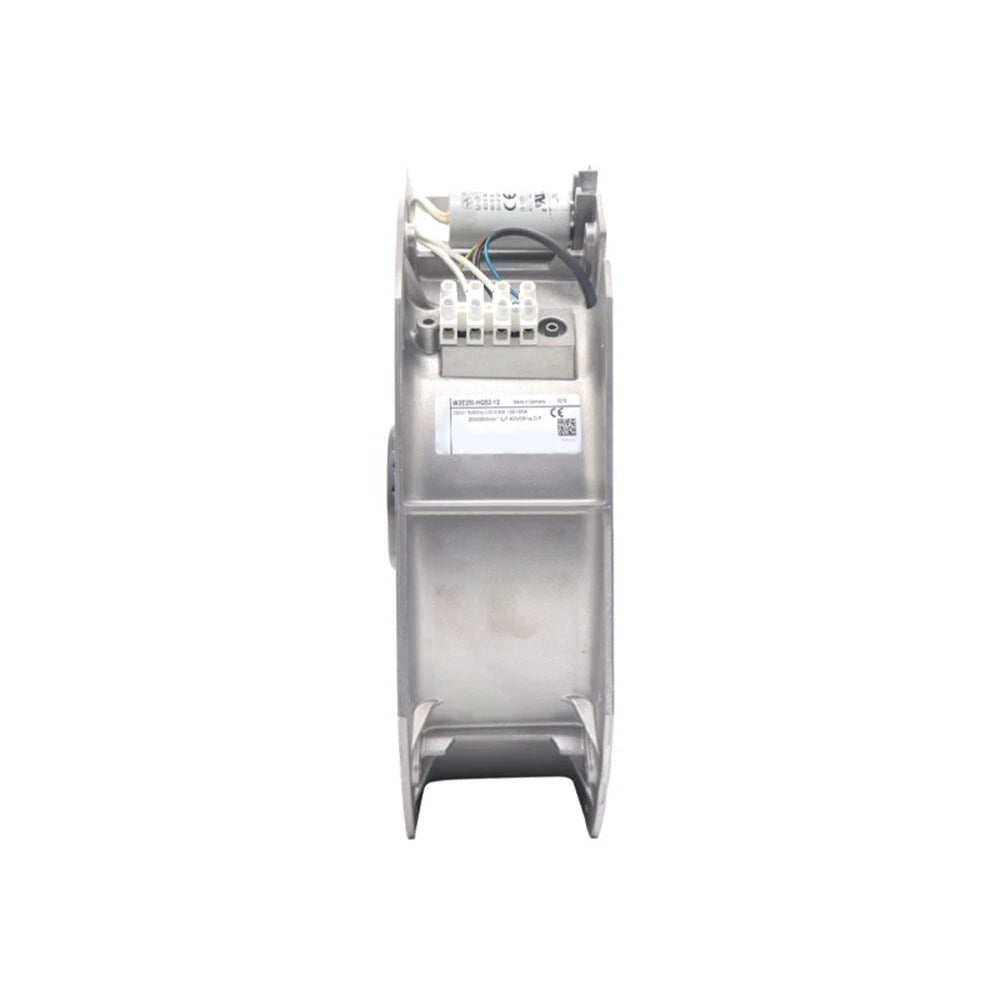

| Termination | Terminal block with capacitor connected |
Key Features
1790 m³/h Air Flow
Documented air flow of 1790 m³/h at 2530 rpm for high-volume axial ventilation.
136W AC Motor
230VAC 50Hz motor with 0.61A rated current and 136W power input.
Operating Temperature up to +70°C
Documented operating temperature range of -25°C to +70°C for elevated-temperature environments.
Thermal Motor Protection
Built-in thermal contact motor protection with automatic reset.
Applications
- Control cabinet cooling
- Industrial enclosure ventilation
- Heat exchanger airflow
- Equipment rack cooling
- Process cooling air movement
- HVAC axial fan replacements
Purchase Information
We support online purchase of the Ebmpapst W2E250-HQ52-12 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E250-HQ52-12? It is a 230VAC axial fan with a 280 x 280 x 80 mm frame, 136W power input, and 1790 m³/h air flow.
What is the air flow of the W2E250-HQ52-12? The documented air flow is 1790 m³/h at 2530 rpm.
What is the power input? The documented power input is 136 W.
What is the rated current? The rated current is 0.61 A.
What is the speed? The documented speed is 2530 rpm.
What is the operating temperature range? The documented operating temperature range is -25°C to +70°C.
What are the dimensions? The fan measures 280 x 280 x 80 mm.
What is the weight of the W2E250-HQ52-12? The documented weight is 3.1 kg.
What bearing type is used? The fan uses ball bearings.
