1970 m³/h High Air Flow
Documented air flow of 1970 m³/h (709 CFM) at 2650 rpm for high-volume axial ventilation.
1 / 2
Ebmpapst

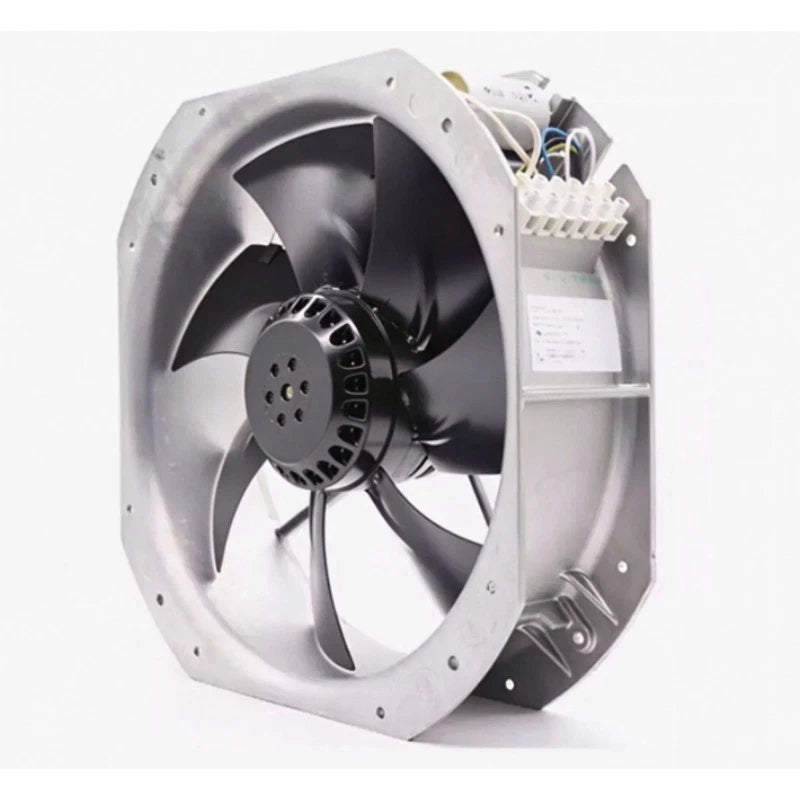

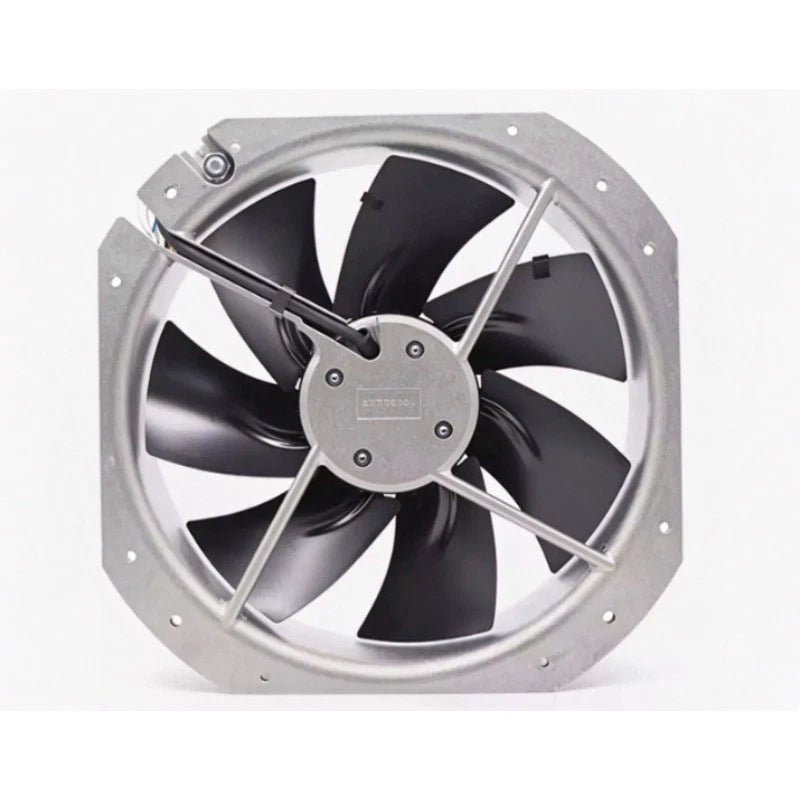

Ebmpapst W2E250-HL08-07 Axial Fan 230VAC 250mm 90W
PRODUCT PRICE
USD
$238.47
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E250-HL08-07 |
| Product Category | Axial Fan |
| Fan Type | AC Tubeaxial Fan |
| Nominal Voltage | 230 VAC |
| Power Consumption | 180 W |
| Maximum Current | 790 mA |
| Air Flow | 1970 m³/h (709 CFM) |
| Speed | 2650 rpm |
| Dimensions | 320 x 280 x 80 mm |
| Noise Level | 70 dB(A) |
| Bearing Type | Ball Bearing |
| Protection Rating | IP44 |
| Operating Temperature Range | -13°C to +86°C |
| Termination | Terminal Block |
| Weight | 6.1 lb |
Key Features
180W AC Motor
230VAC motor with 180W power consumption and a maximum current of 790mA.
320 x 280 x 80 mm Frame
Rectangular axial fan format with a 320mm height, 280mm width, and 80mm depth.
IP44 Protection
IP44 protection rating for the motor and fan assembly.
Wide Operating Temperature Range
Documented operating temperature range of -13°C to +86°C for demanding thermal environments.
Applications
- Industrial enclosure cooling
- Heat exchanger ventilation
- Large equipment rack airflow
- Process cooling air movement
- HVAC condenser fan applications
- High-volume panel ventilation
Purchase Information
We support online purchase of the Ebmpapst W2E250-HL08-07 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E250-HL08-07? It is a 230VAC axial fan with a 320 x 280 x 80 mm frame, 180W power consumption, and 1970 m³/h air flow.
What is the air flow of the W2E250-HL08-07? The documented air flow is 1970 m³/h (709 CFM).
What is the power consumption? The documented power consumption is 180 W.
What is the maximum current? The maximum current is 790 mA.
What is the speed? The documented speed is 2650 rpm.
What are the dimensions? The fan measures 320 x 280 x 80 mm.
What is the protection rating? The protection rating is IP44.
What is the operating temperature range? The documented operating temperature range is -13°C to +86°C.
What bearing type is used? The fan uses ball bearings.
What is the weight of the W2E250-HL08-07? The documented weight is 6.1 lb.
