260mm Axial Fan
Round 260mm diameter axial fan with an 80mm depth for circular duct or opening mounting.
1 / 1
Ebmpapst

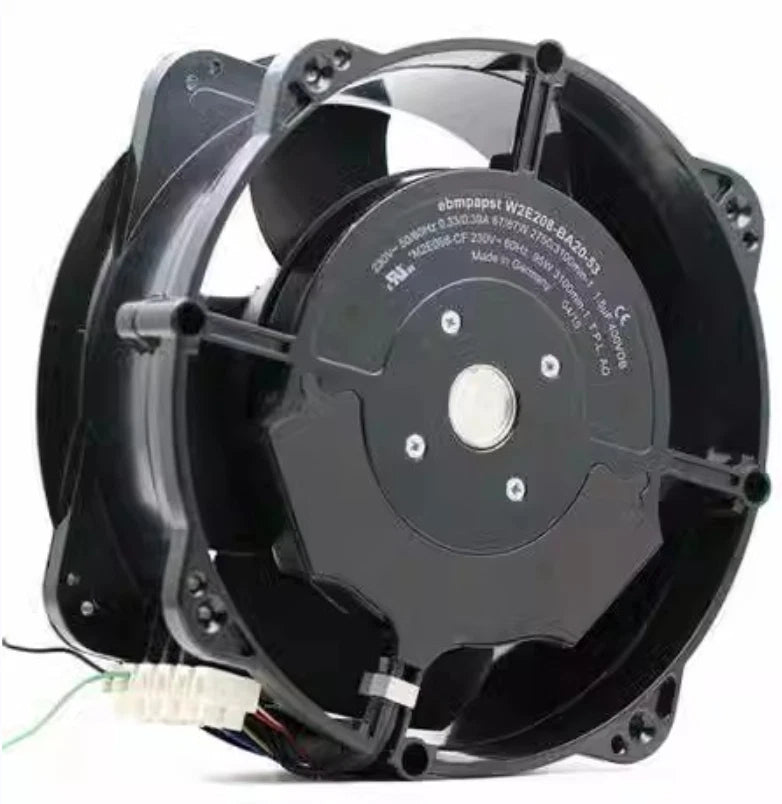

Ebmpapst W2E208-BA20-53 Axial Fan 230VAC 208mm 65W
PRODUCT PRICE
USD
$206.27
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E208-BA20-53 |
| Product Category | Axial Fan |
| Fan Type | AC Tubeaxial Fan |
| Nominal Voltage | 230 VAC |
| Power Consumption | 87 W |
| Air Flow | 544 CFM (15.23 m³/min) |
| Diameter | 260 mm |
| Depth | 80 mm |
| Speed | 2750 rpm |
| Noise Level | 70 dBA |
| Bearing Type | Ball Bearing |
Key Features
544 CFM Air Flow
Documented air flow of 544 CFM (15.23 m³/min) for high-volume cooling and ventilation.
87W Power Consumption
230VAC motor with 87W power consumption and ball bearing construction.
2750 rpm Speed
Nominal speed of 2750 rpm for stable axial air movement.
70 dBA Noise Level
Documented noise level of 70 dBA for the fan assembly.
Applications
- Industrial enclosure cooling
- Heat exchanger airflow
- Equipment rack ventilation
- Process cooling
- HVAC condenser fan applications
- Panel cooling in automation systems
Purchase Information
We support online purchase of the Ebmpapst W2E208-BA20-53 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E208-BA20-53? It is a 230VAC axial fan with a 260mm diameter, 80mm depth, and 544 CFM air flow rating.
What is the air flow of the W2E208-BA20-53? The documented air flow is 544 CFM (15.23 m³/min).
What is the power consumption? The documented power consumption is 87 W.
What is the speed? The documented speed is 2750 rpm.
What is the noise level? The documented noise level is 70 dBA.
What are the dimensions? The fan has a 260mm diameter and an 80mm depth.
What bearing type is used? The fan uses ball bearings.
Is the W2E208-BA20-53 a tubeaxial fan? Yes, it is classified as an AC tubeaxial fan.
Need help confirming a model?
Send us your part number and technical requirements.
