143 mm Blade AC Axial Fan
Axial fan with a 143 mm blade diameter and 172 x 51 mm frame for industrial air movement.
1 / 5
Ebmpapst

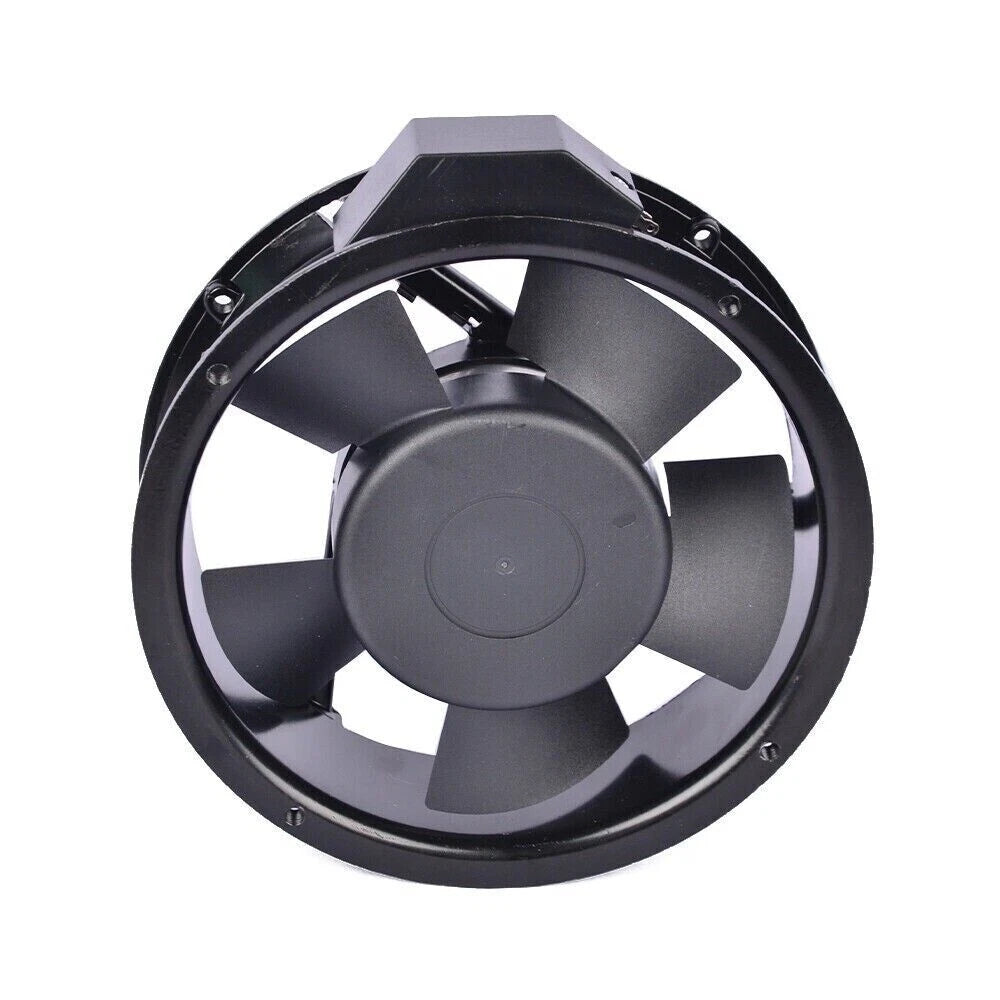

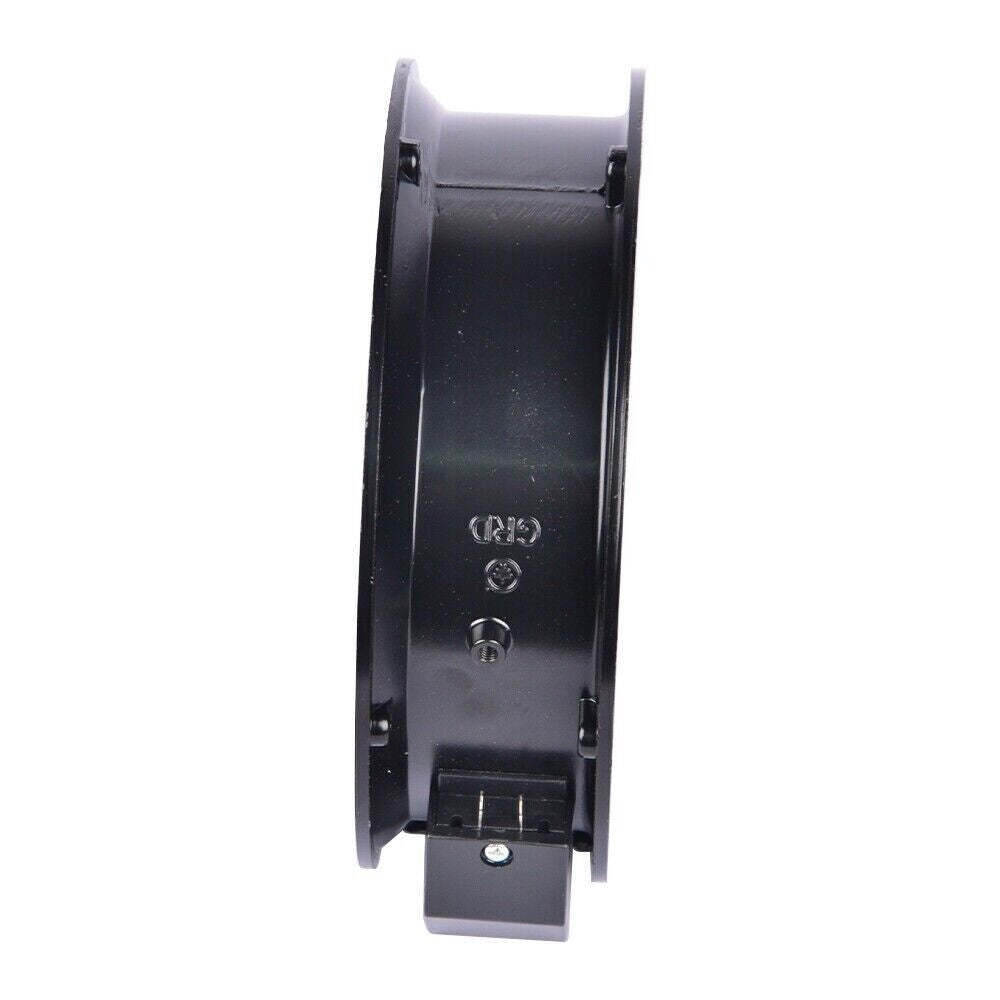

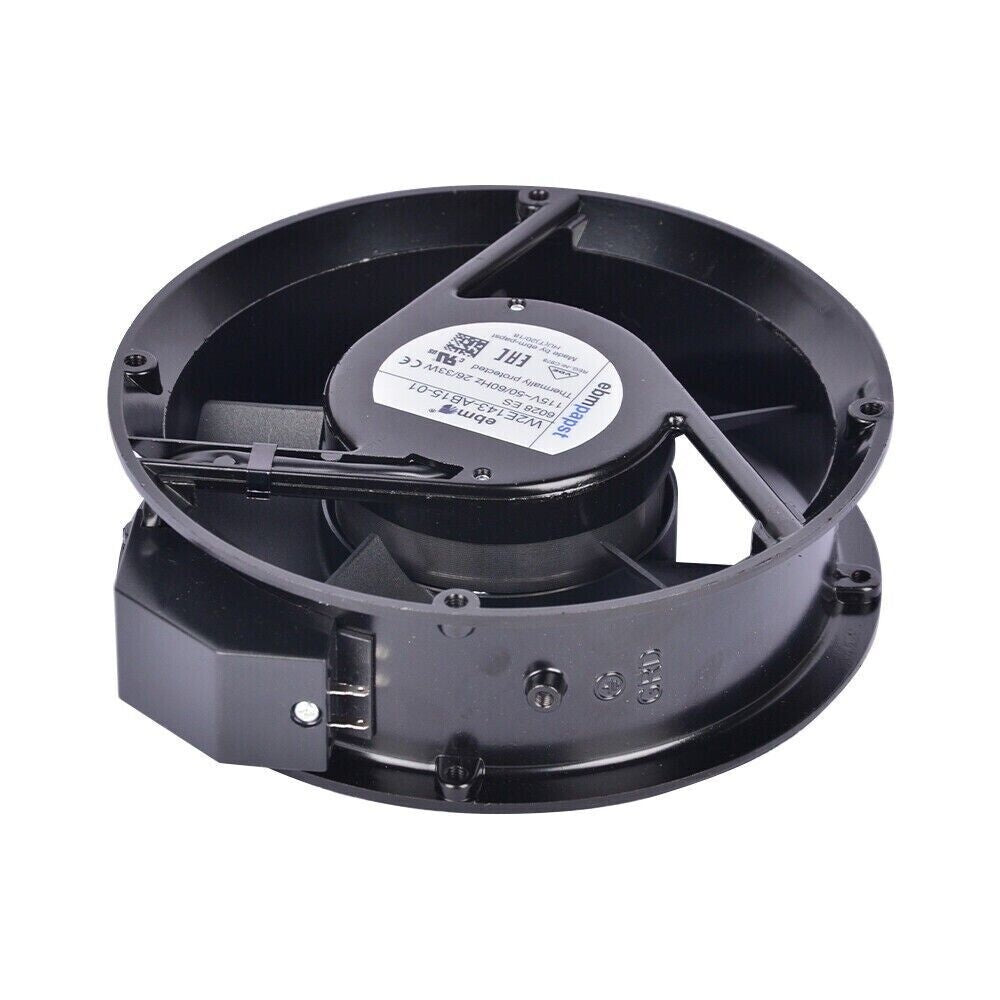

Ebmpapst W2E143-AB15-01 Axial Fan
PRODUCT PRICE
USD
$73.19
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E143-AB15-01 |
| Product Category | Axial Fan |
| Product Family | W2E143 |
| Nominal Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 29 W |
| Current Draw | 250 mA |
| Speed | 3300 RPM |
| Air Flow | 294 CFM (500 m³/h) |
| Frame Dimensions | 172 x 51 mm |
| Blade Diameter | 143 mm |
| Noise Level | 58 dBA |
| Bearing Type | Ball Bearing |
Key Features
115 VAC Input
Operates on 115 VAC at 50/60 Hz with 29 W power consumption and 250 mA current draw.
3300 RPM Performance
Delivers 294 CFM (approximately 500 m³/h) at 3300 RPM for forced-air cooling.
Ball Bearing Construction
Ball bearings support continuous rotational operation in fixed installations.
58 dBA Noise Level
Moderate acoustic output for industrial cooling applications where noise is a secondary consideration.
Applications
- Industrial enclosure cooling
- Heat exchanger airflow
- Electrical cabinet ventilation
- Power equipment thermal management
- Machinery cooling
- Control panel air circulation
Purchase Information
We support online purchase of the Ebmpapst W2E143-AB15-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E143-AB15-01? It is an AC axial fan with a 143 mm blade diameter, used for cooling and ventilation in industrial equipment.
What voltage does the W2E143-AB15-01 use? The W2E143-AB15-01 operates on 115 VAC at 50/60 Hz.
What is the power consumption? Published specifications list 29 W power consumption and 250 mA current draw.
What is the speed and air flow? The fan runs at 3300 RPM and delivers 294 CFM (approximately 500 m³/h).
What are the dimensions? The frame measures 172 x 51 mm, and the blade diameter is 143 mm.
What is the noise level? The documented noise level is 58 dBA.
What bearing type is used? It uses ball bearings.
What should be checked before ordering? Confirm the 115 VAC supply, 172 mm frame mounting, airflow requirement, and acoustic suitability for the installation.
