230 VAC Nominal Voltage
Distributor technical data identifies the W2E143-AB09-06 as a 230 VAC axial fan.
1 / 1
Ebmpapst

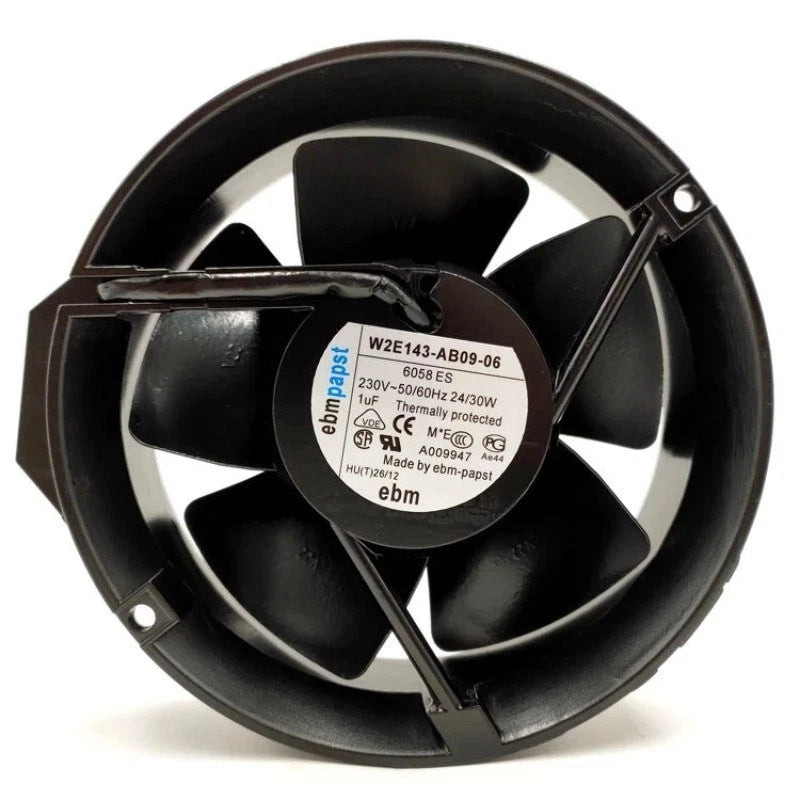

Ebmpapst W2E143-AB09-06 Axial Fan
PRODUCT PRICE
USD
$82.56
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E143-AB09-06 |
| Product Category | Axial Fan |
| Nominal Voltage | 230 VAC |
| Power Consumption | 29 W |
| Current | 130 mA |
| Speed | 3300 rpm |
| Air Flow | 294.2 CFM / 8.353 m3/min |
| Dimensions | 172 x 172 x 51 mm |
| Bearing Type | Ball Bearing |
| Noise Level | 58 dBA |
| Ingress Protection | IP20 |
| Termination | Terminals |
Key Features
294.2 CFM Air Flow
Delivers 294.2 CFM (8.353 m3/min) at 3300 rpm.
172 mm Frame Size
Standard 172 x 172 x 51 mm axial fan format.
29 W Power Consumption
Power consumption is 29 W with a current of 130 mA.
IP20 Protection
The fan carries an IP20 ingress protection rating.
Ball Bearing Construction
Ball bearings are specified for the W2E143-AB09-06.
Applications
- Industrial cabinet cooling
- Equipment enclosure ventilation
- Control panel thermal management
- Power supply cooling
- Drive cooling
- General industrial air movement
Purchase Information
We support online purchase of the Ebmpapst W2E143-AB09-06 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E143-AB09-06? It is a 172 x 172 x 51 mm axial fan from Ebmpapst.
What voltage does the W2E143-AB09-06 use? The nominal voltage is 230 VAC.
What is the air flow of the W2E143-AB09-06? Published air flow is 294.2 CFM, equivalent to 8.353 m3/min.
What is the speed of the W2E143-AB09-06? The fan operates at 3300 rpm.
What is the power consumption of the W2E143-AB09-06? Power consumption is 29 W with a current of 130 mA.
What is the noise level of the W2E143-AB09-06? The noise level is 58 dBA.
What is the ingress protection rating? The fan is rated IP20.
What bearing type does the W2E143-AB09-06 use? Ball bearings are specified.
What are the dimensions of the W2E143-AB09-06? The fan measures 172 x 172 x 51 mm.
What should be checked before ordering? Verify the 230 VAC supply and the mounting dimensions against the existing installation.
