230VAC AC Axial Fan
Operates on 230VAC at 50/60Hz for AC-powered ventilation systems.
1 / 2
Ebmpapst

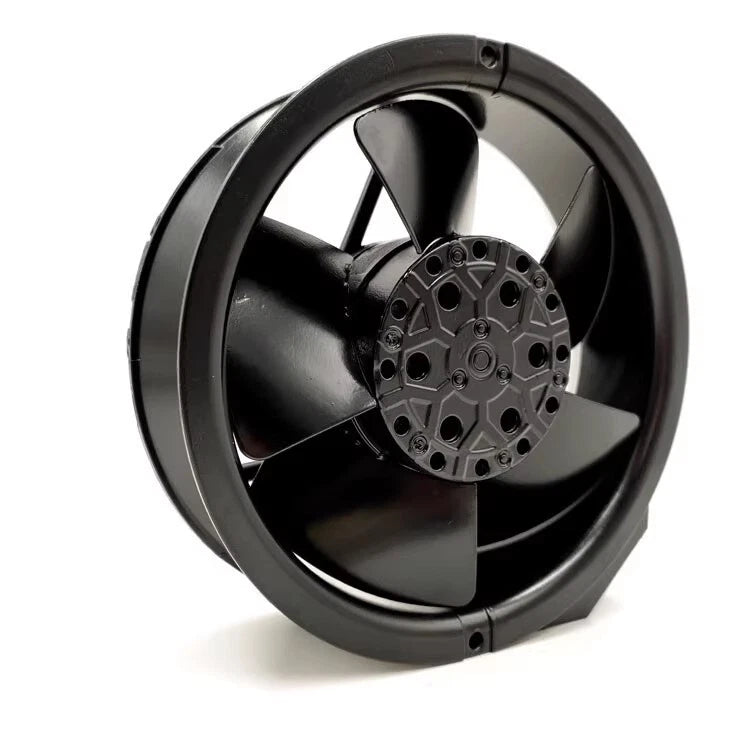

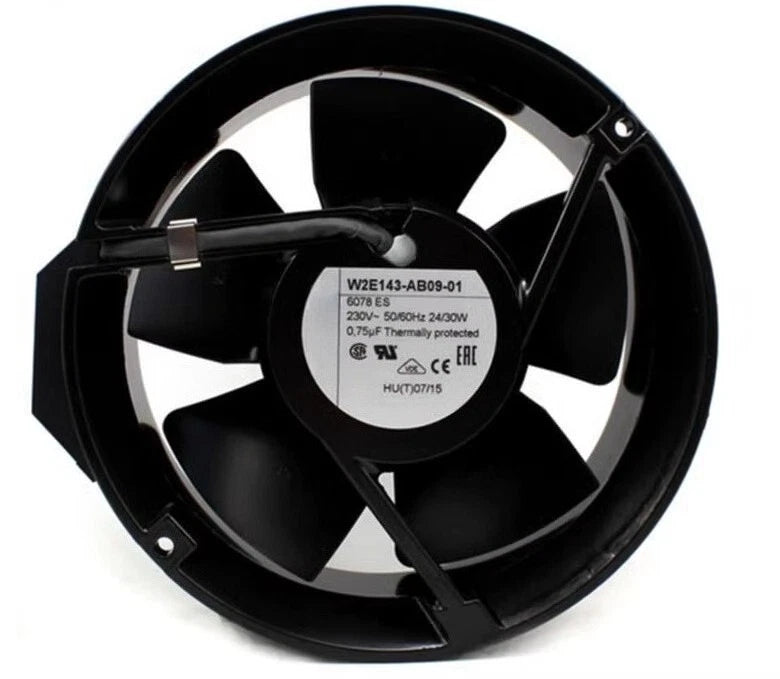

Ebmpapst W2E143-AB09-01 Axial Fan 230VAC 143mm 30W
PRODUCT PRICE
USD
$44.90
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E143-AB09-01 |
| Product Category | Axial Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 29 W |
| Current | 0.12 A |
| Speed | 3300 rpm |
| Dimensions | 172 x 51 mm |
| Air Flow | 294.2 CFM (8.24 m³/min) |
| Noise Level | 58 dB |
| Bearing Type | Ball Bearing |
| Operating Temperature Range | -10°C to +60°C |
Key Features
172mm Frame with 51mm Depth
172 x 51 mm frame size provides a large swept area for high-volume air movement.
3300 rpm Speed
Rated speed of 3300 rpm delivers 294.2 CFM air flow.
Ball Bearing Construction
Ball bearing design is specified for continuous AC fan duty.
29W Power Consumption
Power consumption is 29 W with a current draw of 0.12 A.
Applications
- Industrial AC ventilation systems
- Control cabinet and enclosure cooling
- HVAC air-moving equipment
- Power supply and drive thermal management
- Large electronic equipment forced-air cooling
- General industrial fan replacement projects
Purchase Information
We support online purchase of the Ebmpapst W2E143-AB09-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E143-AB09-01? The W2E143-AB09-01 is a 230VAC axial fan with a 172 x 51 mm frame.
What voltage does it operate on? It operates on 230 VAC at 50/60 Hz.
What is the speed? The speed is 3300 rpm.
What is the air flow? The air flow is 294.2 CFM (8.24 m³/min).
What is the power consumption? Power consumption is 29 W, and current draw is 0.12 A.
What is the noise level? The noise level is 58 dB.
What bearing type is used? It uses a ball bearing.
What is the operating temperature range? The operating temperature range is -10°C to +60°C.
