143 mm Blade Axial Fan
AC axial fan with a 143 mm blade diameter and 172 x 51 mm round frame for industrial cooling and ventilation.
1 / 5
Ebmpapst

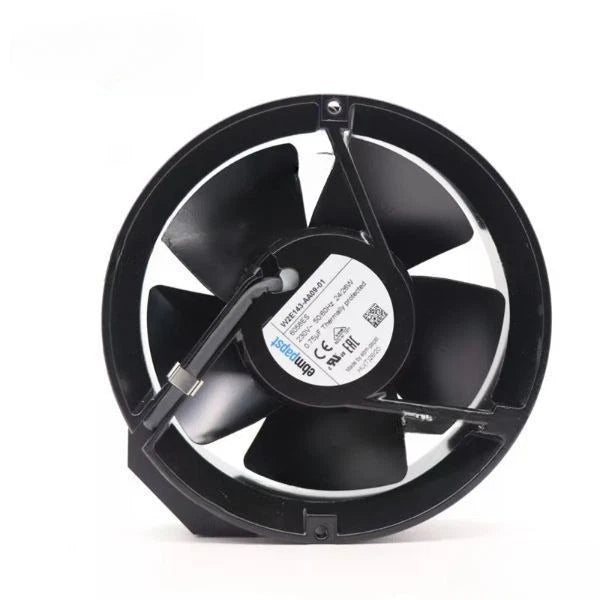

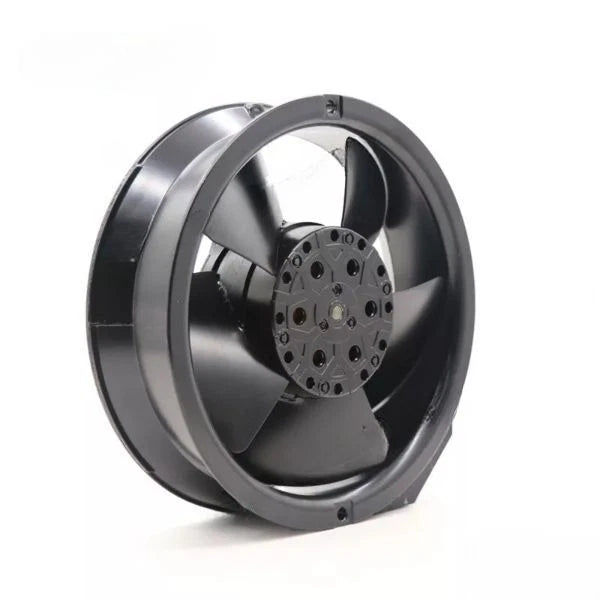

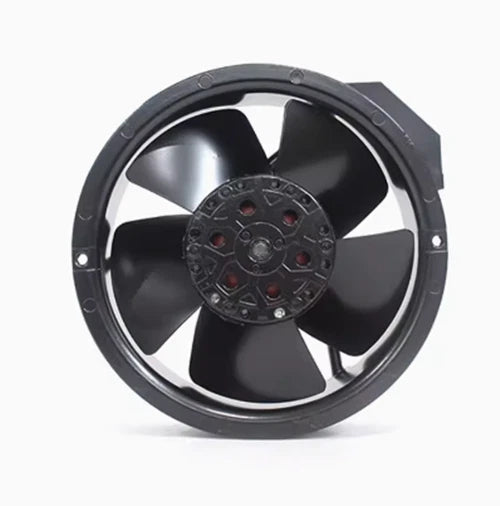

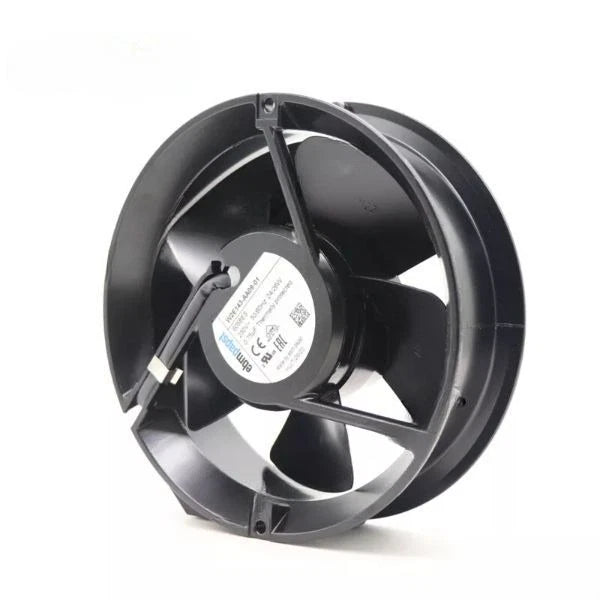

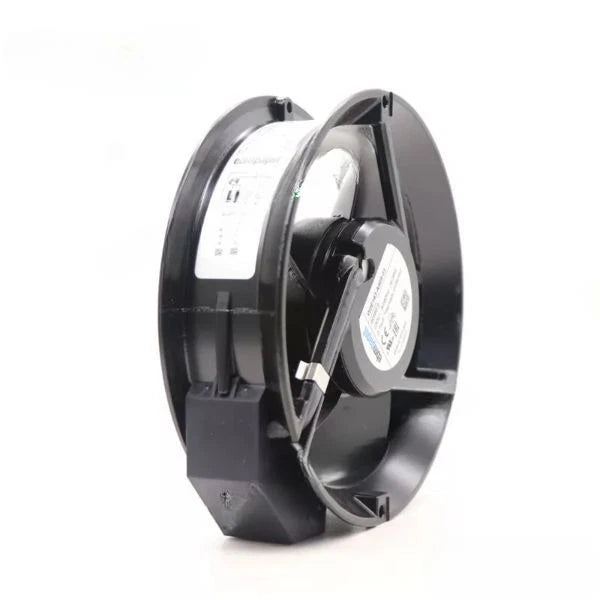

Ebmpapst W2E143-AA09-01 Axial Fan
PRODUCT PRICE
USD
$130.00
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E143-AA09-01 |
| Product Category | Axial Fan |
| Product Family | W2E143 |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz (60 Hz*) |
| Power Consumption | 24 W |
| Current Draw | 120 mA |
| Speed | 2800 RPM |
| Air Flow | 440 m³/h |
| Frame Dimensions | 172 x 51 mm |
| Blade Diameter | 143 mm |
| Noise Level | 60 dBA |
| Protection Rating | IP20 |
Key Features
230 VAC Input
Operates on 230 VAC at 50 Hz with 24 W power consumption and 120 mA current draw.
2800 RPM Performance
Delivers approximately 440 m³/h air flow at 2800 RPM for forced-air cooling duties.
Ball Bearing Construction
Ball bearings support continuous rotational operation in fixed installations.
IP20 Protection
Rated IP20 for protection against solid objects greater than 12.5 mm, suitable for protected enclosure environments.
Applications
- Industrial enclosure cooling
- Heat exchanger airflow
- Electrical cabinet ventilation
- Power equipment thermal management
- General machinery cooling
- Control panel air circulation
Purchase Information
We support online purchase of the Ebmpapst W2E143-AA09-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E143-AA09-01? It is an AC axial fan with a 143 mm blade diameter, used for cooling and ventilation in industrial equipment.
What voltage does the W2E143-AA09-01 use? It operates on 230 VAC at 50 Hz.
What is the power consumption? Published specifications list 24 W power consumption and 120 mA current draw.
What is the speed and air flow? The fan runs at 2800 RPM and delivers approximately 440 m³/h.
What are the dimensions? The frame measures 172 x 51 mm, and the blade diameter is 143 mm.
What is the noise level? The documented noise level is 60 dBA.
What is the protection rating? The fan is rated IP20.
What bearing type is used? It uses ball bearings.
Need help confirming a model?
Send us your part number and technical requirements.
