400 VAC Axial Fan
Operates on a 400 VAC nominal supply for industrial three-phase air movement systems.
1 / 2
Ebmpapst

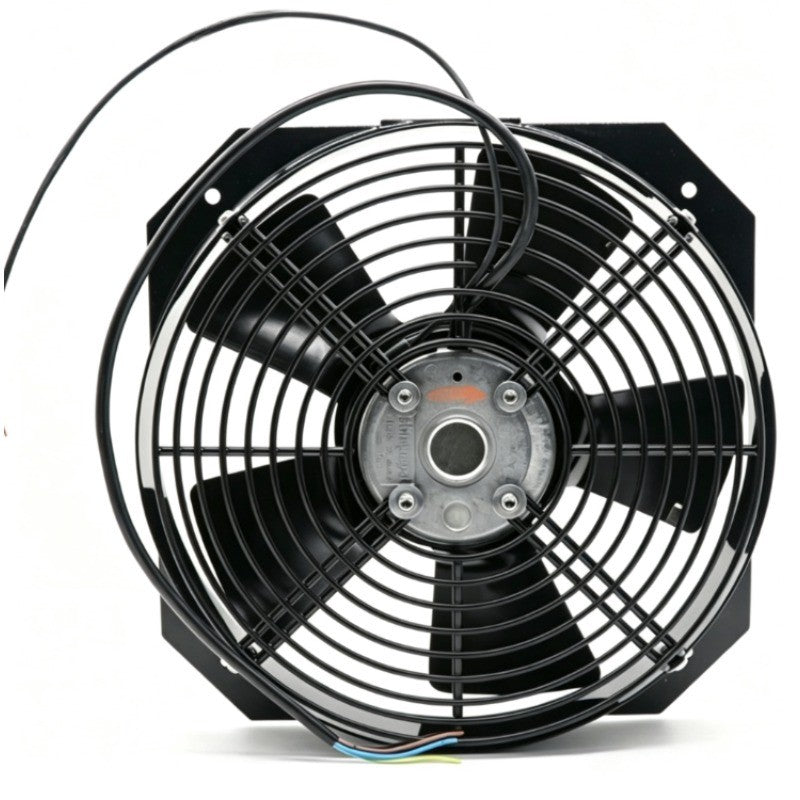

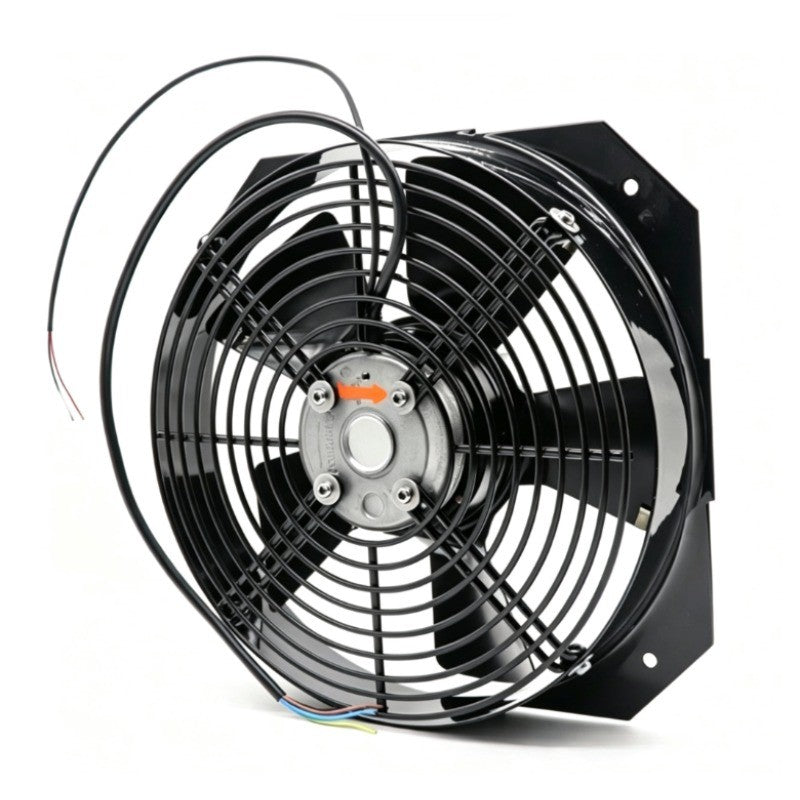

Ebmpapst W2D250-GA04-09 Axial Fan
PRODUCT PRICE
USD
$466.57
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2D250-GA04-09 |
| Product Category | Axial Fan |
| Rated Voltage | 400 VAC |
| Fan Frame Size | 250 mm |
| Speed | 3050 RPM |
| Current Rating | 330 mA |
| Air Flow | 721 CFM (20.917 m³/min) |
| Bearing Type | Ball Bearing |
| Ingress Protection | IP00 |
| Motor Model | M2D068-DF |
| Insulation Class | B |
| Operation Mode | S1 |
| Humidity Class | F5 |
| Termination | 6 Lead Wires |
| Impeller Material | Hot-Dip Galvanized Sheet Steel |
| Direction of Air Flow | V |
| Direction of Rotation | Counter-Clockwise (viewed from rotor side) |
Key Features
250 mm Frame with 721 CFM Airflow
Provides 721 CFM (20.917 m³/min) of axial airflow through a 250 mm square fan frame.
3050 RPM Ball Bearing Motor
Runs at 3050 RPM using ball bearings for smooth continuous rotation.
M2D068-DF Motor
Equipped with the M2D068-DF motor and rated at 330 mA current.
Hot-Dip Galvanized Steel Impeller
Features a hot-dip galvanized sheet steel impeller for industrial air handling conditions.
IP00 Protection Rating
IP00 rating indicates no special enclosure protection, suitable for integration within protected equipment cabinets.
Applications
- Industrial ventilation and cooling
- HVAC air movement
- Variable frequency drive and power electronics cooling
- Electrical enclosure ventilation
- Process cooling systems
- Air-cooled heat exchangers
- General axial air circulation in industrial equipment
Purchase Information
We support online purchase of the Ebmpapst W2D250-GA04-09 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2D250-GA04-09? The W2D250-GA04-09 is a 400 VAC axial fan with a 250 mm frame, designed for industrial air movement and cooling.
What is the rated voltage? The rated voltage is 400 VAC.
What is the airflow capacity? The airflow is 721 CFM (20.917 m³/min).
What is the fan speed? The rated speed is 3050 RPM.
What is the current rating? The current rating is 330 mA.
What type of bearing is used? The fan uses ball bearings.
What is the ingress protection rating? The fan has an IP00 rating.
What motor is used? The fan is equipped with the M2D068-DF motor.
What is the frame size? The fan frame size is 250 mm.
What is the direction of rotation? The direction of rotation is counter-clockwise when viewed from the rotor side.
What should be checked before ordering? Verify the 400 VAC supply, 250 mm installation space, airflow and static pressure requirements, wiring configuration, and the protection level required by the enclosure.
Need help confirming a model?
Send us your part number and technical requirements.
