400 VAC Three-Phase Operation
The W2D160-EA22-17 is identified as a three-phase AC axial fan for equipment using a compatible 400 VAC supply.
Ebmpapst
Ebmpapst W2D160-EA22-17 AC Axial Fan 400VAC 160mm 40W
$234.59
Available
PRODUCT GALLERY
01 / 13

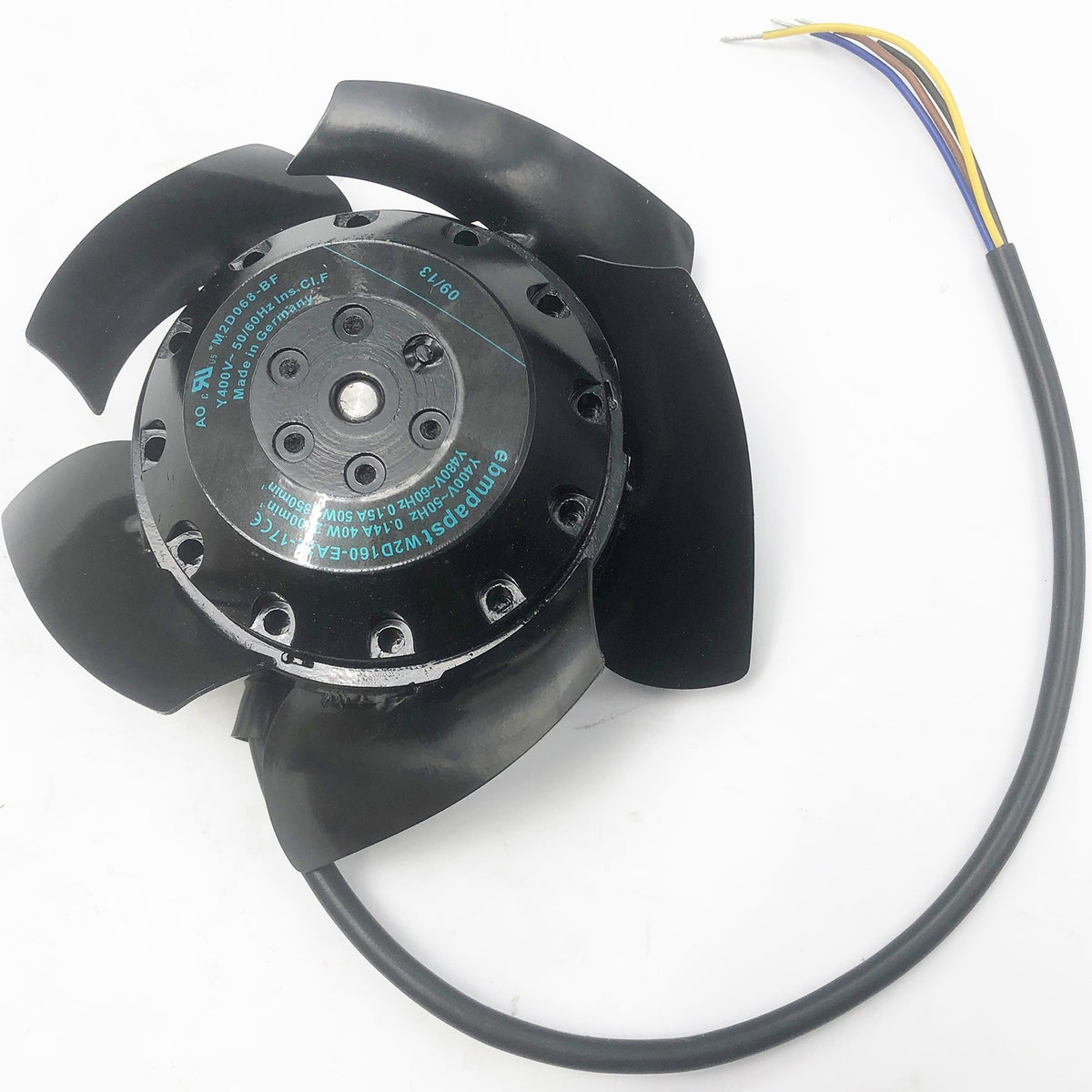

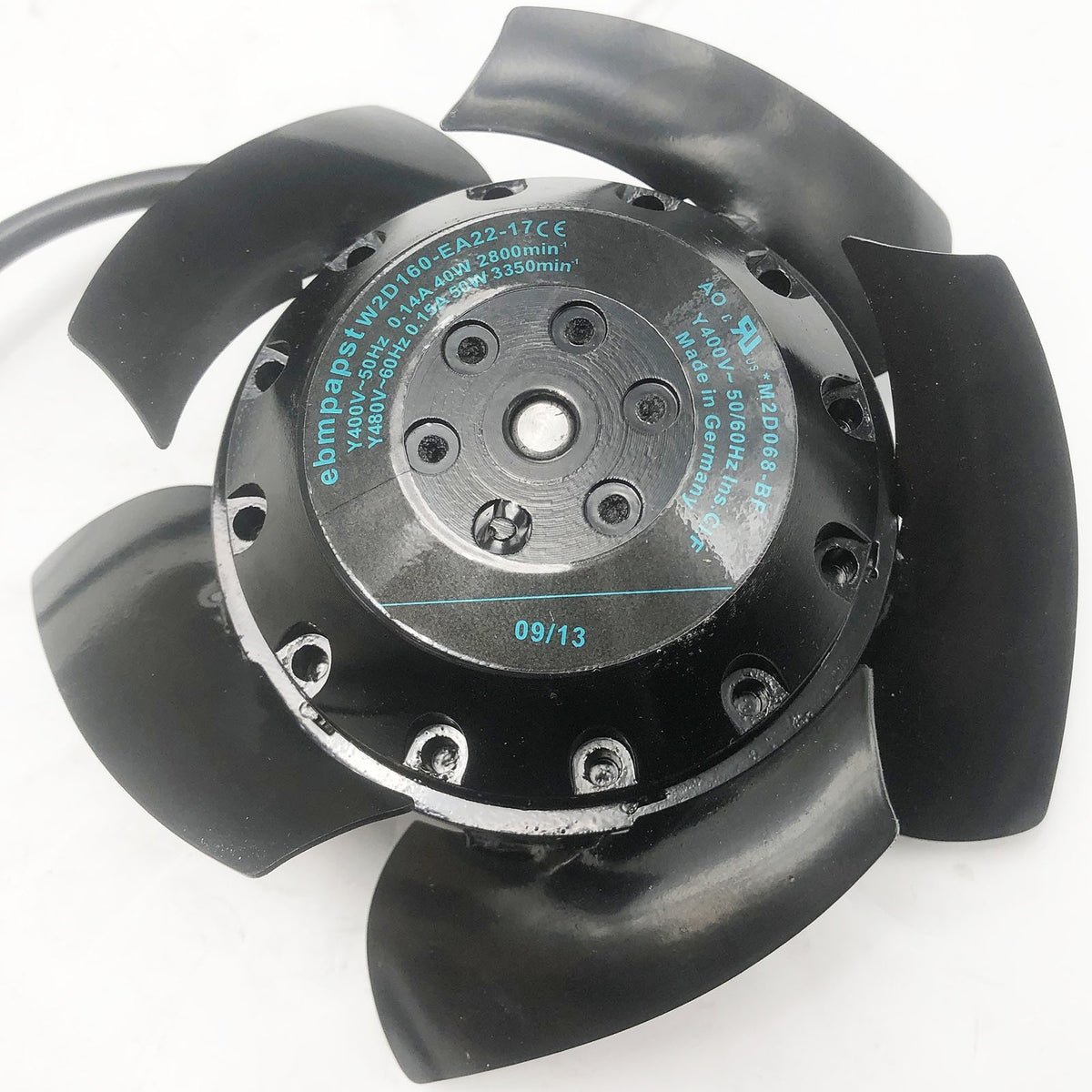

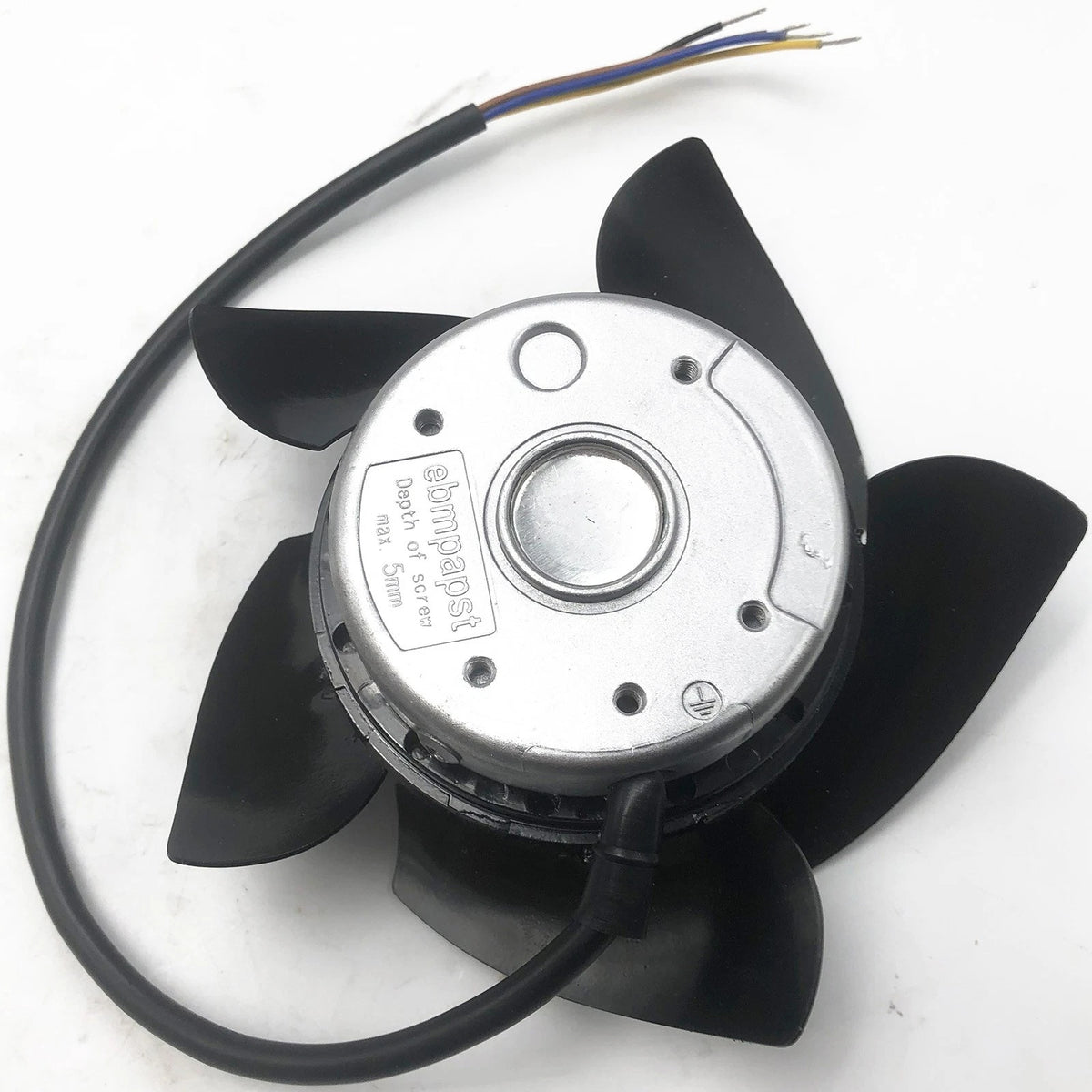

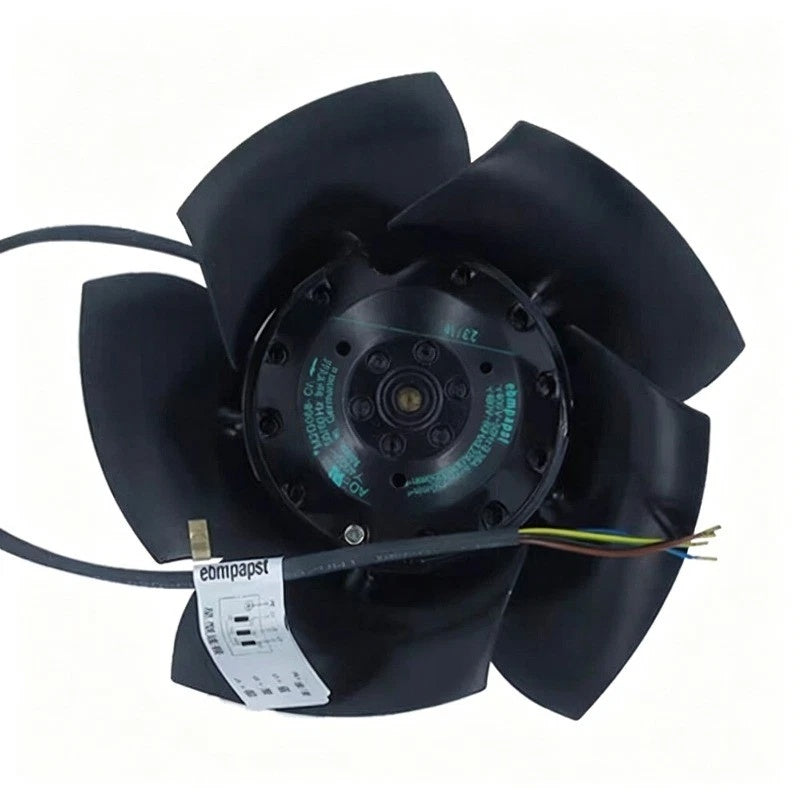

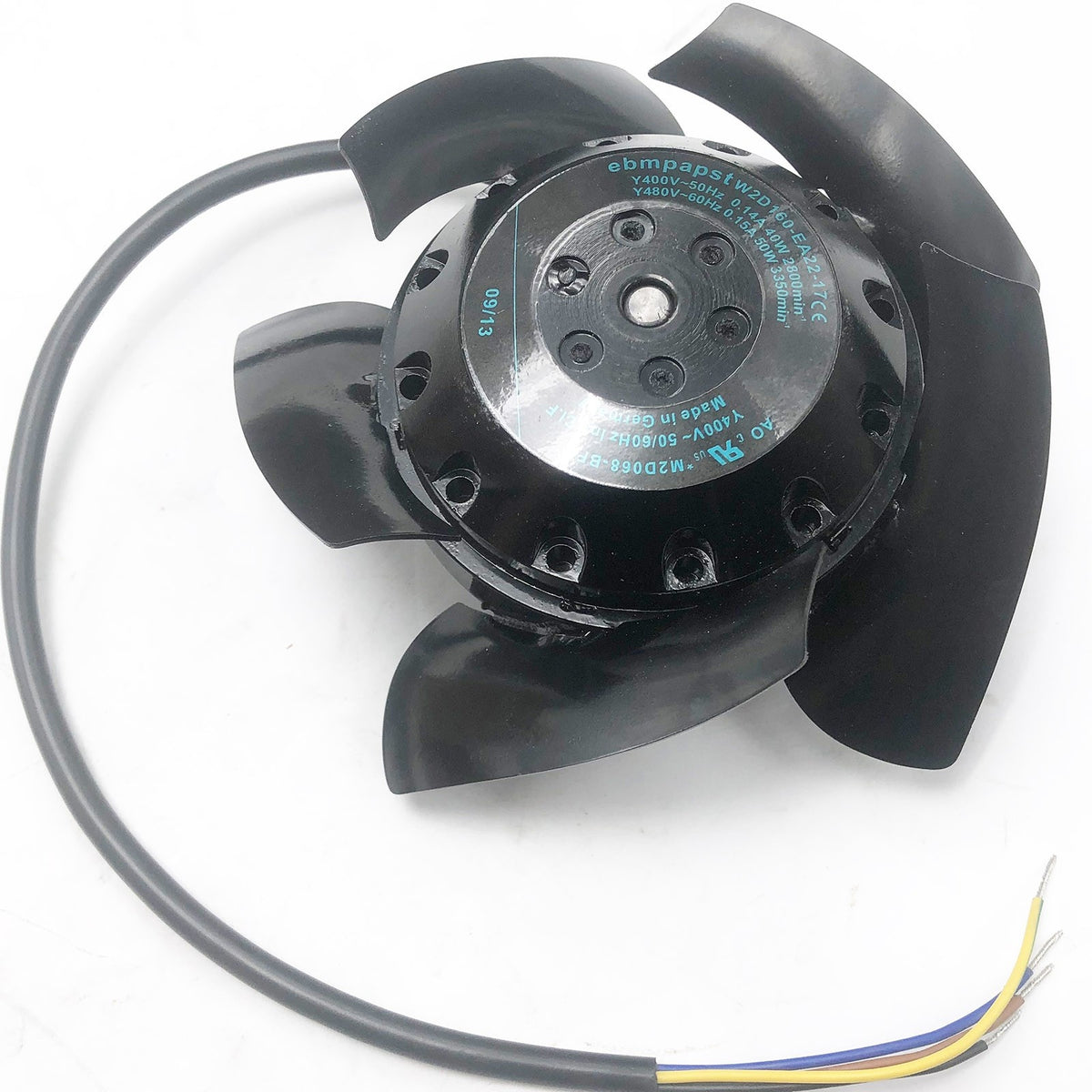

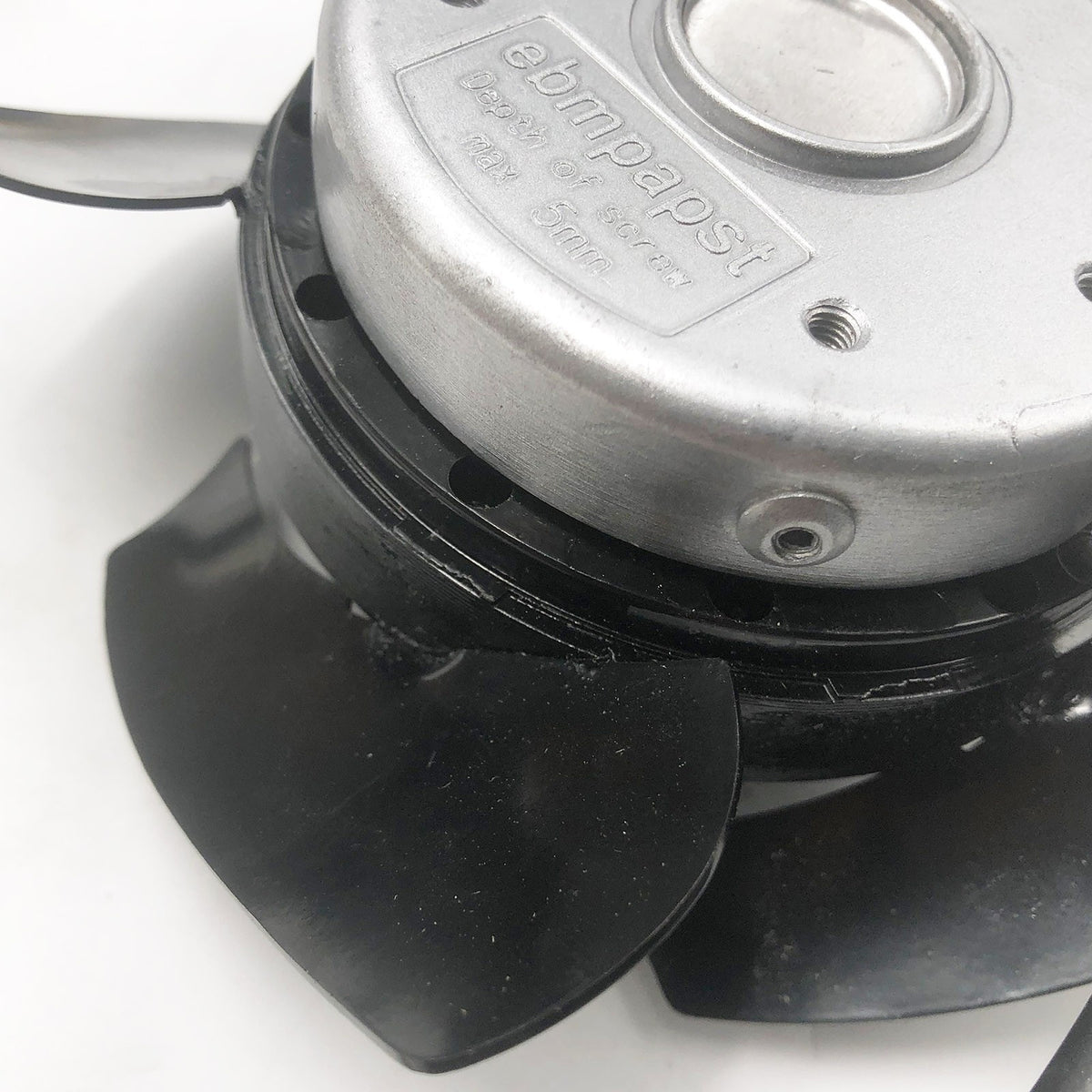

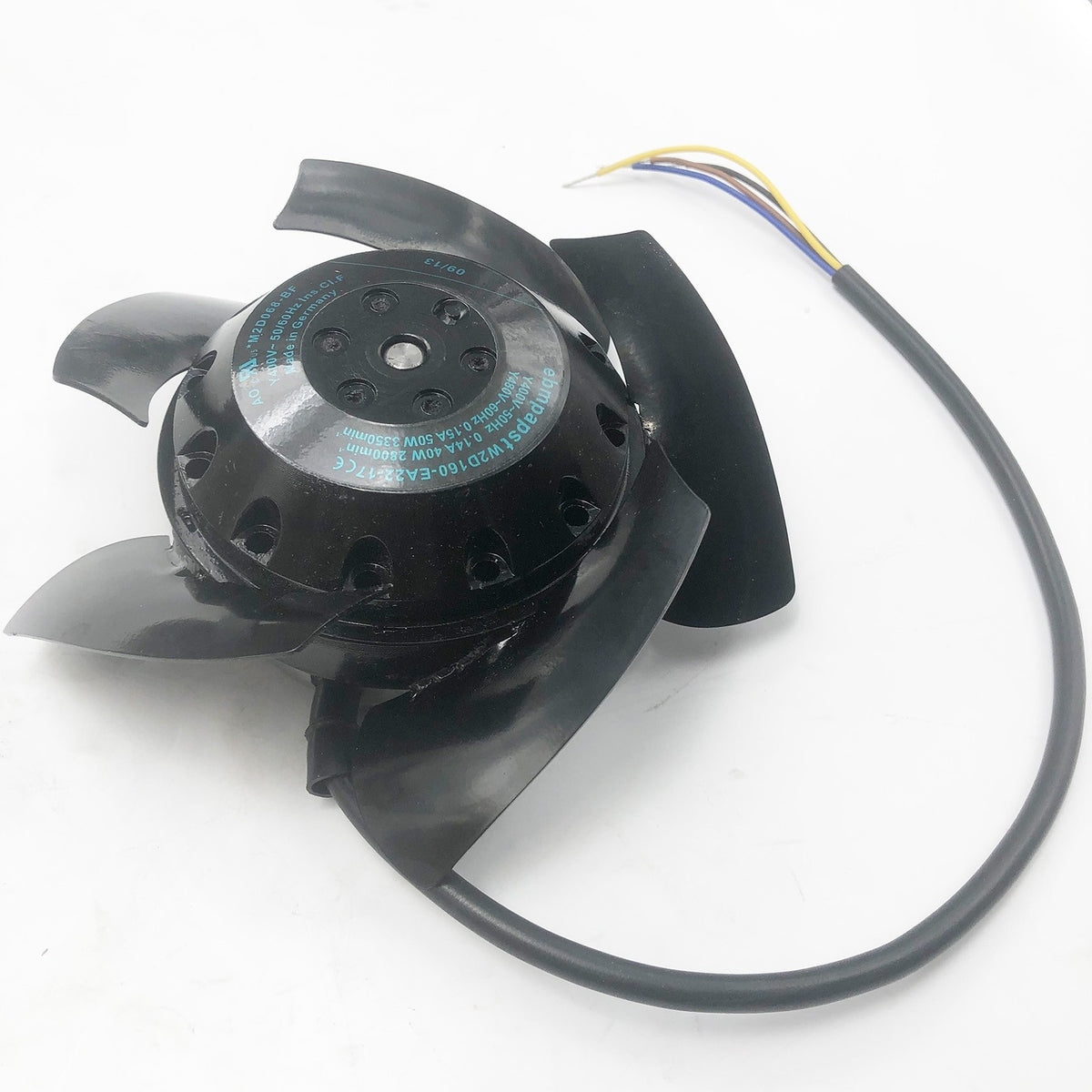

Product images for part identification
Ebmpapst
Ebmpapst W2D160-EA22-17 AC Axial Fan 400VAC 160mm 40W
PRODUCT PRICE
USD
$234.59
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2D160-EA22-17 |
| Product Category | AC Axial Fan |
| Nominal Voltage | 400 VAC |
| Power Supply | Three-Phase AC |
| Nominal Fan Size | 160 mm |
| Input Power | 40 W (supplier-published nominal data) |
| Nominal Speed | 2800 rpm (supplier-published nominal data) |
| Maximum Airflow | 400 m³/h (supplier-published value; verify test conditions) |
| Fan Design | Axial Flow |
| Exact Electrical Connection | Confirm Against Model Label and Wiring Diagram |
| Mounting Dimensions | Refer to Exact-Model Technical Drawing |
Key Features
160 mm Fan Format
The nominal 160 mm fan size supports integration into equipment designed for this axial fan configuration. Confirm mounting dimensions before replacement.
40 W Nominal Input
Supplier-published nominal data lists 40 W input power. Confirm the applicable operating conditions against the fan label.
2800 rpm Nominal Speed
The listed nominal speed is 2800 rpm. Actual operation depends on supply frequency and system conditions.
Axial Air Movement
The axial impeller moves air parallel to its rotational axis, supporting ventilation and cooling in compatible equipment assemblies.
Exact-Model Replacement Selection
The complete EA22-17 suffix should be matched when checking airflow direction, motor wiring, mounting arrangement and replacement requirements.
Applications
- Industrial motor cooling assemblies
- Spindle motor ventilation systems
- Industrial machinery cooling
- Electrical equipment ventilation
- Power electronics cooling assemblies
- Machine enclosure airflow systems
- Industrial equipment replacement fans
- Three-phase AC fan installations
Purchase Information
We support online purchase of the Ebmpapst W2D160-EA22-17 AC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2D160-EA22-17?
It is a 160 mm three-phase AC axial fan used for equipment ventilation and cooling applications.
What is the nominal voltage?
The listed nominal voltage is 400 VAC.
Does this fan use a three-phase power supply?
Yes. The model is identified as a three-phase AC fan.
What is the nominal fan size?
The nominal fan size is 160 mm. Consult the technical drawing for complete mounting dimensions.
What is the input power?
Supplier-published nominal data lists 40 W. Confirm the applicable supply and operating conditions before installation.
What is the fan speed?
The published nominal speed is 2800 rpm. Check the frequency and exact-model rating label.
What is the maximum airflow?
A supplier lists 400 m³/h. Verify the measurement conditions and system resistance before using this figure for engineering calculations.
Is W2D160-EA22-17 an axial or centrifugal fan?
It is identified as an axial fan, with airflow directed along the motor axis.
Can it be used for spindle motor cooling?
It is listed for spindle motor cooling applications, but compatibility must be checked against the exact equipment requirements.
Can a similar W2D160 model replace it?
Do not assume interchangeability. Compare the complete suffix, electrical supply, airflow direction, mounting arrangement and motor connection.
Does it operate directly from 230 VAC single-phase power?
Do not connect it to a different supply without confirming the manufacturer's exact wiring and electrical requirements.
What should be checked before ordering?
Confirm W2D160-EA22-17, 400 VAC three-phase supply, nominal size, operating frequency, wiring, airflow direction, mounting dimensions and the original equipment requirements.
Need help confirming a model?
Send us your part number and technical requirements.
