230 V AC Motorized Impeller
Operates on a 230 V AC supply with a motorized impeller design for centrifugal air movement.
Ebmpapst
Ebmpapst R2E220-AA40-05 Centrifugal Fan 230V 220mm 115W
$117.75
Available
PRODUCT GALLERY
01 / 3

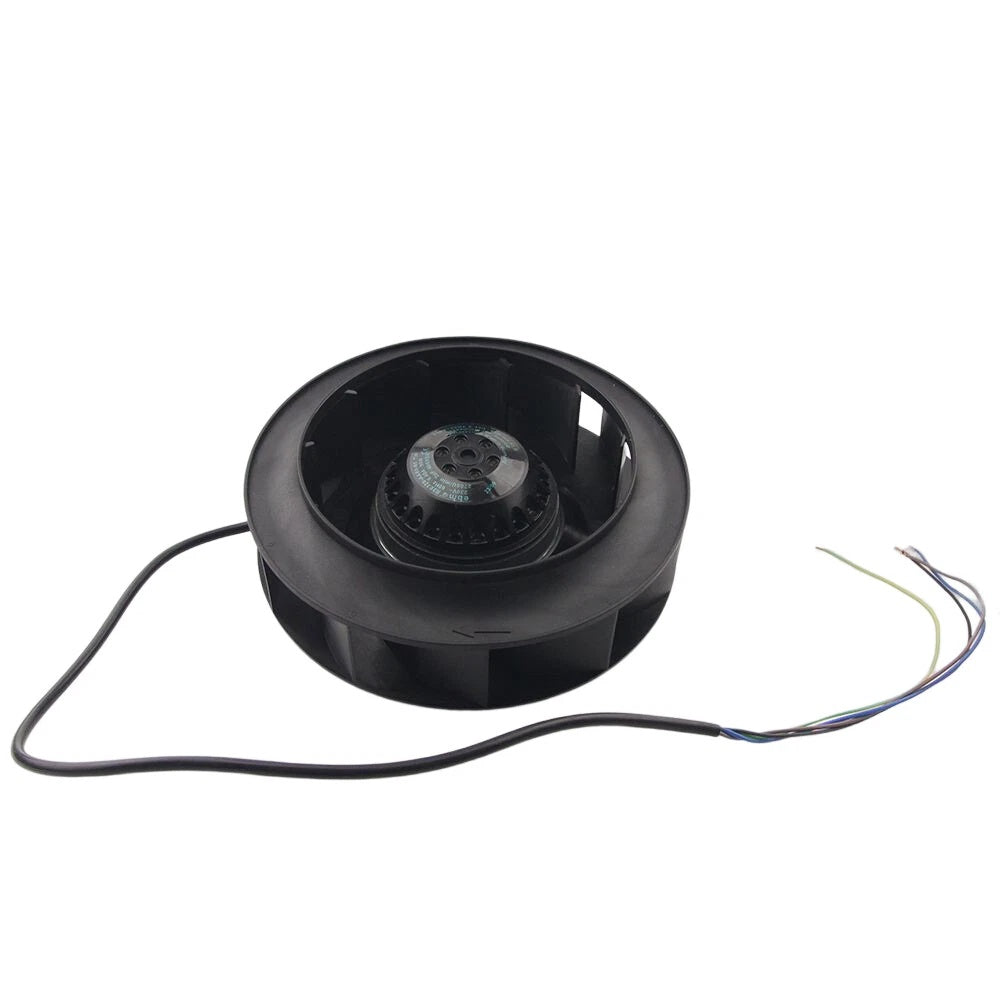

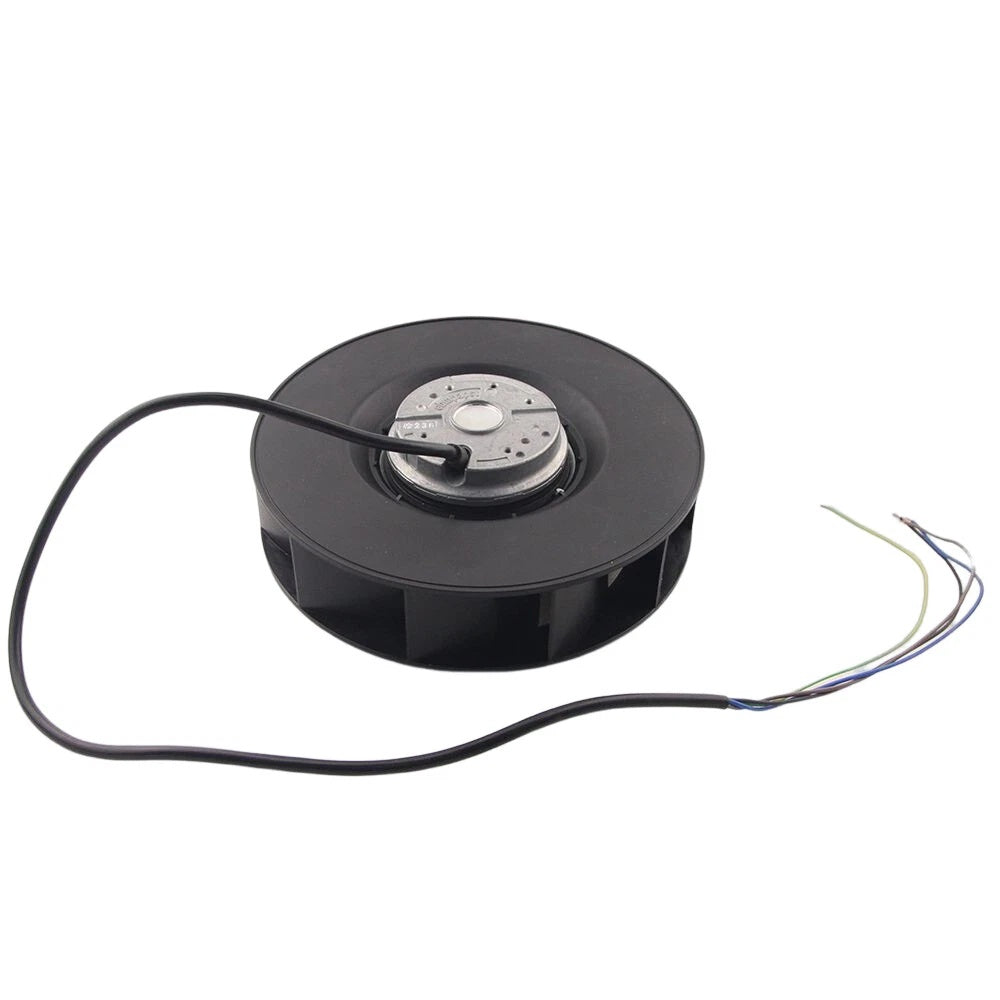

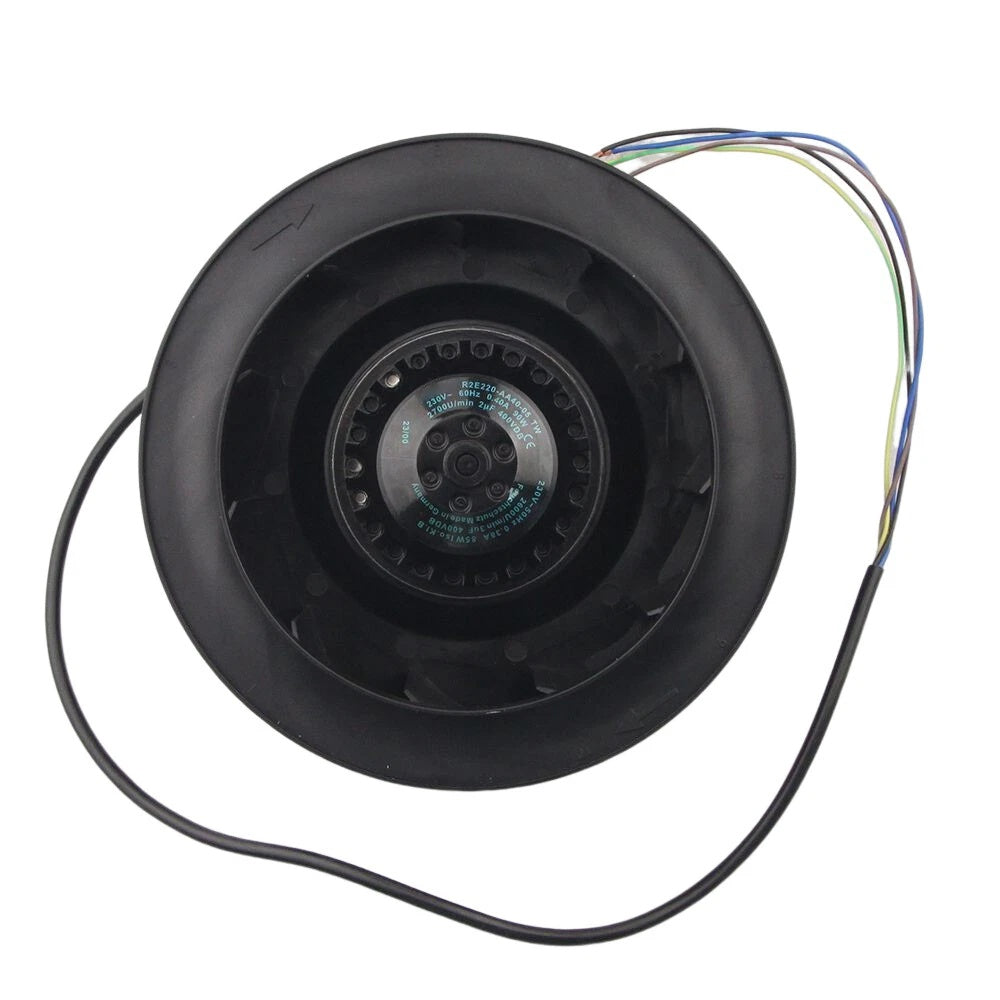

Product images for part identification
Ebmpapst
Ebmpapst R2E220-AA40-05 Centrifugal Fan 230V 220mm 115W
PRODUCT PRICE
USD
$117.75
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E220-AA40-05 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 230 V AC |
| Current | 0.40 A |
| Air Flow | 865 m³/h |
| Speed | 2600 rpm |
| Impeller Size | 220 mm |
| Static Pressure | 390 Pa |
| Protection Rating | IP44 |
| Noise Level | 73 dB |
| Bearing Type | Ball Bearing |
Key Features
865 m³/h Air Flow
Delivers 865 m³/h air volume for cooling and ventilation duties requiring higher pressure.
2600 rpm Speed
Runs at 2600 rpm for stable centrifugal airflow in industrial cabinets and HVAC equipment.
390 Pa Static Pressure
Provides 390 Pa static pressure for overcoming duct and filter resistance in air-movement systems.
IP44 Protection
Rated IP44 for protection against solid objects larger than 1 mm and water splashes from any direction.
Applications
- Variable frequency drive cooling
- Industrial control cabinet ventilation
- HVAC air handling
- Power electronics thermal management
- Ducted ventilation systems
- Filtered enclosure cooling
- Process air circulation
Purchase Information
We support online purchase of the EBM R2E220-AA40-05 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the EBM R2E220-AA40-05? The R2E220-AA40-05 is a 220 mm centrifugal fan with a motorized impeller, rated for 230 V AC.
What is the nominal voltage of the R2E220-AA40-05? The fan operates on 230 V AC.
What is the air flow of the R2E220-AA40-05? The air flow volume is 865 m³/h.
What is the speed of the R2E220-AA40-05? The fan speed is 2600 rpm.
What is the static pressure of the R2E220-AA40-05? The static pressure is 390 Pa.
What is the current draw of the R2E220-AA40-05? The current draw is 0.40 A.
What is the protection rating of the R2E220-AA40-05? The protection rating is IP44.
What is the noise level of the R2E220-AA40-05? The noise level is 73 dB.
What bearing type does the R2E220-AA40-05 use? It uses ball bearings.
What should be checked before ordering an R2E220-AA40-05? Check the 230 V AC supply, the 865 m³/h airflow, the 390 Pa static pressure, the 0.40 A current draw, and the IP44 environment against the system requirements.
Need help confirming a model?
Send us your part number and technical requirements.
