230 V AC Axial Design
Operates on a 230 V AC supply for industrial axial air movement.
Ebmpapst
Ebmpapst A2E200-AF02-01 Axial Fan 230V 200mm 65W
$111.25
Available
PRODUCT GALLERY
01 / 3

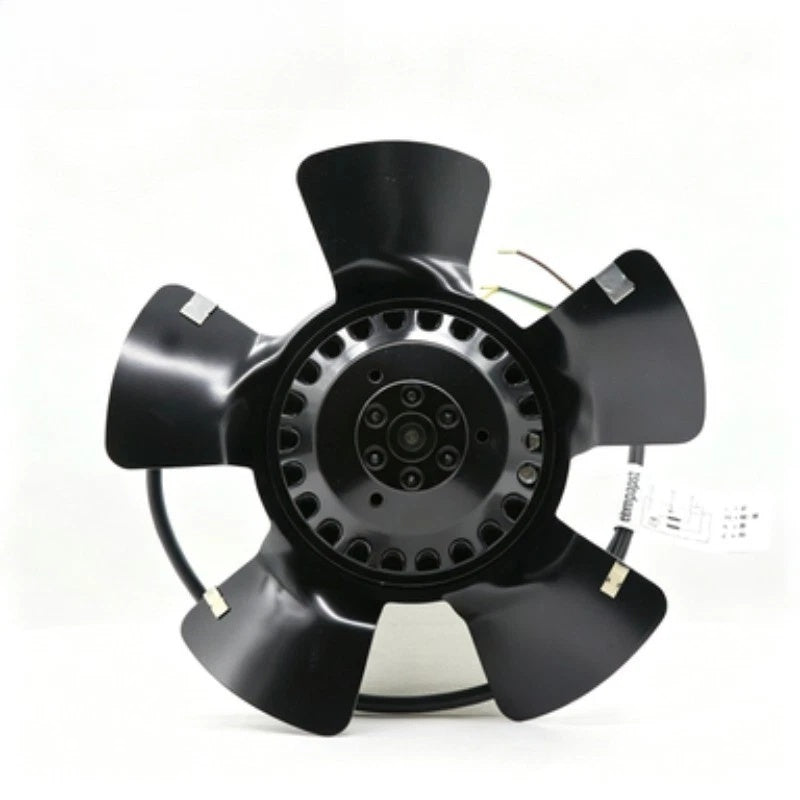

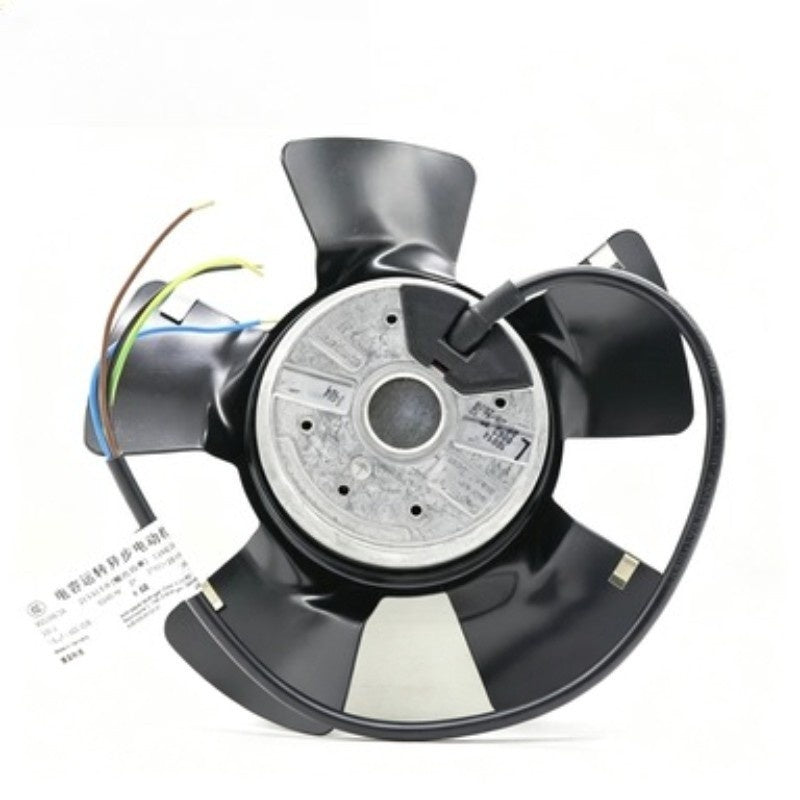

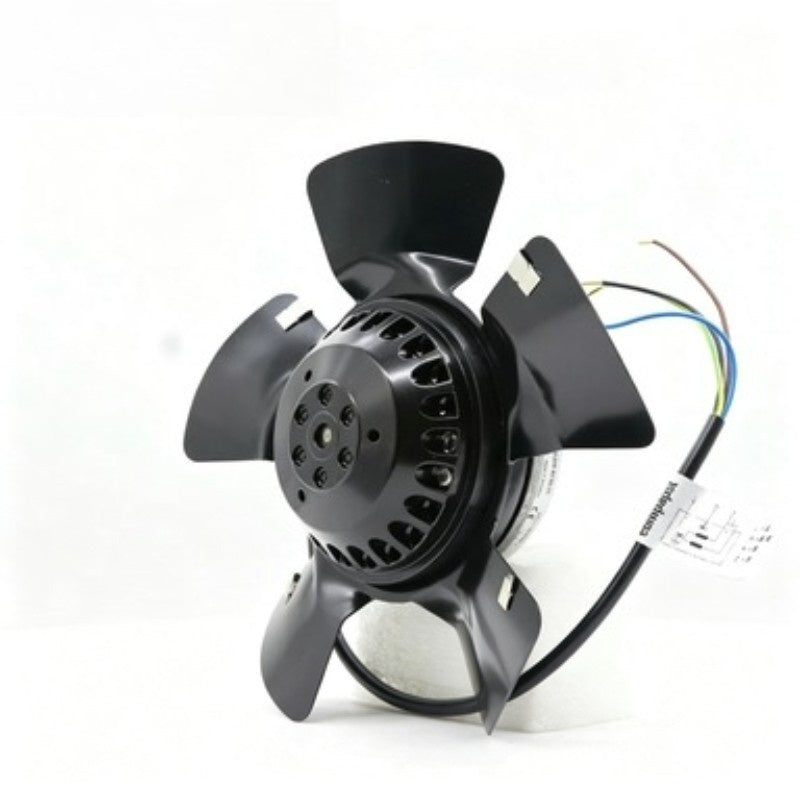

Product images for part identification
Ebmpapst
Ebmpapst A2E200-AF02-01 Axial Fan 230V 200mm 65W
PRODUCT PRICE
USD
$111.25
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2E200-AF02-01 |
| Product Category | Axial Fan |
| Nominal Voltage | 230 V AC |
| Power Consumption | 50/61 W |
| Current | 0.24/0.28 A |
| Fan Size | 200 mm |
| Speed | 2740/3120 rpm |
| Air Flow | 435.9 CFM (12.20 m³/min) |
| Weight | 1.4 kg |
| Operating Temperature | -25°C to +75°C |
Key Features
Dual Speed/Power Ratings
Documented ratings include 50/61 W and 2740/3120 rpm, reflecting operating-point-dependent performance.
200 mm Fan Diameter
Uses a 200 mm axial impeller for cooling cabinets and enclosures with larger airflow openings.
435.9 CFM Air Flow
Provides 435.9 CFM (12.20 m³/min) air volume for forced-air cooling in power electronics and drives.
Wide Temperature Range
Rated for -25°C to +75°C, supporting use in varied industrial ambient conditions.
Applications
- Wind power converter cooling
- Reactive power compensation equipment cooling
- Photovoltaic inverter thermal management
- Variable frequency drive cooling
- Industrial control cabinet ventilation
- Power electronics enclosure cooling
- General industrial axial air movement
Purchase Information
We support online purchase of the EBM A2E200-AF02-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the EBM A2E200-AF02-01? The A2E200-AF02-01 is a 200 mm axial fan rated for 230 V AC operation.
What is the nominal voltage of the A2E200-AF02-01? The fan operates on 230 V AC.
What are the power ratings of the A2E200-AF02-01? Documented power ratings are 50/61 W.
What are the current ratings of the A2E200-AF02-01? Documented current ratings are 0.24/0.28 A.
What are the speed ratings of the A2E200-AF02-01? Documented speed ratings are 2740/3120 rpm.
What is the air flow of the A2E200-AF02-01? The air flow is 435.9 CFM (12.20 m³/min).
What is the operating temperature range of the A2E200-AF02-01? The fan is rated for -25°C to +75°C.
What is the weight of the A2E200-AF02-01? The fan weighs 1.4 kg.
What should be checked before ordering an A2E200-AF02-01? Check the 230 V AC supply, the 50/61 W power consumption, the 0.24/0.28 A current draw, the 200 mm mounting space, and the -25°C to +75°C operating temperature range against the application.
