High-Speed 8400 rpm Operation
Operates at 8400 rpm with a 240W power input for high-pressure combustion air delivery.
1 / 4
Ebmpapst

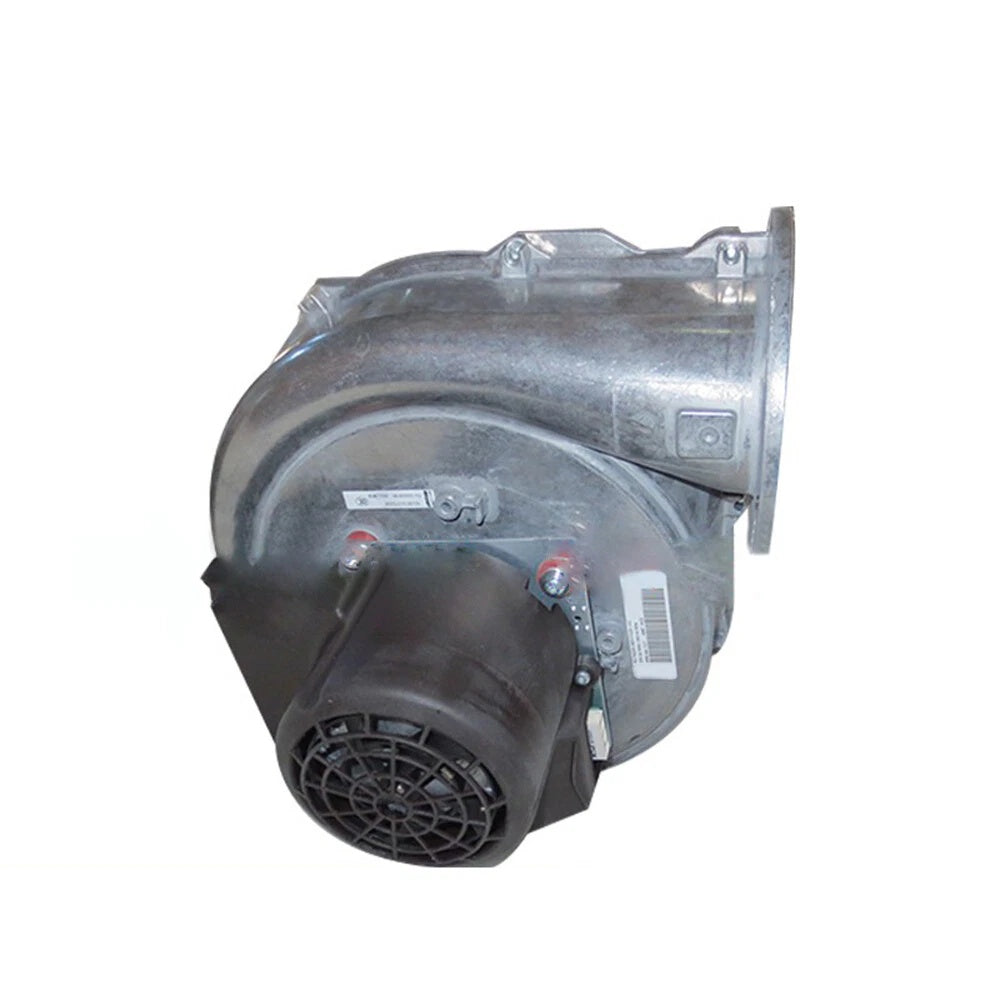

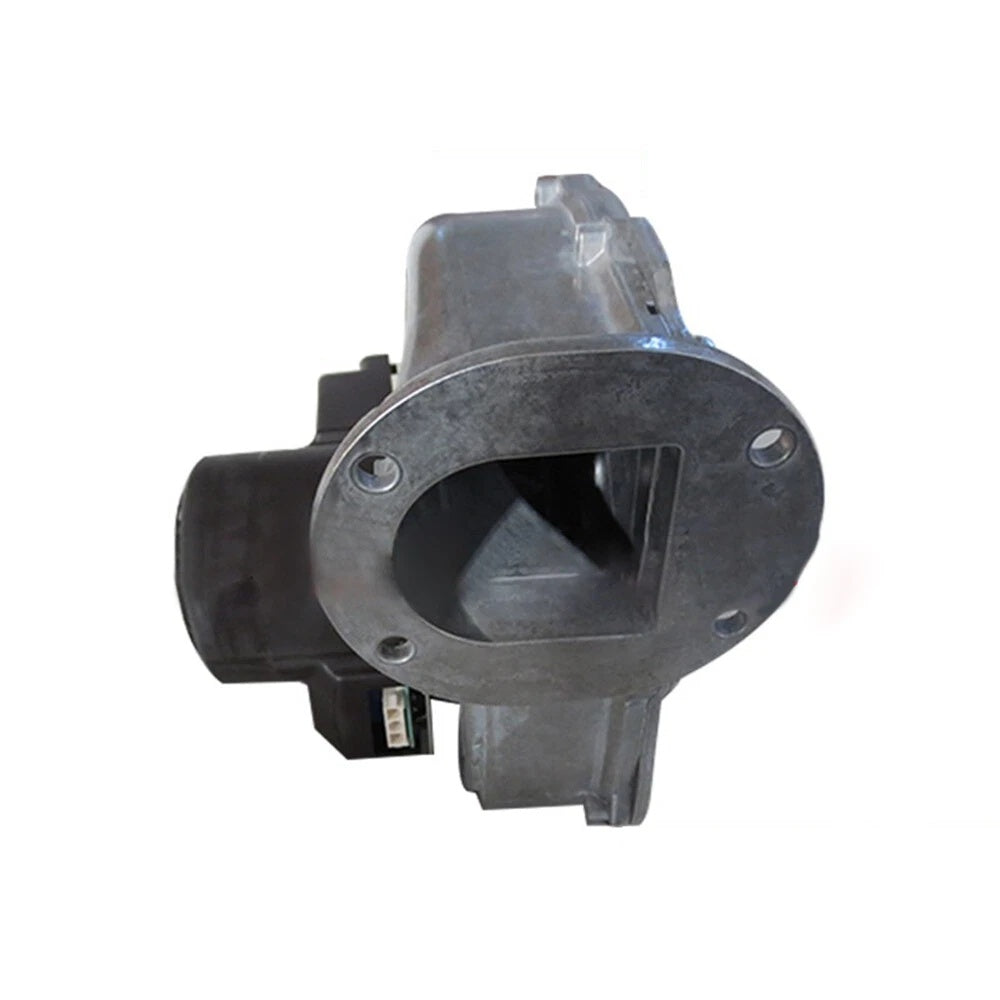

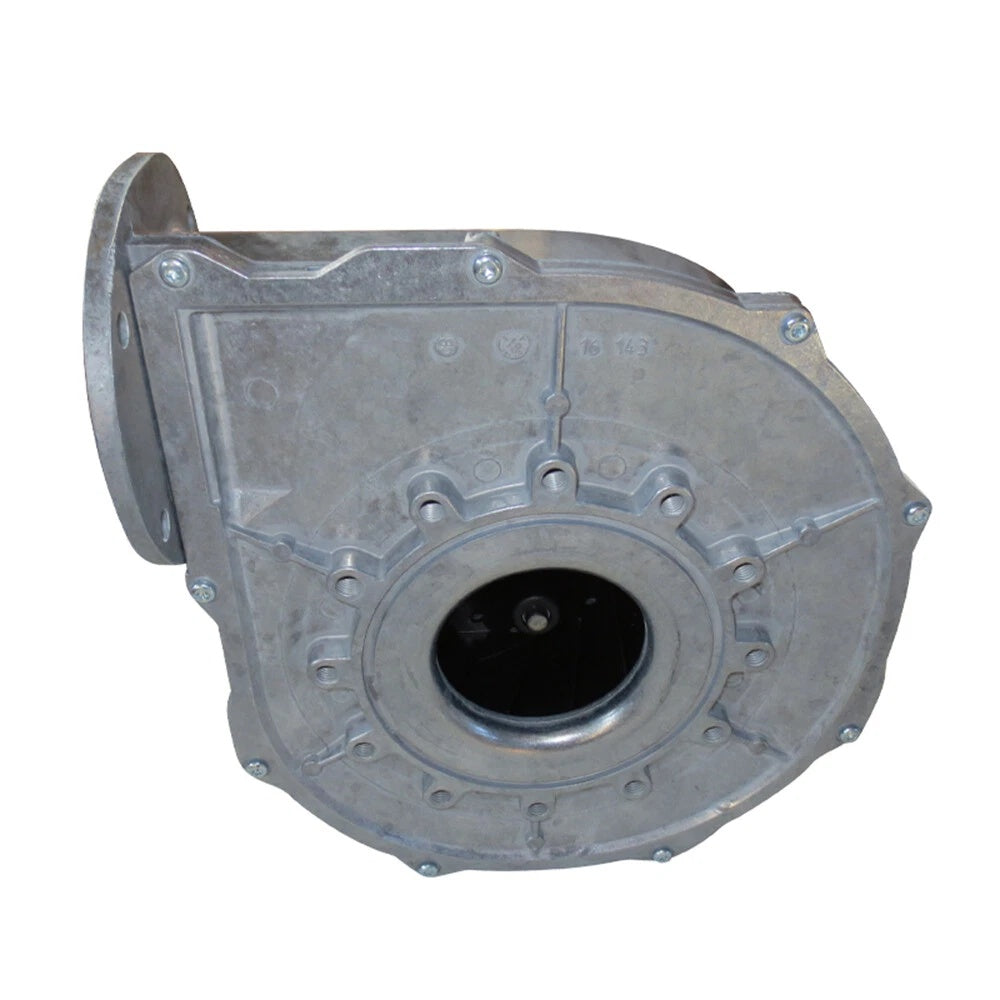

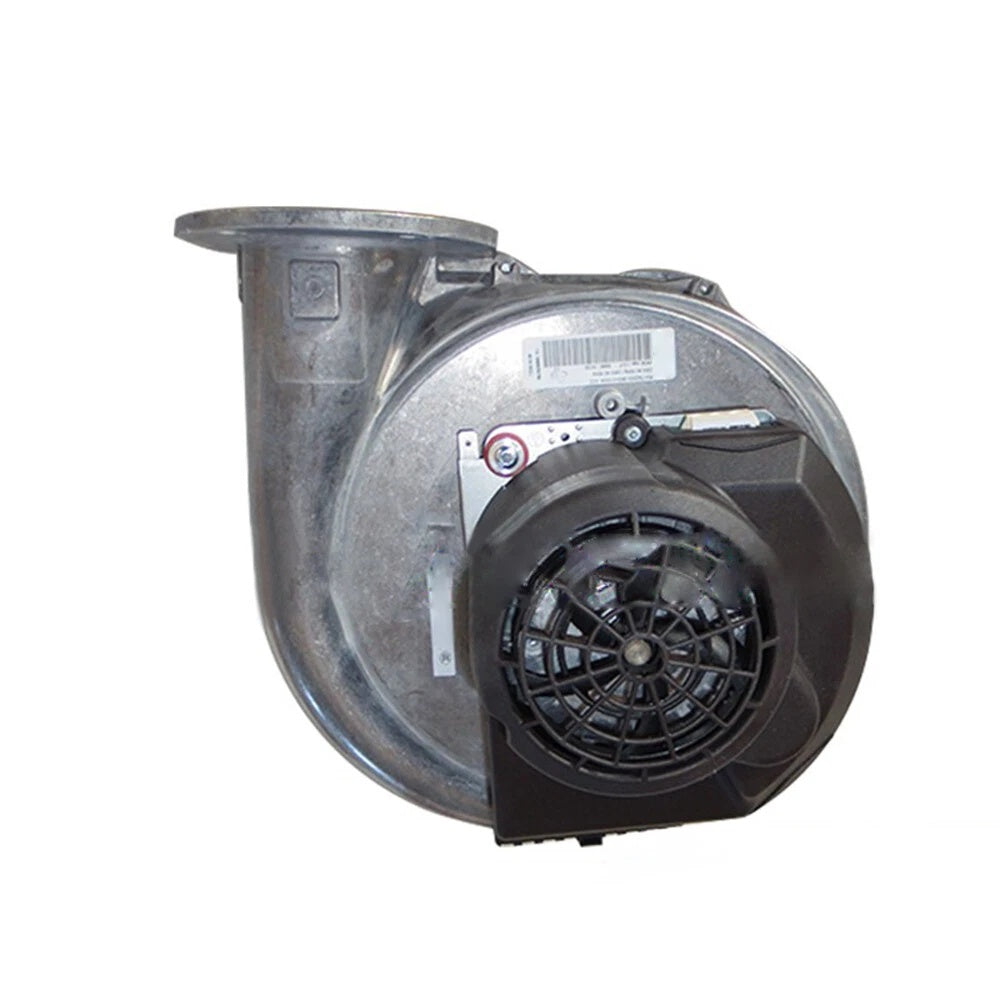

Ebmpapst RG175/2000-3633-010204 Centrifugal Fan 230VAC 175mm 120W
PRODUCT PRICE
USD
$679.25
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | RG175/2000-3633-010204 |
| Product Category | Centrifugal Fan |
| Phase | 1~ |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Input | 240 W |
| Speed | 8400 rpm |
| Air Flow | 216 m³/h |
| Minimum Back Pressure | 2000 Pa |
| Pressure Increase | 4200 Pa |
| Impeller Diameter | 175 mm |
| Housing Material | Die-cast Aluminium |
| Bearing Type | Ball Bearing |
| Application | Heating boiler fan |
Key Features
2000 Pa Minimum Back Pressure
Designed for applications requiring at least 2000 Pa back pressure, with a pressure increase up to 4200 Pa.
216 m³/h Air Flow
Delivers 216 m³/h air flow at the documented operating point for boiler and burner air supply.
Die-cast Aluminium Housing
Housing is constructed from die-cast aluminium with ball bearings for the rotating assembly.
Single-Inlet Centrifugal Design
Centrifugal fan configuration with a 175mm impeller for ducted high-pressure air movement.
Applications
- Heating boiler combustion air supply
- Gas burner forced draft
- Industrial furnace air delivery
- High-pressure ducted air movement
- Condensing boiler systems
- Process heating equipment
Purchase Information
We support online purchase of the Ebmpapst RG175/2000-3633-010204 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst RG175/2000-3633-010204? It is a 230VAC single-phase centrifugal fan with a 175mm impeller, 240W power input, and 8400 rpm speed, commonly used as a heating boiler fan.
What is the air flow of the RG175/2000-3633-010204? The documented air flow is 216 m³/h.
What pressure can the RG175/2000-3633-010204 produce? The documented minimum back pressure is 2000 Pa, with a pressure increase of 4200 Pa.
What is the nominal voltage? The nominal voltage is 230 VAC at 50 Hz.
What is the speed? The documented speed is 8400 rpm.
What is the power input? The documented power input is 240 W.
What is the impeller diameter? The impeller diameter is 175 mm.
What material is the housing? The housing is die-cast aluminium with ball bearings.
Is the RG175/2000-3633-010204 suitable for boiler applications? It is described as a heating boiler fan, and its pressure and flow ratings are consistent with combustion air supply in heating equipment.
Need help confirming a model?
Send us your part number and technical requirements.
