24VDC Radial Centrifugal Fan
24VDC operation with a 16 to 30VDC range for DC-powered high-pressure air movement.
1 / 4
Ebmpapst

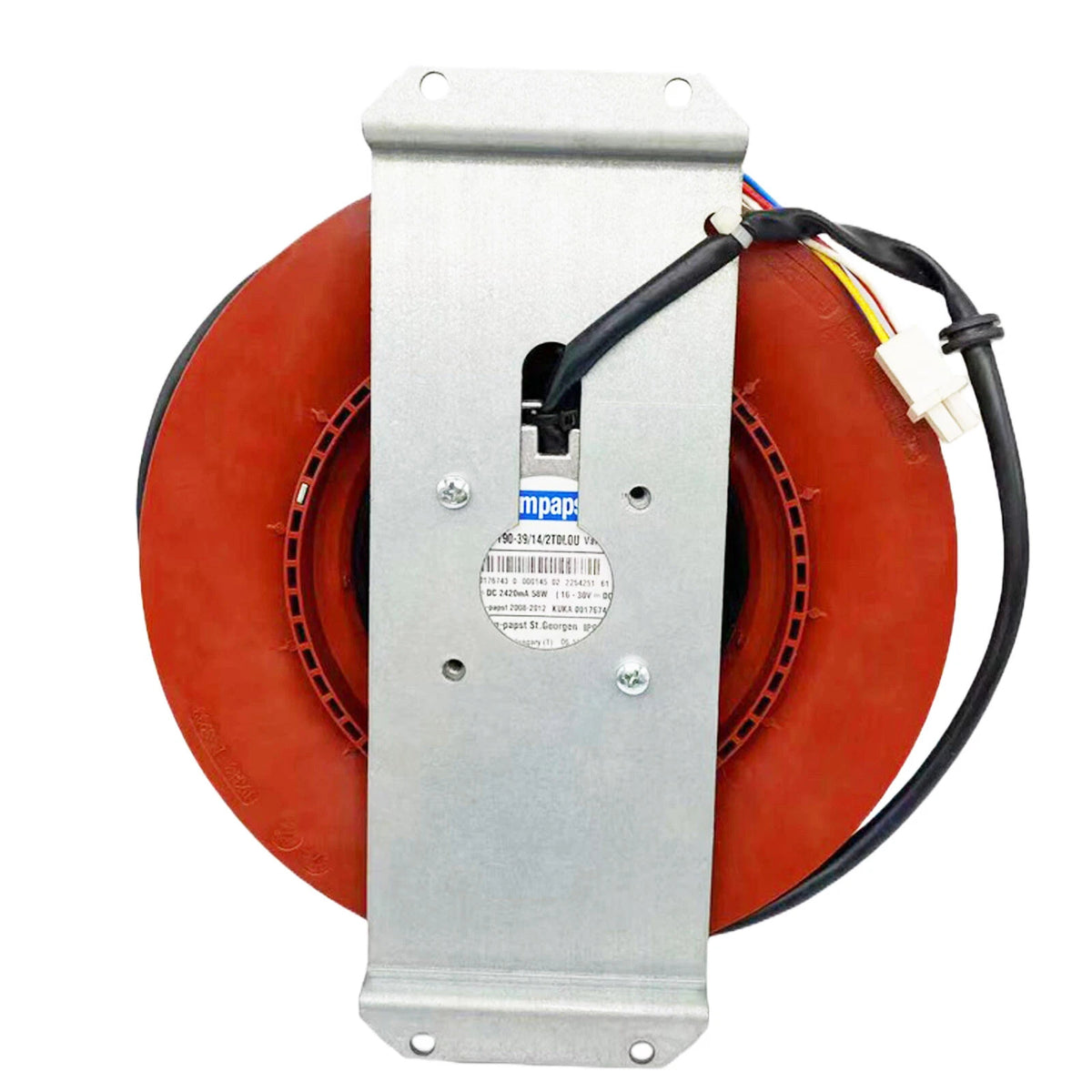

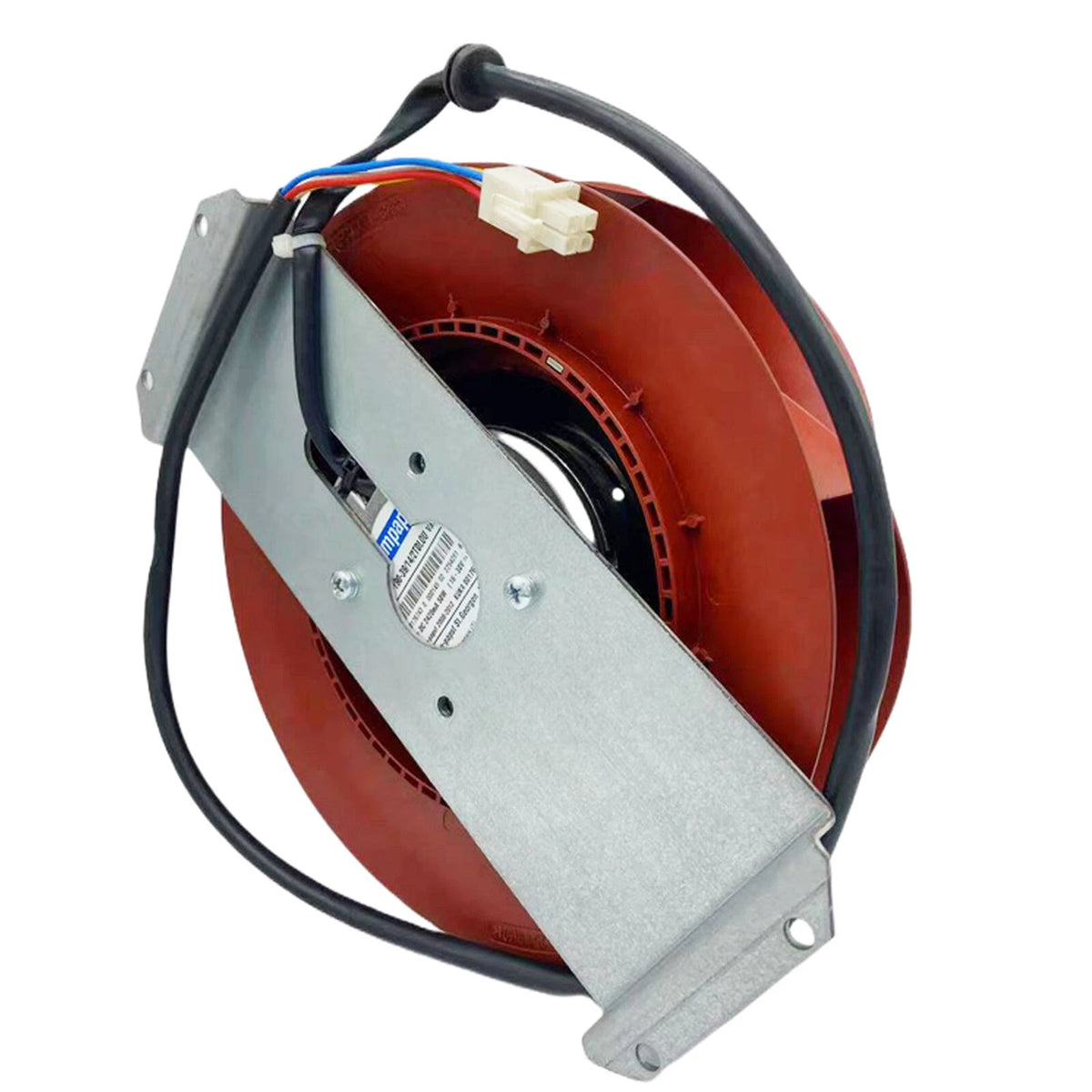

Ebmpapst RER 190-39/14/2TDLOU Centrifugal Fan 24VDC 190mm 105W
PRODUCT PRICE
USD
$152.36
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | RER 190-39/14/2TDLOU |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 16 to 30 VDC |
| Power Consumption | 57.1 W |
| Speed | 2900 rpm |
| Diameter | 190 mm |
| Air Flow | 376.7 CFM (10.55 m³/min) |
| Protection Rating | IP68 |
| Operating Temperature Range | -20°C to +60°C |
| Connection | 2 Wire Leads |
| Bearing Type | Ball Bearing |
Key Features
190mm Impeller Diameter
190mm diameter motorized impeller delivers 376.7 CFM air flow at 2900 rpm.
IP68 Protection Rating
IP68 ingress protection supports use in demanding environments exposed to dust and water.
57.1 W Power Consumption
Power consumption is 57.1 W at the rated operating point.
Ball Bearing Design
Ball bearing construction is specified for the impeller motor.
-20°C to +60°C Range
Operating temperature range of -20°C to +60°C covers a broad set of industrial ambient conditions.
Applications
- Industrial enclosure pressurization and cooling
- High-static-pressure air movement in compact spaces
- HVAC and air-handling equipment
- Dusty or wet industrial environments requiring IP68 protection
- Equipment thermal management in demanding conditions
- Radial airflow applications requiring a 190mm impeller
Purchase Information
We support online purchase of the Ebmpapst RER 190-39/14/2TDLOU Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst RER 190-39/14/2TDLOU? It is a 24VDC centrifugal fan with a 190mm impeller diameter.
What is the nominal voltage? The nominal voltage is 24 VDC, with an operating range of 16 to 30 VDC.
What is the speed and air flow? The speed is 2900 rpm and the air flow is 376.7 CFM (10.55 m³/min).
What is the power consumption? Power consumption is 57.1 W.
What is the protection rating? The protection rating is IP68.
What is the operating temperature range? The operating temperature range is -20°C to +60°C.
What type of connection does it have? It has 2 wire leads.
What bearing type is used? The fan uses a ball bearing.
