Backward-Curved Centrifugal Design
The R2E280-AE52-17 is a centrifugal fan with a 280 mm impeller, identified in the Ebmpapst R2E280 series.
1 / 3
Ebmpapst

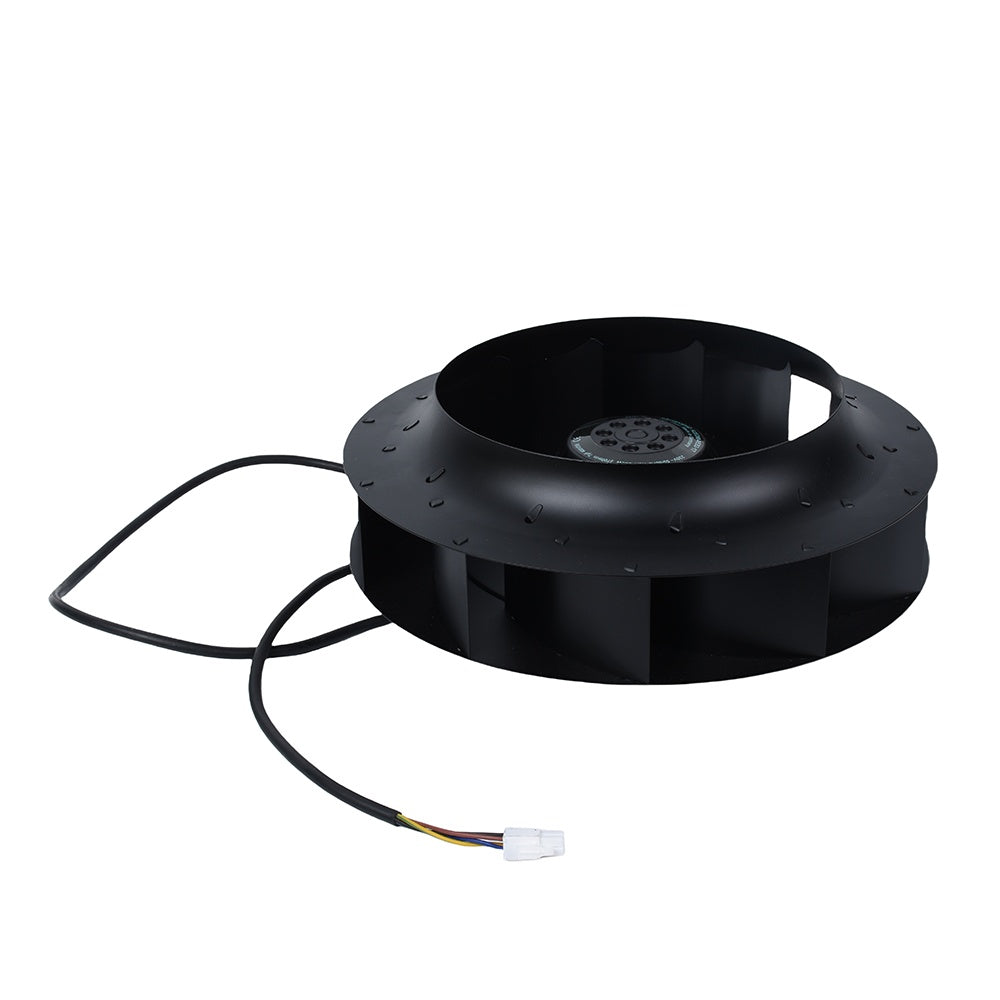

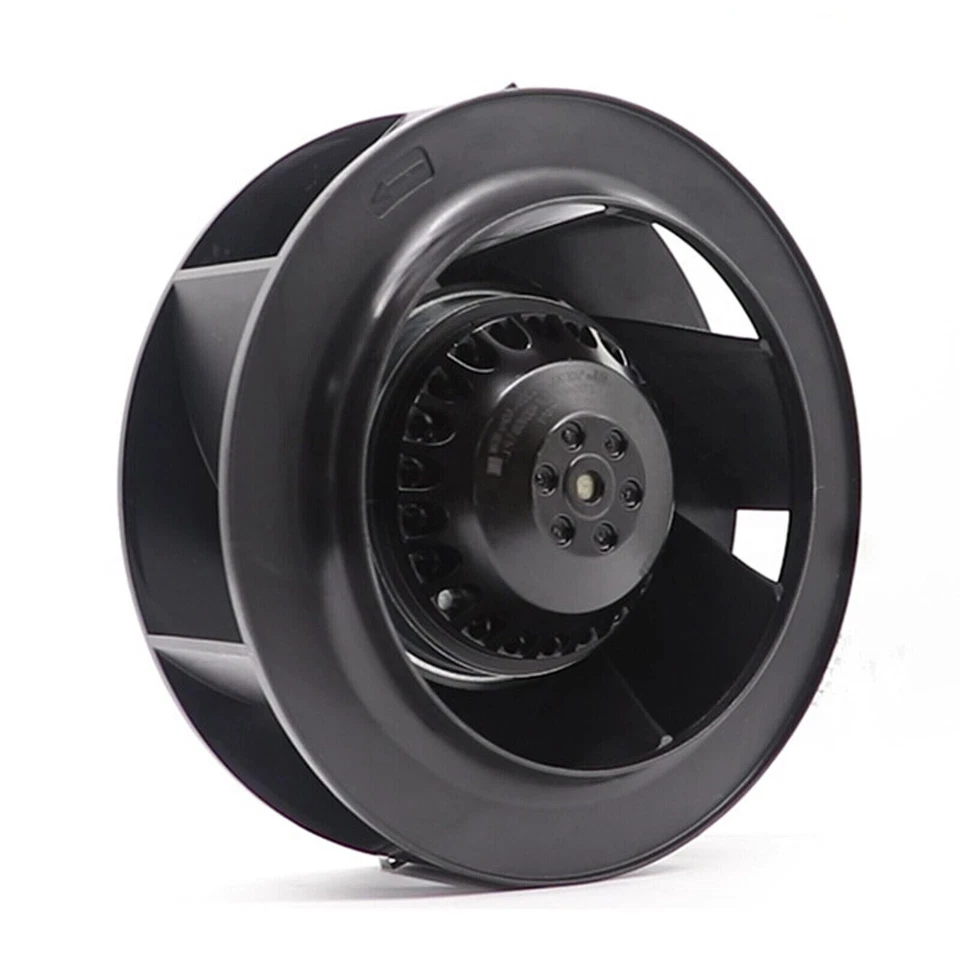

Ebmpapst R2E280-AE52-17 Centrifugal Fan 230VAC 280mm 155W
PRODUCT PRICE
USD
$165.33
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E280-AE52-17 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 225 W |
| Current | 1.0 A |
| Speed | 2700 RPM |
| Air Flow | 2110 m³/h |
| Static Pressure | 550 Pa |
| Diameter | 280 mm |
| Weight | 3.6 kg |
Key Features
High Static Pressure
Published data identifies a maximum static pressure of 550 Pa, suitable for ducted or high-resistance systems.
2110 m³/h Air Flow
The fan delivers up to 2110 m³/h air flow at a rated speed of 2700 RPM.
225 W Power Input
The centrifugal fan draws 225 W at 230 VAC, with a rated current of 1.0 A.
280 mm Frame Size
The fan diameter is 280 mm, with a published weight of 3.6 kg.
Applications
- Ducted HVAC systems
- High-static-pressure cooling
- Industrial air handling units
- Control cabinet pressurization
- Heat exchanger airflow
- Process ventilation with resistance
- Centrifugal blower replacement
- 230 VAC thermal management
Purchase Information
We support online purchase of the Ebmpapst R2E280-AE52-17 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E280-AE52-17? The R2E280-AE52-17 is a centrifugal fan with a 280 mm impeller, operating on 230 VAC.
What voltage does the R2E280-AE52-17 require? The nominal voltage is 230 VAC at 50 Hz.
What is the power consumption of the R2E280-AE52-17? The power input is rated at 225 W.
What is the current draw of the R2E280-AE52-17? The rated current is 1.0 A.
What is the speed of the R2E280-AE52-17? The rated speed is 2700 RPM.
What is the air flow of the R2E280-AE52-17? Maximum air flow is 2110 m³/h.
What is the static pressure of the R2E280-AE52-17? Maximum static pressure is 550 Pa.
What is the diameter of the R2E280-AE52-17? The fan diameter is 280 mm.
What is the weight of the R2E280-AE52-17? The fan weighs approximately 3.6 kg.
What should be checked before ordering the R2E280-AE52-17? Verify the 230 VAC 50 Hz supply, 225 W power budget, 550 Pa system pressure requirement, 2110 m³/h airflow, and the 280 mm installation envelope.
