230VAC Backward-Curved Centrifugal Fan
230VAC operation with 160/230W power and 0.71/1.02A current for high-volume air movement.
1 / 1
Ebmpapst

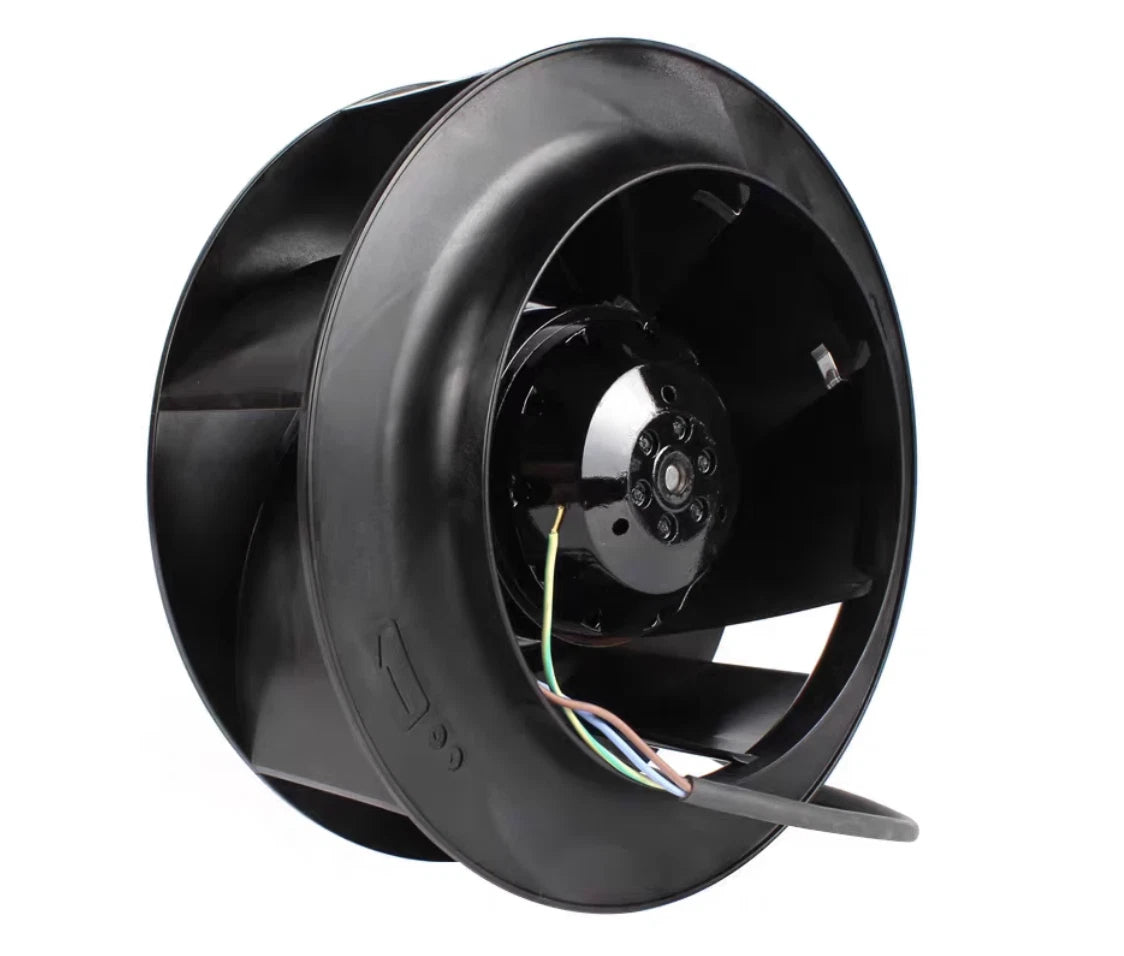

Ebmpapst R2E250-AS50-39 Centrifugal Fan 230VAC 250mm 160W
PRODUCT PRICE
USD
$196.79
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E250-AS50-39 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 230 VAC |
| Current | 0.71/1.02 A |
| Power Consumption | 160/230 W |
| Speed | 2650/2900 rpm |
| Impeller Diameter | 250 mm |
| Air Flow | 1460 m³/h |
| Protection Rating | IP44 |
| Connection | 4 Lead Wire |
Key Features
250mm Impeller Diameter
250mm backward-curved impeller delivers 1460 m³/h air flow.
2650/2900 rpm Dual-Speed Operation
Dual-speed operation at 2650/2900 rpm provides application flexibility.
IP44 Protection Rating
IP44 ingress protection supports use in environments with limited dust and water exposure.
4-Lead Wire Connection
Four lead wires are specified for electrical connection.
Applications
- Industrial ventilation and air-handling systems
- HVAC equipment with 250mm centrifugal fan requirements
- High-volume air movement in equipment cabinets
- Process cooling and exhaust applications
- Centrifugal fan installations requiring IP44 protection
- Air-moving equipment with dual-speed control requirements
Purchase Information
We support online purchase of the Ebmpapst R2E250-AS50-39 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E250-AS50-39? It is a 230VAC backward-curved centrifugal fan with a 250mm impeller.
What is the nominal voltage? The nominal voltage is 230 VAC.
What are the power consumption and current? Power consumption is 160/230 W and current is 0.71/1.02 A.
What are the speed and air flow? The speed is 2650/2900 rpm and the air flow is 1460 m³/h.
What is the protection rating? The protection rating is IP44.
What type of connection does it have? It has 4 lead wires.
What are typical applications? It is used in industrial ventilation, HVAC air handling, and high-volume process cooling.
Need help confirming a model?
Send us your part number and technical requirements.
