Dual Power/Speed Ratings
Documented ratings include 155W at 2600 rpm and 215W at 2700 rpm, providing application flexibility.
1 / 3
Ebmpapst

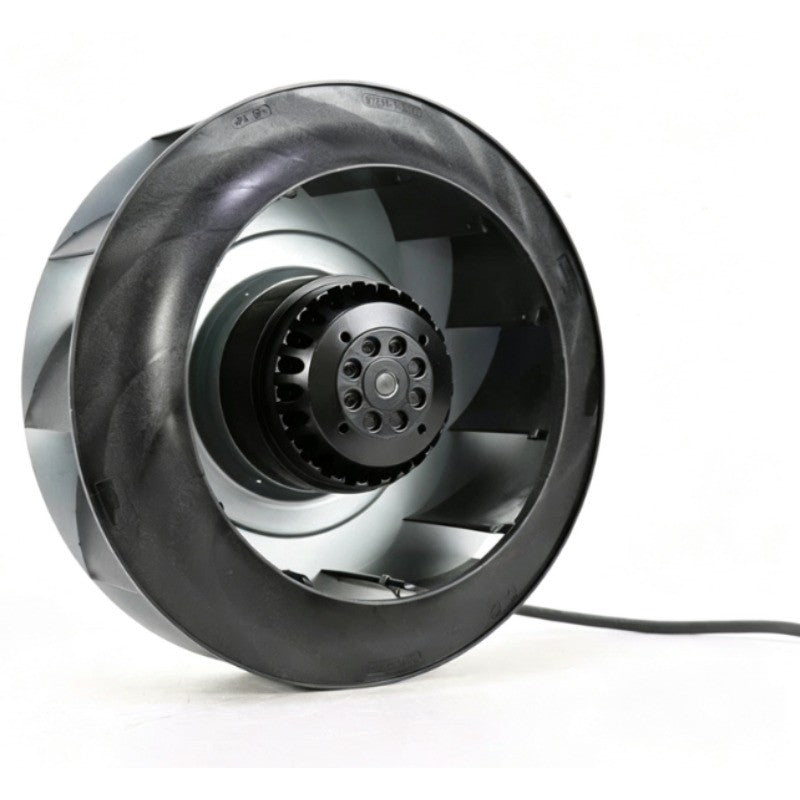

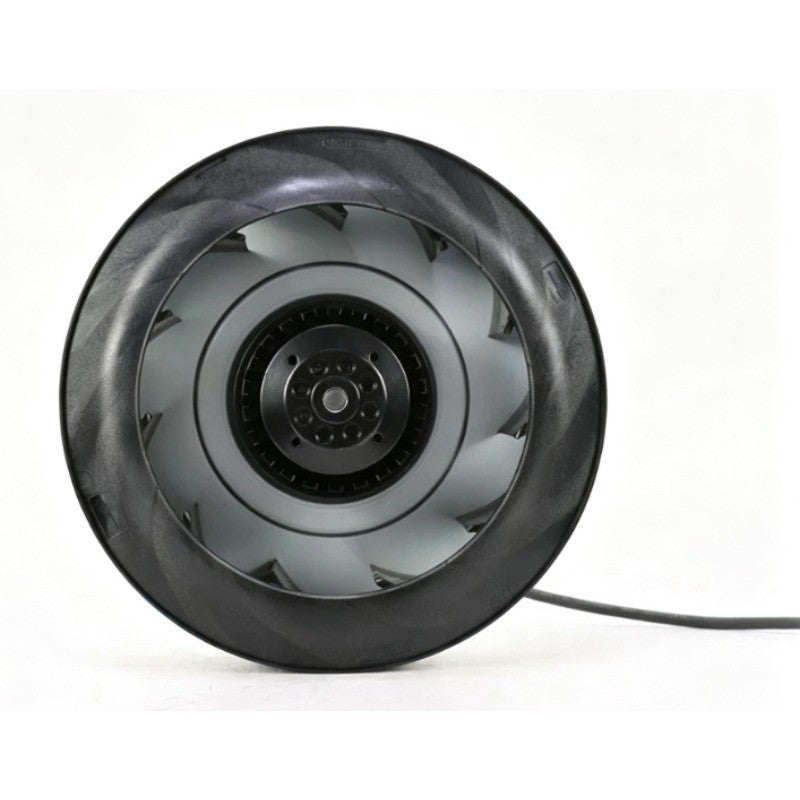

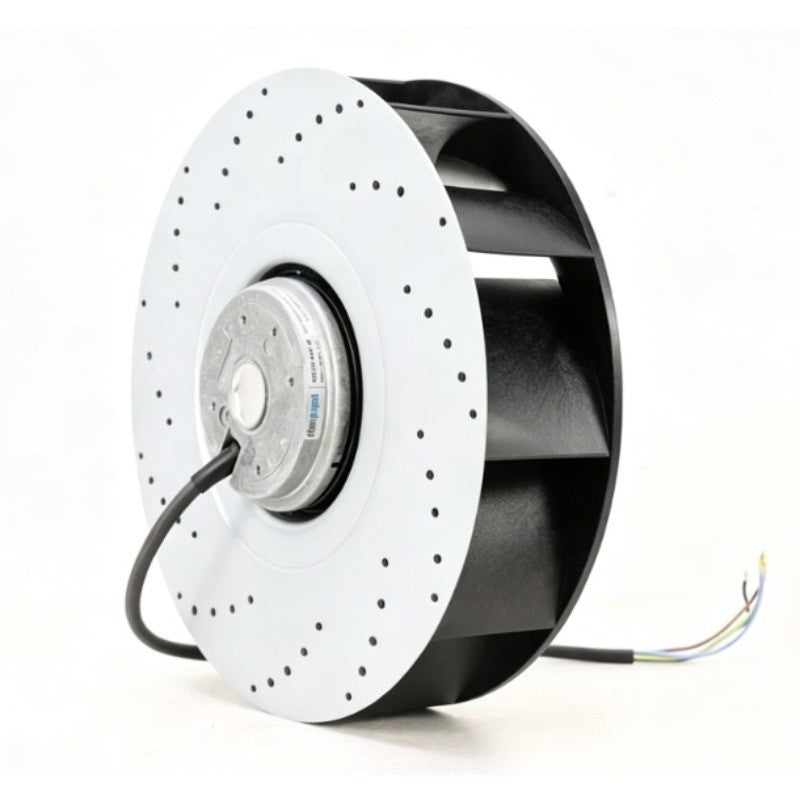

Ebmpapst R2E250-AS47-09 Centrifugal Fan 230VAC 250mm 140W
PRODUCT PRICE
USD
$219.70
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E250-AS47-09 |
| Product Category | Centrifugal Fan |
| Fan Type | Back-Curve Motorized Impeller |
| Nominal Voltage | 230 VAC |
| Power Rating | 155 W / 215 W |
| Speed | 2600 rpm / 2700 rpm |
| Rated Current | 0.950 A |
| Impeller Diameter | 250 mm |
| External Depth | 99 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP44 |
| Operating Temperature Range | -25°C to +40°C |
| Termination | 4 Wire Leads with Splice Terminals |
Key Features
Back-Curve Motorized Impeller
Backward-curved motorized impeller design in a 250mm diameter for centrifugal air movement.
IP44 Protection
IP44 protection rating supports use in environments where limited dust and water splash protection is required.
Ball Bearing Construction
Equipped with ball bearings for the rotating impeller assembly.
4-Wire Lead Termination
Supplied with 4 wire leads and splice terminals for electrical connection.
Applications
- Industrial air handling units
- Ducted ventilation systems
- Equipment cooling with centrifugal airflow
- HVAC fan sections
- Process air circulation
- Panel and enclosure thermal management
Purchase Information
We support online purchase of the Ebmpapst R2E250-AS47-09 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E250-AS47-09? It is a 230VAC back-curve motorized impeller centrifugal fan with a 250mm diameter and dual power/speed ratings of 155W/215W.
What are the speed ratings? Documented speed ratings are 2600 rpm and 2700 rpm.
What is the power rating? The fan is rated at 155W and 215W depending on the operating condition.
What is the current draw? The rated current is 0.950 A.
What is the protection rating? The protection rating is IP44.
What is the operating temperature range? The documented operating temperature range is -25°C to +40°C.
What is the impeller diameter? The impeller diameter is 250 mm with an external depth of 99 mm.
What bearing type is used? The fan uses ball bearings.
How is the fan connected? It has 4 wire leads with splice terminals.
