230 VAC Operation
Manufacturer data identifies the R2E225-BD92-09 as a 230 VAC centrifugal fan.
1 / 2
Ebmpapst

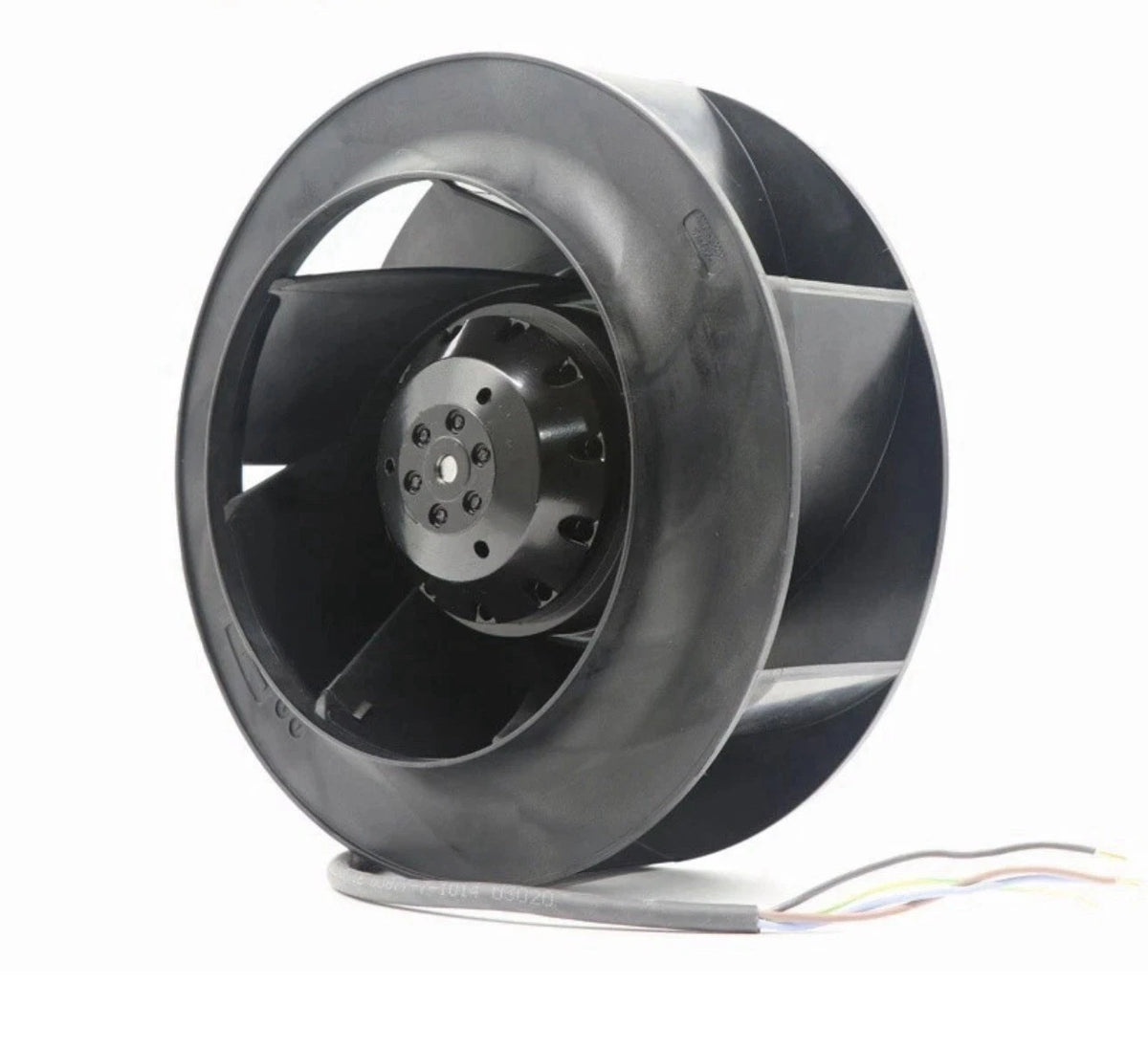

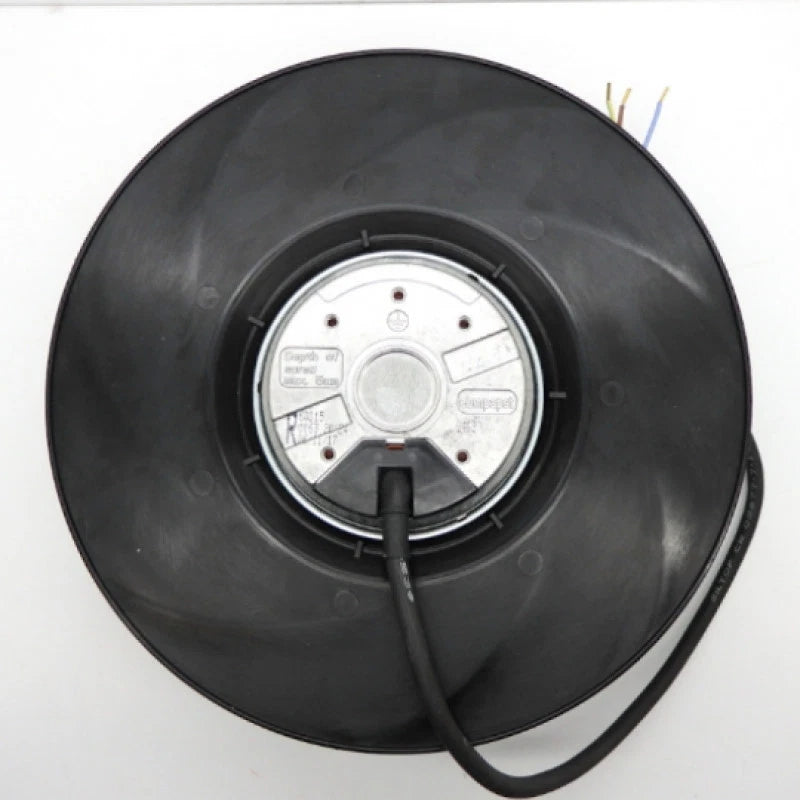

Ebmpapst R2E225-BD92-09 Centrifugal Fan
PRODUCT PRICE
USD
$110.50
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E225-BD92-09 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 135 W |
| Current | 0.6 A |
| Speed | 2650 rpm |
| Impeller Diameter | 225 mm |
| Air Flow | 795 CFM / 1340 m3/h |
| Bearing Type | Ball Bearing |
| Noise Level | 71 dBA |
| Ingress Protection | IP44 |
| Operating Temperature Range | -25 to +60 degC |
| Termination | 4 Lead Wires |
Key Features
795 CFM Air Flow
Delivers 795 CFM (1340 m3/h) at its rated operating point.
225 mm Impeller
Features a 225 mm diameter impeller with a 99 mm depth.
IP44 Protection
The fan is rated IP44 for protection against solid objects and water splashes.
135 W Power Consumption
Power consumption is 135 W with a current of 0.6 A.
Ball Bearing Construction
Ball bearings are specified for the R2E225-BD92-09.
Applications
- HVAC air handling
- Industrial ventilation
- Control cabinet cooling
- Heat exchange equipment
- Equipment thermal management
- Air circulation in demanding environments
Purchase Information
We support online purchase of the Ebmpapst R2E225-BD92-09 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E225-BD92-09? It is a centrifugal fan with a 225 mm impeller from Ebmpapst.
What voltage does the R2E225-BD92-09 use? The nominal voltage is 230 VAC at 50 Hz.
What is the air flow of the R2E225-BD92-09? Published air flow is 795 CFM, equivalent to 1340 m3/h.
What is the speed of the R2E225-BD92-09? The fan operates at 2650 rpm.
What is the power consumption of the R2E225-BD92-09? Power consumption is 135 W with a current of 0.6 A.
What is the ingress protection rating? The fan is rated IP44.
What is the operating temperature range? The operating temperature range is -25 to +60 degC.
What bearing type does the R2E225-BD92-09 use? Ball bearings are specified.
What is the noise level of the R2E225-BD92-09? The noise level is 71 dBA.
What should be checked before ordering? Verify the 230 VAC supply, the IP44 environmental protection requirement, and the physical installation dimensions against the existing system.
