230VAC Dual-Speed Centrifugal Fan
Operates on 230VAC at 50/60Hz with 2800/3300 rpm dual-speed operation.
1 / 4
Ebmpapst

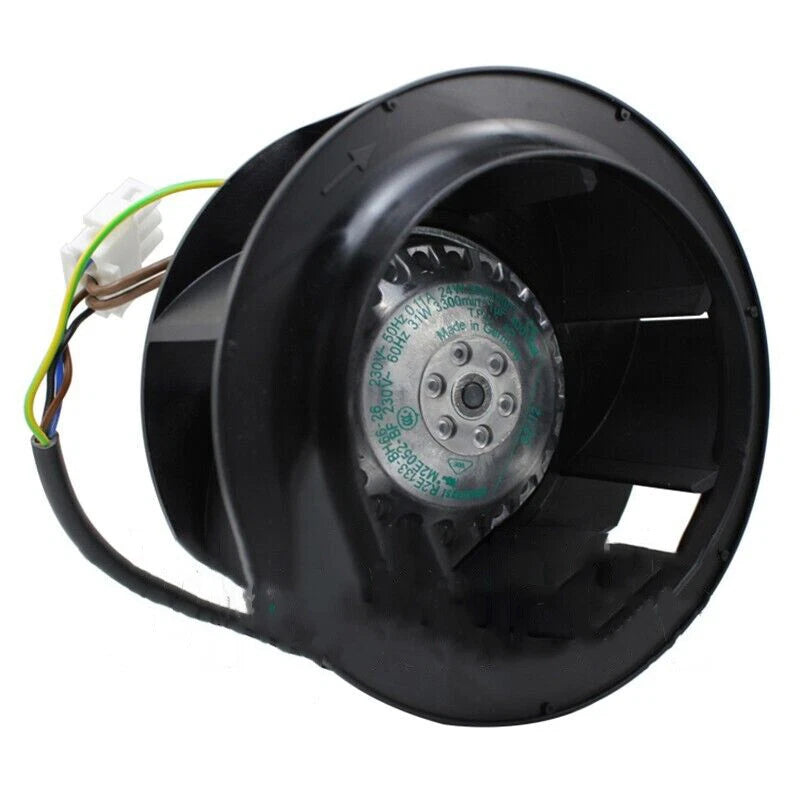

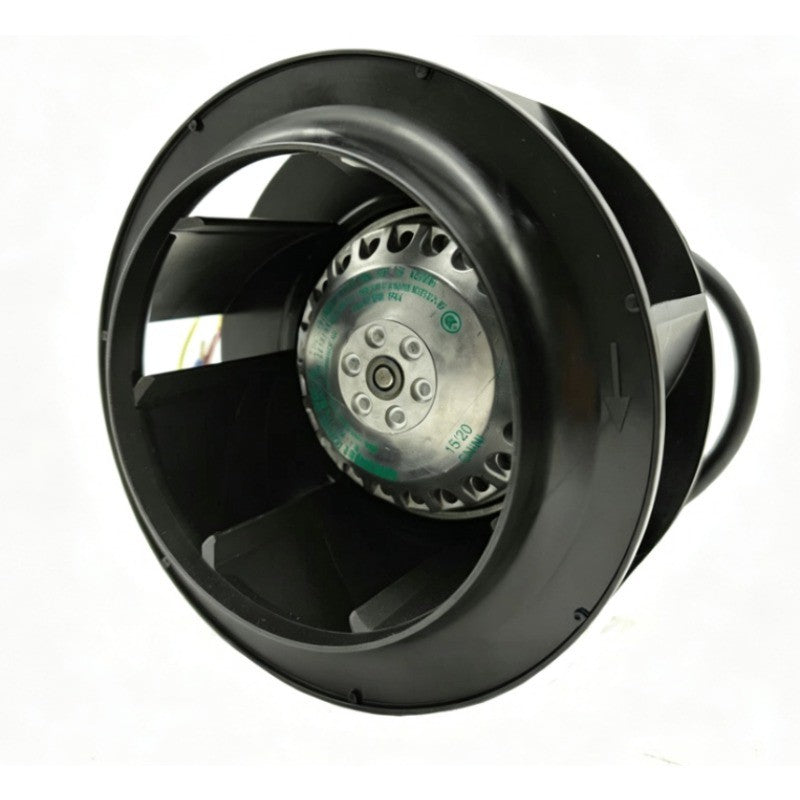

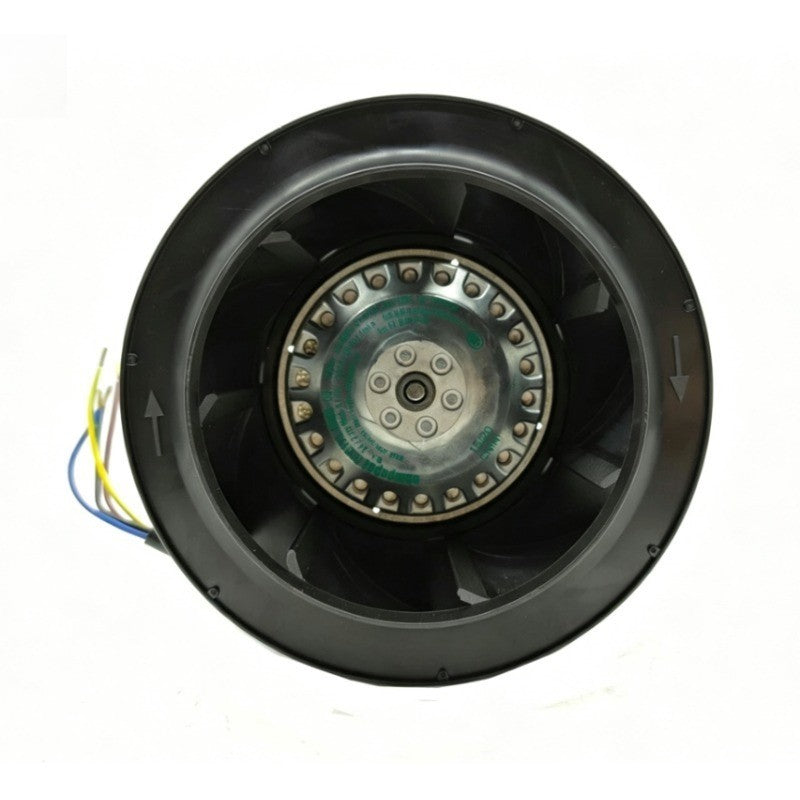

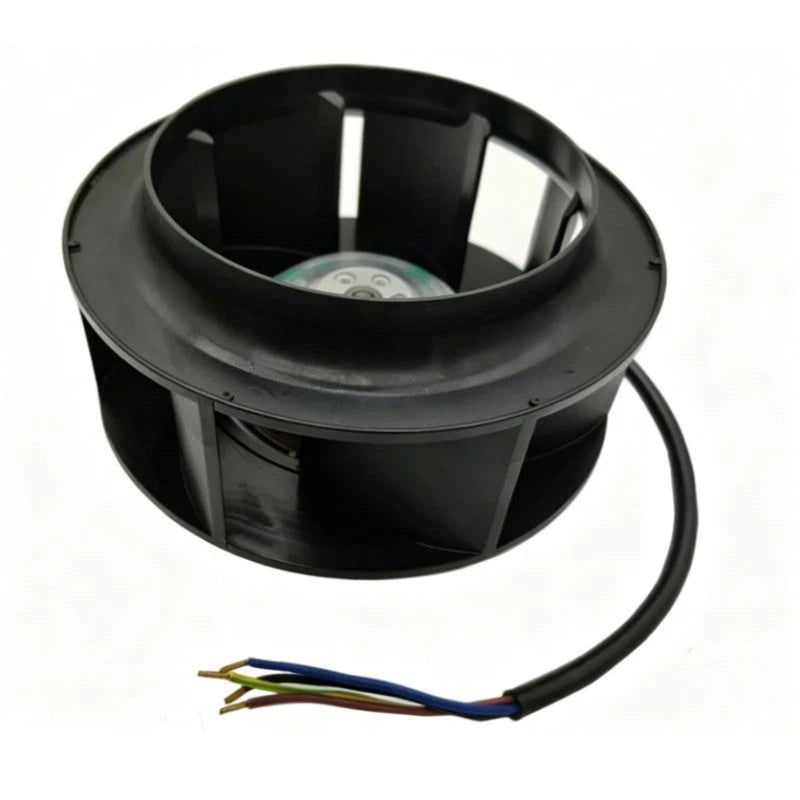

Ebmpapst R2E133-BH66-26 Centrifugal Fan 230VAC 133mm 85W
PRODUCT PRICE
USD
$88.26
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E133-BH66-26 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 24/31 W |
| Current | 0.11/0.13 A |
| Speed | 2800/3300 rpm |
| Impeller Diameter | 133 mm |
| Air Flow | 290/340 m³/h |
| Operating Temperature Range | -25°C to +60°C |
| Connection | 4-Pin |
Key Features
133mm Backward-Curved Impeller
133mm impeller with backward-curved blades delivers 290/340 m³/h air flow.
24/31 W Power Consumption
Power consumption is 24/31 W with current draw of 0.11/0.13 A.
-25°C to +60°C Range
Operating temperature range of -25°C to +60°C supports use in varied ambient conditions.
4-Pin Connection
Four-pin electrical connection is specified for this motorized impeller.
Applications
- Air purifier and air-treatment equipment
- Compact HVAC and ventilation systems
- Industrial enclosure cooling with radial airflow
- Equipment thermal management requiring dual-speed control
- Air-moving applications with 133mm impeller requirements
- General industrial centrifugal fan installations
Purchase Information
We support online purchase of the Ebmpapst R2E133-BH66-26 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E133-BH66-26? It is a 230VAC centrifugal fan with a 133mm impeller.
What is the nominal voltage and frequency? The nominal voltage is 230 VAC at 50/60 Hz.
What are the speed and air flow? The speed is 2800/3300 rpm and the air flow is 290/340 m³/h.
What is the power consumption? Power consumption is 24/31 W, with current draw of 0.11/0.13 A.
What is the operating temperature range? The operating temperature range is -25°C to +60°C.
What type of connection does it have? It has a 4-pin connection.
What are typical applications? It is used in air purifiers, compact HVAC systems, and industrial enclosure cooling.
