45 mm AC Shaded-Pole Fan Motor
Compact axial fan motor with a 45 mm square die-cast aluminum housing for small cooling duties.
1 / 3
Ebmpapst

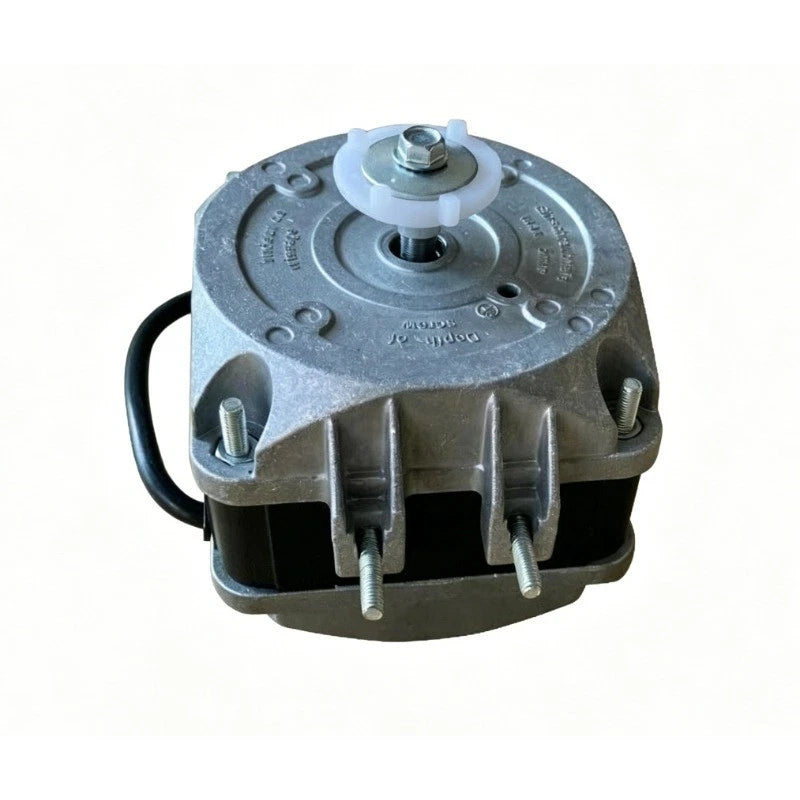

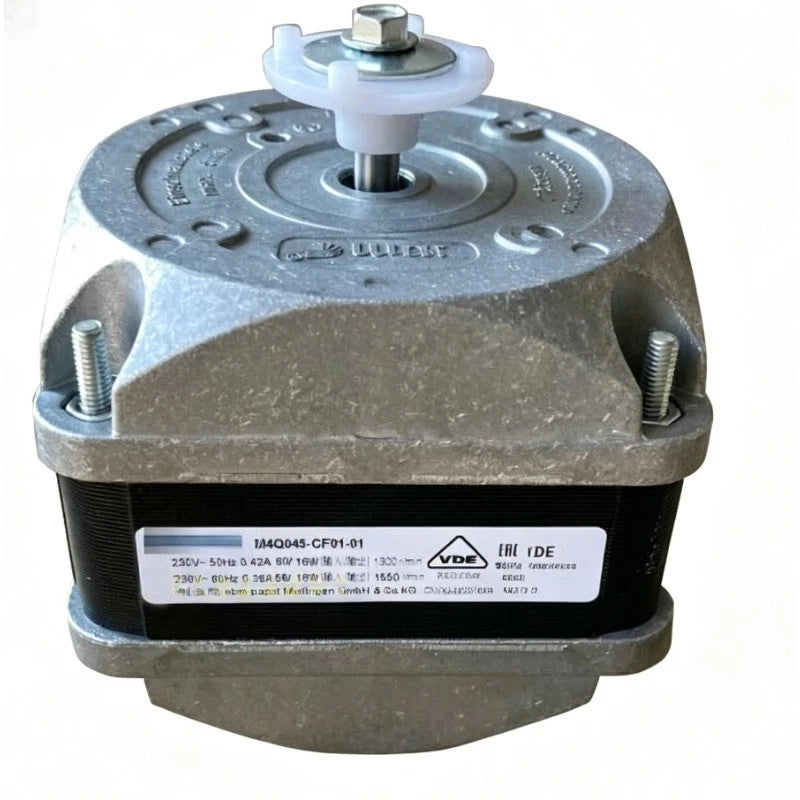

Ebmpapst M4Q045-CF01-01 Axial Fan
PRODUCT PRICE
USD
$66.34
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | M4Q045-CF01-01 |
| Product Category | Axial Fan |
| Product Family | M4Q045 |
| Fan Type | Compact Axial Fan Motor, AC Shaded-Pole |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 16 W |
| Current Draw | 420 mA |
| Speed | 1300 RPM |
| Frame Dimensions | 45 mm Square |
| Protection Rating | IP42 |
| Operating Temperature | -30°C to +40°C |
Key Features
230 VAC 50 Hz Input
Operates on 230 VAC at 50 Hz with 420 mA current draw and 16 W power consumption.
1300 RPM Speed
Rated speed of 1300 RPM for gentle forced-air circulation in compact enclosures.
IP42 Protection
Rated IP42 for protection against solid objects greater than 1 mm and dripping water, suitable for many indoor control environments.
Wide Operating Temperature
Documented operating temperature range of -30°C to +40°C supports use in varied industrial ambient conditions.
Applications
- Compact electrical enclosure cooling
- Control equipment ventilation
- Small drive thermal management
- Instrumentation airflow
- Power supply cooling
- General-purpose compact fan motor duties
Purchase Information
We support online purchase of the Ebmpapst M4Q045-CF01-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst M4Q045-CF01-01? It is a compact 45 mm axial fan motor with an AC shaded-pole motor, intended for cooling small electrical enclosures and drives.
What voltage does the M4Q045-CF01-01 use? It operates on 230 VAC at 50 Hz.
What is the power consumption? Published specifications list 16 W power consumption with 420 mA current draw.
What is the speed? The fan motor runs at 1300 RPM.
What are the dimensions? The fan motor has a 45 mm square frame.
What is the protection rating? The M4Q045-CF01-01 is rated IP42.
What is the operating temperature range? The documented operating temperature range is -30°C to +40°C.
What is the motor type? It uses a shaded-pole AC motor.
