Ebmpapst M4Q045-BD01-75 AC Motor 230VAC 50/60Hz 29/26W
Available in stock (200)

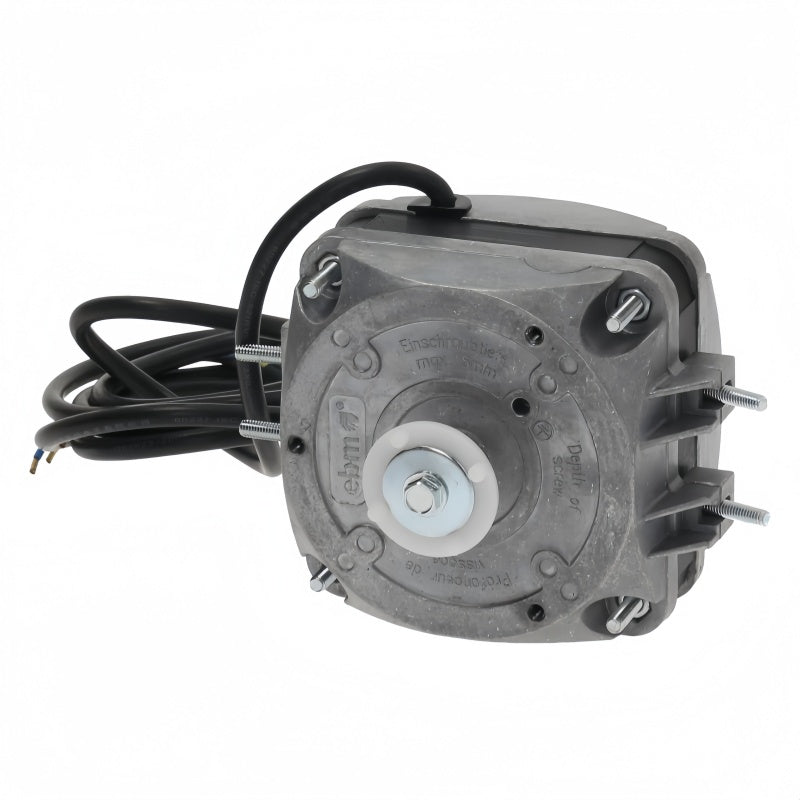

Ebmpapst M4Q045-BD01-75 AC Motor
Single-phase 230VAC fan motor with 50/60Hz operation and defined speed, power and current data for equipment maintenance, motor replacement planning and industrial procurement.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | M4Q045-BD01-75 |
| Series | M4Q045 |
| Product Category | AC Motor |
| Motor Type | Fan Motor / Q-Motor |
| Motor Reference | M4Q045-BD |
| Phase | Single Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50 / 60 Hz |
| Speed | 1300 RPM @ 50 Hz / 1550 RPM @ 60 Hz |
| Power Consumption | 29 W @ 50 Hz / 26 W @ 60 Hz |
| Power Output | 5 W @ 50 Hz / 5 W @ 60 Hz |
| Current Draw | 0.19 A @ 50 Hz / 0.17 A @ 60 Hz |
| Rated Torque | 3 Ncm |
| Mean Starting Torque | 2.2 Ncm @ 50 Hz / 1.7 Ncm @ 60 Hz |
| Starting Current | 0.25 A @ 50 Hz / 0.22 A @ 60 Hz |
| Motor Size | 45 mm |
| Weight | Approx. 0.9 kg |
| Protection Rating | IP20 |
| Insulation Class | B |
| Bearing Type | Calotte Bearing |
| Operation Mode | S1 |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Motor Protection | Impedance Protection |
| Operating Temperature | -30°C to +40°C |
Product Overview
Ebmpapst M4Q045-BD01-75 is a single-phase AC motor from the M4Q045 product family. It is designed for 230VAC operation and provides separate nominal operating data for 50Hz and 60Hz electrical systems.
At 50Hz, published nominal data specifies 1300 RPM speed, 29W power consumption, 5W power output and 0.19A current draw. At 60Hz, the corresponding values are 1550 RPM, 26W power consumption, 5W output and 0.17A.
For maintenance and replacement procurement, engineers and purchasing teams should compare the complete M4Q045-BD01-75 model number, voltage, frequency, speed, input and output power, current, direction of rotation, electrical connection, shaft arrangement and mounting configuration with the existing motor and equipment documentation before ordering.
Key Features
230VAC Operation
Designed for single-phase 230VAC operation in compatible fan assemblies and motor-driven ventilation equipment.
50/60Hz Operation
Published technical data provides separate operating specifications for both 50Hz and 60Hz electrical systems.
1300/1550 RPM
Published nominal speed is 1300 RPM at 50Hz and 1550 RPM at 60Hz.
29/26W Input
Power consumption is specified at 29W for 50Hz operation and 26W for 60Hz operation.
5W Output
Published mechanical power output is 5W at both 50Hz and 60Hz.
Counterclockwise Rotation
The specified direction of rotation is counterclockwise when viewed toward the rotor.
Applications
- Industrial fan assemblies
- Refrigeration equipment fan motors
- Condenser fan motor applications
- Ventilation equipment maintenance
- Cooling equipment motor replacement
- Industrial equipment maintenance
- Spare-part procurement
- OEM equipment purchasing
Product Advantages
Clear Motor Identification
The complete M4Q045-BD01-75 designation provides a precise reference for quotations, purchasing records and maintenance requirements.
Defined Electrical Data
Voltage, frequency, current, power and speed specifications provide useful references when comparing the motor with an existing unit.
Replacement Planning
Rotation direction, electrical data and motor configuration can be checked against an existing motor before replacement purchasing.
Procurement Reference
Structured product information helps engineers and purchasing teams prepare clearer sourcing and quotation requirements.
Purchase Information
Ebmpapst M4Q045-BD01-75 AC Motor can be considered for equipment maintenance, motor replacement planning and industrial procurement inquiries. Before ordering, confirm the complete M4Q045-BD01-75 model number, 230VAC voltage, 50/60Hz frequency, speed, power consumption, output power, current, direction of rotation, electrical connection, shaft arrangement and mounting configuration against the existing motor and equipment documentation.
Related M4Q045 models can use different suffixes and electrical or mechanical configurations. Always provide the complete BD01-75 designation together with the required quantity when preparing a purchasing inquiry.
Frequently Asked Questions
What is Ebmpapst M4Q045-BD01-75?
Ebmpapst M4Q045-BD01-75 is a single-phase 230VAC AC motor used as a fan motor within compatible M4Q applications.
Is M4Q045-BD01-75 a complete fan?
No. Product documentation identifies M4Q045-BD01-75 as an AC motor or fan motor rather than a complete axial or centrifugal fan assembly.
What voltage does M4Q045-BD01-75 use?
The published nominal voltage is 230VAC.
Does M4Q045-BD01-75 support 50Hz and 60Hz?
Yes. Published technical data provides separate operating values for both frequencies.
What is the speed?
Published nominal speed is 1300 RPM at 50Hz and 1550 RPM at 60Hz.
What is the power consumption?
Published nominal data specifies 29W at 50Hz and 26W at 60Hz.
What is the power output?
Published nominal power output is 5W at both 50Hz and 60Hz.
What is the current draw?
Published nominal current is 0.19A at 50Hz and 0.17A at 60Hz.
What direction does the motor rotate?
The specified direction is counterclockwise when viewed toward the rotor.
What protection rating does M4Q045-BD01-75 have?
The product data specifies IP20.
Can M4Q045-BD01-75 be used for replacement projects?
It can be considered for compatible motor replacement requirements after the complete electrical, rotational, shaft and mounting specifications have been checked against the existing equipment.
What should be checked before ordering?
Check the complete M4Q045-BD01-75 model number, voltage, frequency, speed, power consumption, output power, current, direction of rotation, electrical connection, shaft configuration and mounting requirements against the existing motor and equipment documentation.
