230VAC Input
Operates on a 230VAC supply with 50/60Hz frequency compatibility.
1 / 1
Ebmpapst

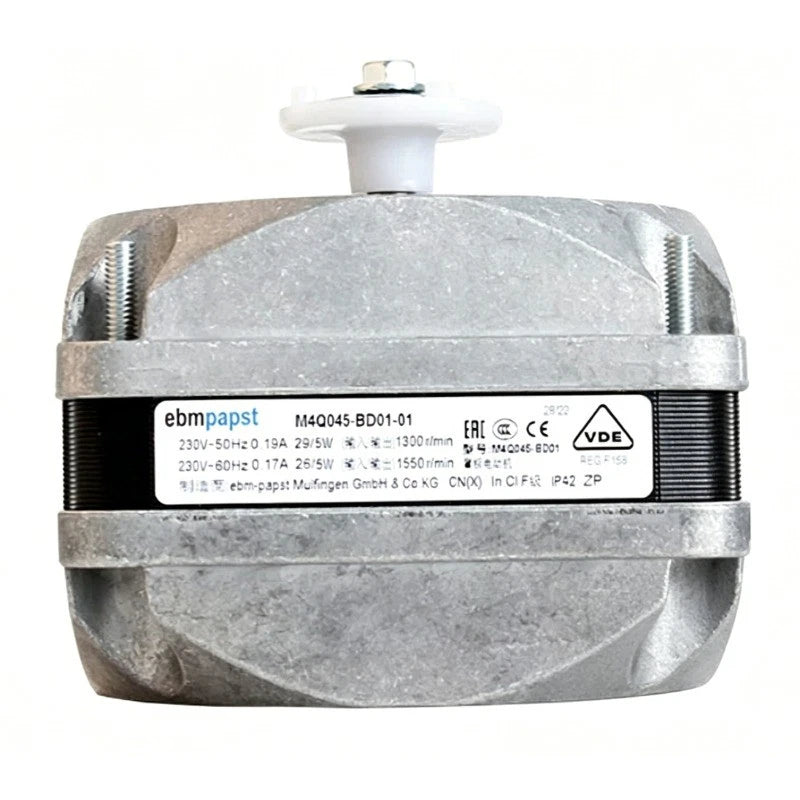

Ebmpapst M4Q045-BD01-01 Axial Fan 230VAC 45mm 5W
PRODUCT PRICE
USD
$68.12
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | M4Q045-BD01-01 |
| Product Category | Axial Fan |
| Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Current | 0.19 A / 0.17 A |
| Input Power | 29 W |
| Output Power | 5 W |
| Speed | 1300 / 1550 rpm |
| Bearing Type | Sleeve |
| Protection Rating | IP42 |
| Operating Temperature | -30°C to +40°C |
Key Features
Dual-Speed Operation
Rated for 1300 rpm at 50Hz and 1550 rpm at 60Hz, adapting to regional power frequencies.
Sleeve Bearing
Equipped with a sleeve bearing design for the fan motor construction.
IP42 Protection
Rated IP42 for protection against solid objects and dripping water in industrial environments.
5W Output Power
Delivers 5W output power with a 29W input power rating.
Applications
- Industrial cooling fan motor applications
- Condenser fan motor assemblies
- Refrigeration and freezer equipment
- HVAC fan motor replacement projects
- Commercial cooling systems
- Air-moving equipment requiring 230VAC motors
Purchase Information
We support online purchase of the Ebmpapst M4Q045-BD01-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst M4Q045-BD01-01? It is an axial fan motor from the M4Q045 series, rated for 230VAC operation.
What is the voltage of this fan? The rated voltage is 230VAC with 50/60Hz frequency.
What is the output power? The output power is 5W, with a 29W input power rating.
What is the speed? It operates at 1300 rpm at 50Hz and 1550 rpm at 60Hz.
What bearing type does it use? The M4Q045-BD01-01 uses a sleeve bearing.
What is the protection rating? It is rated IP42.
What is the operating temperature range? The operating temperature range is -30°C to +40°C.
What current does it draw? The current rating is 0.19A at 50Hz and 0.17A at 60Hz.
Need help confirming a model?
Send us your part number and technical requirements.
