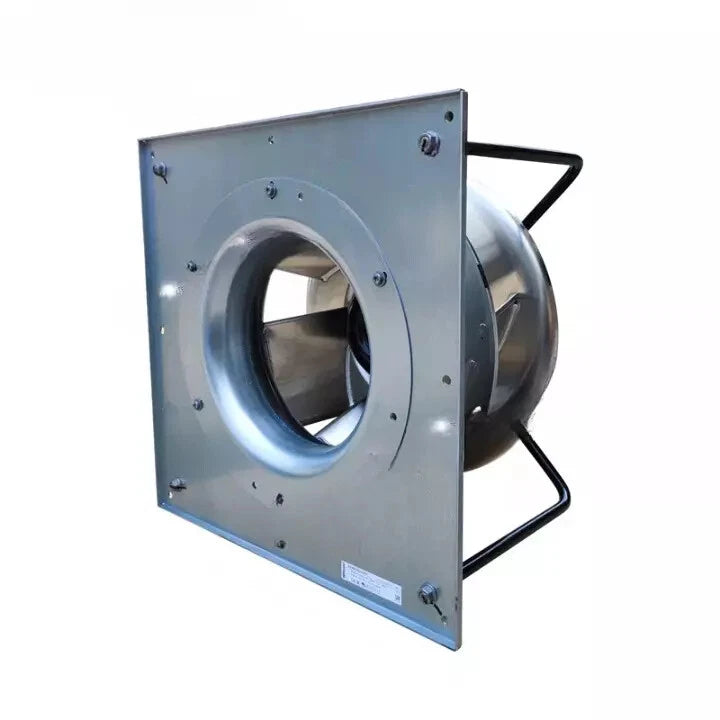

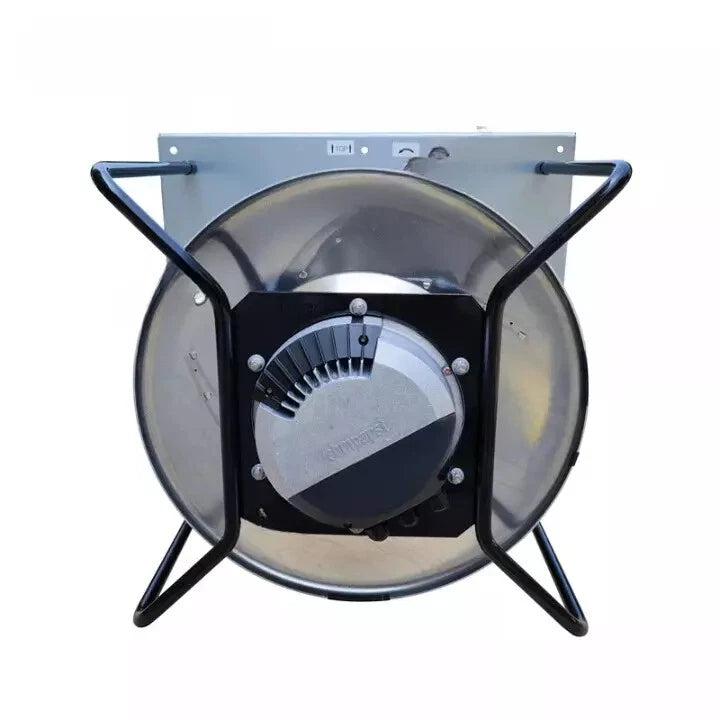

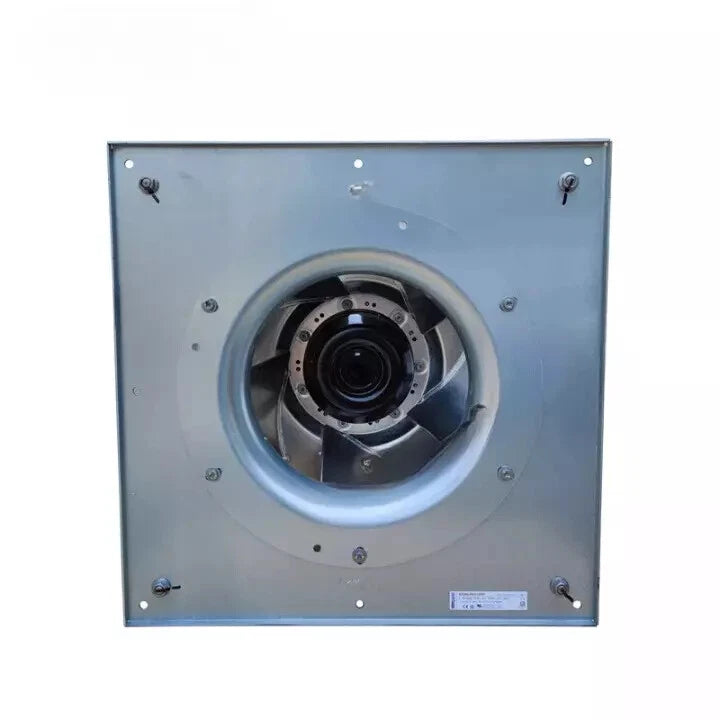

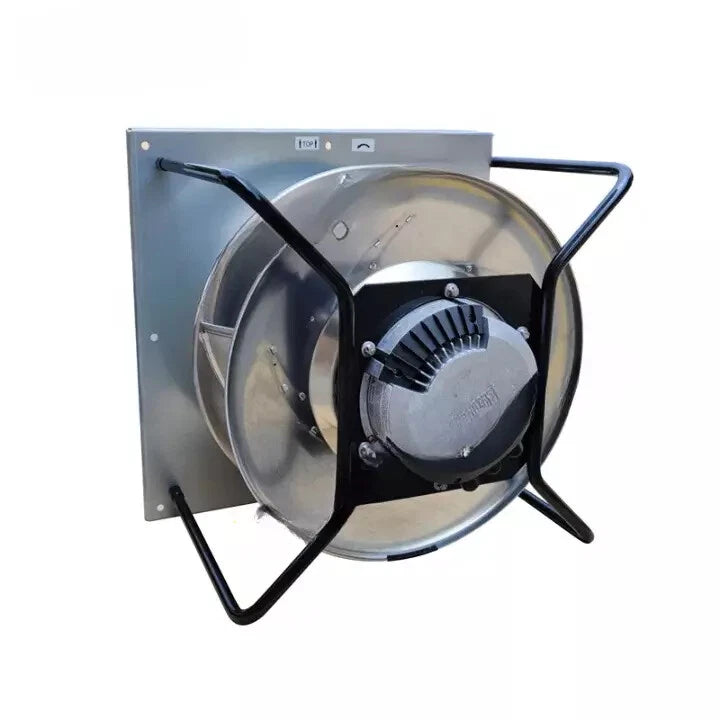

EC RadiPac Module
Backward-curved single-intake centrifugal module with support bracket, designed for HVAC and air-handling integration.
1 / 4
Ebmpapst
Ebmpapst K3G450-PA31-03/F01 Centrifugal Fan
PRODUCT PRICE
USD
$1,814.53
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K3G450-PA31-03/F01 |
| Product Category | Centrifugal Fan |
| Product Family | RadiPac |
| Fan Type | EC Centrifugal Module, Backward-Curved |
| Nominal Voltage | 400 VAC |
| Voltage Range | 380-480 VAC |
| Power Consumption | 2.2 kW |
| Air Flow Range | 1,200-7,200 m³/h |
| Max Static Pressure | 1,550 Pa |
| Impeller Diameter | 450 mm |
| Speed | 2,480 RPM |
Key Features
400 VAC Three-Phase Input
Nominal 400 VAC with a 380-480 VAC range, suitable for industrial three-phase power systems.
2.2 kW EC Motor
Electronically commutated motor rated at approximately 2.2 kW for energy-efficient air movement.
High Air Flow and Pressure
Delivers 1,200-7,200 m³/h air flow with maximum static pressure up to 1,550 Pa for demanding ventilation duties.
450 mm Impeller
Large 450 mm backward-curved impeller supports high-volume airflow in air-handling and cooling systems.
Applications
- HVAC air handling units
- AHU ventilation systems
- Industrial air movement and cooling
- Cleanroom airflow management
- Process ventilation in manufacturing
- Large enclosure and cabinet cooling
Purchase Information
We support online purchase of the Ebmpapst K3G450-PA31-03/F01 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst K3G450-PA31-03/F01? It is an EC centrifugal module from the RadiPac series with a 450 mm impeller, designed for HVAC and air-handling ventilation.
What voltage does the K3G450-PA31-03/F01 use? It has a nominal voltage of 400 VAC and an operating range of 380-480 VAC.
What is the power consumption? Published specifications list approximately 2.2 kW power consumption.
What air flow does it deliver? The documented air flow range is 1,200-7,200 m³/h.
What is the maximum static pressure? The fan can achieve maximum static pressure up to 1,550 Pa.
What is the impeller diameter? The impeller diameter is 450 mm.
What is the speed? The published speed is 2,480 RPM.
Is this fan suitable for AHU systems? Its backward-curved EC impeller, three-phase voltage range, and high airflow make it applicable to AHU and HVAC ventilation after system pressure and airflow requirements are verified.
Need help confirming a model?
Send us your part number and technical requirements.
