Backward Curved Single Inlet
Backward curved impeller with a single inlet and flange mount housing for gas-condensing heating and similar ducted airflow paths.
1 / 4
Ebmpapst

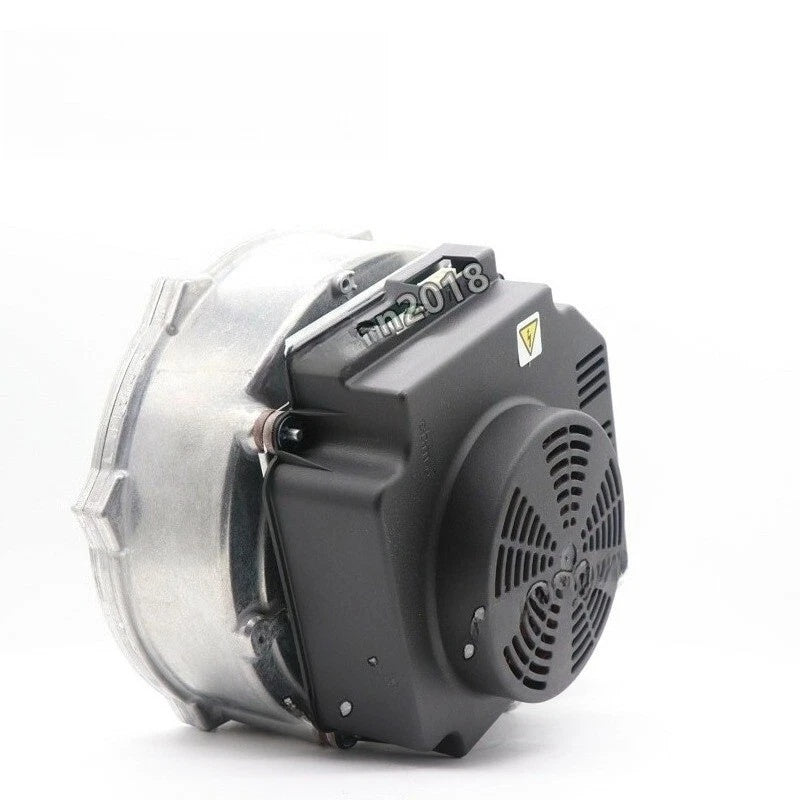

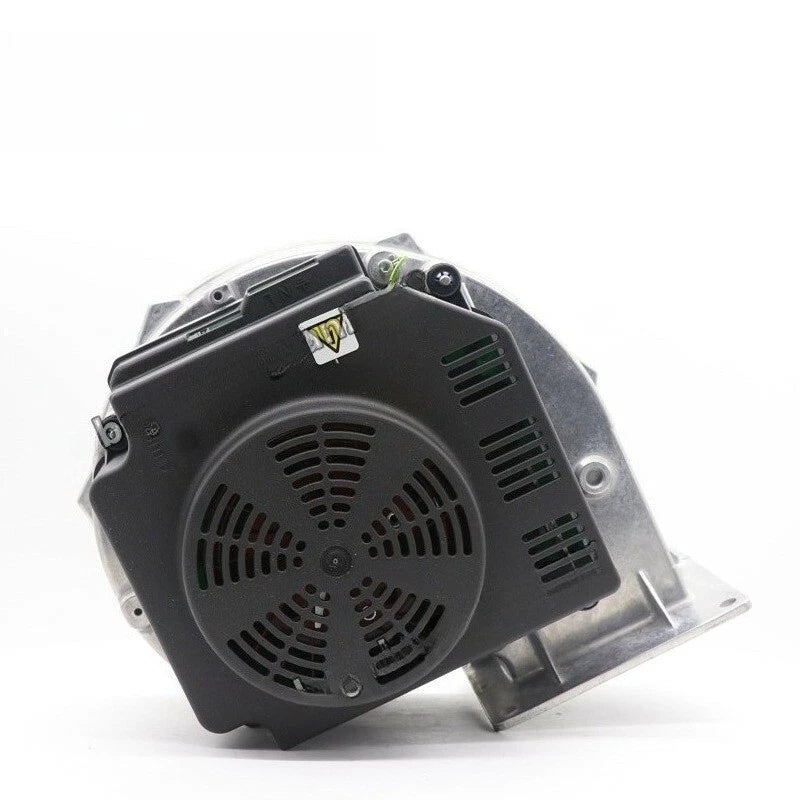

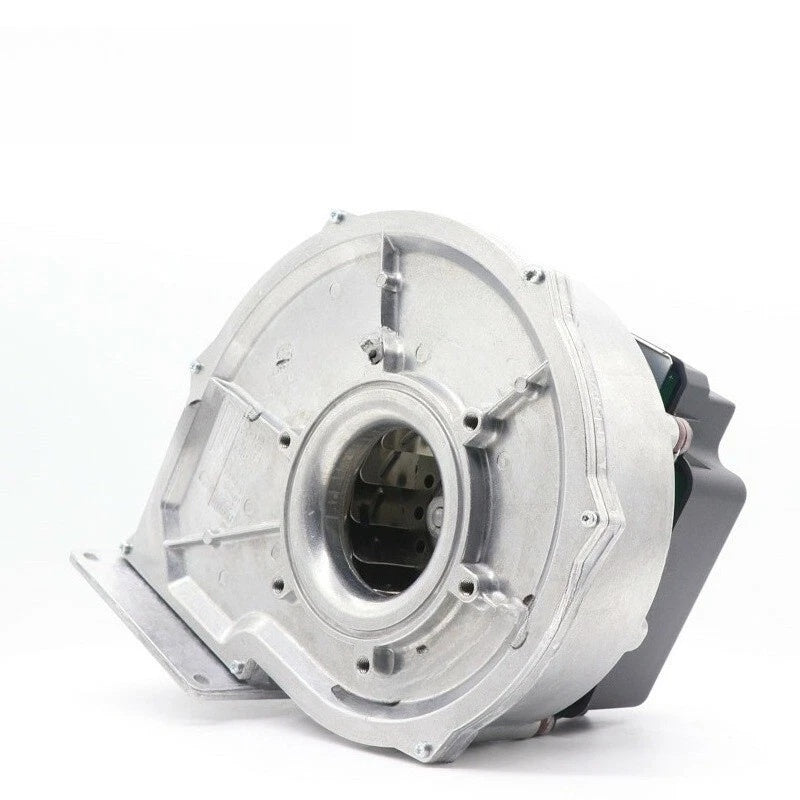

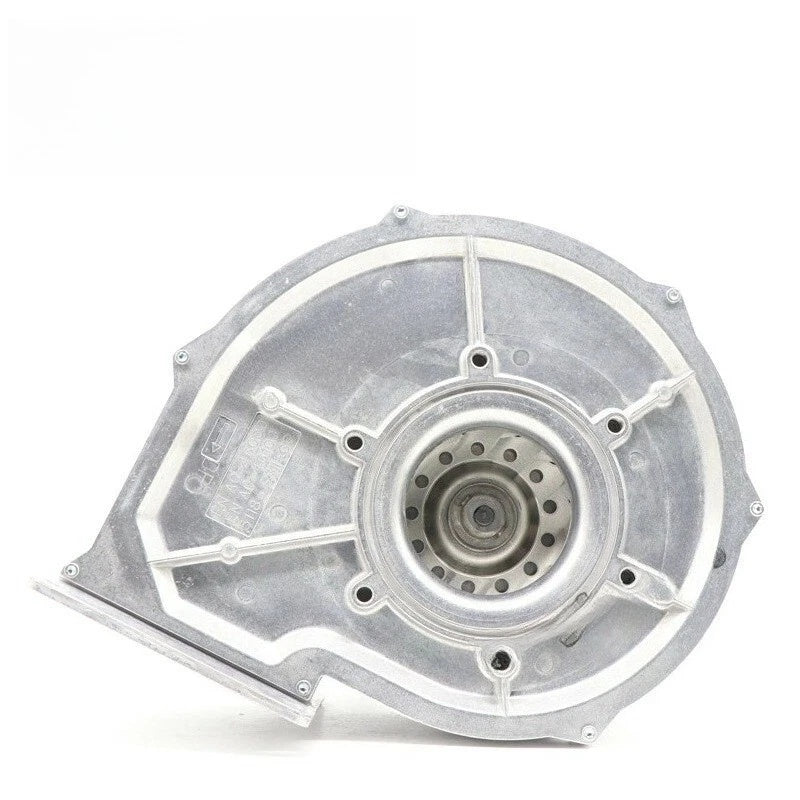

Ebmpapst G1G170-AB31-51 Centrifugal Fan 230VAC 170mm 85W
PRODUCT PRICE
USD
$720.10
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | G1G170-AB31-51 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Blower, Backward Curved, Single Inlet, with Housing |
| Nominal Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power Input | 410 W |
| Line Current | 1.8 A |
| Nominal Speed | 6530 rpm |
| Maximum Pressure | 2000 Pa |
| Impeller Size | 170 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP 20 |
| Insulation Class | B |
| Operating Temperature Range | -25°C to +80°C |
| Mass | 4.7 kg |
| Housing Material | Die-cast Aluminium |
| Impeller Material | Aluminium Sheet |
Key Features
6530 rpm High-Speed Operation
Nominal speed of 6530 rpm for applications requiring elevated static pressure up to 2000 Pa.
410W AC Motor
230V 50/60Hz AC motor with 1.8A line current and 410W power input.
PWM and Tach Output
Technical features include PWM control input, tach output, active PFC, and motor current limit.
Thermal Overload Protection
Motor is protected by an internally wired thermal overload protector (TOP).
Applications
- Gas-condensing heating systems
- Industrial burner air supply
- Ducted process air movement
- Combustion air blower applications
- High-static-pressure ventilation
- HVAC equipment with flange-mounted blowers
Purchase Information
We support online purchase of the Ebmpapst G1G170-AB31-51 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst G1G170-AB31-51? It is a 230VAC backward-curved single-inlet centrifugal blower with a 170mm impeller, flange mount housing, and 410W power input.
What is the maximum pressure of the G1G170-AB31-51? The documented maximum pressure is 2000 Pa.
What is the nominal speed? The nominal speed is 6530 rpm at 50/60Hz.
What is the line current? The documented line current is 1.8 A at 230V.
Does the G1G170-AB31-51 have PWM control? Yes. Technical features include a PWM control input and tach output.
What is the protection rating? The fan has an IP 20 protection rating.
What is the operating temperature range? The documented operating temperature range is -25°C to +80°C.
What is the mass of the G1G170-AB31-51? The documented mass is 4.7 kg.
What material is the housing? The housing is die-cast aluminium and the impeller is aluminium sheet.
Is the G1G170-AB31-51 suitable for gas-condensing heating systems? The datasheet describes it as a gas blower for gas-condensing heating, with the pressure and speed ratings suited to such combustion air applications.
