230 V AC Centrifugal Design
Operates on a 230 V AC, 50/60 Hz supply for AC-powered centrifugal air movement.
Ebmpapst
Ebmpapst D3G146-AB06-10 Centrifugal Fan 230V 146mm 170W
$255.60
Available
PRODUCT GALLERY
01 / 3

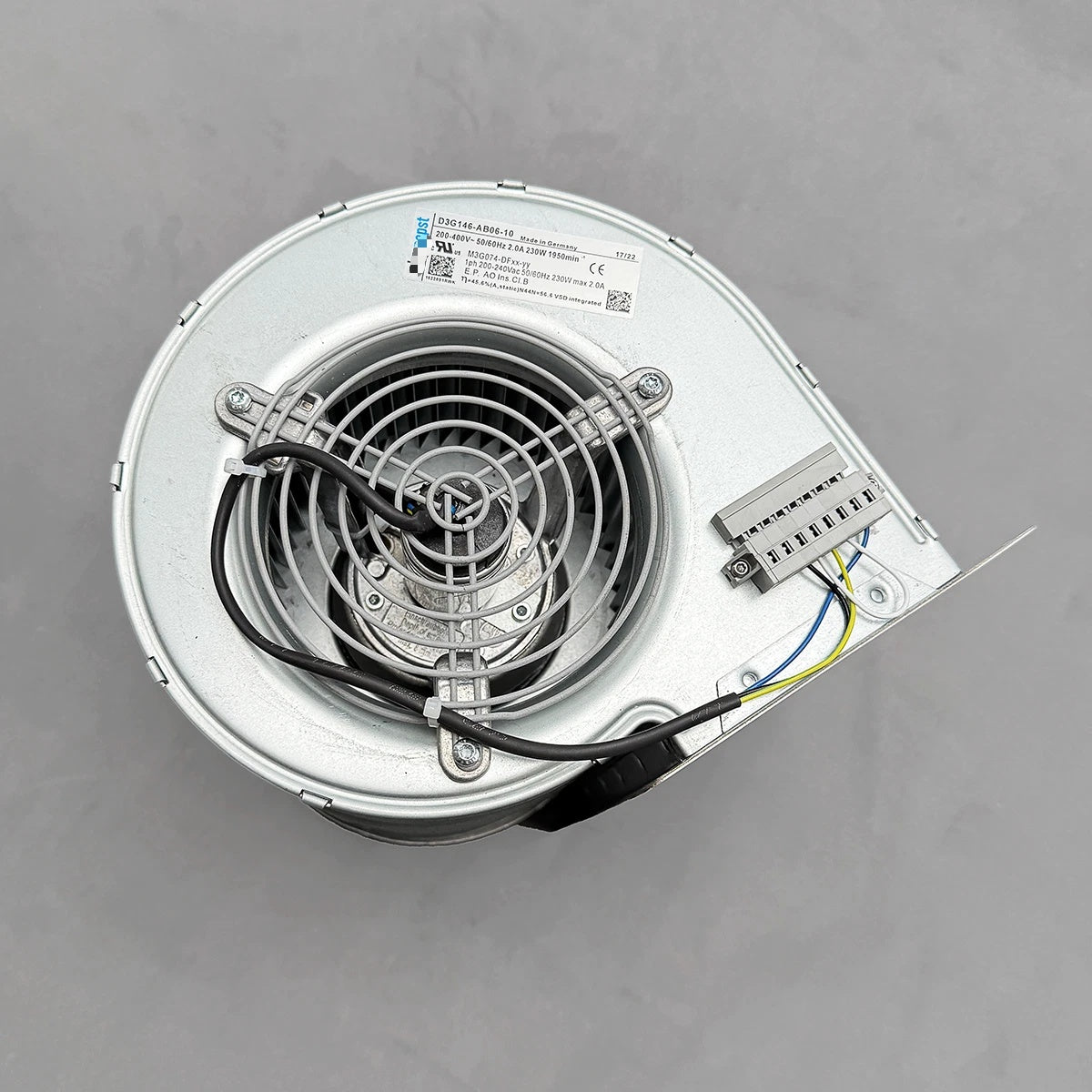

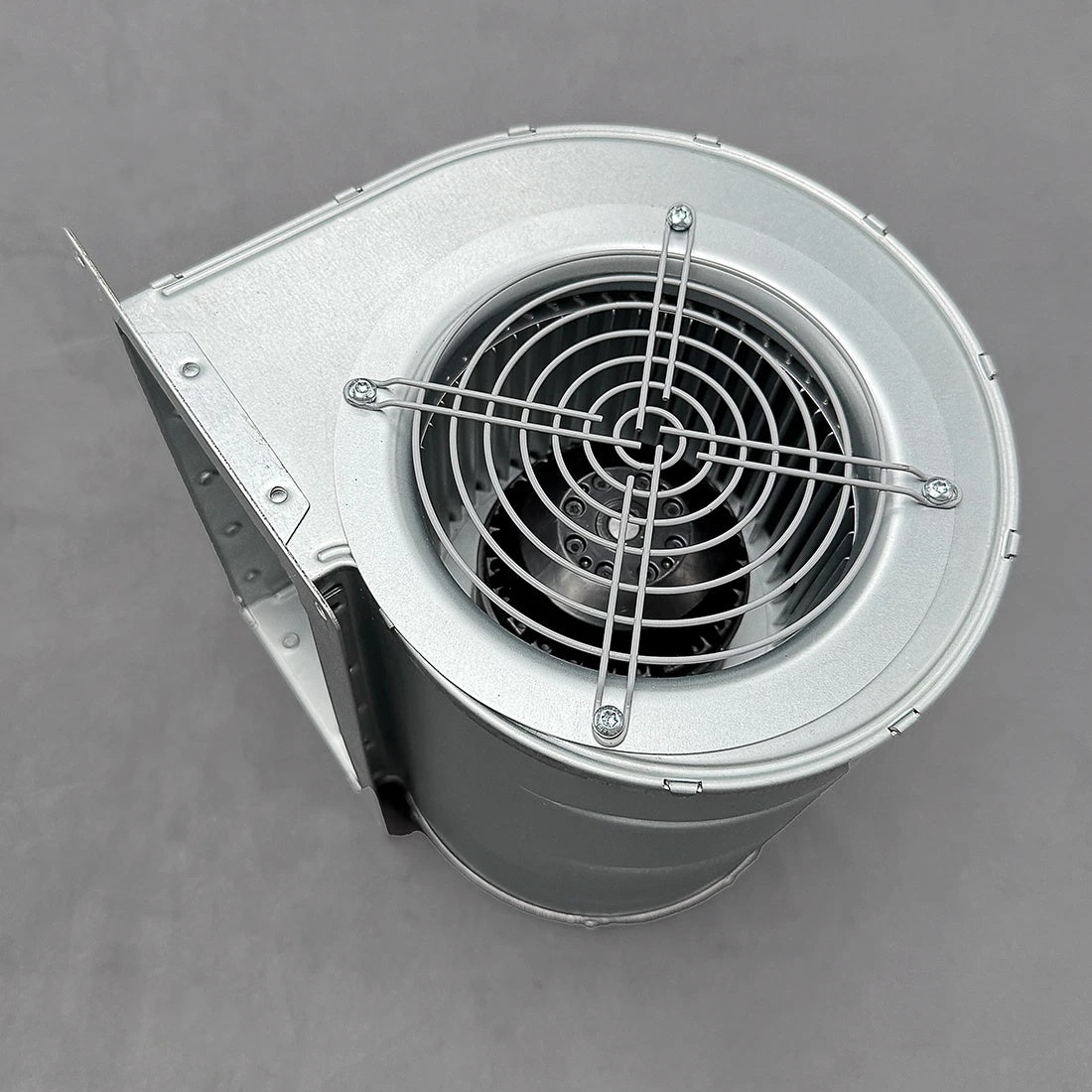

Product images for part identification
Ebmpapst

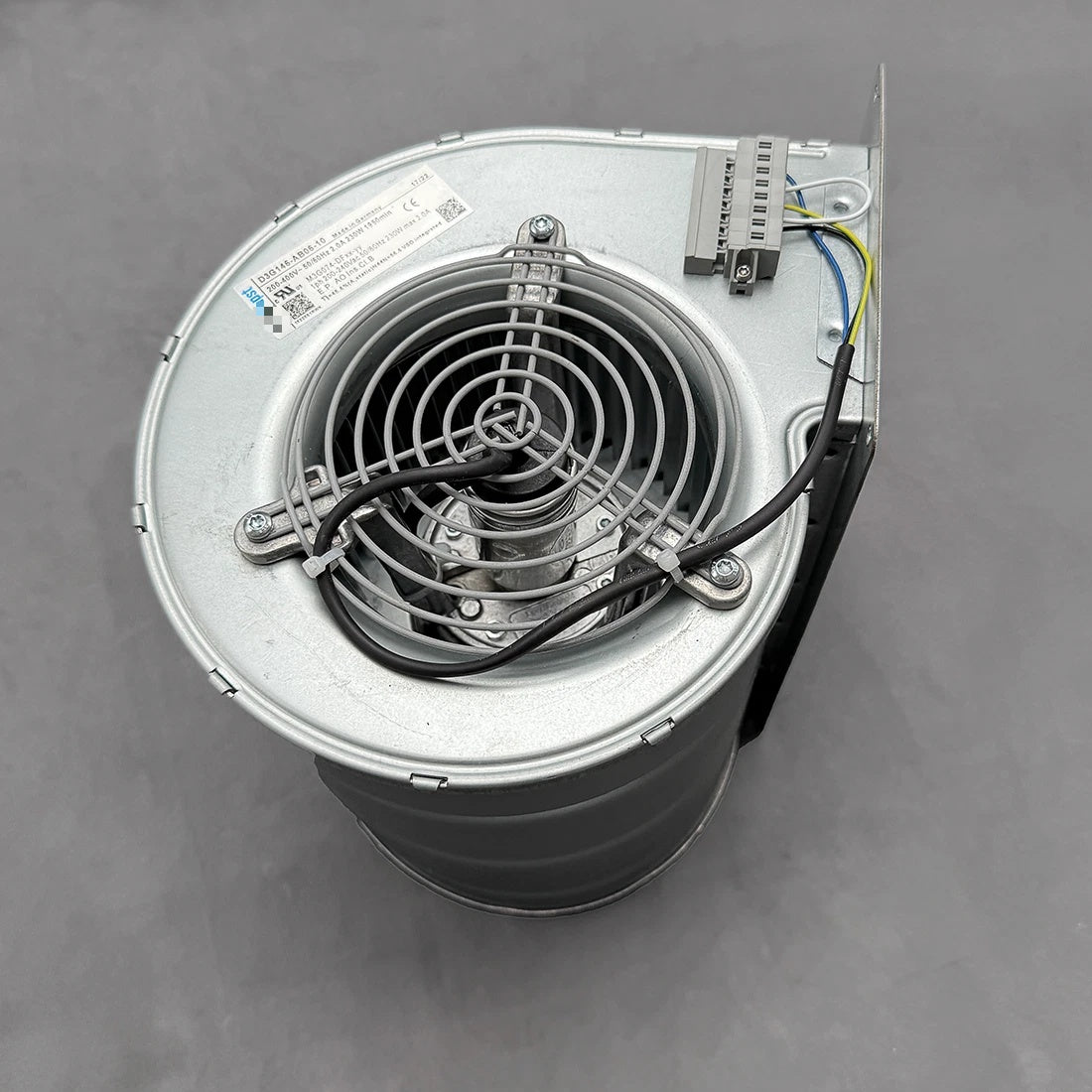

Ebmpapst D3G146-AB06-10 Centrifugal Fan 230V 146mm 170W
PRODUCT PRICE
USD
$255.60
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | D3G146-AB06-10 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Maximum Current | 1.8 A |
| Speed | 2400 rpm |
| Air Flow | 1080 m³/h |
| Impeller Size | 146 mm |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +60°C |
| Bearing Type | Ball Bearing |
| Sensor Output | PWM |
Key Features
1080 m³/h Air Flow
Delivers 1080 m³/h air volume for cooling and ventilation duties requiring higher pressure than axial fans.
2400 rpm Speed
Runs at 2400 rpm for stable centrifugal airflow in industrial cabinets and HVAC equipment.
IP20 Protection
Rated IP20 for use in protected indoor environments where solid-object protection is sufficient.
PWM Sensor Output
Provides a PWM sensor output for speed feedback or control integration in compatible systems.
Ball Bearing Construction
Uses ball bearings for the fan shaft, supporting continuous operation in industrial ventilation.
Applications
- Variable frequency drive cooling
- Industrial control cabinet ventilation
- HVAC equipment air movement
- Power electronics thermal management
- Ducted ventilation systems
- Enclosure cooling with moderate protection needs
- Process air circulation
Purchase Information
We support online purchase of the EBM D3G146-AB06-10 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the EBM D3G146-AB06-10? The D3G146-AB06-10 is a 146 mm centrifugal fan rated for 230 V AC operation.
What is the nominal voltage of the D3G146-AB06-10? The fan operates on 230 V AC at 50/60 Hz.
What is the maximum current of the D3G146-AB06-10? The maximum current is 1.8 A.
What is the air flow of the D3G146-AB06-10? The air flow volume is 1080 m³/h.
What is the speed of the D3G146-AB06-10? The fan speed is 2400 rpm.
What is the protection rating of the D3G146-AB06-10? The protection rating is IP20.
What is the operating temperature range of the D3G146-AB06-10? The fan is rated for -20°C to +60°C.
Does the D3G146-AB06-10 have a sensor output? It provides a PWM sensor output.
What bearing type does the D3G146-AB06-10 use? It uses ball bearings.
What should be checked before ordering a D3G146-AB06-10? Check the 230 V AC supply, the 1.8 A maximum current, the 1080 m³/h airflow requirement, the IP20 environment, and the -20°C to +60°C operating temperature range.
Need help confirming a model?
Send us your part number and technical requirements.
