High Airflow Centrifugal Blower
Delivers up to 571.3 CFM (16.00 m³/min) of airflow at 2050 RPM for demanding cooling and ventilation applications.
1 / 4
Ebmpapst

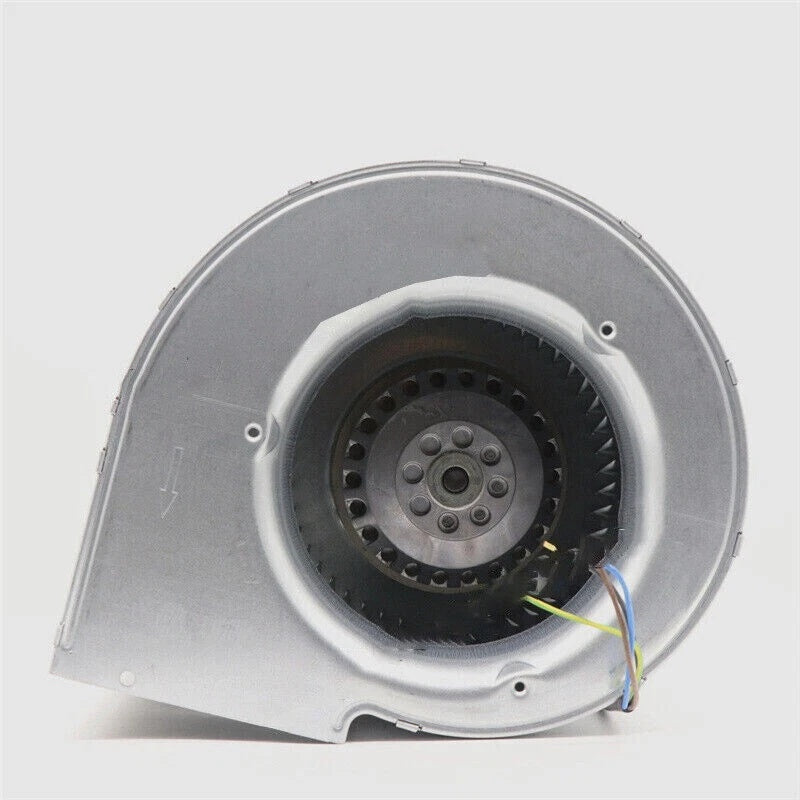

Ebmpapst D2E146-AP47-02 Centrifugal Fan
PRODUCT PRICE
USD
$239.37
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | D2E146-AP47-02 |
| Product Category | Centrifugal Fan |
| Fan Type | Centrifugal Blower |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 300 W |
| Current Rating | 1.3 A |
| Speed | 2050 RPM |
| Air Flow | 571.3 CFM (16.00 m³/min) |
| Noise Level | 63 dB(A) |
| Bearing Type | Ball Bearing |
| Ingress Protection | IP44 |
| Operating Temperature | -25°C to +40°C |
| Dimensions | 219 x 206 x 270 mm |
| Motor Model | M2E068-EC |
| Insulation Class | B |
| Thermal Protection | Thermal Overload Protector |
| Termination | 2 Wire Leads |
| Impeller Material | Metal |
| Housing Material | Metal |
Key Features
230 VAC Operation
Designed for standard 230 VAC single-phase power supplies with 50 Hz frequency.
300 W Motor
Integrates a 300 W motor with a current rating of 1.3 A for sustained industrial operation.
IP44 Protection
IP44 ingress protection supports use in environments where limited dust and water exposure may occur.
Ball Bearing Construction
Ball bearings support the 2050 RPM rotating assembly for smooth operation.
Thermal Overload Protector
Equipped with a thermal overload protector to help safeguard the motor under abnormal thermal conditions.
Applications
- Industrial cooling and ventilation systems
- HVAC air movement applications
- Variable frequency drive cooling
- Electrical cabinet and enclosure ventilation
- Process cooling equipment
- Air handling units requiring centrifugal blowers
- Industrial machinery thermal management
Purchase Information
We support online purchase of the Ebmpapst D2E146-AP47-02 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst D2E146-AP47-02? The D2E146-AP47-02 is a 230 VAC centrifugal blower from Ebmpapst designed for industrial air movement and cooling.
What is the rated voltage of the D2E146-AP47-02? The rated voltage is 230 VAC at 50 Hz.
How much power does the D2E146-AP47-02 consume? The power consumption is 300 W, with a current rating of 1.3 A.
What is the maximum airflow of this blower? The published airflow is 571.3 CFM (16.00 m³/min).
What is the speed of the D2E146-AP47-02? The operating speed is 2050 RPM.
What is the noise level? The noise level is specified as 63 dB(A).
What is the ingress protection rating? The blower has an IP44 ingress protection rating.
What is the operating temperature range? The operating temperature range is -25°C to +40°C.
What type of bearing is used? The D2E146-AP47-02 uses ball bearings.
What motor is used in this blower? It uses the M2E068-EC motor.
What are the dimensions? The dimensions are 219 x 206 x 270 mm.
What should be checked before ordering? Verify the complete model number, voltage, airflow requirement, mounting space, wiring configuration, and operating environment against the installation requirements.
Need help confirming a model?
Send us your part number and technical requirements.
