250 mm Axial Fan
The A2E250-AE65-02 uses a 250 x 250 x 83 mm axial fan frame with a 250 mm impeller.
1 / 1
Ebmpapst

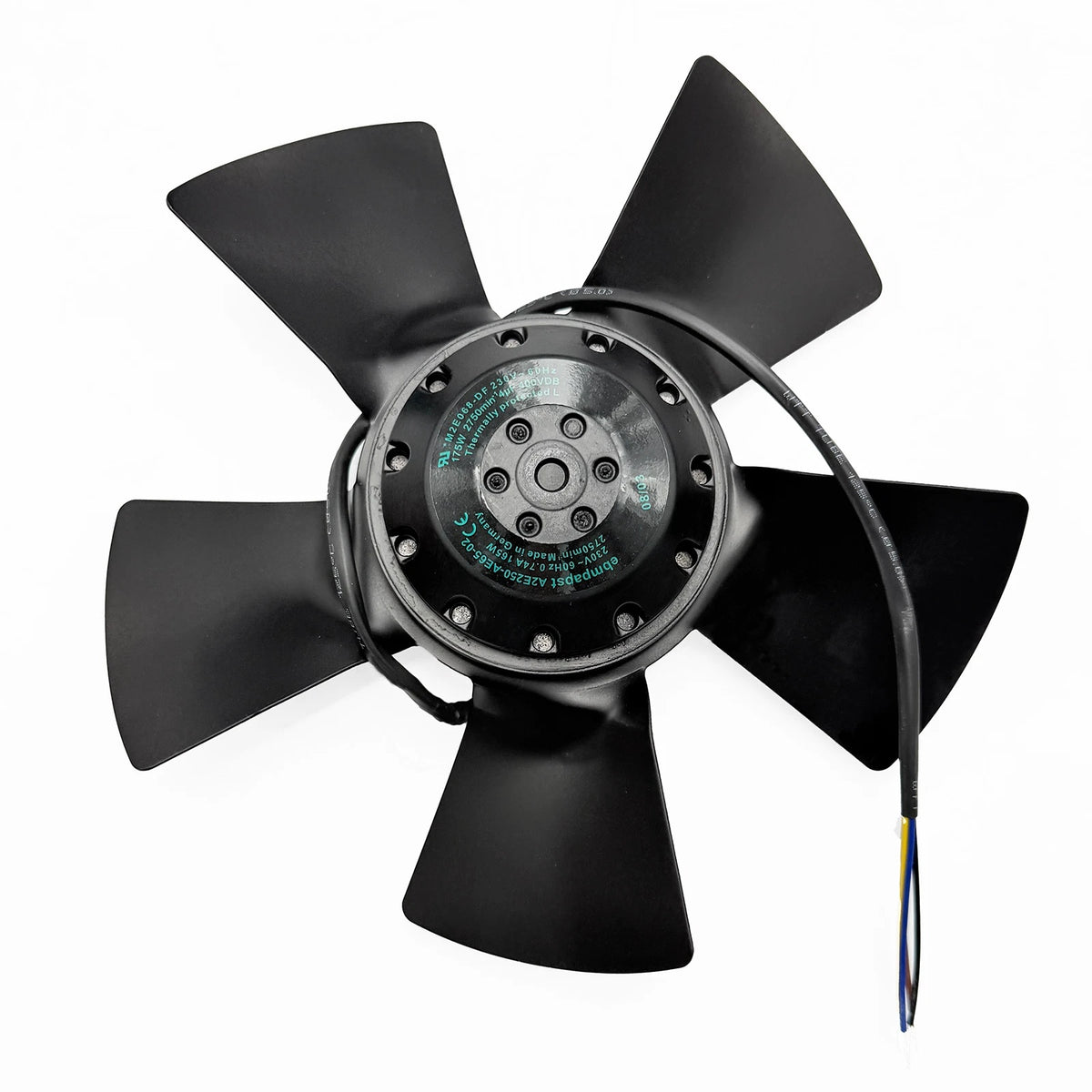

Ebmpapst A2E250-AE65-02 Axial Fan 230VAC 250mm 85W
PRODUCT PRICE
USD
$175.89
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2E250-AE65-02 |
| Product Category | Axial Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 165 W |
| Current | 0.74 A |
| Speed | 2550 RPM |
| Air Flow | 1740 m³/h |
| Static Pressure | 130 Pa |
| Dimensions | 250 x 250 x 83 mm |
| Noise Level | 73 dBA |
| Bearing Type | Ball Bearing |
| Protection Rating | IP44 |
Key Features
IP44 Protection
Published specifications identify an IP44 ingress protection rating for this fan.
2550 RPM Speed
The rated speed is 2550 RPM, producing an air flow of 1740 m³/h.
130 Pa Static Pressure
Maximum static pressure is specified as 130 Pa, with a noise level of 73 dBA.
165 W Power Input
The fan operates on 230 VAC at 50/60 Hz and draws 165 W with a rated current of 0.74 A.
Applications
- Industrial enclosure cooling
- HVAC condenser airflow
- Control cabinet ventilation
- Power electronics thermal management
- Dusty or damp environment cooling
- Machine ventilation
- Large axial fan replacement
- 230 VAC high-airflow systems
Purchase Information
We support online purchase of the Ebmpapst A2E250-AE65-02 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst A2E250-AE65-02? The A2E250-AE65-02 is an AC axial fan with a 250 mm impeller in a 250 x 250 x 83 mm frame.
What voltage does the A2E250-AE65-02 require? The fan operates on 230 VAC at 50/60 Hz.
What is the power consumption of the A2E250-AE65-02? The power input is rated at 165 W.
What is the current draw of the A2E250-AE65-02? The rated current is 0.74 A.
What is the speed of the A2E250-AE65-02? The rated speed is 2550 RPM.
What is the air flow of the A2E250-AE65-02? Air flow is rated at 1740 m³/h.
What is the static pressure of the A2E250-AE65-02? Maximum static pressure is 130 Pa.
What is the noise level of the A2E250-AE65-02? The sound pressure level is listed as 73 dBA.
What bearing type does the A2E250-AE65-02 use? The fan uses a ball bearing.
What is the protection rating of the A2E250-AE65-02? The ingress protection rating is IP44.
What are the dimensions of the A2E250-AE65-02? The fan measures 250 x 250 x 83 mm.
What should be checked before ordering the A2E250-AE65-02? Verify the 230 VAC supply, 165 W power budget, 1740 m³/h airflow, 130 Pa system resistance, IP44 environmental suitability, and the 250 x 250 x 83 mm mounting envelope.
