400 V AC Axial Design
Operates on a 400 V AC supply for industrial axial air movement.
Ebmpapst

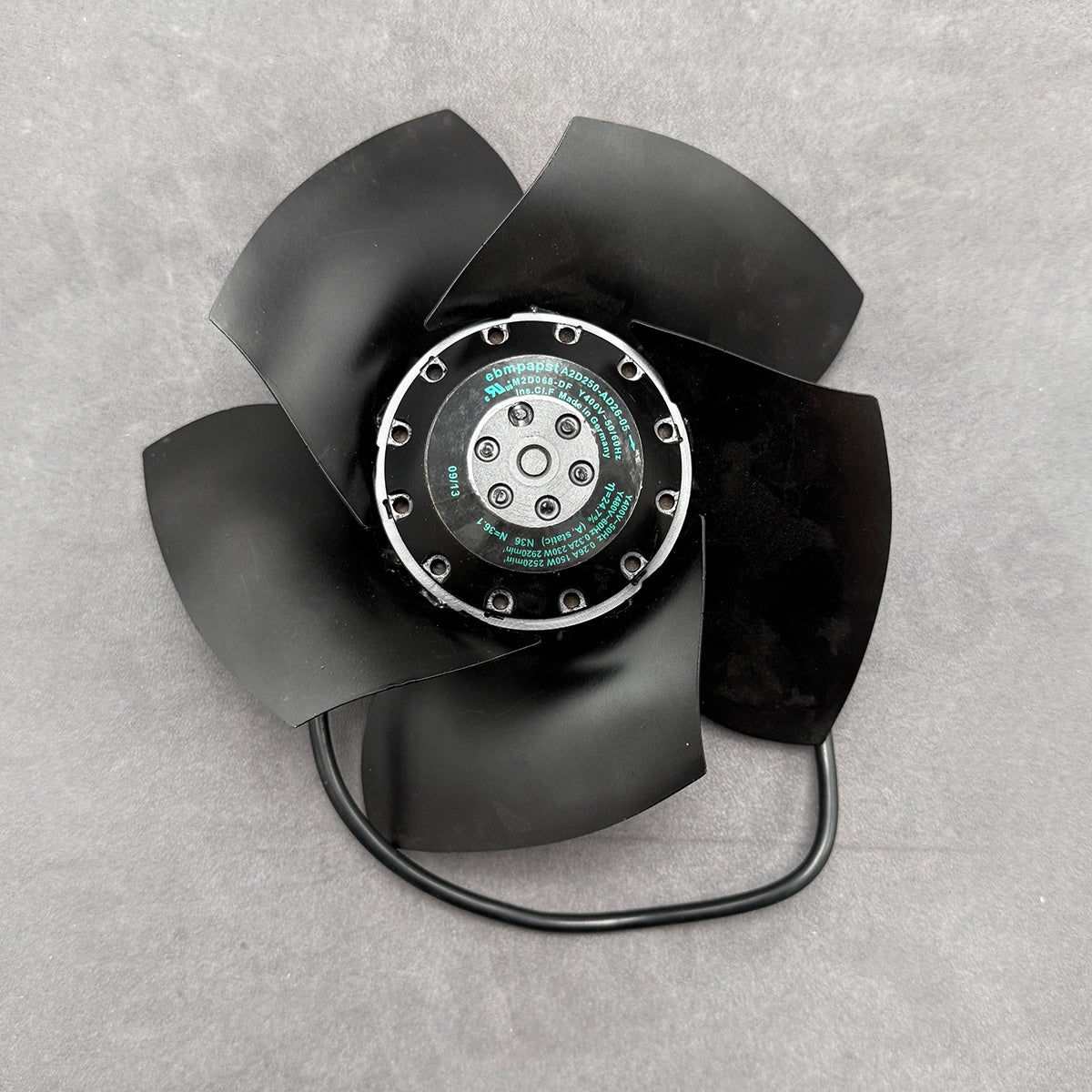

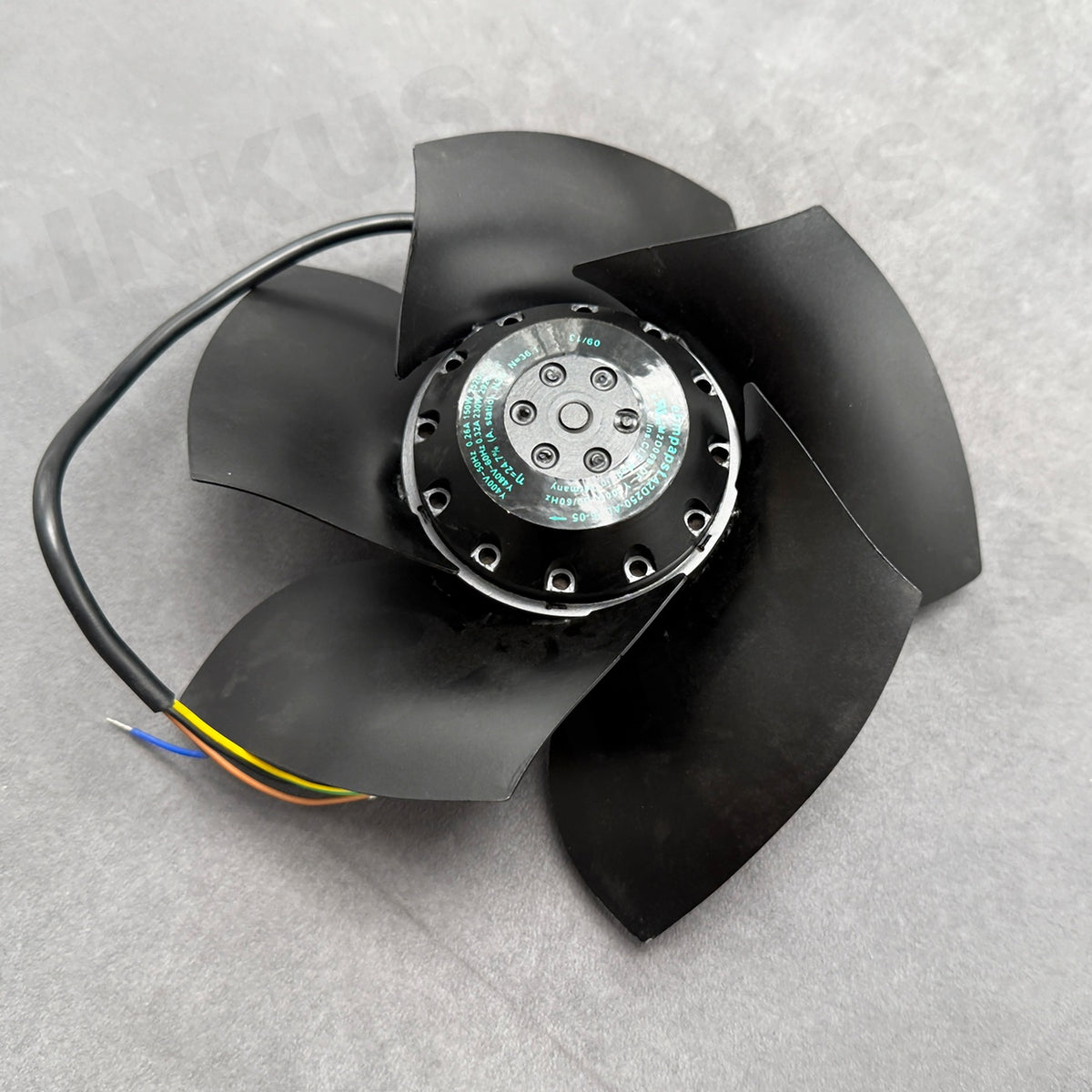

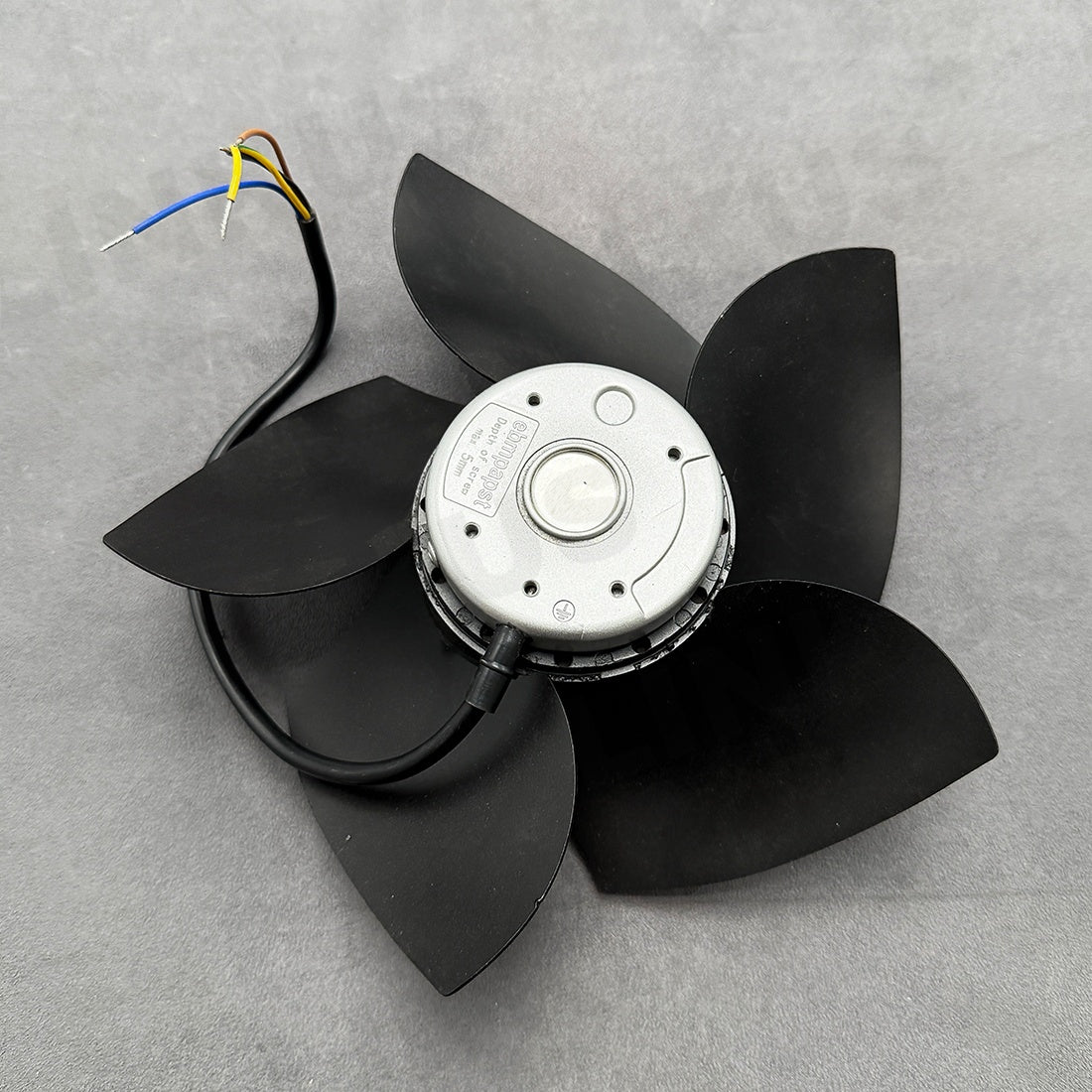

Ebmpapst A2D250-AD26-05 Axial Fan 400V 250mm 120W
$233.64
Available
PRODUCT GALLERY
01 / 3
Product images for part identification
Ebmpapst
Ebmpapst A2D250-AD26-05 Axial Fan 400V 250mm 120W
PRODUCT PRICE
USD
$233.64
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2D250-AD26-05 |
| Product Category | Axial Fan |
| Nominal Voltage | 400 V AC |
| Fan Size | 250 mm |
| Speed | 2920 rpm |
| Protection Rating | IP44 |
| Bearing Type | Ball Bearing |
| Connection | 4 Lead Wires |
Key Features
250 mm Fan Diameter
Uses a 250 mm axial impeller for moving air through larger enclosure openings and heat exchangers.
2920 rpm Speed
Runs at 2920 rpm to provide forced-air cooling in drive and power electronics cabinets.
IP44 Protection
Rated IP44 for protection against solid objects larger than 1 mm and water splashes from any direction.
Ball Bearing Construction
Uses ball bearings for the fan shaft to support continuous industrial operation.
Applications
- Variable frequency drive cooling
- Industrial control cabinet ventilation
- Power electronics thermal management
- Heat exchanger air movement
- Drive enclosure cooling
- Automation panel ventilation
- General industrial axial cooling
Purchase Information
We support online purchase of the EBM A2D250-AD26-05 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the EBM A2D250-AD26-05? The A2D250-AD26-05 is a 250 mm axial fan rated for 400 V AC operation.
What is the nominal voltage of the A2D250-AD26-05? The fan is designed for a 400 V AC supply.
What is the speed of the A2D250-AD26-05? The fan speed is 2920 rpm.
What is the fan size of the A2D250-AD26-05? The fan diameter is 250 mm.
What is the protection rating of the A2D250-AD26-05? The protection rating is IP44.
What bearing type does the A2D250-AD26-05 use? It uses ball bearings.
How many lead wires does the A2D250-AD26-05 have? The fan has 4 lead wires.
What should be checked before ordering an A2D250-AD26-05? Check the 400 V AC supply, the 250 mm mounting space, the 2920 rpm operating point, the IP44 environment, and the 4-wire electrical connection.
