119 x 119 x 25 mm Format
The compact axial fan has a documented overall size of 119 x 119 x 25 mm for equipment with matching installation dimensions.
Ebmpapst
Ebmpapst 9956L AC Axial Compact Fan 230VAC 119x119x25mm
$77.53
Available
PRODUCT GALLERY
01 / 4

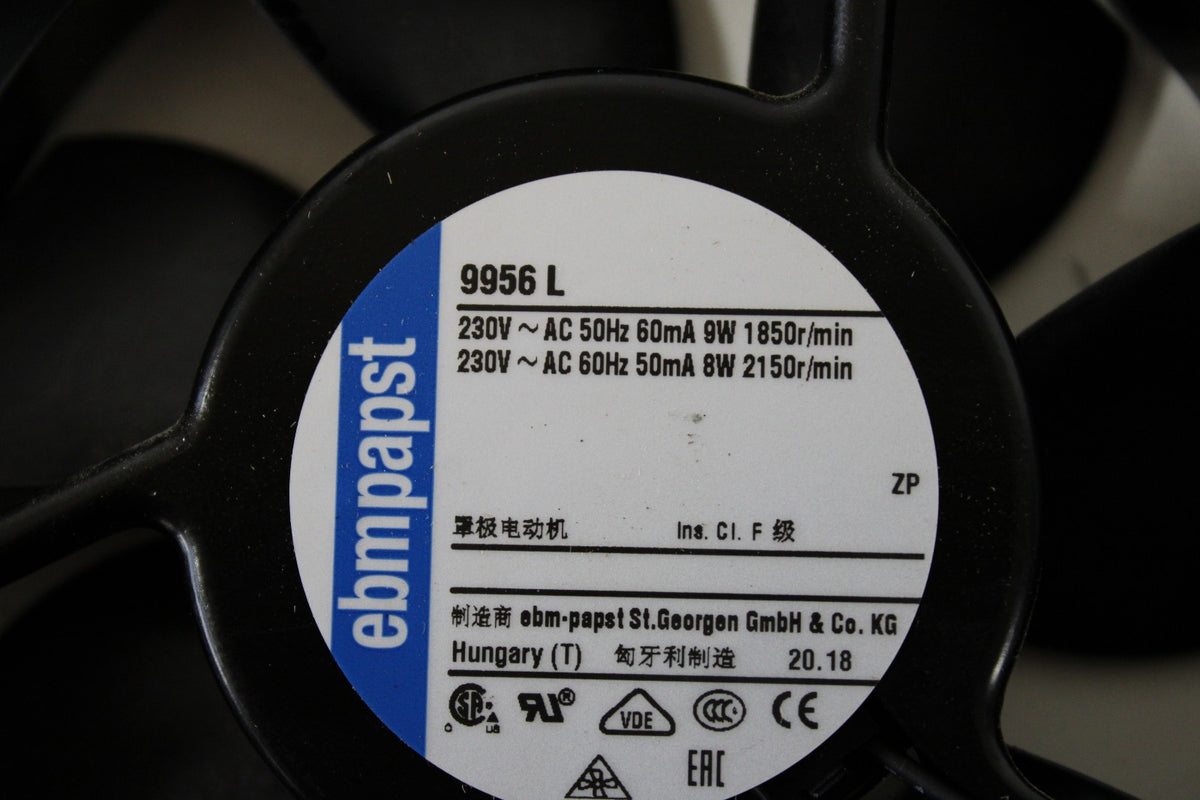

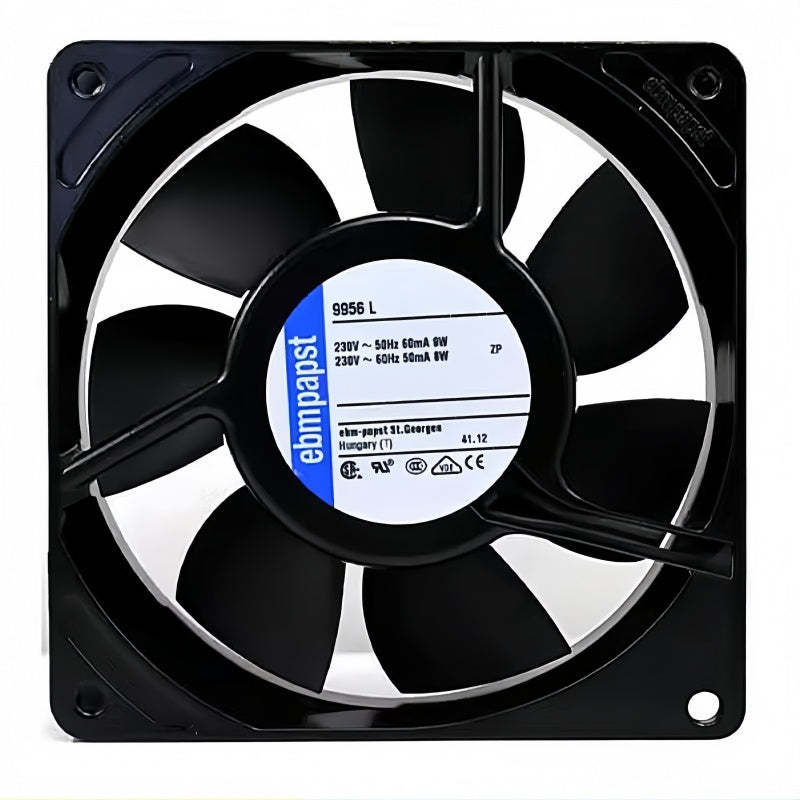

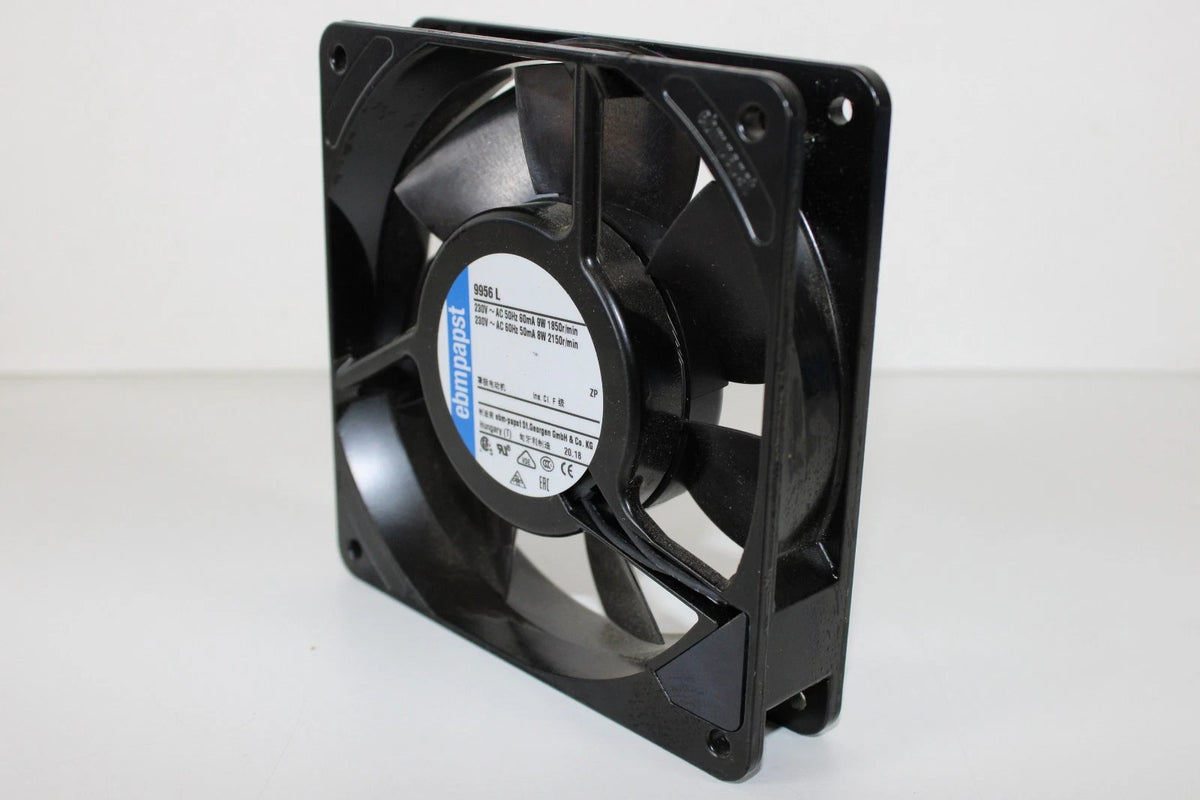

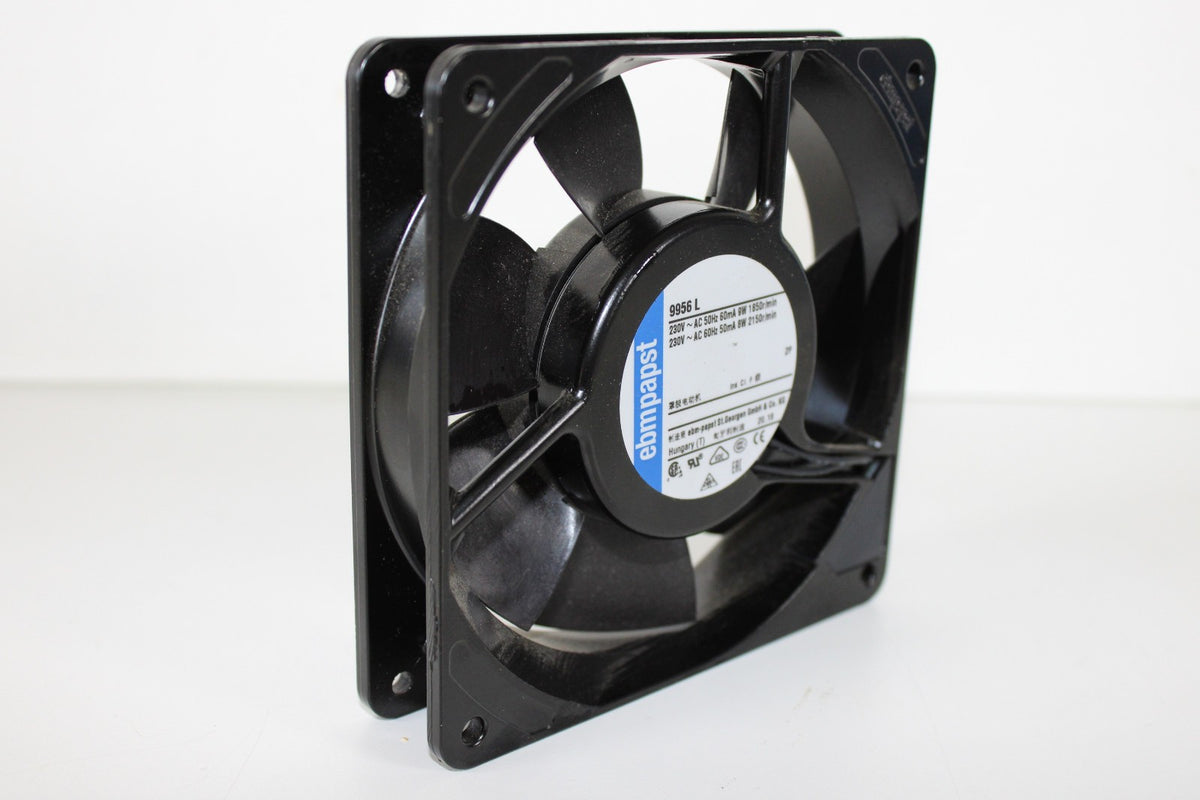

Product images for part identification
Ebmpapst
Ebmpapst 9956L AC Axial Compact Fan 230VAC 119x119x25mm
PRODUCT PRICE
USD
$77.53
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 9956L |
| Product Category | AC Axial Compact Fan |
| Fan Type | Axial Compact Fan |
| Rated Voltage | 230 VAC |
| Rated Frequency | 50 Hz |
| Rated Speed | 1850 RPM |
| Power Input | 9.5 W |
| Airflow | 84 m³/h |
| Dimensions | 119 x 119 x 25 mm |
| Weight | 0.325 kg |
Key Features
230 VAC Operation
Designed for a nominal 230 VAC supply at the documented rated frequency of 50 Hz.
84 m³/h Airflow
The manufacturer specifies an airflow of 84 m³/h under its stated test conditions.
1850 RPM Speed
The published nominal speed is 1850 revolutions per minute at 50 Hz.
Ball Bearing Construction
The fan uses a ball-bearing arrangement, as specified in the manufacturer technical documentation.
Die-Cast Aluminum Housing
The housing is made from die-cast aluminum, and the impeller uses mineral-reinforced PA plastic.
Applications
- Industrial equipment ventilation
- Electrical enclosure air circulation
- Electronic equipment cooling
- Control cabinet ventilation
- Commercial equipment cooling
- Compact machinery ventilation
- Industrial control equipment airflow
- Equipment requiring axial air movement
Purchase Information
We support online purchase of the Ebmpapst 9956L AC Axial Compact Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 9956L?
It is an AC axial compact fan designed for equipment ventilation and air movement.
What is the rated voltage of 9956L?
The manufacturer specifies a nominal supply voltage of 230 VAC.
What frequency is listed for this fan?
The published nominal data specify 50 Hz.
What is the rated speed?
The specified speed is 1850 RPM.
What is the power input?
The documented power input is 9.5 W.
What airflow does the fan provide?
The manufacturer lists an airflow of 84 m³/h under the stated test conditions.
What are the dimensions of 9956L?
The published dimensions are 119 x 119 x 25 mm.
What bearing type does this model use?
The 9956L uses ball bearings.
What materials are used in its construction?
The housing is made from die-cast aluminum, and the impeller is made from mineral-reinforced PA plastic.
What is the operating ambient temperature range?
The manufacturer lists a minimum ambient temperature of -40°C and a maximum of +80°C.
What should be checked before ordering?
Verify the full model number, supply voltage, frequency, dimensions, mounting arrangement, airflow requirements and electrical connection details.
What should be checked before installing this fan in existing equipment?
Check the available mounting space, electrical supply, airflow requirements, connection method and ambient temperature against the manufacturer's technical documentation.
Need help confirming a model?
Send us your part number and technical requirements.
