80 mm AC Axial Fan
Compact 80 x 80 x 38 mm axial fan for space-constrained cooling applications in electrical and electronic equipment.
1 / 1
Ebmpapst

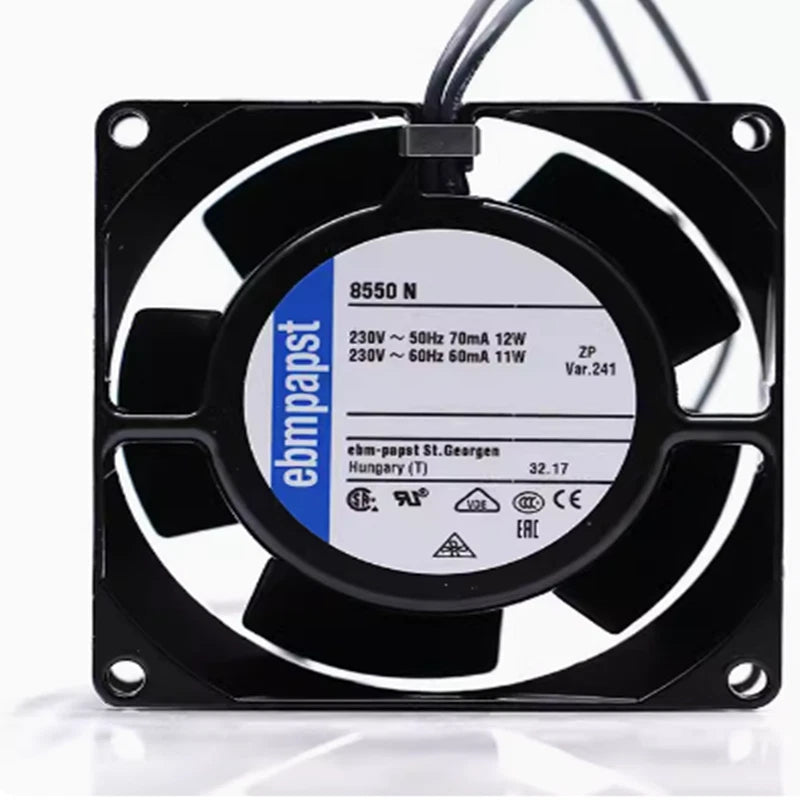

Ebmpapst 8500N Axial Fan
PRODUCT PRICE
USD
$29.35
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8500N |
| Product Category | Axial Fan |
| Product Family | 8000 N |
| Nominal Voltage | 230 VAC |
| Power Consumption | 12 W |
| Speed | 2700 RPM |
| Air Flow | 50 m³/h |
| Frame Dimensions | 80 x 80 x 38 mm |
| Noise Level | 30 dB |
| Protection Rating | IP20 |
Key Features
230 VAC Operation
Runs on standard 230 VAC AC power, eliminating the need for an external DC power supply in many installations.
12 W Power Consumption
Published data identifies 12 W power consumption at 2700 RPM, with approximately 50 m³/h air flow.
Low Noise Output
The fan is specified at 30 dB, making it appropriate for noise-sensitive enclosure cooling where airflow demand is moderate.
IP20 Rated
Provides protection against solid objects larger than 12.5 mm, suitable for use inside protected cabinets and control panels.
Applications
- Compact electrical enclosure cooling
- Control panel ventilation
- Power supply thermal management
- Small equipment forced-air cooling
- Electronic component heat dissipation
- Industrial instrumentation cooling
Purchase Information
We support online purchase of the Ebmpapst 8500N Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8500N? The 8500N is an 80 mm AC axial fan from the 8000 N series, used for cooling and ventilation in compact industrial equipment.
What voltage does the 8500N use? It operates on 230 VAC.
What is the power consumption? Published specifications list 12 W power consumption for the 230 VAC version.
What is the air flow and speed? The fan delivers approximately 50 m³/h at 2700 RPM.
What are the dimensions? The fan frame is 80 x 80 x 38 mm.
What is the noise level? The documented noise level is 30 dB.
What is the protection rating? The 8500N is rated IP20.
Is this fan suitable for enclosure cooling? Yes, it is commonly used for cooling electrical enclosures and control panels after verifying airflow, voltage, and space requirements.
Need help confirming a model?
Send us your part number and technical requirements.
