80 mm DC Axial Fan
Compact 80 x 80 x 25.4 mm axial fan for space-efficient cooling in electronic and electrical enclosures.
1 / 3
Ebmpapst

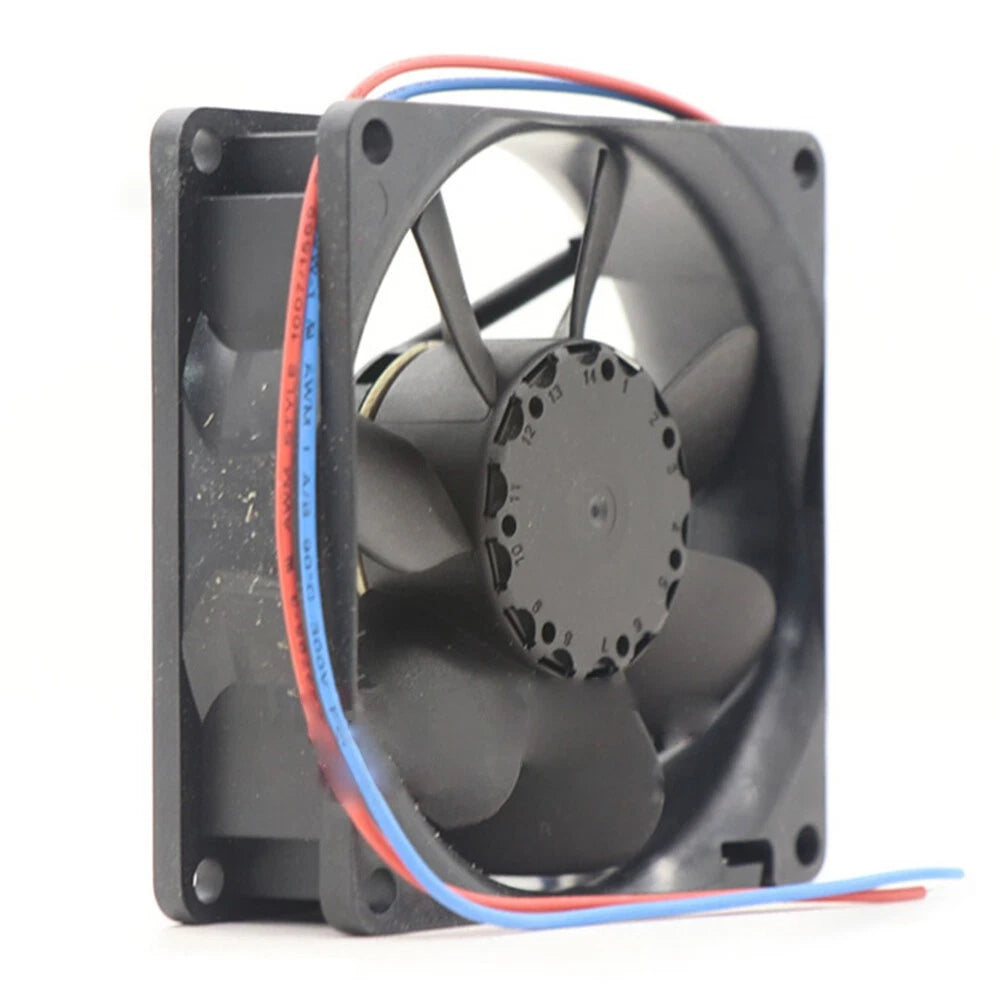

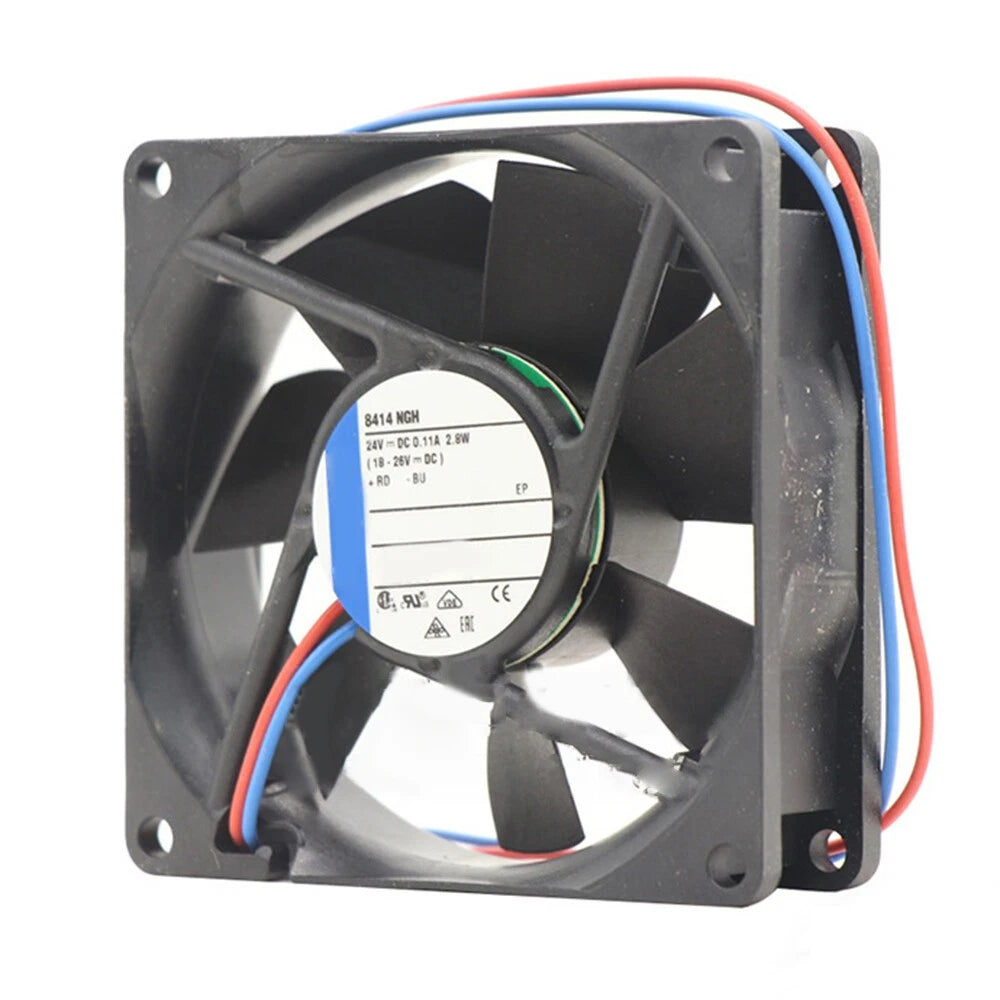

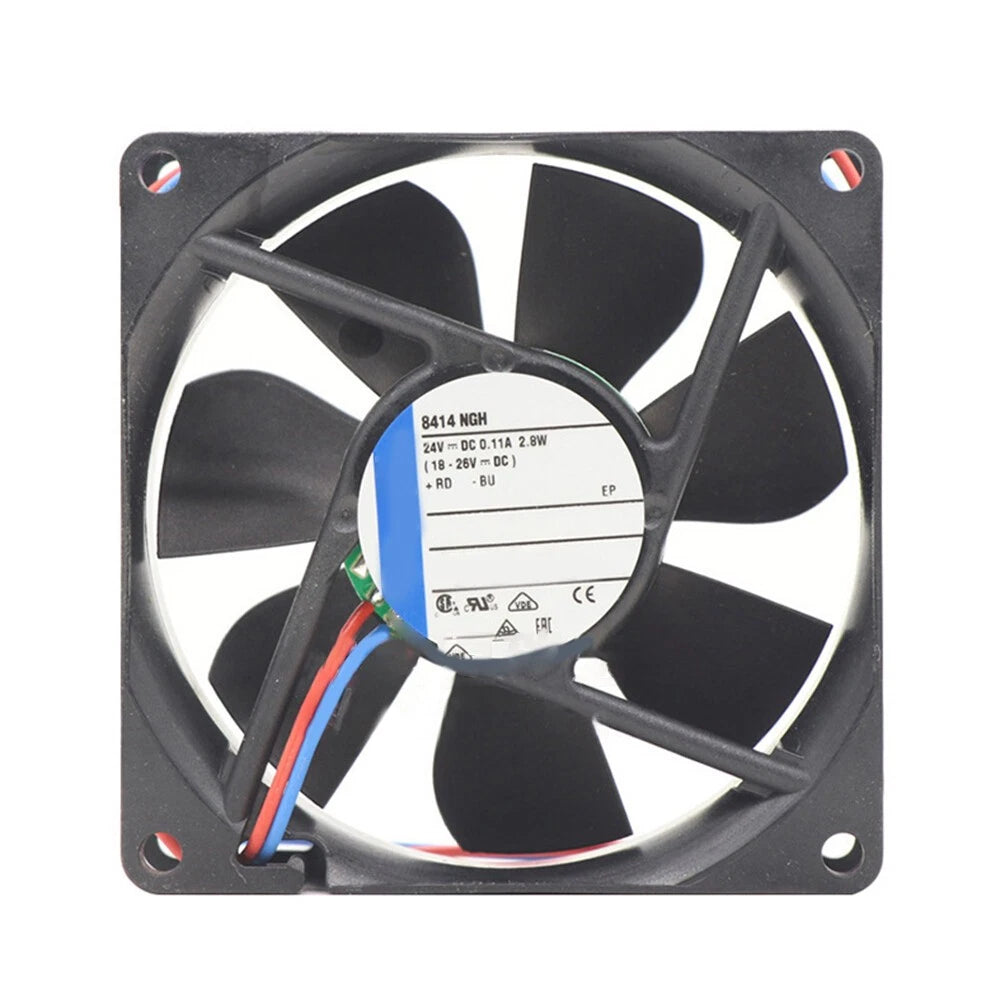

Ebmpapst 8414NGH Axial Fan
PRODUCT PRICE
USD
$23.78
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8414NGH |
| Product Category | Axial Fan |
| Product Family | 8400 N |
| Nominal Voltage | 24 VDC |
| Voltage Range | 18-28 VDC |
| Power Consumption | 2.6 W |
| Speed | 3600 RPM |
| Air Flow | 46.5 CFM (79 m³/h) |
| Frame Dimensions | 80 x 80 x 25.4 mm |
| Noise Level | 37 dBA |
| Bearing Type | Sintec Sleeve Bearing |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +70°C |
Key Features
24 VDC Operation
Nominal 24 VDC input with an 18-28 VDC range, suitable for DC-powered control panels and equipment.
3600 RPM Performance
Delivers 46.5 CFM (approximately 79 m³/h) at 3600 RPM with 2.6 W power consumption.
37 dBA Noise Level
Moderate noise output makes it appropriate for applications where acoustic comfort is a consideration.
Sintec Bearing System
Uses Sintec sleeve bearing construction for rotational support in continuous-duty cooling applications.
Applications
- Electronic enclosure cooling
- Control panel ventilation
- Power supply thermal management
- DC-powered industrial equipment cooling
- Telecom and data equipment airflow
- Instrumentation heat dissipation
Purchase Information
We support online purchase of the Ebmpapst 8414NGH Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8414NGH? It is an 80 mm DC axial fan from the 8400 N series, used for cooling electronic and electrical equipment.
What voltage does the 8414NGH use? It operates on 24 VDC nominal, with an operating range of 18-28 VDC.
What is the speed and airflow? The fan runs at 3600 RPM and delivers 46.5 CFM (approximately 79 m³/h).
What is the power consumption? Published specifications list 2.6 W power consumption.
What is the noise level? The 8414NGH is specified at 37 dBA.
What are the dimensions? The fan measures 80 x 80 x 25.4 mm.
What bearing type does it use? It uses a Sintec sleeve bearing.
What is the protection rating? The fan is rated IP20.
