80 x 80 x 32 mm Frame
The 8314HL is a DC axial fan in the Ebmpapst 8300 series with an 80 x 80 x 32 mm frame.
1 / 1
Ebmpapst

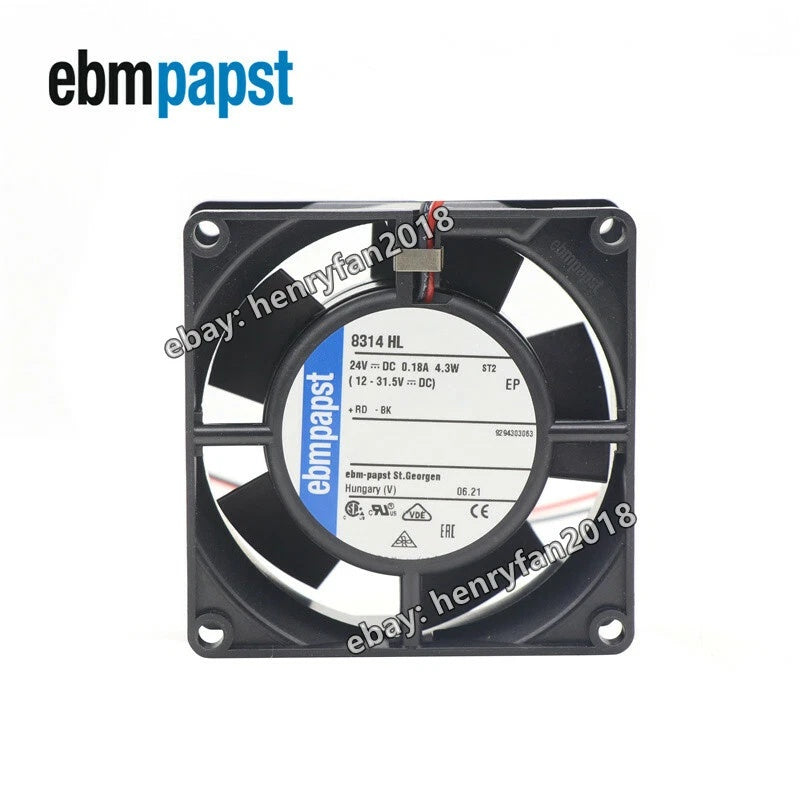

Ebmpapst 8314HL Axial Fan 24VDC 80x80x32mm 4.3W
PRODUCT PRICE
USD
$55.25
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8314HL |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12-28 VDC |
| Power Consumption | 4.3 W |
| Speed | 4200 RPM |
| Air Flow | 67 m³/h (39.4 CFM) |
| Noise Level | 43 dBA |
| Bearing Type | Ball Bearing |
| Dimensions | 80 x 80 x 32 mm |
Key Features
24 VDC with Wide Voltage Range
The nominal voltage is 24 VDC, with an operating voltage range of 12 to 28 VDC.
4200 RPM Speed
The rated speed is 4200 RPM, producing an air flow of 67 m³/h (39.4 CFM).
Ball Bearing
The fan uses a ball bearing construction according to published data.
4.3 W Power Consumption
Power input is rated at 4.3 W with a sound pressure level of 43 dBA.
Applications
- Industrial enclosure cooling
- Control cabinet ventilation
- Power supply thermal management
- Compact equipment cooling
- Machine airflow
- 24 VDC cooling systems
- Axial fan replacement
- General electronics cooling
Purchase Information
We support online purchase of the Ebmpapst 8314HL Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8314HL? The 8314HL is a DC axial fan in the Ebmpapst 8300 series with an 80 x 80 x 32 mm frame.
What voltage does the 8314HL require? The nominal voltage is 24 VDC, with an operating voltage range of 12 to 28 VDC.
What is the power consumption of the 8314HL? The power consumption is 4.3 W.
What is the speed of the 8314HL? The rated speed is 4200 RPM.
What is the air flow of the 8314HL? Air flow is rated at 67 m³/h (39.4 CFM).
What is the noise level of the 8314HL? The sound pressure level is listed as 43 dBA.
What bearing type does the 8314HL use? The fan uses a ball bearing.
What are the dimensions of the 8314HL? The fan measures 80 x 80 x 32 mm.
What should be checked before ordering the 8314HL? Confirm the 24 VDC supply within the 12-28 VDC range, 4.3 W power budget, 67 m³/h airflow, 43 dBA acoustic level, and the 80 x 80 x 32 mm mounting envelope.
