24VDC 80mm Axial Fan
24VDC nominal voltage with a 12 to 28VDC range in an 80 x 80 x 32 mm frame.
1 / 4
Ebmpapst

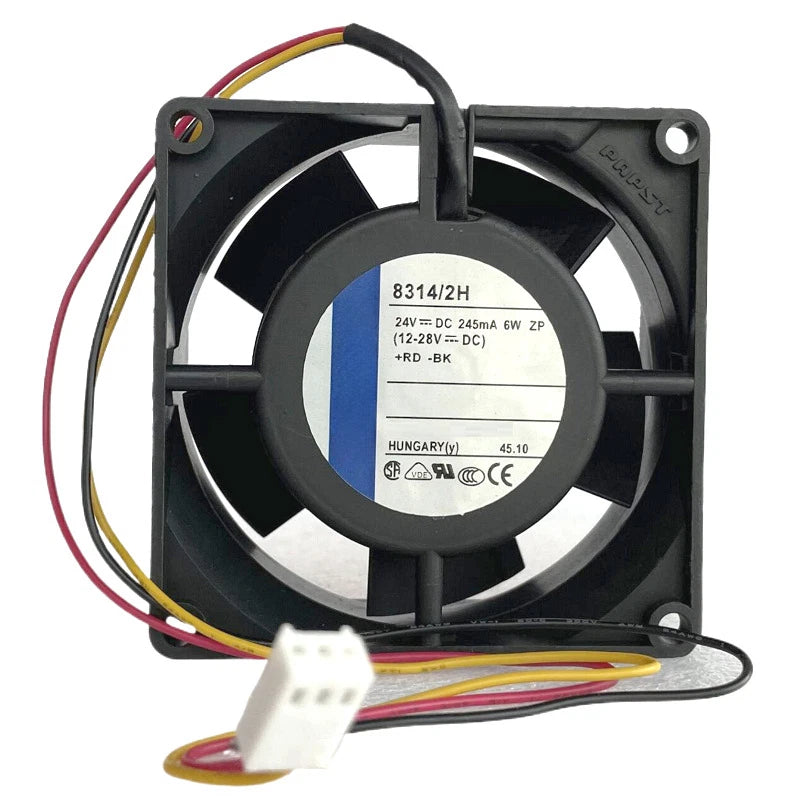

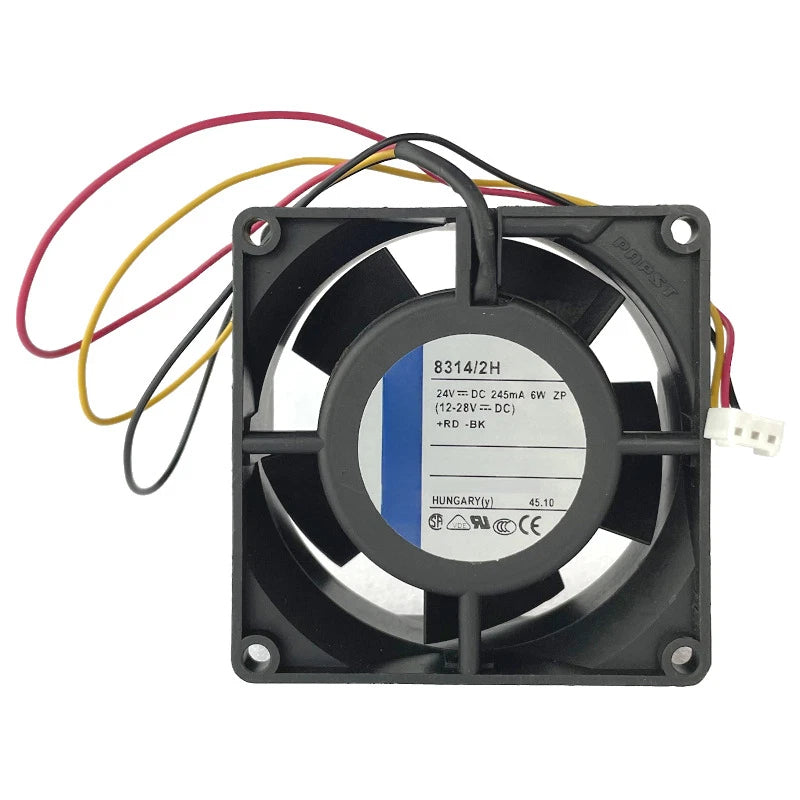

Ebmpapst 8314/2H Axial Fan 24VDC 7W 5000 rpm
PRODUCT PRICE
USD
$20.54
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8314/2H |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12 to 28 VDC |
| Speed | 5000 rpm |
| Dimensions | 80 x 80 x 32 mm |
| Air Flow | 80 m³/h (1.334 m³/min) |
| Sound Level | 48 dBA |
| Bearing Type | Ball Bearing |
| Connection | 3 Lead Wires |
Key Features
5000 rpm Speed
Rated speed of 5000 rpm for forced-air cooling in compact equipment.
80 m³/h Air Flow
Delivers 80 m³/h (1.334 m³/min) air flow from an 80mm frame.
Ball Bearing Construction
Ball bearing design supports continuous-duty axial fan operation.
3-Wire Connection
Three lead wires are specified for electrical connection.
Applications
- Electronic enclosure cooling
- Control cabinet ventilation
- Power supply thermal management
- Industrial instrumentation cooling
- Network and telecom equipment cooling
- Compact machinery forced-air cooling
Purchase Information
We support online purchase of the Ebmpapst 8314/2H Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8314/2H? The 8314/2H is a 24VDC axial fan with an 80 x 80 x 32 mm frame.
What is the nominal voltage? The nominal voltage is 24 VDC, with a range of 12 to 28 VDC.
What is the speed and air flow? The speed is 5000 rpm and the air flow is 80 m³/h (1.334 m³/min).
What is the sound level? The sound level is 48 dBA.
What bearing type is used? The fan uses a ball bearing.
What type of connection does it have? It has 3 lead wires.
What are typical applications? It is used for electronic enclosure cooling, control cabinet ventilation, and power supply thermal management.
Need help confirming a model?
Send us your part number and technical requirements.
