24VDC 80mm Axial Fan
24VDC nominal voltage with an 18 to 26.4VDC range in an 80 x 80 x 38 mm frame.
1 / 1
Ebmpapst

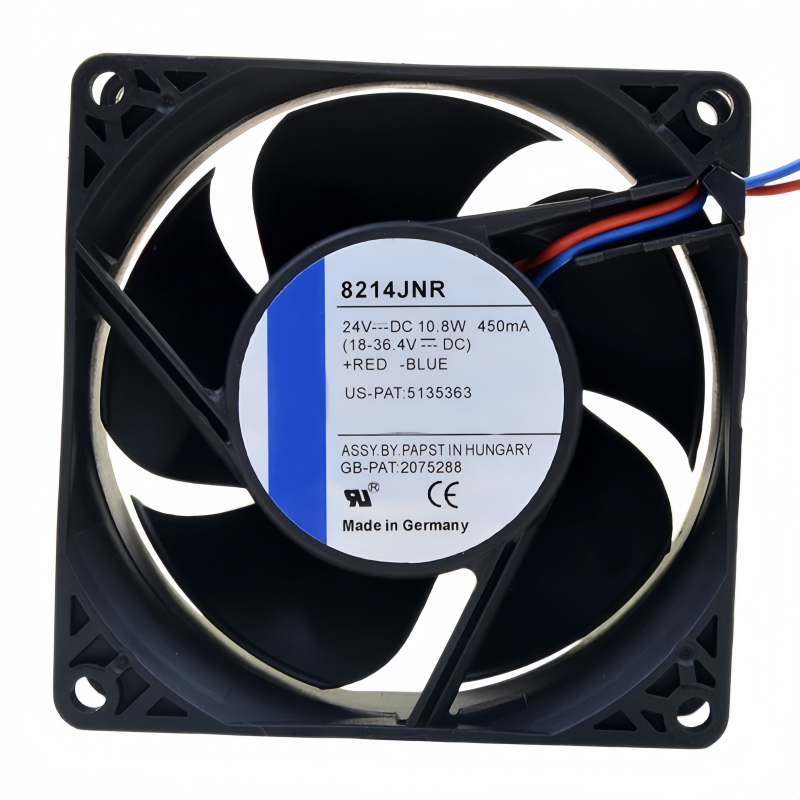

Ebmpapst 8214JNR Axial Fan 24VDC 5.5W 3050 rpm
PRODUCT PRICE
USD
$61.40
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8214JNR |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 18 to 26.4 VDC |
| Power Consumption | 10 W |
| Speed | 8400 rpm |
| Dimensions | 80 x 80 x 38 mm |
| Air Flow | 77.7 CFM (2.18 m³/min) |
| Connection | 2 Wire Leads |
| Bearing Type | Ball Bearing |
Key Features
8400 rpm High-Speed Operation
Rated speed of 8400 rpm for high-static-pressure cooling in compact installations.
77.7 CFM Air Flow
Delivers 77.7 CFM (2.18 m³/min) air flow from an 80mm frame.
10 W Power Input
Power consumption is specified at 10 W with a 24VDC supply.
2-Wire Lead Connection
Simple 2-wire lead termination for DC power connection.
Applications
- Compact electronic enclosure cooling
- Control cabinet ventilation
- Power supply cooling
- Telecom and network equipment thermal management
- Industrial instrumentation cooling
- Space-constrained forced-air cooling systems
Purchase Information
We support online purchase of the Ebmpapst 8214JNR Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8214JNR? The 8214JNR is a 24VDC axial fan with an 80 x 80 x 38 mm frame.
What is the nominal voltage? The nominal voltage is 24 VDC, with a range of 18 to 26.4 VDC.
What is the speed? The speed is 8400 rpm.
What is the air flow? The air flow is 77.7 CFM (2.18 m³/min).
What is the power consumption? Power consumption is 10 W.
What type of connection does it have? It has 2 wire leads.
What bearing type is used? The fan uses a ball bearing.
What are typical applications? It is used for compact electronic enclosure cooling, control cabinet ventilation, and power supply cooling.
